NSN 6685-00-814-5271 MS24537, MS245371, MS24537-1

Product Details | ELECTRICAL RESISTANCE TEMPERATURE TRANSMITTER

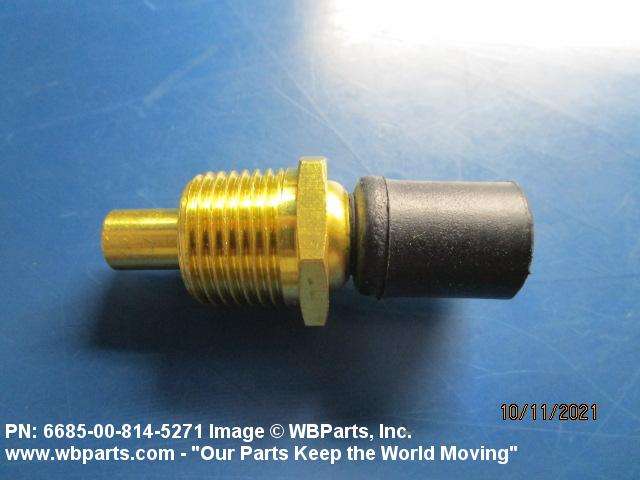

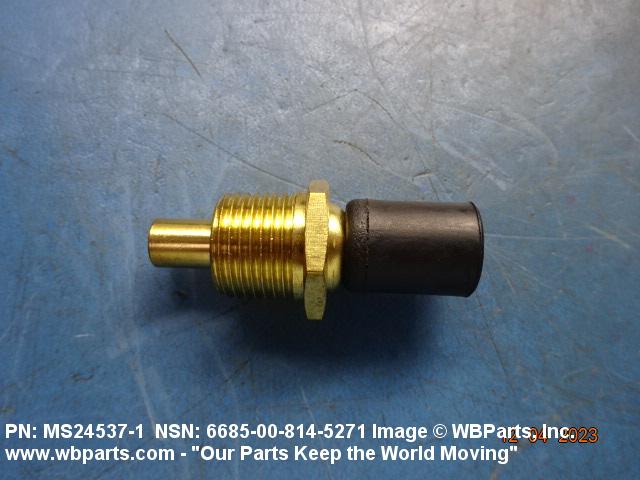

6685-00-814-5271 A device having a temperature sensing element whose electrical resistance varies with a change in temperature. It is designed to transmit information relative to temperature to an INDICATOR, TEMPERATURE, ELECTRICAL RESISTANCE. It may be a component part of a THERMOMETER, INDICATING, RESISTANCE; THERMOMETER, RECORDING, RESISTANCE. Excludes THERMOCOUPLE (as modified).

Part Alternates: MS24537, MS245371, MS24537-1, M284973R91, MKB48612159, MKB4861-2-159, B5562, E012936 , E316431, E3164-31, JHP85431, JHP85-431, MILI10986, MILI10986F, MIL-I-10986F, TC151439, TC15-1439, ELM8, 66858145271 , 6685PL0655638, 719R1 , 7389566, 7416607, 804873, 82302821, 8376489, 914882, 02000-4611, 1018G1, 10500714, 10A17018, 124085, 13207E2948FN1, 13216E3177, 1391939, 142511, 1512423, 1512779, 1512799, 164993R91, 1700416, 192619, 250261B, 270116, 4444708, 481397, 487609, 501817, 506A, 506AE, 506-AE, 506S, 526782, 5293703, 53620AS, 6400587, 6489036, 64MT127, 6685-00-814-5271, 00-814-5271, 6685008145271, 020004611, 008145271

Instruments and Laboratory Equipment | Pressure, Temperature, and Humidity Measuring and Controlling Instruments

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
66	01 JAN 1962	00-814-5271	20340 ( TRANSMITTER, TEMPERATURE, ELECTRICAL RESISTANCE )

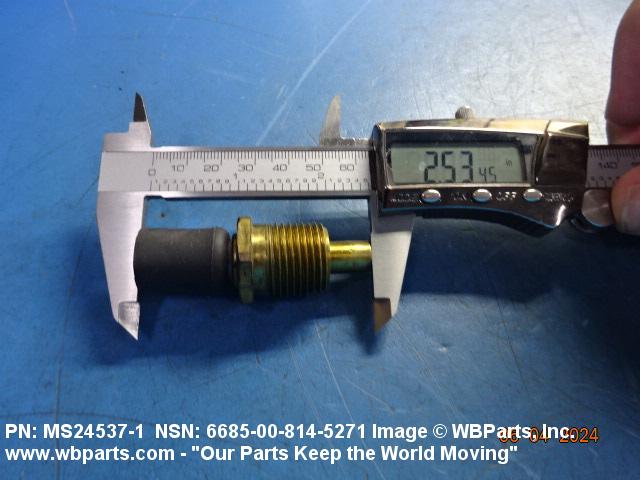

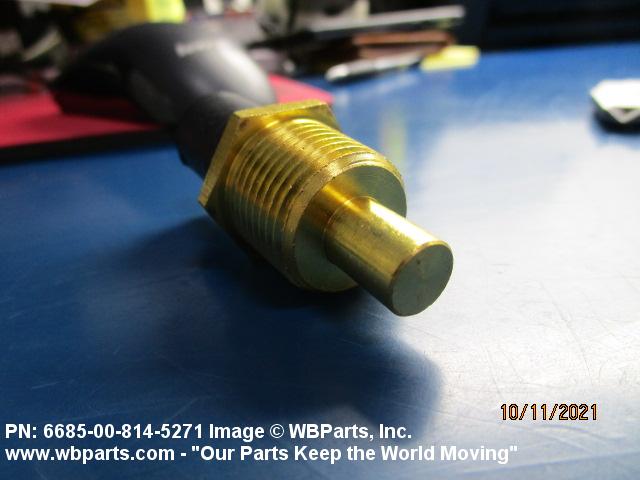

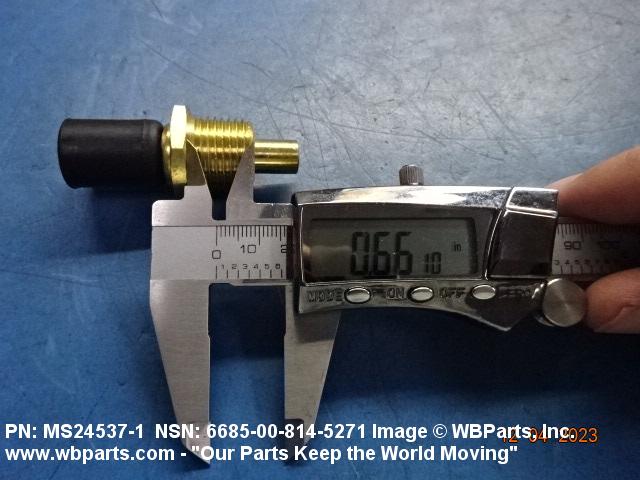

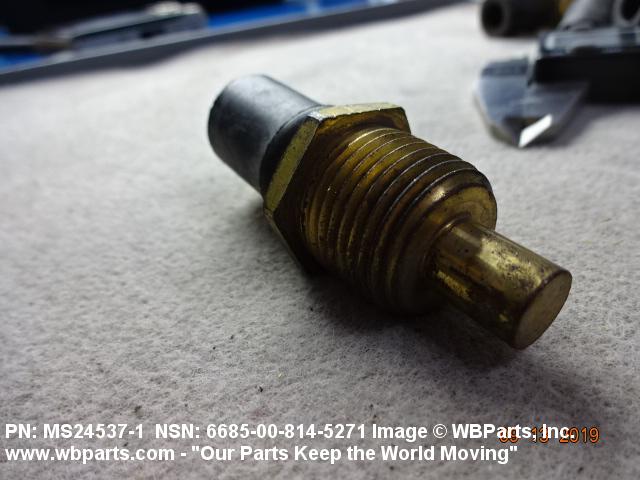

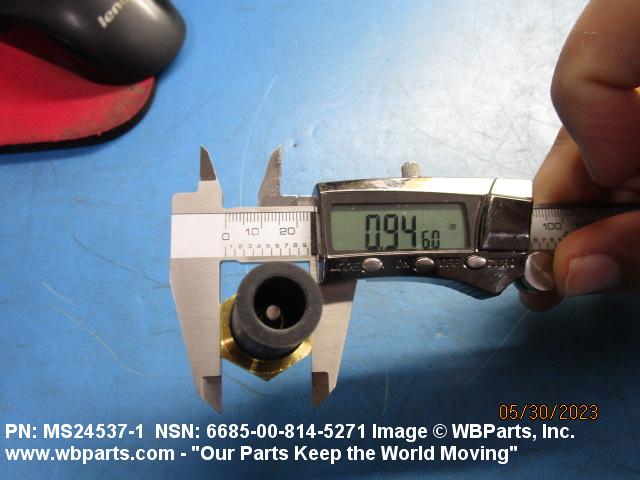

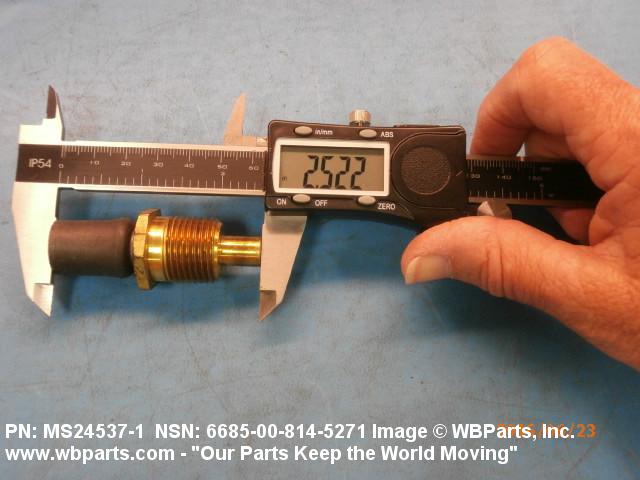

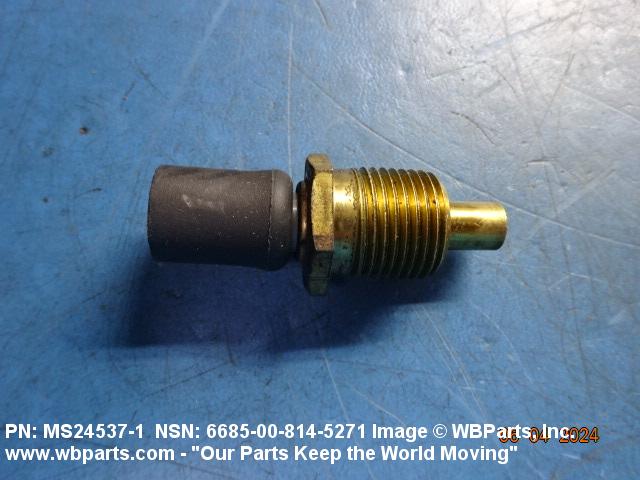

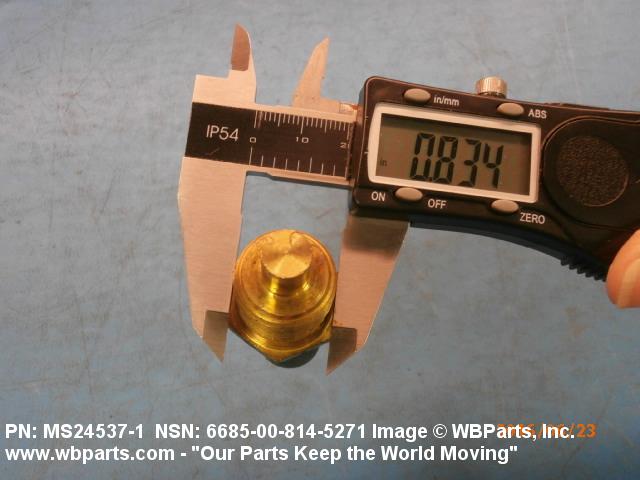

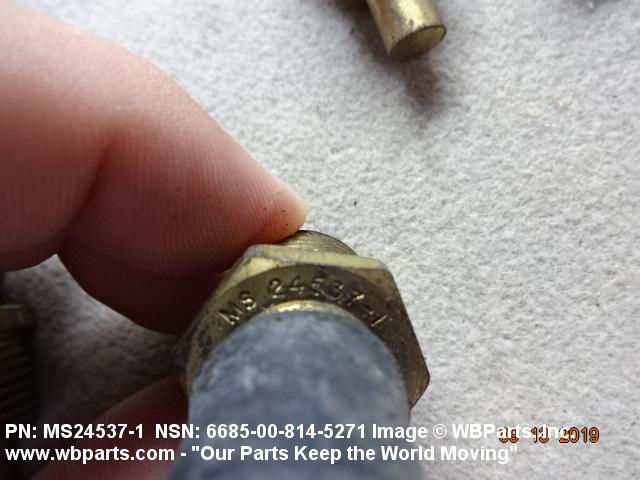

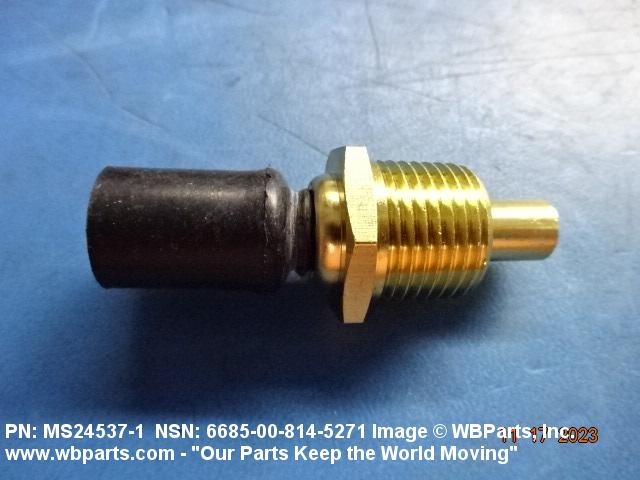

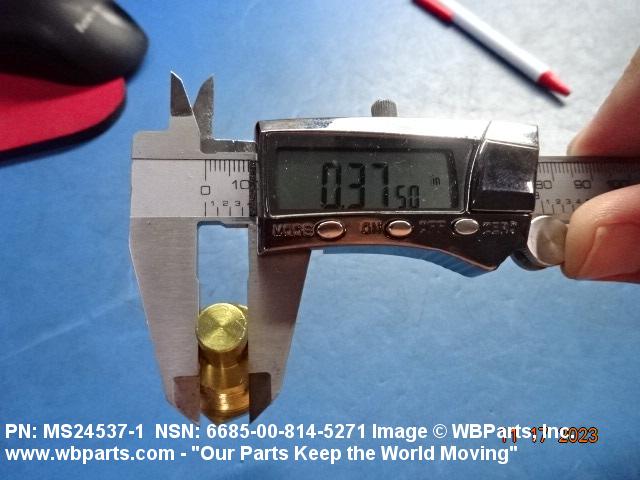

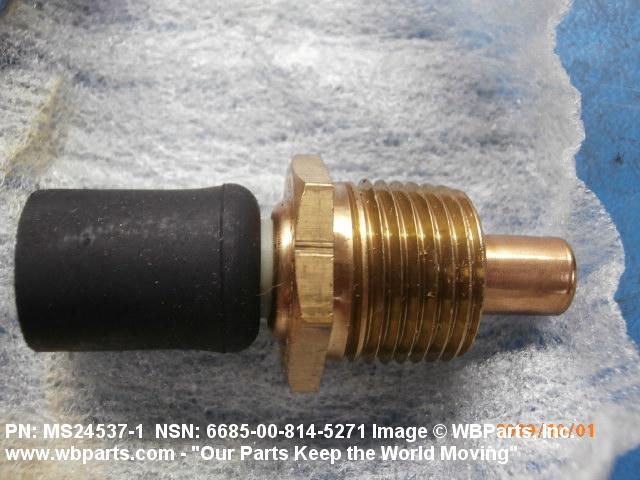

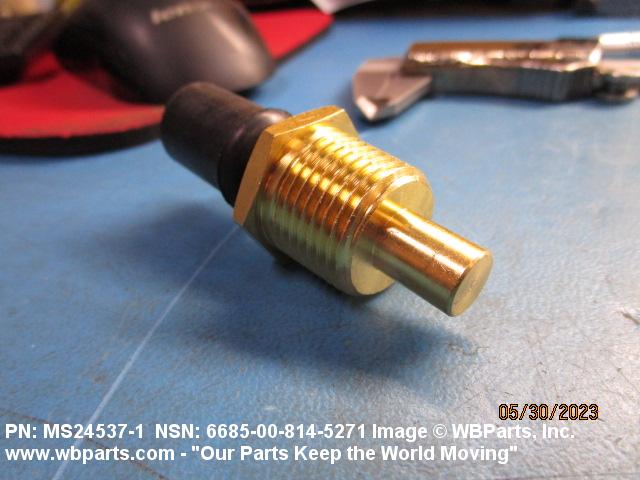

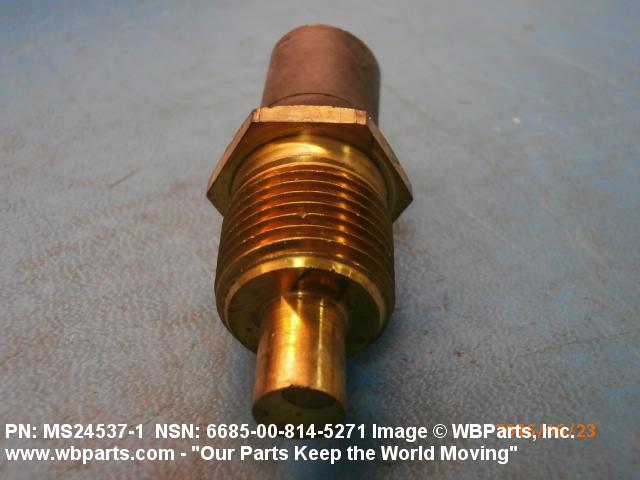

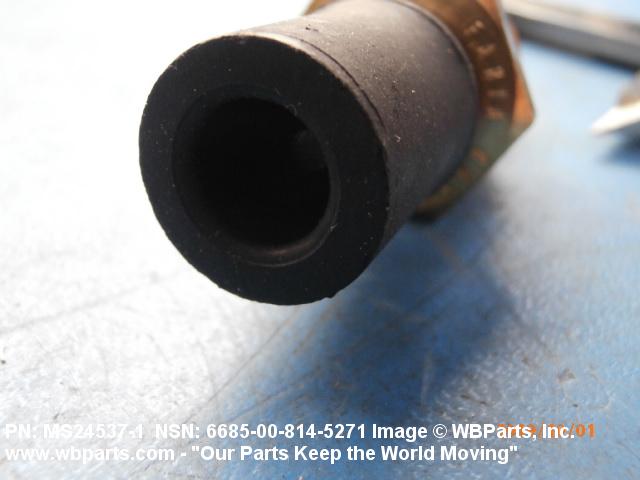

Drawings & Photos | NSN 6685-00-814-5271

Part Number	Request Date	QTY	Origin
6685-00-814-5271	2024-10-302	1	HU
6685-00-814-5271	2024-06-162	3	BR
6685-00-814-5271	2024-05-150	2	United States
6685-00-814-5271	2024-05-148	1	BR
6685-00-814-5271	2024-03-74	1	UA
6685-00-814-5271	2024-03-61	50	JO
6685-00-814-5271	2024-02-57	50	JO
6685-00-814-5271	2024-01-25	1226	CA
MS245371	2023-11-333	2	UA
6685-00-814-5271	2023-11-318	1	United States
6685-00-814-5271	2023-09-250	20	United States
6685-00-814-5271	2023-04-96	16	United States
6685-00-814-5271	2023-02-33	1	US
6685-00-814-5271	2022-11-334	100	us
6685-00-814-5271	2022-10-301	6	MANUAL
6685-00-814-5271	2022-10-279	6	Malaysia
6685-00-814-5271	2022-07-187	1000	DIBBS
6685-00-814-5271	2022-05-122	1300	DIBBS
6685-00-814-5271	2022-03-75	1932	DIBBS
6685-00-814-5271	2022-01-04	91	DIBBS
6685-00-814-5271	2021-12-346	502	DIBBS
MS245371	2021-12-340	1600	United States
6685-00-814-5271	2021-12-337	1500	United States
6685-00-814-5271	2021-10-284	250	DIBBS
6685-00-814-5271	2021-10-278	15	United States
6685-00-814-5271	2021-08-228	1600	United States
6685-00-814-5271	2021-08-222	1600	DIBBS
6685-00-814-5271	2021-08-215	450	DIBBS
6685-00-814-5271	2021-06-154	400	US
6685-00-814-5271	2021-02-32	1663	United States
6685-00-814-5271	2021-01-27	1	Canada
6685-00-814-5271	2021-01-27	1662	DIBBS
6685-00-814-5271	2020-11-314	1	Brazil
6685-00-814-5271	2020-05-142	40	UK
MS245371	2020-01-14	180	United States
MS24537-1	2020-01-14	180	United States
6685-00-814-5271	2019-10-296	1000	US
6685-00-814-5271	2019-09-261	2	Thailand
6685-00-814-5271	2019-09-258	25	United States
6685-00-814-5271	2019-08-234	10	United States
6685-00-814-5271	2019-06-176	25	US
6685-00-814-5271	2019-04-91	25	Peru
6685-00-814-5271	2019-03-87	25	Peru
6685-00-814-5271	2018-09-262	1	Thailand
6685-00-814-5271	2018-09-249	554	DIBBS
6685-00-814-5271	2018-07-211	10	US
6685-00-814-5271	2018-06-162	220	DIBBS
6685-00-814-5271	2018-06-155	1	US
6685-00-814-5271	2018-06-155	1	DIBBS-RFPs
6685-00-814-5271	2018-05-149	425	US
6685-00-814-5271	2018-04-98	389	DIBBS
6685-00-814-5271	2018-03-72	96	DIBBS
6685-00-814-5271	2018-02-53	2554	DIBBS
6685-00-814-5271	2017-12-362	6	US
6685-00-814-5271	2017-12-348	50	United States
6685-00-814-5271	2017-11-334	654	DIBBS
6685-00-814-5271	2017-10-283	368	GU
6685-00-814-5271	2017-10-277	364	DIBBS
6685-00-814-5271	2017-09-253	1924	DIBBS
6685-00-814-5271	2017-07-212	120	CL
6685-00-814-5271	2017-07-192	65	MANUAL
MS24537-1	2017-07-192	65	PK
MS24537-1	2017-07-187	6	PK
6685-00-814-5271	2016-09-273	1	DIBBS-RFPs
MS245371	2016-06-155	50	United States
MS24537	2016-04-110	166	Pakistan
MS24537	2016-04-104	50	us
6685-00-814-5271	2014-10-274	3	Pakistan
506A	2014-03-70	5	US
6685-00-814-5271	2013-04-108	20	MANUAL
6685-00-814-5271	2013-04-108	500	MANUAL
6685-00-814-5271	2012-08-241	2	Chile
6685-00-814-5271	2012-04-104	5	MANUAL
6685-00-814-5271	2011-06-155	5	MANUAL
6685-00-814-5271	2011-06-155	5	MANUAL
MS24537-1	2011-06-155	5	PK
MS24537-1	2011-06-155	5	PK
6685-00-814-5271	2008-11-329	3010	DIBBS
6685-00-814-5271	2006-05-124	400	Turkey

Cross Reference | NSN 6685-00-814-5271

Part Number	Cage Code	Manufacturer
02000-4611	05172	AAI CORPORATION DIV MISSISSIPPI OPERATIONS
02000-4611	06659	TESTEK, INC.
1018G1	56442	DIAMOND REO TRUCK CO
10500714	56161	GENERAL DYNAMICS LAND SYSTEMS - CANADA CORPORATION
10A17018	81240	WHITE FARM EQUIPMENT CO SUB OF TIC INVESTMENT INC
124085	29510	KOMATSU AMERICAN INTL CO
13207E2948FN1	97403	CECOM LR CENTER
13216E3177	97403	CECOM LR CENTER
1391939	12204	DAIMLER CHRYSLER
142511	15434	CUMMINS INC.
1512423	24617	GENERAL MOTORS CORP
1512423	70040	GENERAL MOTORS CORP AC ROCHESTER DIV
1512779	16764	GENERAL MOTORS CORP DELCO REMY DIV
1512779	1LW55	REMY, INC.
1512779	24617	GENERAL MOTORS CORP
1512779	70040	GENERAL MOTORS CORP AC ROCHESTER DIV
1512799	70040	GENERAL MOTORS CORP AC ROCHESTER DIV
164993R91	31007	NAVISTAR INTL CORP
164993R91	89346	NAVISTAR INTL CORP TRUCK BR
1700416	50019	READY POWER CO THE
192619	23382	FWD SEAGRAVE HOLDINGS, LP DIV FWD SEAGRAVE HOLDINGS, LP
250261B	1ML14	D.W. HERCULES, LLC DBA HERCULES ENGINE COMPONENTS
250261B	28265	HERCULES ENGINE CO INC
270116	76371	MECHANICAL EQUIPMENT COMPANY, INC. DBA MECO
4444708	05643	BARBER-GREENE CO
4444708	0MKW7	MINNPAR, LLC DBA MINNPAR
481397	02280	AMERICAN HOIST AND DERRICK CO
481397	49185	TEREX AMERICAN CRANE CORP
487609	35311	AMERICAN STANDARD INC WESTINGHOUSE AIR BRAKE CO DIV
501817	23301	FOUGERA PHARMACEUTICALS INC. DBA USE CAGE CODE 60910 FOR
501817	23382	FWD SEAGRAVE HOLDINGS, LP DIV FWD SEAGRAVE HOLDINGS, LP
506-AE	57733	STEWART-WARNER CORPORATION
506A	57733	STEWART-WARNER CORPORATION
506S	57733	STEWART-WARNER CORPORATION
526782	02978	L-3 COMMUNICATIONS CORPORATION DBA COMBAT PROPULSION SYSTEMS
526782	R1120	SATAIR A/S
5293703	24617	GENERAL MOTORS CORP
5293703	77060	GENERAL MOTORS CORP PACKARD ELECTRIC DIV
53620AS	1ML14	D.W. HERCULES, LLC DBA HERCULES ENGINE COMPONENTS
53620AS	28265	HERCULES ENGINE CO INC
53620AS	44369	O K MACHINERY DIV OF MOTTER JOHN C PRINTING PRESS CO
6400587	24617	GENERAL MOTORS CORP
6400587	70040	GENERAL MOTORS CORP AC ROCHESTER DIV
6489036	70040	GENERAL MOTORS CORP AC ROCHESTER DIV
6489036	99974	DELCO ELECTRONICS CORP DELCO SYSTEMS OPNS
64MT127	76040	MACK TRUCKS INC PARTS OPN
6685008145271	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
66858145271	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
6685PL0655638	9009H	INSPEKTORAT WSPARCIA SIL ZBROJNYCH
719R1	05415	LINDE LIFT TRUCK CORP.
719R1	556A6	LINDE MATERIAL HANDLING NORTH AMERICA CORP
7389566	19207	U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM
7416607	19207	U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM
804873	34623	AM GENERAL, LLC
82302821	88853	BCP CONSTRUCTION PRODUCTS DIV OF TEREX CORP
8376489	19207	U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM
8376489	24617	GENERAL MOTORS CORP
914882	58275	SASCO INC CANADIAN DIV
B5562	15638	ROWAN-BMI CORP
E012936	05172	AAI CORPORATION DIV MISSISSIPPI OPERATIONS
E012936	06659	TESTEK, INC.
E3164-31	15638	ROWAN-BMI CORP
ELM8	93234	WORTHINGTON COMPRESSORS INC AIR POWER AND CONSTRUCTION EQUIP DIV
JHP85-431	02032	HOLLINGSWORTH JOHN R CO
M284973R91	92679	NAVISTAR INTL CORP MELROSE PARK ENGINE PLANT LOCATION
MIL-I-10986F	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MILI10986	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MKB4861-2-159	82181	WILLIAM SPENCER
MS24537	81336	CHIEF OF ENGINEERS DEPT OF ARMY
MS24537-1	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
TC15-1439	03677	ANTHONY YORK CO

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 6685-00-814-5271

Compare

Related Products | NSN 6685-00-814-5271

6685-00-814-5682, 6685-00-814-5683, 6685-00-814-5684, 6685-00-814-5688, 6685-00-814-5689

Technical Data | NSN 6685-00-814-5271

Characteristic	Specifications
UNIT TYPE	PROTECTIVE TUBE
MATERIAL	STEEL CORROSION RESISTING OVERALL
STYLE DESIGNATOR	F1 TRANSMITTER, 24V DC

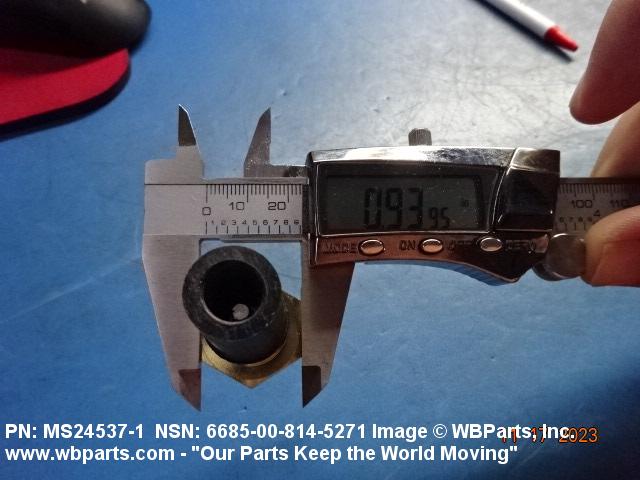

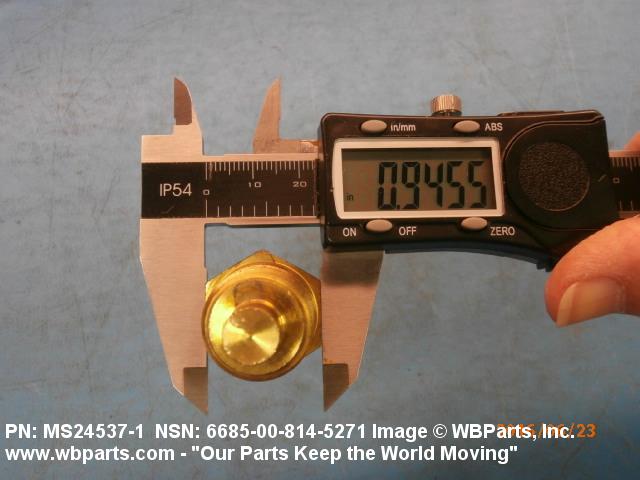

DISTANCE ACROSS WRENCHING SURFACE FLATS	0.938 INCHES NOMINAL
