NSN 6685-00-785-9342 F15911131, F1591113-1, MILG7601A
Product Details | DIAL INDICATING PRESSURE GAGE
6685-00-785-9342 An instrument designed to measure air, gas, fluid, and vapor pressure by means of an internal pressure sensitive element (bellows, bourdon tube, transducer/transmitter and the like) which transmits energy, by direct linkage, to the indicating pointer of a scale or a digital display, calibrated in units of pressure. It may include a temperature equivalent scale. For items that do not have an internal pressure sensitive element see INDICATOR, PRESSURE.205138600004220000042400027Safety and Rescue Equipment66200018Engine Instruments66850073Pressure, Temperature, and Humidity Measuring and Controlling Instruments
Part Alternates: F15911131, F1591113-1, MILG7601A, 6685-00-785-9342, 00-785-9342, 6685007859342, 007859342
Instruments and Laboratory Equipment | Pressure, Temperature, and Humidity Measuring and Controlling Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 01 JAN 1962 | 00-785-9342 | 07428 ( GAGE, PRESSURE, DIAL INDICATING ) |

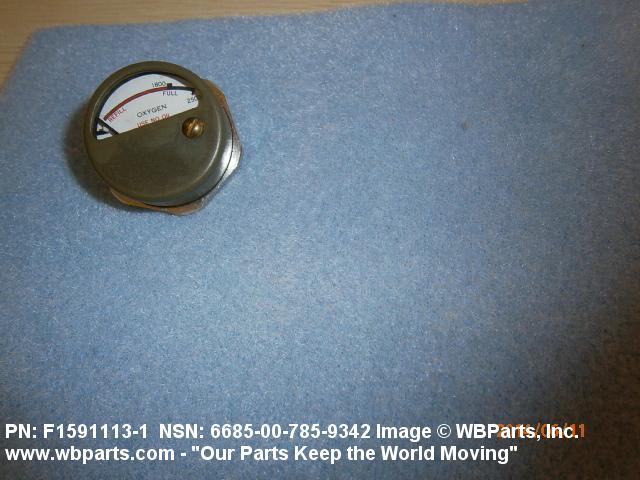

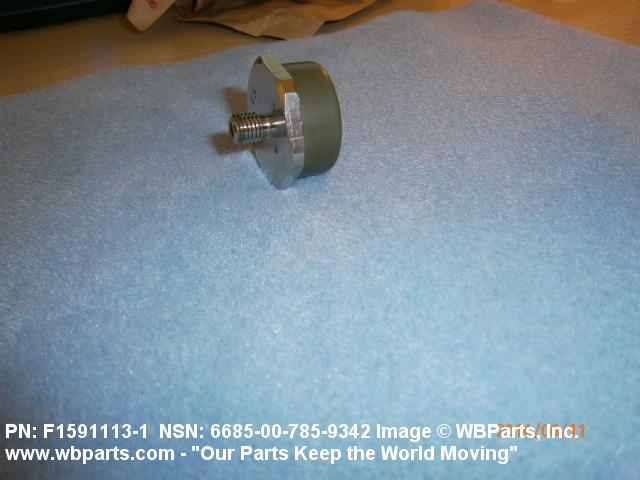

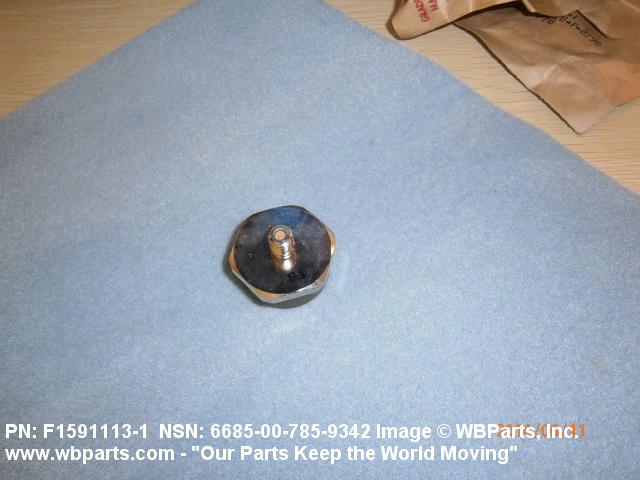

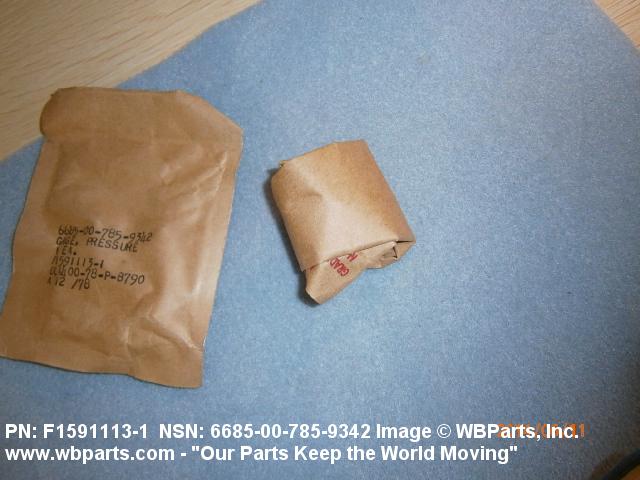

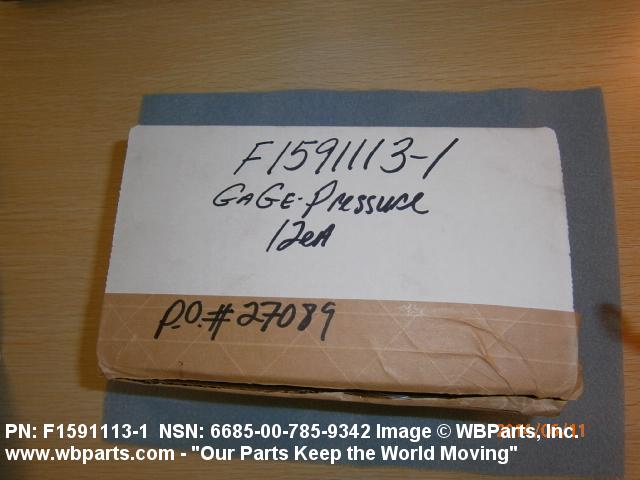

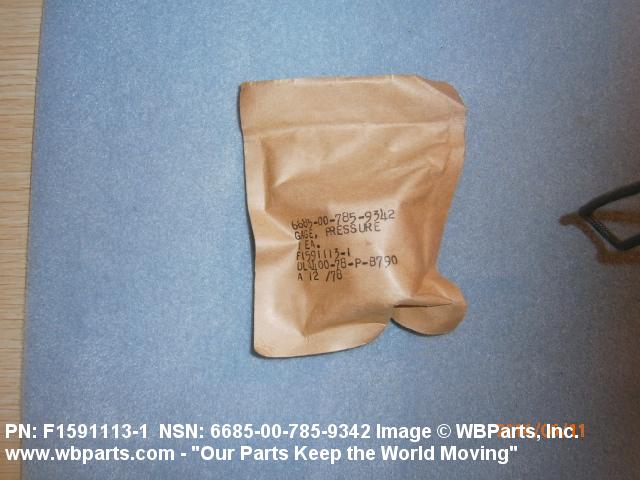

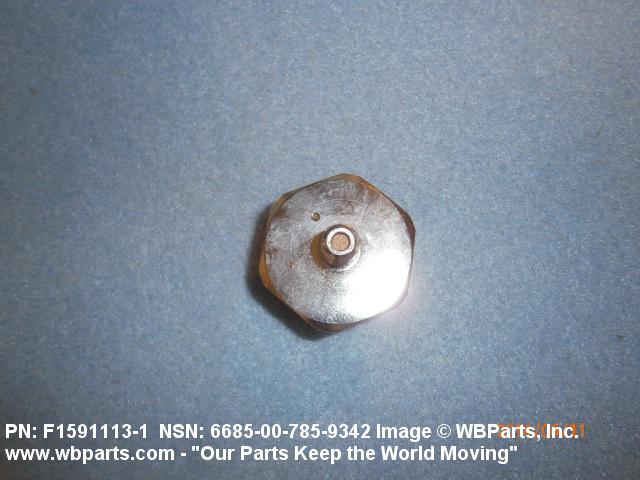

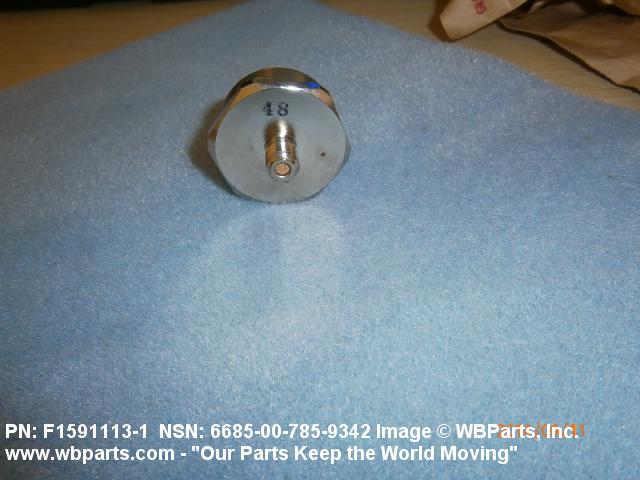

Drawings & Photos | NSN 6685-00-785-9342
Demand History | NSN 6685-00-785-9342
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6685-00-785-9342 | 2014-06-154 | 12 | Canada |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6685-00-785-9342
Technical Data | NSN 6685-00-785-9342
| Characteristic | Specifications |
|---|---|
| ACTUATION TYPE | SINGLE BOURDON TUBE |
| ACTUATING ELEMENT MATERIAL | BERYLLIUM COPPER |
| SCALE TYPE | SINGLE |
| SCALE NAME | PRESSURE |
| SCALE RANGE | 0.000 TO 2500.000 POUNDS PRESSURE PER SQUARE INCH |
| GRADUATION UNIT | 0 TO 1800 LB- 1800 FIGURE INTERVALS,1800 TO 2500 LB- 700 FIGURE INTERVALS |
| SCALE SMALLEST INCREMENT | 250.0 POUNDS |
| SCALE INSCRIPTION/BACKGROUND COLOR | DULL BLACK MARKINGS ON WHITE BACKGROUND |

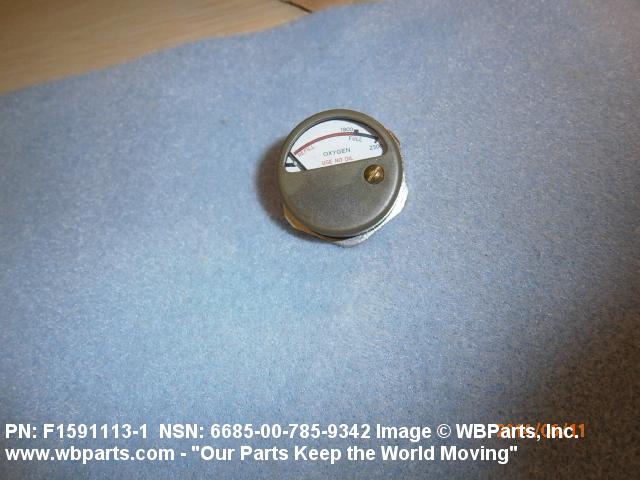

| SCALE MARKING | DIAL MARKED OXYGEN,USE NO OIL,REFILL IN RED AND FULL IN BLACK |
| POINTER TYPE | INDICATING |
| ADJUSTABILITY | ADJUSTABLE |
| POINTER COLOR | DULL BLACK |

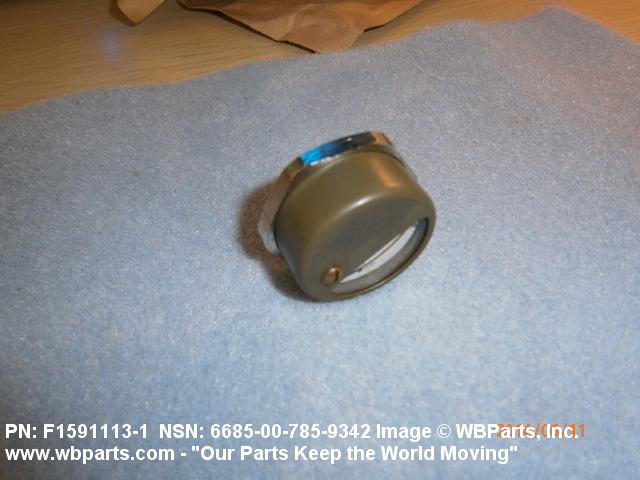

| CASE MATERIAL | STEEL |
| CASE SURFACE TREATMENT | ANY ACCEPTABLE |

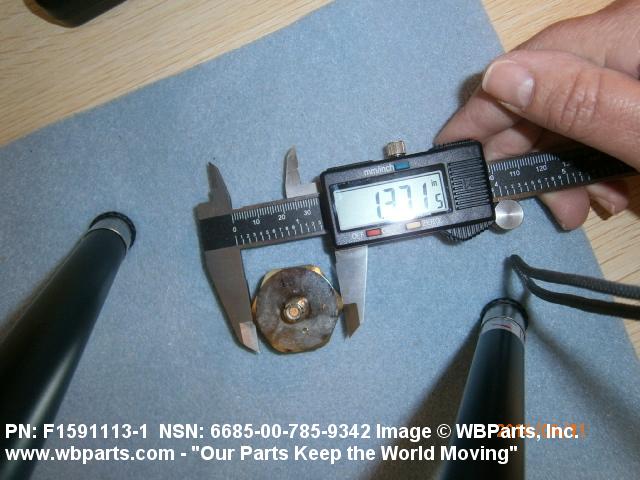

| OVERALL DIAMETER | 1.438 INCHES NOMINAL |

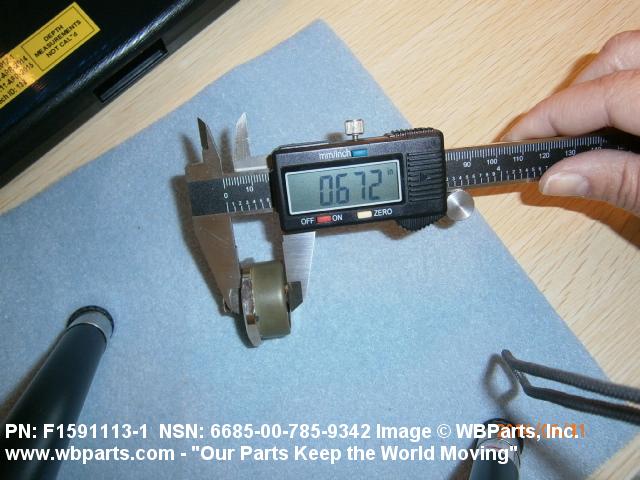

| OVERALL DEPTH | 0.688 INCHES NOMINAL |
| PROTECTIVE CRYSTAL MATERIAL | PLASTIC |
| CONNECTION QUANTITY | 1 |
| CONNECTION TYPE | EXTERNAL |

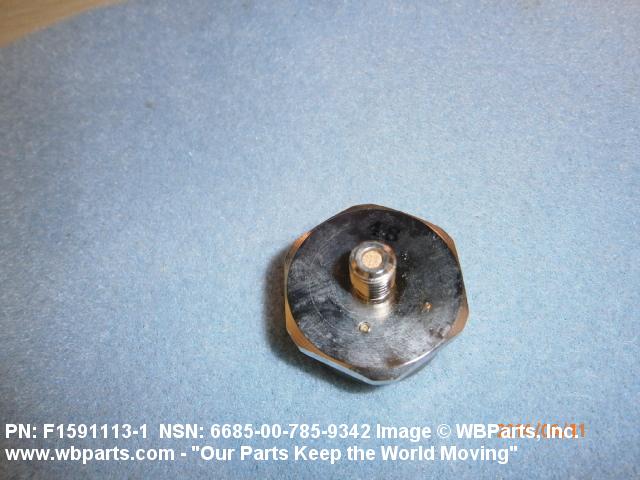

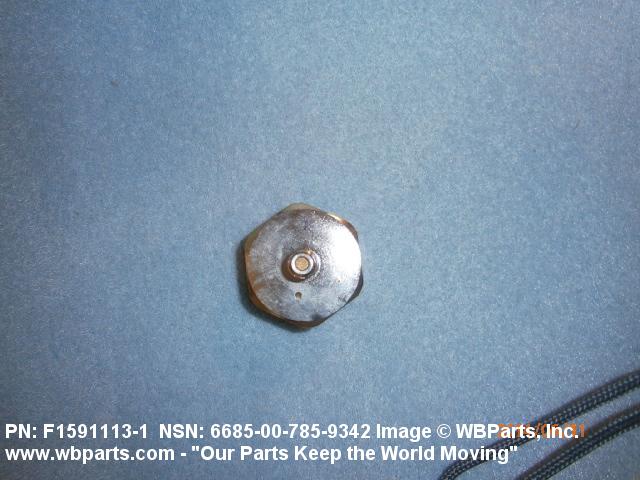

| CONNECTION LOCATION | BACK, CENTER |

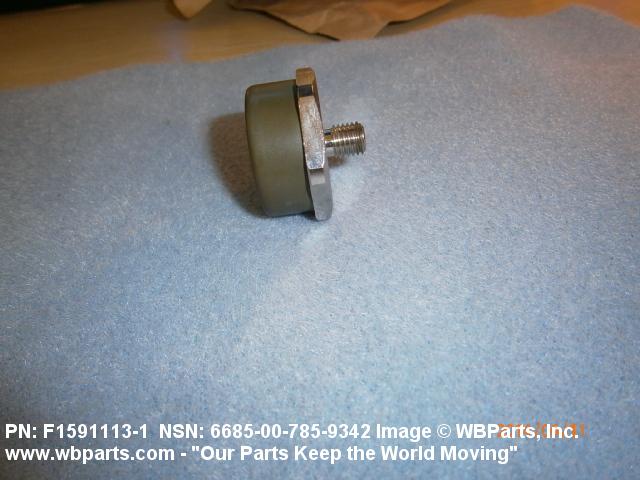

| CONNECTION SIZE | 5/16 -24 UNF |
| MOUNTING METHOD | RIGID STEM |
| CONNECTOR TYPE VENT | NOT PROVIDED |
| SPECIAL FEATURES | BLACK SHADED AREA FROM 1800 TO 2500 ON DIAL |
| NONDEFINITIVE SPEC/STD DATA | L2 TYPE |
| MANUFACTURERS CODE | 04577 |
| DESIGN CONTROL REFERENCE | F1591113-1 |
Restrictions/Controls & Freight Information | NSN 6685-00-785-9342
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 121570 | GAGES AIR LIQUID LEVEL PRESSURE |
| Less than car load rating | ||
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 653 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Q | Extremely fragile items including delicate instruments. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6685-00-785-9342
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9G | Navy-owned stocks of defense general material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
