NSN 6685-00-726-2538 AW1 7-8 14EL, AW17814EL, 14546A
Product Details | DIAL INDICATING PRESSURE GAGE
6685-00-726-2538 An instrument designed to measure air, gas, fluid, and vapor pressure by means of an internal pressure sensitive element (bellows, bourdon tube, transducer/transmitter and the like) which transmits energy, by direct linkage, to the indicating pointer of a scale or a digital display, calibrated in units of pressure. It may include a temperature equivalent scale. For items that do not have an internal pressure sensitive element see INDICATOR, PRESSURE.205138600004220000042400027Safety and Rescue Equipment66200018Engine Instruments66850073Pressure, Temperature, and Humidity Measuring and Controlling Instruments
Part Alternates: AW1 7-8 14EL, AW17814EL, 14546A, 6727TA1384, 6727TA1-384, 6955691, 695569-1, 6685-00-726-2538, 00-726-2538, 6685007262538, 007262538
Instruments and Laboratory Equipment | Pressure, Temperature, and Humidity Measuring and Controlling Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 01 JAN 1963 | 00-726-2538 | 07428 ( GAGE, PRESSURE, DIAL INDICATING ) |

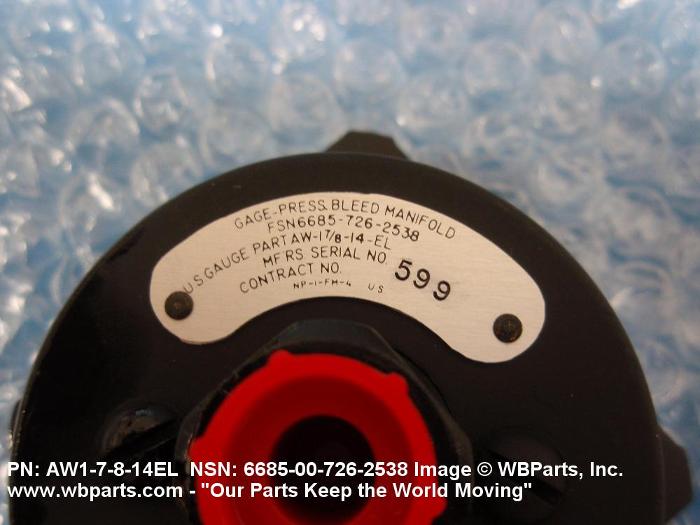

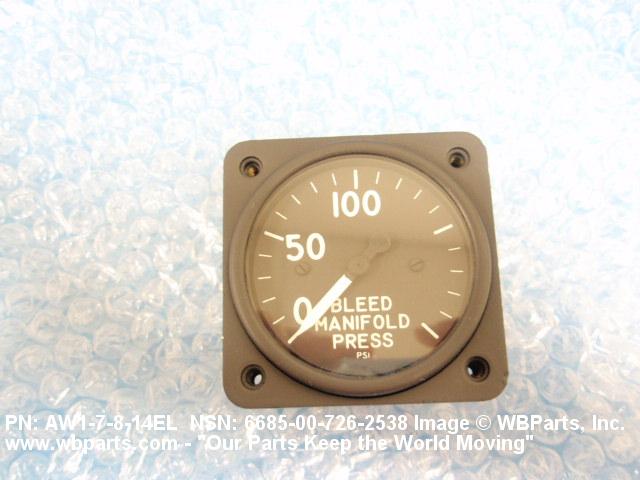

Drawings & Photos | NSN 6685-00-726-2538
Demand History | NSN 6685-00-726-2538
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6685-00-726-2538 | 2024-05-130 | 2 | DE |
| 6685-00-726-2538 | 2023-05-123 | 1 | United States |
| 6685-00-726-2538 | 2017-03-86 | 2 | DIBBS |
| 6685-00-726-2538 | 2017-03-78 | 2 | DIBBS |
| 6685-00-726-2538 | 2015-01-12 | 1 | DIBBS |
| 6685007262538 | 2011-12-343 | 1 | US |
| 6685-00-726-2538 | 2011-09-256 | 2 | DIBBS |
| 6685-00-726-2538 | 2011-08-222 | 2 | DIBBS |
| 6685-00-726-2538 | 2011-05-136 | 2 | DIBBS |
| 6685-00-726-2538 | 2011-03-64 | 1 | DIBBS |
| 6685-00-726-2538 | 2011-03-64 | 2 | DIBBS |
| 6685-00-726-2538 | 2010-07-188 | 1 | DIBBS |
| 6685-00-726-2538 | 2010-07-188 | 2 | DIBBS |
| 6685-00-726-2538 | 2010-05-150 | 2 | DIBBS |
| 6685-00-726-2538 | 2009-10-292 | 1 | DIBBS |
| 6685-00-726-2538 | 2009-10-292 | 2 | DIBBS |
| 14546A | 2009-10-278 | 4 | Indonesia |
| 6685-00-726-2538 | 2009-10-278 | 4 | Indonesia |
| 6685-00-726-2538 | 2009-08-218 | 2 | DIBBS |
| 6685-00-726-2538 | 2009-07-212 | 1 | DIBBS |
| 6685-00-726-2538 | 2009-03-85 | 2 | United States |
| 6685-00-726-2538 | 2009-03-75 | 2 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6685-00-726-2538
Technical Data | NSN 6685-00-726-2538
| Characteristic | Specifications |
|---|---|
| ACTUATION TYPE | SINGLE BOURDON TUBE |
| ACTUATING ELEMENT MATERIAL | BERYLLIUM COPPER |
| SCALE TYPE | SINGLE |
| SCALE NAME | PRESSURE |
| SCALE RANGE | 0.000 TO 200.000 POUNDS PRESSURE PER SQUARE INCH |
| SCALE ACCURACY | 2 PCT ENTIRE RANGE |
| GRADUATION UNIT | 50.0 POUNDS |
| SCALE SMALLEST INCREMENT | 10.0 POUNDS |
| SCALE INSCRIPTION/BACKGROUND COLOR | YELLOW LUMINOUS FIGURES ON BLACK BACKGROUND |
| DIAL SIZE | 1-7/8 IN. DIA |
| SCALE MARKING | BLEED MANIFOLD PRESS PSI |
| POINTER TYPE | INDICATING |
| ADJUSTABILITY | NONADJUSTABLE |
| POINTER COLOR | YELLOW |
| CASE MATERIAL | PLASTIC, PHENOL-FORMALDEHYDE |
| CASE SURFACE TREATMENT | FINISH, BLACK, CRACKLE |
| OVERALL DIAMETER | 2.375 INCHES NOMINAL |
| OVERALL DEPTH | 1.937 INCHES NOMINAL |
| BEZEL TYPE | SNAP-ON |
| MATERIAL | BRASS |
| SURFACE TREATMENT | FINISH, BLACK, CRACKLE |
| PROTECTIVE CRYSTAL MATERIAL | GLASS |
| CONNECTION QUANTITY | 1 |
| CONNECTION TYPE | INTERNAL |
| CONNECTION LOCATION | BACK |
| CONNECTION SIZE | 7/16 IN. -20UNF-3B THD SIZE |
| MOUNTING METHOD | FLUSH PANEL |
| BOLT CIRCLE DIAMETER | 2.625 INCHES NOMINAL |
| MOUNTING HOLE QUANTITY | 4 |
| MOUNTING HOLE DIAMETER | 0.170 INCHES NOMINAL |
| CONNECTOR TYPE VENT | NOT PROVIDED |
| III FSC APPLICATION DATA | GAGE,PRESSURE,DIAL INDICATING,EXCEPT ENGINE |
Restrictions/Controls & Freight Information | NSN 6685-00-726-2538
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 121570 | GAGES AIR LIQUID LEVEL PRESSURE |
| Less than car load rating | ||
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 653 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Q | Extremely fragile items including delicate instruments. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6685-00-726-2538
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9G | Navy-owned stocks of defense general material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
