NSN 6685-00-580-3837 AW1842AD01, 00-580-3837, 005803837
Product Details | DIAL INDICATING PRESSURE GAGE
6685-00-580-3837 An instrument designed to measure air, gas, fluid, and vapor pressure by means of an internal pressure sensitive element (bellows, bourdon tube, transducer/transmitter and the like) which transmits energy, by direct linkage, to the indicating pointer of a scale or a digital display, calibrated in units of pressure. It may include a temperature equivalent scale. For items that do not have an internal pressure sensitive element see INDICATOR, PRESSURE.205138600004220000042400027Safety and Rescue Equipment66200018Engine Instruments66850073Pressure, Temperature, and Humidity Measuring and Controlling Instruments
Part Alternates: AW1842AD01, 6685-00-580-3837, 00-580-3837, 6685005803837, 005803837
Instruments and Laboratory Equipment | Pressure, Temperature, and Humidity Measuring and Controlling Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 01 JAN 1963 | 00-580-3837 | 07428 ( GAGE, PRESSURE, DIAL INDICATING ) |

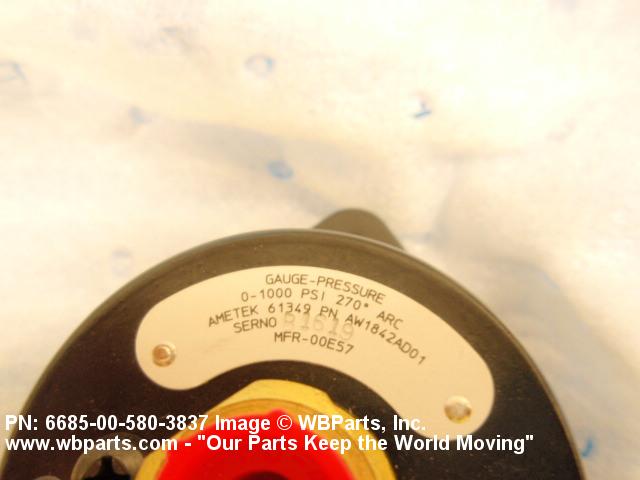

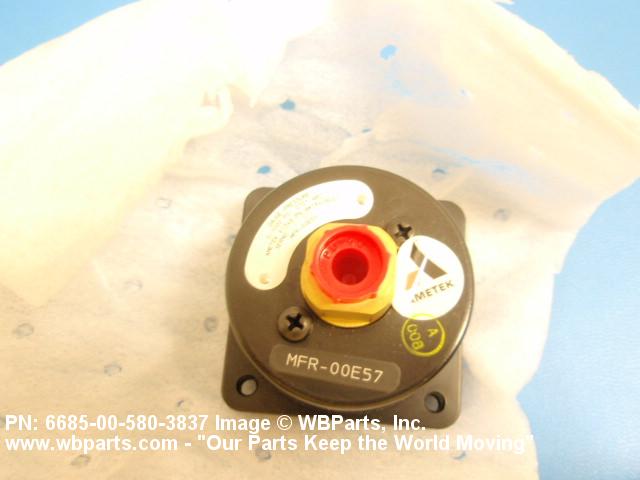

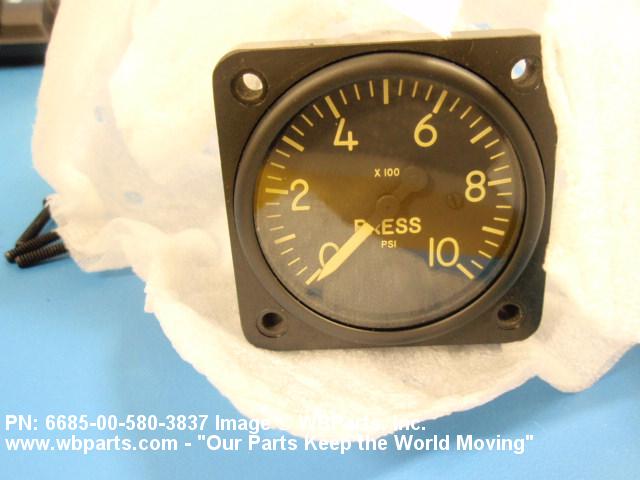

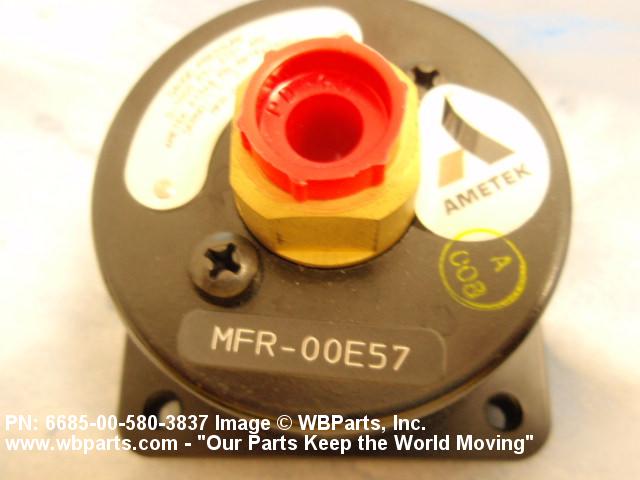

Drawings & Photos | NSN 6685-00-580-3837
Demand History | NSN 6685-00-580-3837
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| AW1842AD01 | 2016-08-30 | 1 | US |
| 6685-00-580-3837 | 2014-12-17 | 1 | US |
| AW1842AD01 | 2010-03-19 | 2 | United Kingdom |
| 6685-00-580-3837 | 2009-09-14 | 2 | DIBBS |
| 6685-00-580-3837 | 2009-08-04 | 6 | DIBBS |
| 6685-00-580-3837 | 2009-06-02 | 5 | DIBBS |
| 6685-00-580-3837 | 2009-01-22 | 5 | DIBBS |
| 6685-00-580-3837 | 2008-12-09 | 1 | United States |
| 6685-00-580-3837 | 2008-11-19 | 7 | DIBBS |
| 6685-00-580-3837 | 2008-11-10 | 6 | DIBBS |
Cross Reference | NSN 6685-00-580-3837
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AW1842AD01 | 61349 | AMETEK, INC. DIV AEROSPACE & DEFENSE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6685-00-580-3837
Related Products | NSN 6685-00-580-3837
Technical Data | NSN 6685-00-580-3837
| Characteristic | Specifications |
|---|---|
| ACTUATION TYPE | SINGLE BOURDON TUBE |
| ACTUATING ELEMENT MATERIAL | BERYLLIUM COPPER |
| SCALE TYPE | SINGLE |
| SCALE NAME | PRESSURE |
| SCALE RANGE | 0.000 TO 1000.000 POUNDS PRESSURE PER SQUARE INCH |
| SCALE ACCURACY | 2.5 PCT ENTIRE RANGE |
| GRADUATION UNIT | 200.000 POUNDS PER SQUARE INCH |
| SCALE SMALLEST INCREMENT | 25.000 POUNDS PER SQUARE INCH |
| SCALE INSCRIPTION/BACKGROUND COLOR | LUMINOUS FIGURES AND LINES IN ACCORDANCE W/MIL-L25142 ON DULL BLACK BACKGROUND |
| DIAL SIZE | 1.875 IN. DIA |
| SCALE MARKING | PRESSURE PSI IN LUMINOUS LETTERING IN ACCORDANCE W/MIL-25142 |
| POINTER TYPE | INDICATING |
| ADJUSTABILITY | NONADJUSTABLE |
| POINTER COLOR | BLACK |
| SCALE NAME FOR WHICH POINTER IS DESIGNED | PRESSURE |
| CASE MATERIAL | PLASTIC |
| CASE SURFACE TREATMENT | FINISH, SATIN |
| OVERALL WIDTH | 2.375 INCHES NOMINAL |
| OVERALL HEIGHT | 2.375 INCHES NOMINAL |
| OVERALL DEPTH | 1.438 INCHES NOMINAL |
| BEZEL TYPE | SLIPS-ON |
| MATERIAL | BRASS |
| SURFACE TREATMENT | PAINT, BLACK |
| PROTECTIVE CRYSTAL MATERIAL | GLASS |
| CONNECTION QUANTITY | 1 |
| CONNECTION TYPE | INTERNAL |
| CONNECTION LOCATION | BACK |
| CONNECTION SIZE | 7/16-20 UNF-3B PER AND10050-4 |
| MOUNTING METHOD | FLUSH PANEL |
| BOLT CIRCLE DIAMETER | 2.625 INCHES NOMINAL |
| MOUNTING HOLE QUANTITY | 4 |
| MOUNTING HOLE DIAMETER | 0.170 INCHES NOMINAL |
| CONNECTOR TYPE VENT | NOT PROVIDED |
| III FSC APPLICATION DATA | GAGE,PRESSURE,DIAL INDICATING,EXCEPT ENGINE |
| MANUFACTURERS CODE | 61349 |
| DESIGN CONTROL REFERENCE | AW1842AD01 |
Restrictions/Controls & Freight Information | NSN 6685-00-580-3837
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 121570 | GAGES AIR LIQUID LEVEL PRESSURE |
| Less than car load rating | ||
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 653 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Q | Extremely fragile items including delicate instruments. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6685-00-580-3837
Army
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | E | General Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
