NSN 6685-00-580-0935 MS280631, MS28063-1, AN57691A

Product Details | DIAL INDICATING PRESSURE GAGE

6685-00-580-0935 An instrument designed to measure air, gas, fluid, and vapor pressure by means of an internal pressure sensitive element (bellows, bourdon tube, transducer/transmitter and the like) which transmits energy, by direct linkage, to the indicating pointer of a scale or a digital display, calibrated in units of pressure. It may include a temperature equivalent scale. For items that do not have an internal pressure sensitive element see INDICATOR, PRESSURE.205138600004220000042400027Safety and Rescue Equipment66200018Engine Instruments66850073Pressure, Temperature, and Humidity Measuring and Controlling Instruments

Part Alternates: MS280631, MS28063-1, AN57691A, AN5769-1A, AN57691B, AN5769-1B, AW1 7-8 30F, AW17830D4F4, AW17-830D4F4, AW17830F, AW1830AB02, MILG7734, MIL-G-7734, 66855800935, 6685-580-0935 , 83002, 6685-00-580-0935, 00-580-0935, 6685005800935, 005800935

Instruments and Laboratory Equipment | Pressure, Temperature, and Humidity Measuring and Controlling Instruments

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
66	01 JAN 1963	00-580-0935	07428 ( GAGE, PRESSURE, DIAL INDICATING )

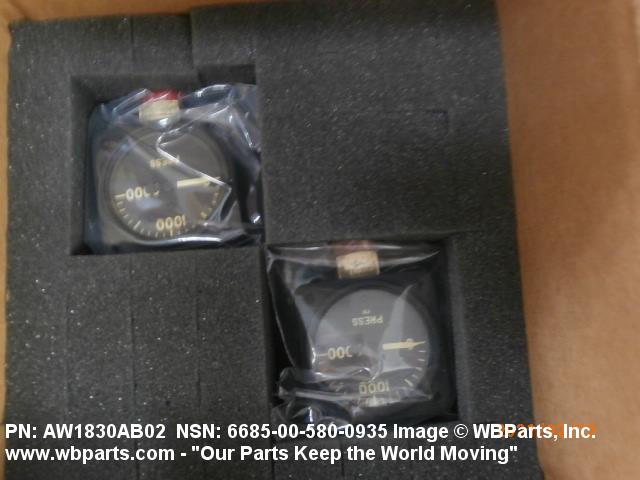

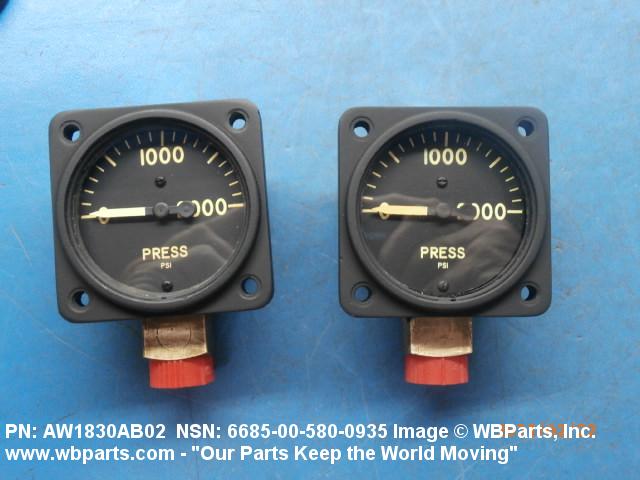

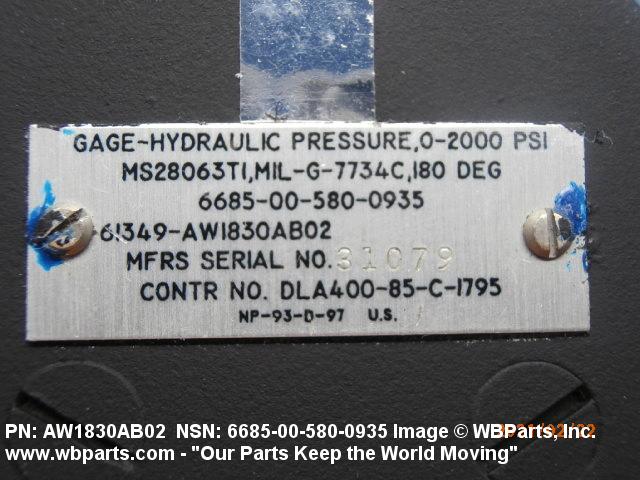

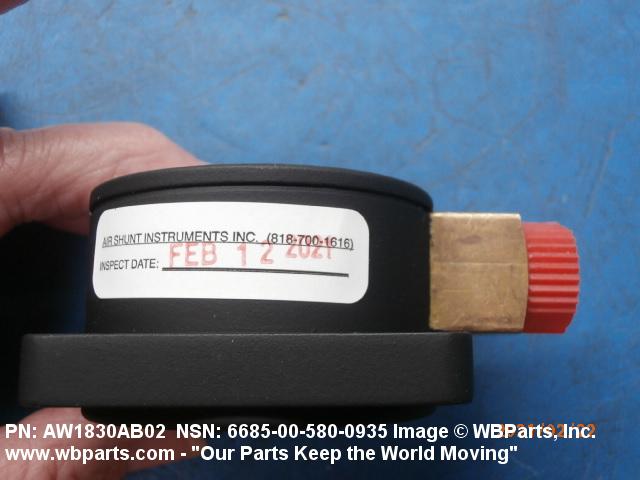

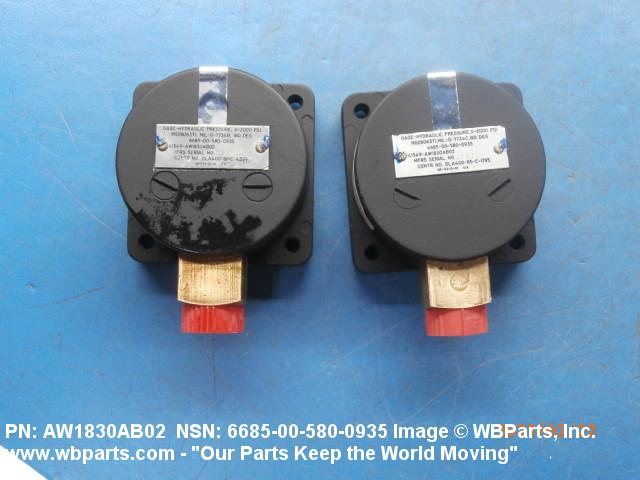

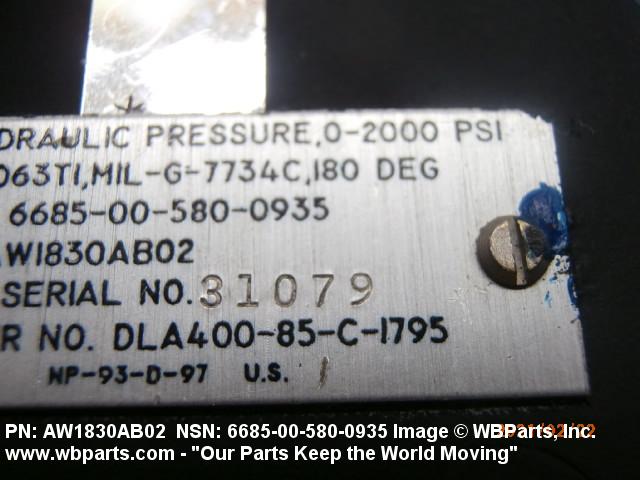

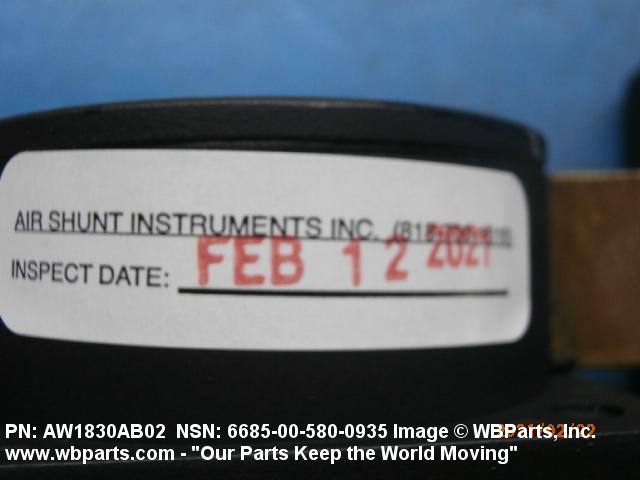

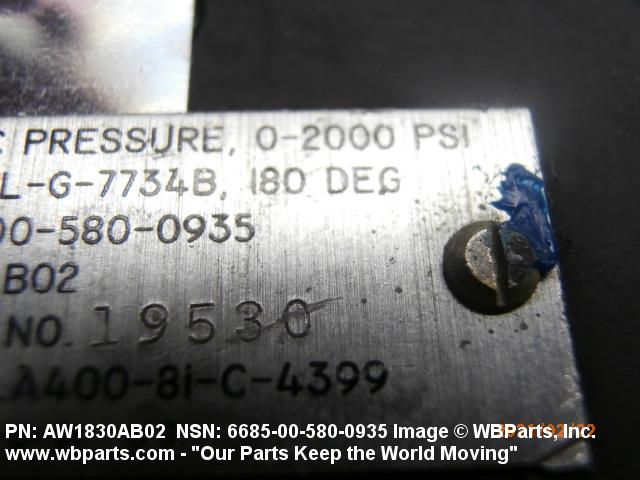

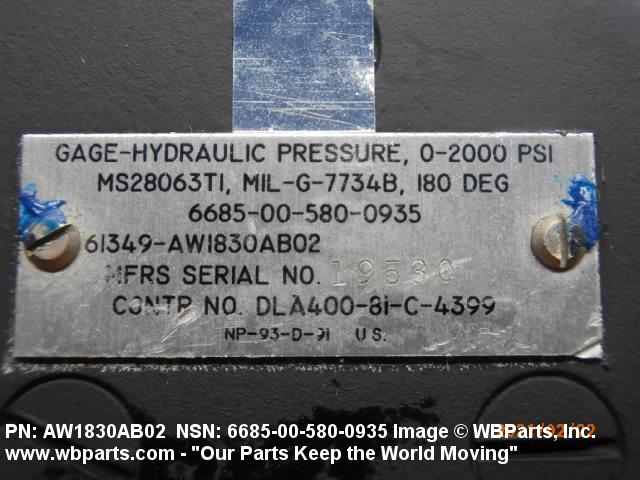

Drawings & Photos | NSN 6685-00-580-0935

Part Number	Request Date	QTY	Origin
6685-00-580-0935	2024-09-255	40	Israel
6685-00-580-0935	2024-08-231	18	DIBBS
6685-00-580-0935	2024-05-133	48	DIBBS
6685-00-580-0935	2024-02-57	18	DIBBS
6685-00-580-0935	2024-02-46	18	DIBBS
6685-00-580-0935	2023-10-295	53	DIBBS
6685-00-580-0935	2023-10-285	53	DIBBS
6685-00-580-0935	2023-04-102	10	Germany
MS280631	2023-01-26	235	us
6685-00-580-0935	2022-11-319	57	DIBBS
6685-00-580-0935	2022-04-91	10	Germany
MS280631	2021-11-315	20	BR
MS280631	2021-11-313	20	BR
MS280631	2021-11-309	150	BR
MS280631	2021-11-309	150	BR
6685-00-580-0935	2021-10-281	4	Brazil
6685-00-580-0935	2021-10-281	18	Brazil
6685-00-580-0935	2021-09-272	20	US
6685-00-580-0935	2021-09-271	72	DIBBS
6685-00-580-0935	2021-08-243	61	DIBBS
6685-00-580-0935	2021-08-231	61	DIBBS
6685-00-580-0935	2021-08-222	61	United States
6685-00-580-0935	2021-08-222	61	United States
6685-00-580-0935	2021-08-220	61	DIBBS
6685-00-580-0935	2021-07-188	15	TR
6685-00-580-0935	2021-01-14	2	Brazil
6685-00-580-0935	2020-06-175	29	US
6685-00-580-0935	2019-10-276	10	EG
6685-00-580-0935	2019-09-258	111	DIBBS
6685-00-580-0935	2019-06-164	461	United States
6685-00-580-0935	2019-06-162	461	DIBBS
6685-00-580-0935	2019-02-59	115	US
6685-00-580-0935	2019-02-55	116	DIBBS
6685-00-580-0935	2019-02-42	345	DIBBS
6685-00-580-0935	2018-11-326	69	DIBBS
6685-00-580-0935	2018-07-192	96	DIBBS
6685-00-580-0935	2018-05-145	2	BR
6685-00-580-0935	2018-02-37	102	DIBBS
6685-00-580-0935	2017-08-236	68	DIBBS
6685-00-580-0935	2016-09-251	115	DIBBS
6685-00-580-0935	2016-06-159	76	DIBBS
6685-00-580-0935	2016-01-20	181	DIBBS
6685-00-580-0935	2016-01-12	100	DIBBS
6685-00-580-0935	2014-09-259	15	US
6685-00-580-0935	2014-01-29	97	DIBBS
6685-00-580-0935	2013-11-321	153	DIBBS
6685-00-580-0935	2013-05-122	81	DIBBS

Cross Reference | NSN 6685-00-580-0935

Part Number	Cage Code	Manufacturer
6685-580-0935	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
83002	64528	3D INSTRUMENTS LLC. DBA SIERRA PRECISION
AN5769-1A	88044	AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE
AN5769-1B	88044	AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE
AW1 7-8 30F	61349	AMETEK, INC. DIV AEROSPACE & DEFENSE
AW17-830D4F4	61349	AMETEK, INC. DIV AEROSPACE & DEFENSE
AW1830AB02	61349	AMETEK, INC. DIV AEROSPACE & DEFENSE
MIL-G-7734	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MS28063-1	0158B	PSA PEUGEOT-CITROEN ESPA?A, SA
MS28063-1	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 6685-00-580-0935

Compare

Related Products | NSN 6685-00-580-0935

6685-00-580-0936, 6685-00-580-0937, 6685-00-580-1190, 6685-00-580-1240, 6685-00-580-1241

Technical Data | NSN 6685-00-580-0935

Characteristic	Specifications
ACTUATION TYPE	SINGLE BOURDON TUBE
ACTUATING ELEMENT MATERIAL	BERYLLIUM COPPER
SCALE TYPE	SINGLE
SCALE NAME	PRESSURE
SCALE RANGE	0.000 TO 2000.000 POUNDS PRESSURE PER SQUARE INCH
SCALE ACCURACY	1 PCT ENTIRE RANGE
GRADUATION UNIT	1000.000 POUNDS PER SQUARE INCH
SCALE SMALLEST INCREMENT	100.000 POUNDS PER SQUARE INCH

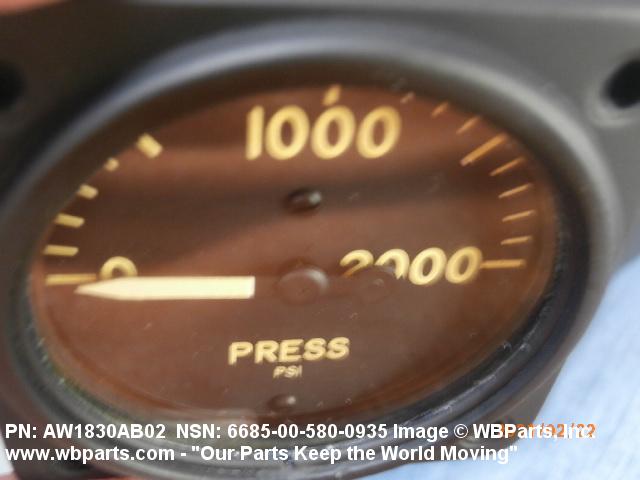

SCALE INSCRIPTION/BACKGROUND COLOR	BLACK FIGURES ON WHITE BACKGROUND

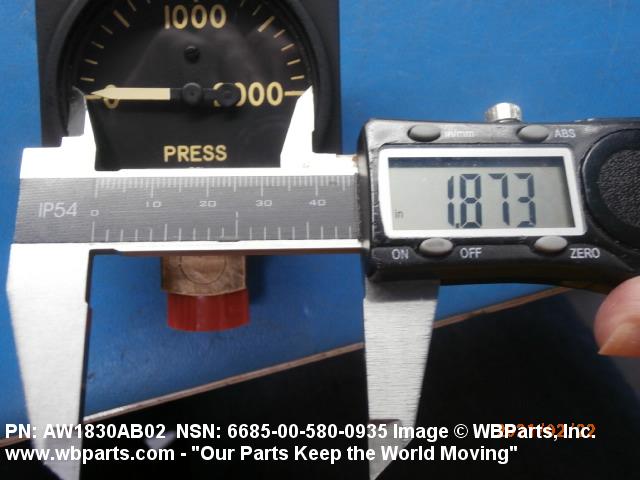

DIAL SIZE	1-7/8 IN. DIA
SCALE MARKING	/PRESS/
POINTER TYPE	INDICATING
ADJUSTABILITY	ADJUSTABLE
POINTER COLOR	BLACK
CASE MATERIAL	ALUMINUM
CASE SURFACE TREATMENT	PAINT, BLACK

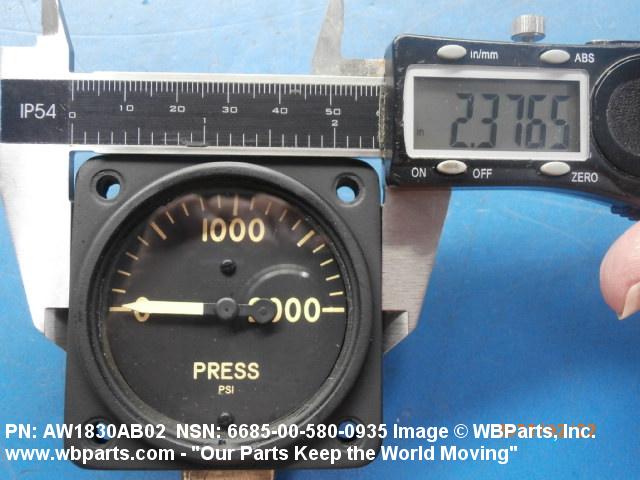

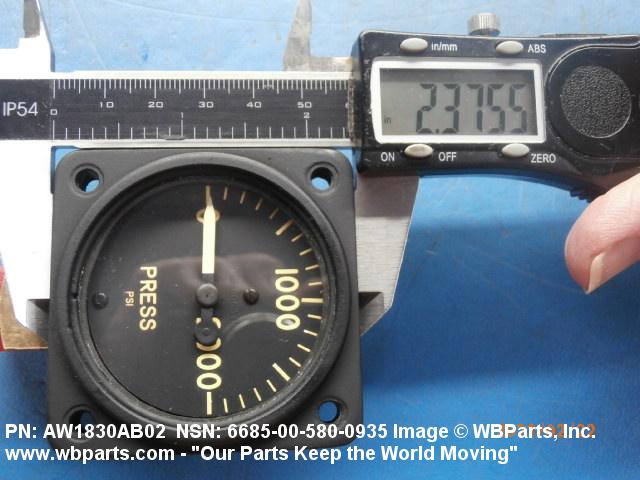

OVERALL WIDTH	2.375 INCHES NOMINAL
OVERALL HEIGHT	2.375 INCHES NOMINAL

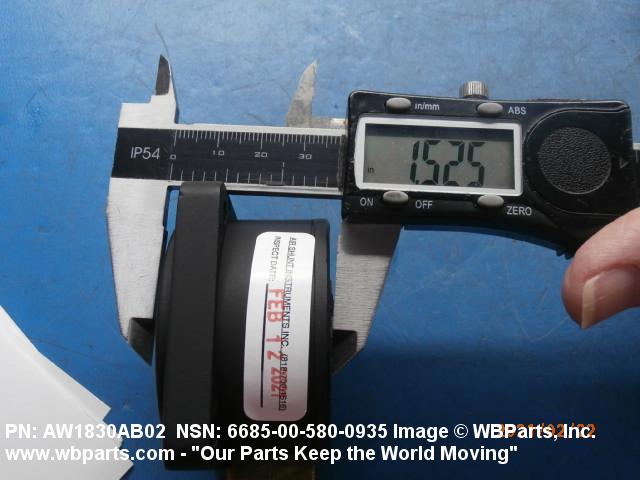

OVERALL DEPTH	1.625 INCHES NOMINAL
PROTECTIVE CRYSTAL MATERIAL	GLASS
CONNECTION QUANTITY	1
CONNECTION TYPE	INTERNAL

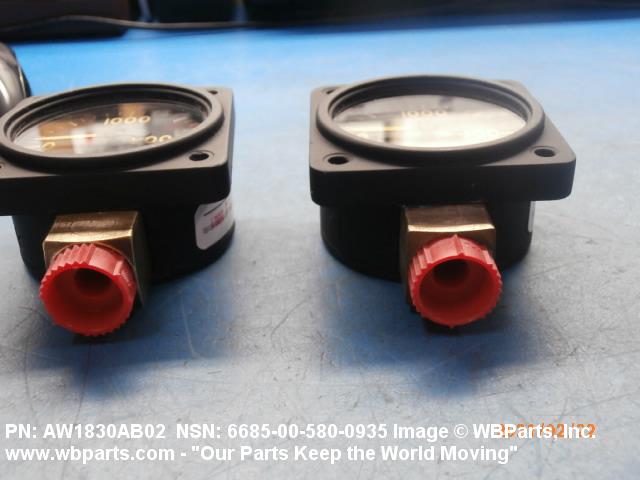

CONNECTION LOCATION	BOTTOM
CONNECTION SIZE	0.438 IN. UNF
MOUNTING METHOD	FLUSH PANEL

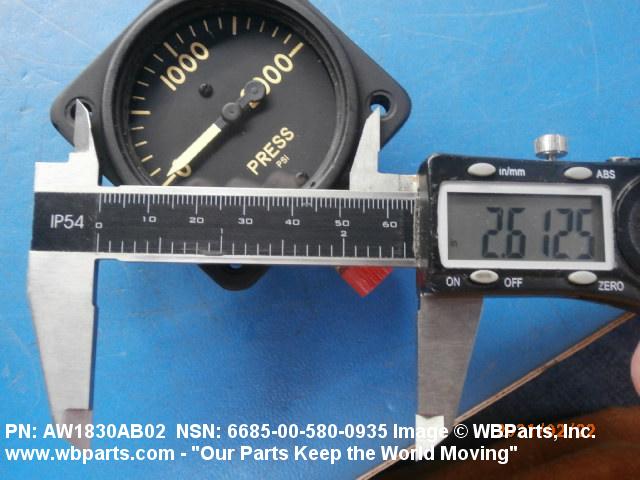

BOLT CIRCLE DIAMETER	2.625 INCHES NOMINAL
MOUNTING HOLE QUANTITY	4

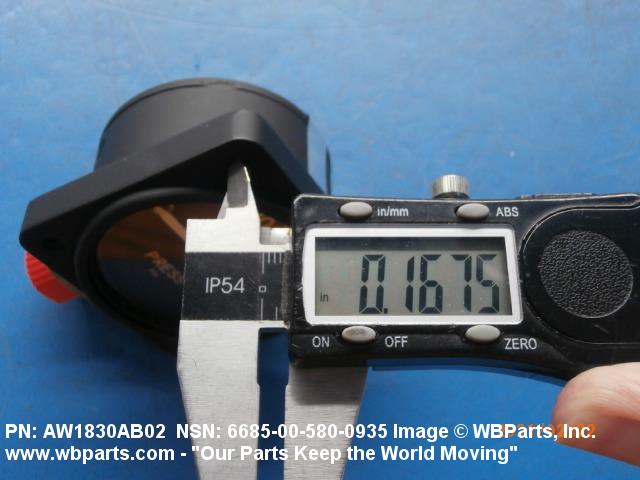

MOUNTING HOLE DIAMETER	0.170 INCHES NOMINAL
CONNECTOR TYPE VENT	NOT PROVIDED
MANUFACTURERS CODE	81349
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MIL-G-7734
MANUFACTURERS CODE	96906
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MS28063-1

Restrictions/Controls & Freight Information | NSN 6685-00-580-0935

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	121570	GAGES AIR LIQUID LEVEL PRESSURE
Less than car load rating
Less than truck load rating	J	100.2
Water commodity Code	653	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	V	Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling	Q	Extremely fragile items including delicate instruments.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 6685-00-580-0935

Category	Code	Description
Materiel Category and Inventory Manager	E	General Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Echelon Identification Code	B	Consumable Repair Parts
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
