NSN 6685-00-551-0353 DSP8900, DSP8-900 , 592217
Product Details | DIAL INDICATING PRESSURE GAGE
6685-00-551-0353 An instrument designed to measure air, gas, fluid, and vapor pressure by means of an internal pressure sensitive element (bellows, bourdon tube, transducer/transmitter and the like) which transmits energy, by direct linkage, to the indicating pointer of a scale or a digital display, calibrated in units of pressure. It may include a temperature equivalent scale. For items that do not have an internal pressure sensitive element see INDICATOR, PRESSURE.205138600004220000042400027Safety and Rescue Equipment66200018Engine Instruments66850073Pressure, Temperature, and Humidity Measuring and Controlling Instruments
Part Alternates: DSP8900, DSP8-900 , 592217, 6685-00-551-0353, 00-551-0353, 6685005510353, 005510353
Instruments and Laboratory Equipment | Pressure, Temperature, and Humidity Measuring and Controlling Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 01 JAN 1963 | 00-551-0353 | 07428 ( GAGE, PRESSURE, DIAL INDICATING ) |

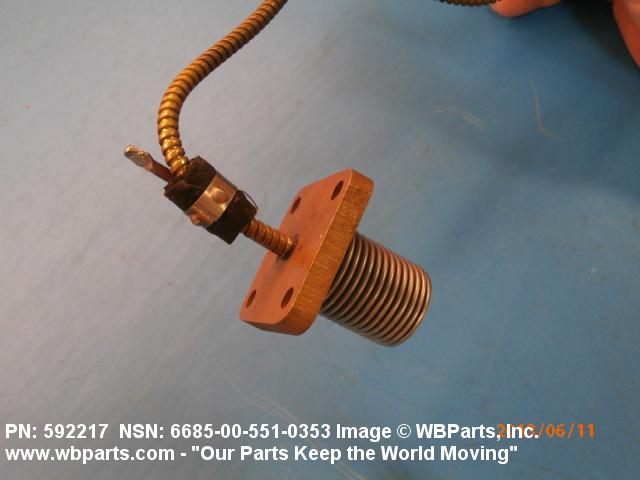

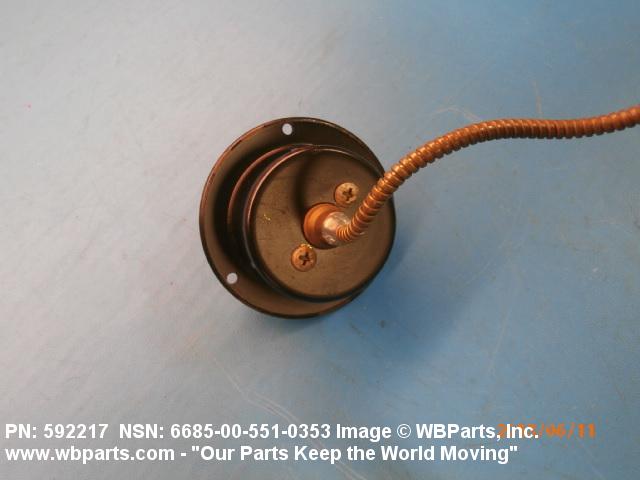

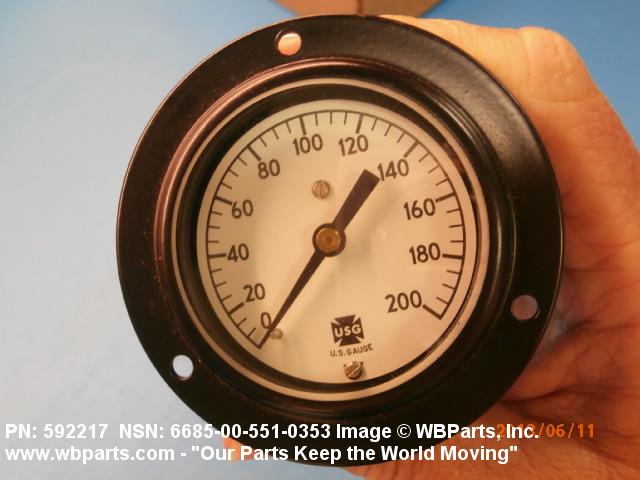

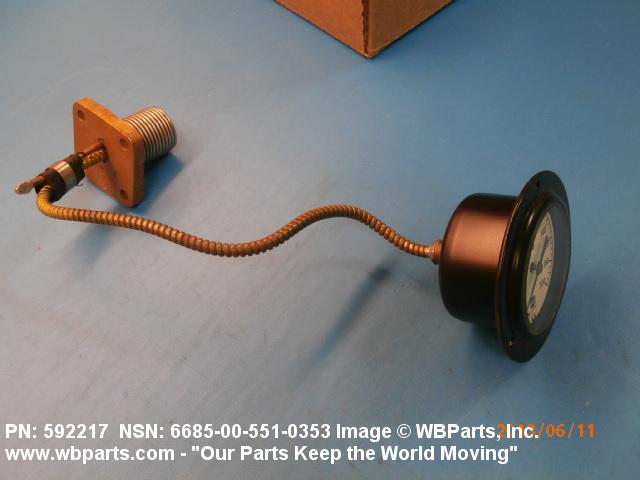

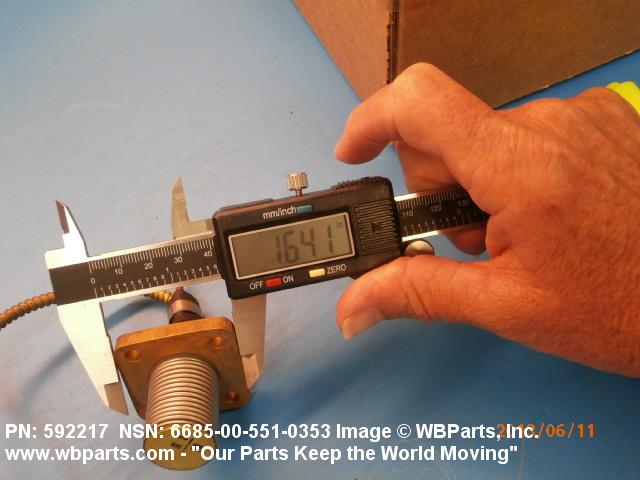

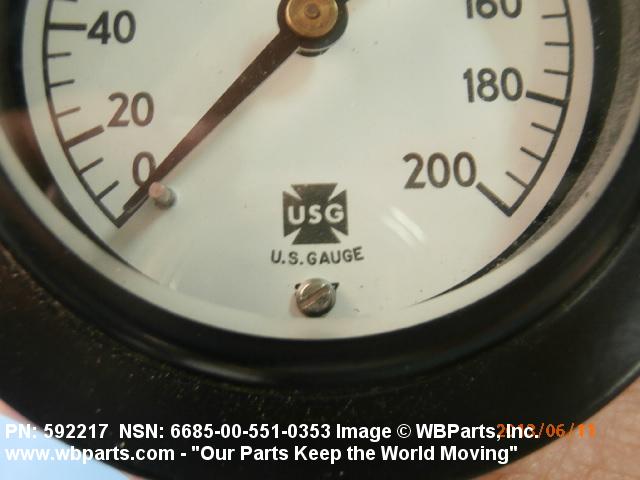

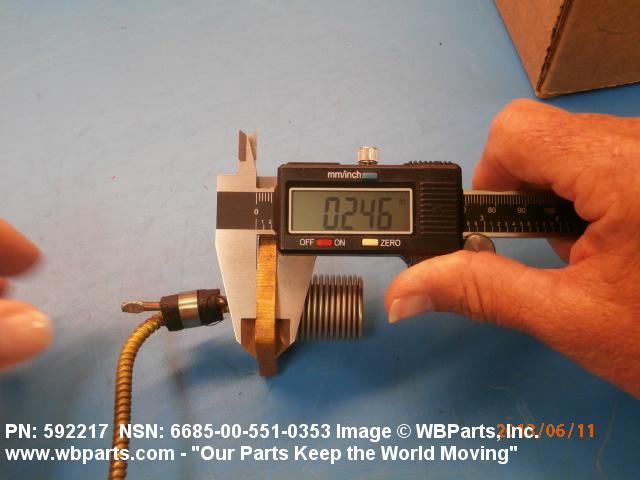

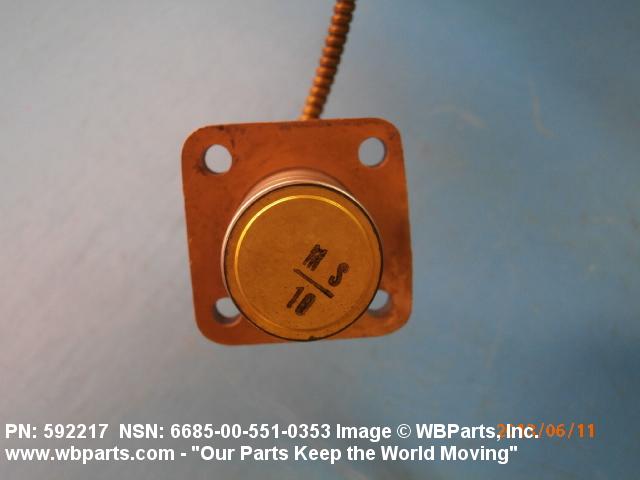

Drawings & Photos | NSN 6685-00-551-0353
Demand History | NSN 6685-00-551-0353
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6685-00-551-0353 | 2023-02-59 | 5 | US |
| 6685-00-551-0353 | 2013-05-135 | 5 | United States |
| 6685-00-551-0353 | 2013-04-107 | 1 | DIBBS |
| 6685-00-551-0353 | 2009-07-196 | 6 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6685-00-551-0353
Related Products | NSN 6685-00-551-0353
Technical Data | NSN 6685-00-551-0353
| Characteristic | Specifications |
|---|---|
| ACTUATION TYPE | SINGLE BOURDON TUBE |
| ACTUATING ELEMENT MATERIAL | BRASS |
| SCALE TYPE | SINGLE |
| SCALE NAME | PRESSURE |
| SCALE RANGE | 0.0 TO 200.0 POUNDS PRESSURE PER SQUARE INCH |
| SCALE ACCURACY | 2 PCT MIDDLE HALF OF RANGE,3 PCT REMAINDER |
| GRADUATION UNIT | 20.0 POUNDS PER SQUARE INCH |
| SCALE SMALLEST INCREMENT | 5.0 POUNDS PER SQUARE INCH |
| SCALE INSCRIPTION/BACKGROUND COLOR | BLACK FIGURES ON WHITE BACKGROUND |
| DIAL SIZE | 2 IN. DIA |
| SCALE MARKING | DIAL MARKED PSI |
| POINTER TYPE | INDICATING |
| ADJUSTABILITY | NONADJUSTABLE |
| POINTER COLOR | BLACK |
| CASE MATERIAL | BRASS |
| CASE SURFACE TREATMENT | ENAMEL |

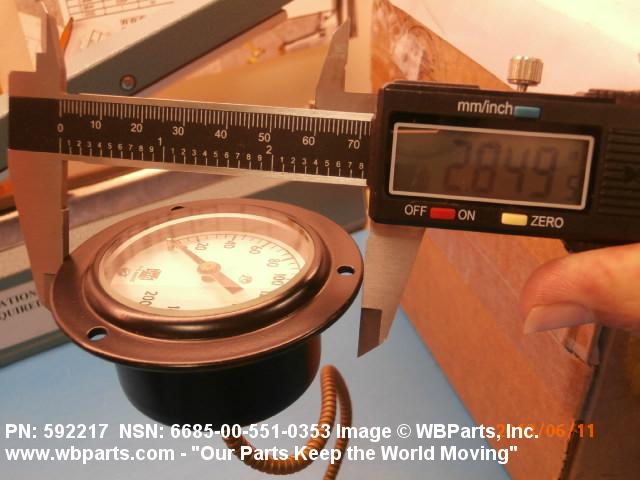

| OVERALL DIAMETER | 2.843 INCHES NOMINAL |

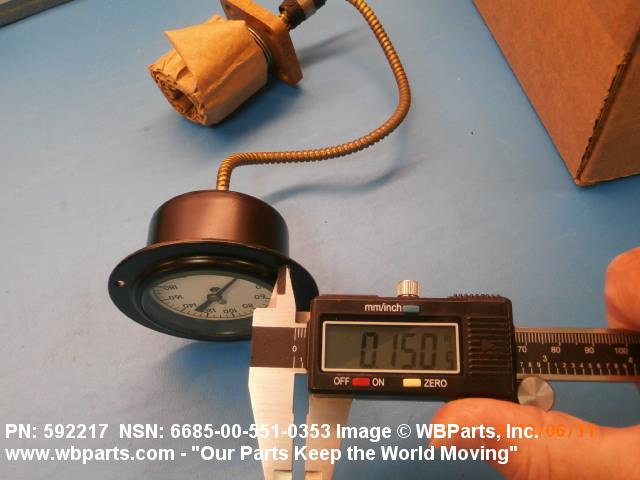

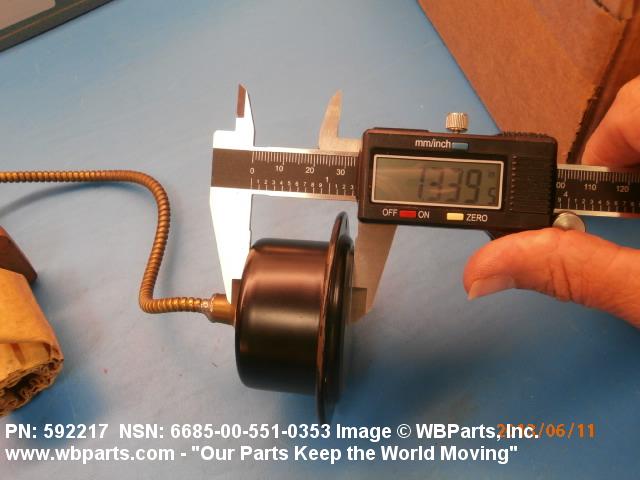

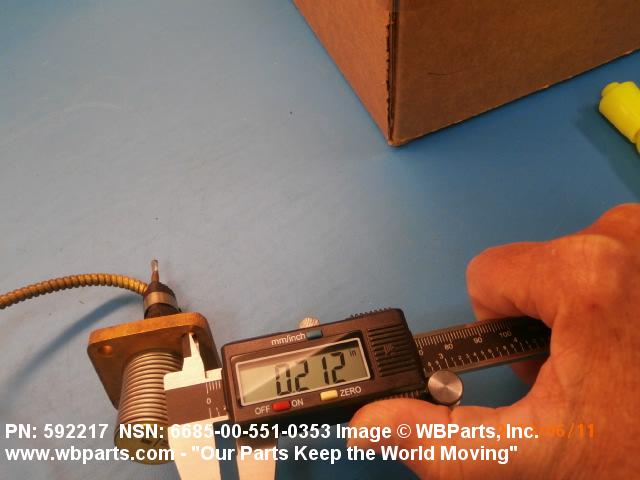

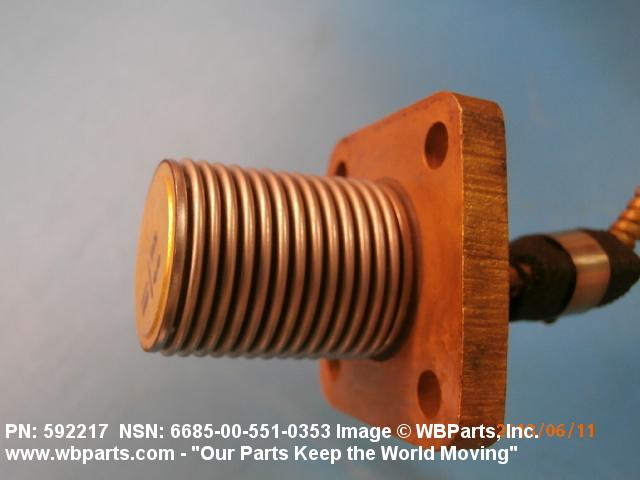

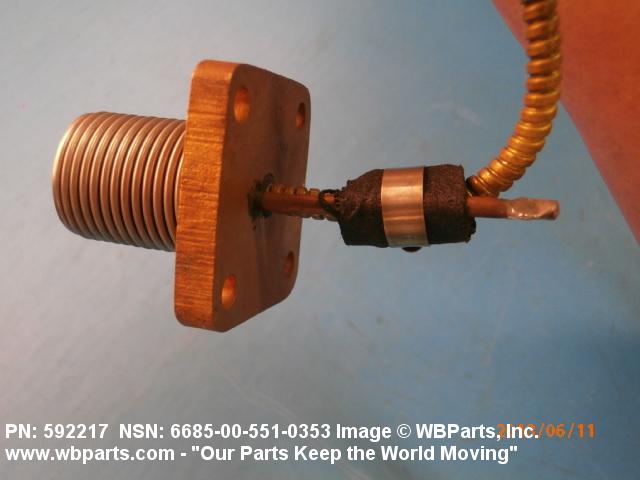

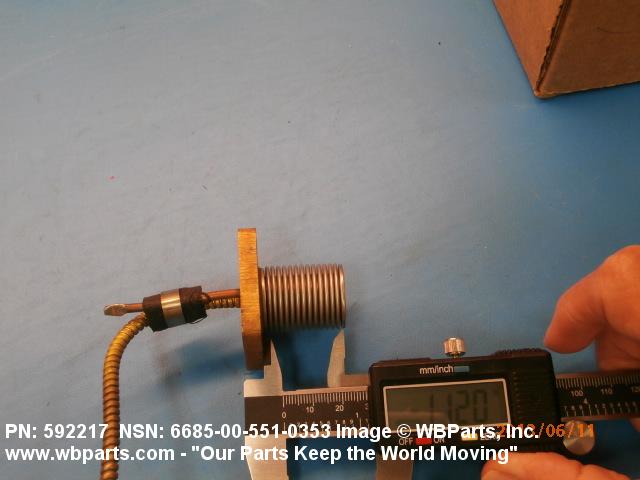

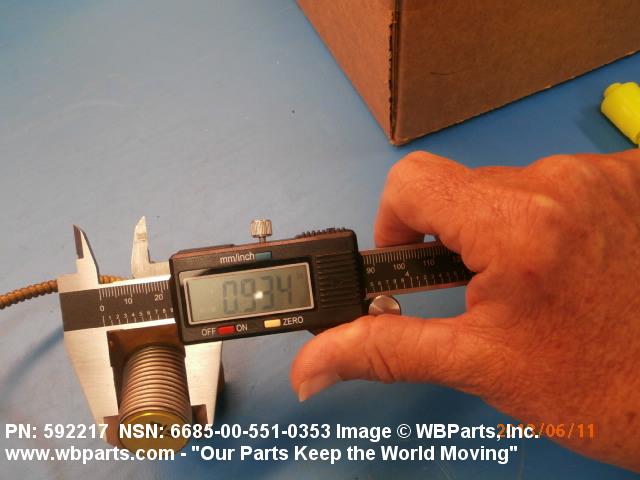

| OVERALL DEPTH | 1.760 INCHES NOMINAL |
| BEZEL TYPE | SNAP-ON |
| MATERIAL | BRASS |
| SURFACE TREATMENT | ENAMEL |
| PROTECTIVE CRYSTAL MATERIAL | GLASS |
| CONNECTION QUANTITY | 1 |
| CONNECTION TYPE | EXTERNAL |
| CONNECTION LOCATION | BACK |
| CONNECTION SIZE | 0.500 IN. NPT |
| MOUNTING METHOD | FLUSH PANEL |
| BOLT CIRCLE DIAMETER | 2.500 INCHES NOMINAL |
| MOUNTING HOLE QUANTITY | 3 |
| MOUNTING HOLE DIAMETER | 0.140 INCHES NOMINAL |
| CONNECTOR TYPE VENT | NOT PROVIDED |
| SPECIAL FEATURES | INCLUDES EVACUATING TUBE AND BELLOWS |
| III END ITEM IDENTIFICATION | FIRE PUMPS; LANDING CRAFT UTILITY,115FT; POSEIDON MATERIAL; SUBMARINE PROGRAM,TRIDENT; COMBAT SYS SUPPORT EQUIPMENT |
| III FSC APPLICATION DATA | GAGE,PRESSURE,DIAL INDICATING,EXCEPT ENGINE |
