NSN 6685-00-527-6163 G10134, J6048M, P844U

Product Details | DIAL INDICATING PRESSURE GAGE

6685-00-527-6163 An instrument designed to measure air, gas, fluid, and vapor pressure by means of an internal pressure sensitive element (bellows, bourdon tube, transducer/transmitter and the like) which transmits energy, by direct linkage, to the indicating pointer of a scale or a digital display, calibrated in units of pressure. It may include a temperature equivalent scale. For items that do not have an internal pressure sensitive element see INDICATOR, PRESSURE.205138600004220000042400027Safety and Rescue Equipment66200018Engine Instruments66850073Pressure, Temperature, and Humidity Measuring and Controlling Instruments

Part Alternates: G10134, J6048M, P844U, 82949, 82-949, 047375, 047375A, 1ABC18500AFA002, 1-ABC-18500-AFA-002, 2 1-2 1DFM1-8CBF100, 2121DFM18CBF100, 23B, 25100000BXGC11566D100, 25-1000-00BXGC1156-6D100, 6685-00-527-6163, 00-527-6163, 6685005276163, 005276163

Instruments and Laboratory Equipment | Pressure, Temperature, and Humidity Measuring and Controlling Instruments

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
66	01 JAN 1963	00-527-6163	07428 ( GAGE, PRESSURE, DIAL INDICATING )

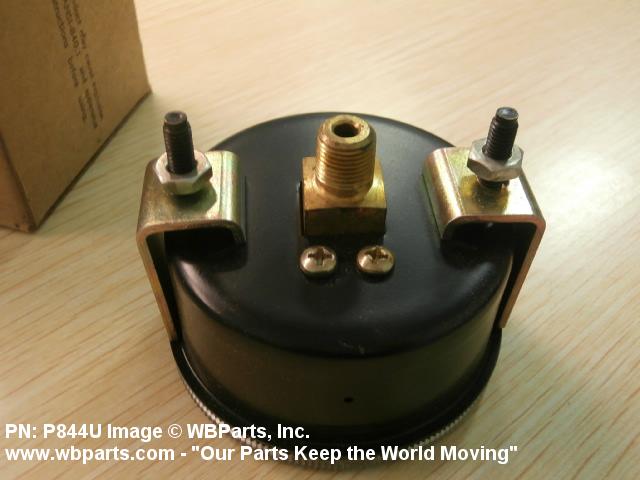

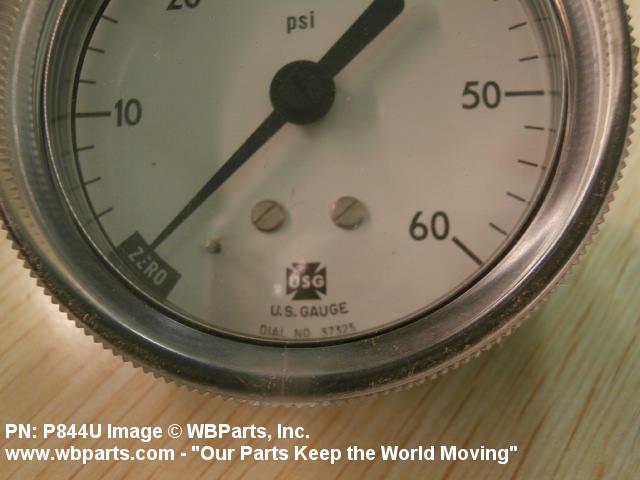

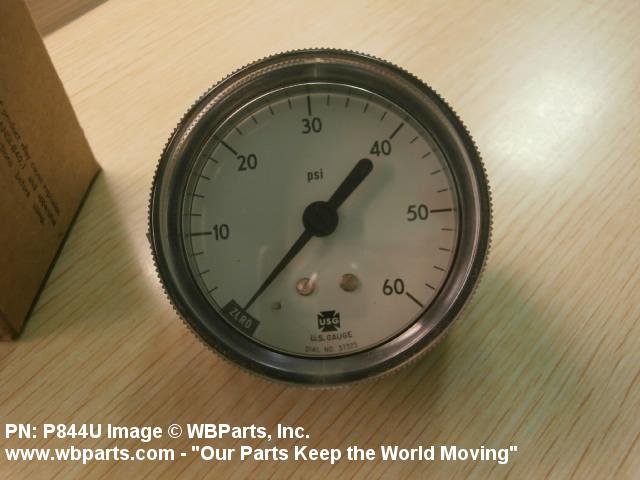

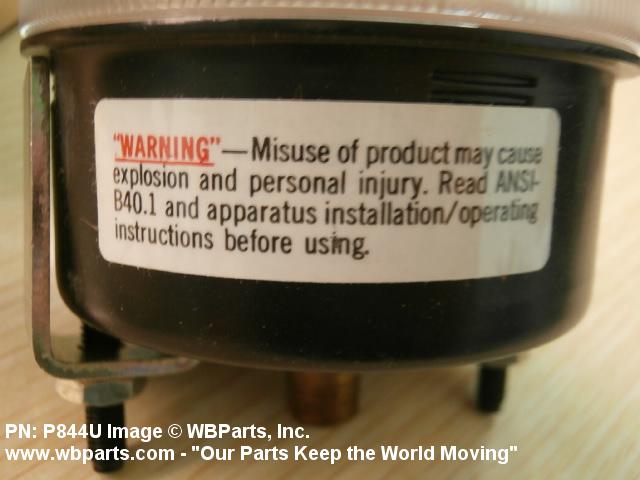

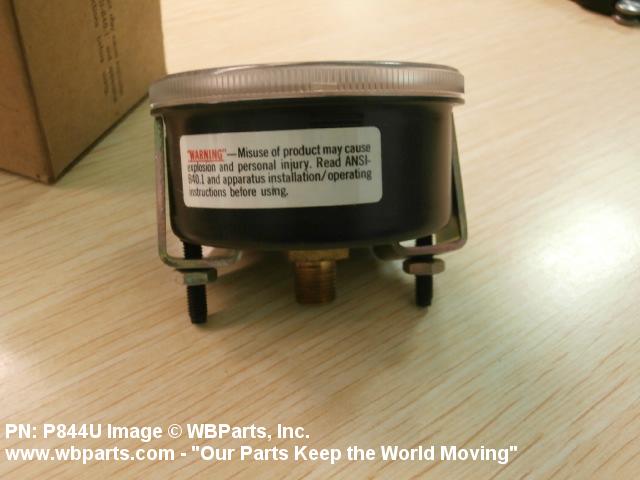

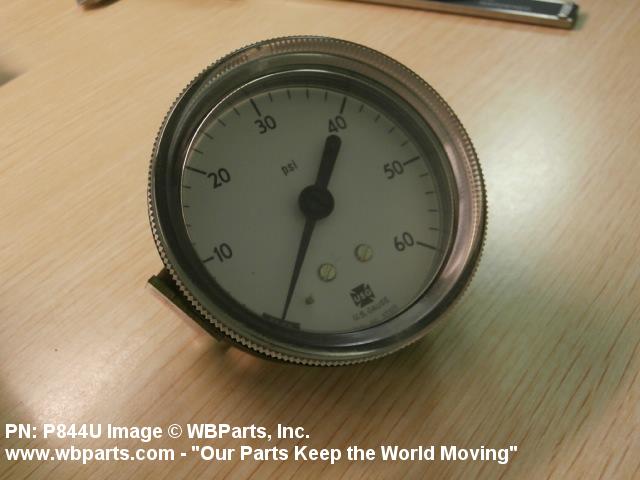

Drawings & Photos | NSN 6685-00-527-6163

Part Number	Request Date	QTY	Origin
047375A	2019-01-13	42	DIBBS
1-ABC-18500-AFA-002	2019-01-13	42	DIBBS
P844U	2015-04-91	2	Ecuador
6685-00-527-6163	2013-10-276	63	DIBBS
6685-00-527-6163	2009-03-64	49	DIBBS

Cross Reference | NSN 6685-00-527-6163

Part Number	Cage Code	Manufacturer
047375	61349	AMETEK, INC. DIV AEROSPACE & DEFENSE
047375A	61349	AMETEK, INC. DIV AEROSPACE & DEFENSE
1-ABC-18500-AFA-002	01170	BELLOFRAM CORPORATION DBA MARSH-BELLOFRAM
1-ABC-18500-AFA-002	38508	DESCO CORP MARSH BELLOFRAM DIV
2 1-2 1DFM1-8CBF100	01170	BELLOFRAM CORPORATION DBA MARSH-BELLOFRAM
2 1-2 1DFM1-8CBF100	38508	DESCO CORP MARSH BELLOFRAM DIV
23B	72100	LIFTEC INC DIV LIFTEC, INC.
25-1000-00BXGC1156-6D100	01170	BELLOFRAM CORPORATION DBA MARSH-BELLOFRAM
25-1000-00BXGC1156-6D100	38508	DESCO CORP MARSH BELLOFRAM DIV
82-949	77907	MARSHALL EXCELSIOR CO
G10134	72100	LIFTEC INC DIV LIFTEC, INC.
J6048M	38508	DESCO CORP MARSH BELLOFRAM DIV
P844U	61349	AMETEK, INC. DIV AEROSPACE & DEFENSE

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 6685-00-527-6163

Compare

Related Products | NSN 6685-00-527-6163

6685-00-527-6164, 6685-00-527-6166, 6685-00-527-6167, 6685-00-527-6175, 6685-00-527-6176

Technical Data | NSN 6685-00-527-6163

Characteristic	Specifications
ACTUATION TYPE	SINGLE BOURDON TUBE
ACTUATING ELEMENT MATERIAL	PHOSPHOR BRONZE
SCALE TYPE	SINGLE
SCALE NAME	PRESSURE
SCALE RANGE	0.0 TO 100.0 POUNDS PRESSURE PER SQUARE INCH
SCALE ACCURACY	2 PCT FULL SCALE
GRADUATION UNIT	10.0 POUNDS PER SQUARE INCH
SCALE SMALLEST INCREMENT	1.0 POUNDS PER SQUARE INCH
SCALE INSCRIPTION/BACKGROUND COLOR	BLACK FIGURES,RED COLOR BAND FROM 50 TO 100PSI,WHITE BACKGROUND
DIAL SIZE	2-1/2 IN. DIA
SCALE MARKING	USE NO OIL
POINTER TYPE	INDICATING
ADJUSTABILITY	NONADJUSTABLE
POINTER COLOR	BLACK
CASE MATERIAL	STEEL
CASE SURFACE TREATMENT	PAINT, BLACK
OVERALL DIAMETER	2.810 INCHES NOMINAL
OVERALL DEPTH	1.230 INCHES NOMINAL
BEZEL TYPE	PRESSED ON
MATERIAL	STEEL
SURFACE TREATMENT	ENAMEL, BLACK
PROTECTIVE CRYSTAL MATERIAL	GLASS
CONNECTION QUANTITY	1
CONNECTION TYPE	INTERNAL
CONNECTION LOCATION	BACK
CONNECTION SIZE	0.125 IN. NPT
MOUNTING METHOD	FLUSH PANEL AND STUD AND BRACKET
STUD QUANTITY	2
STUD LOCATION	BACK
CONNECTOR TYPE VENT	NOT PROVIDED
SPECIAL FEATURES	CLEANED FOR LOX SERVICE

Restrictions/Controls & Freight Information | NSN 6685-00-527-6163

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	012130	AIRCRAFT HELICOPTER ROTOR WING BLAD
Less than car load rating
Less than truck load rating	J	100.2
Water commodity Code	671	unknown
Originating Activity Code	ZQ
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 6685-00-527-6163

Air Force
Navy

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
