NSN 6685-00-456-7689 1500-019-03, 18235901, 22C173111
Product Details | DIAL INDICATING PRESSURE GAGE
6685-00-456-7689 An instrument designed to measure air, gas, fluid, and vapor pressure by means of an internal pressure sensitive element (bellows, bourdon tube, transducer/transmitter and the like) which transmits energy, by direct linkage, to the indicating pointer of a scale or a digital display, calibrated in units of pressure. It may include a temperature equivalent scale. For items that do not have an internal pressure sensitive element see INDICATOR, PRESSURE.205138600004220000042400027Safety and Rescue Equipment66200018Engine Instruments66850073Pressure, Temperature, and Humidity Measuring and Controlling Instruments
Part Alternates: 1500-019-03, 18235901, 22C173111, 22C17311-1, 22C173112, 22C17311-2, 23C173641, 23C17364-1, 62004, 6685-00-456-7689, 00-456-7689, 6685004567689, 150001903, 004567689
Instruments and Laboratory Equipment | Pressure, Temperature, and Humidity Measuring and Controlling Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 30 APR 1969 | 00-456-7689 | 07428 ( GAGE, PRESSURE, DIAL INDICATING ) |

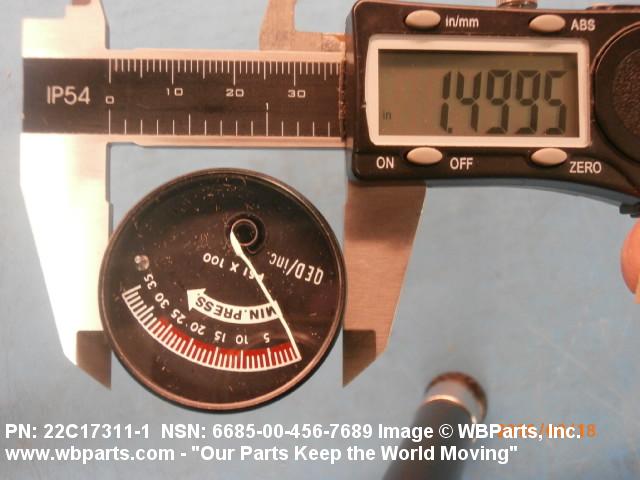

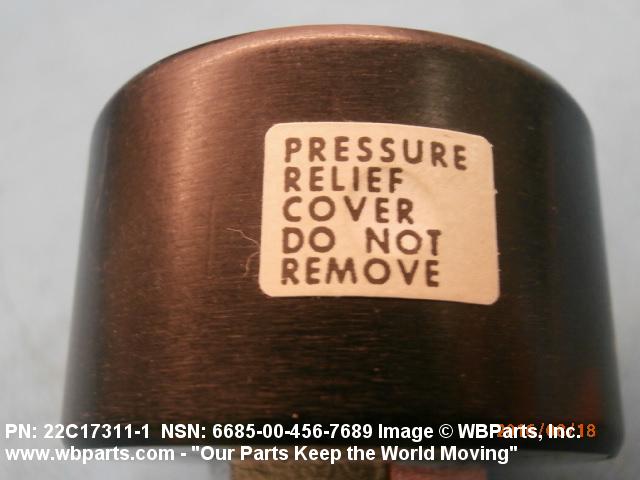

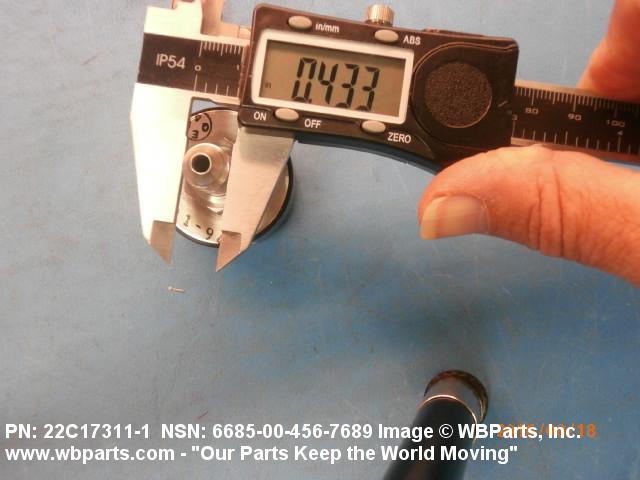

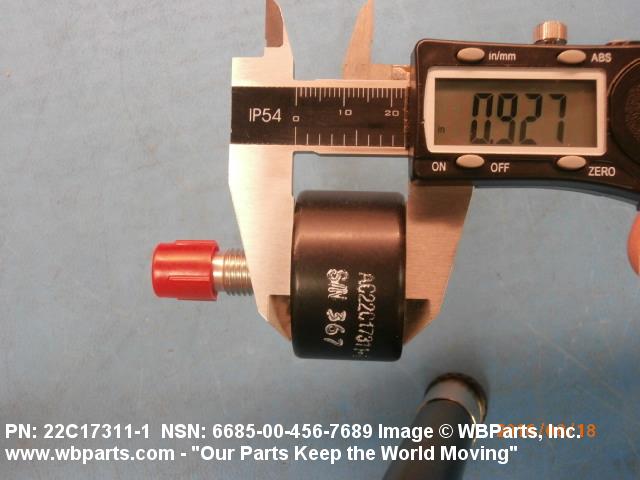

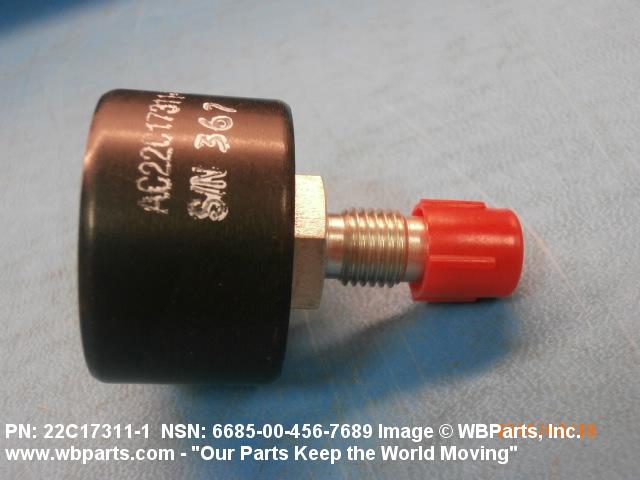

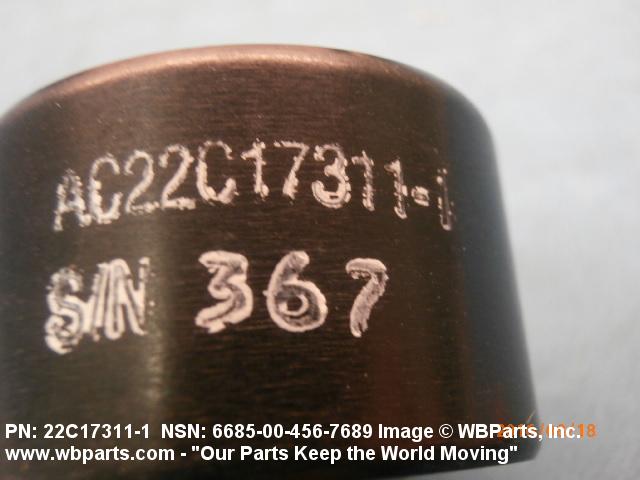

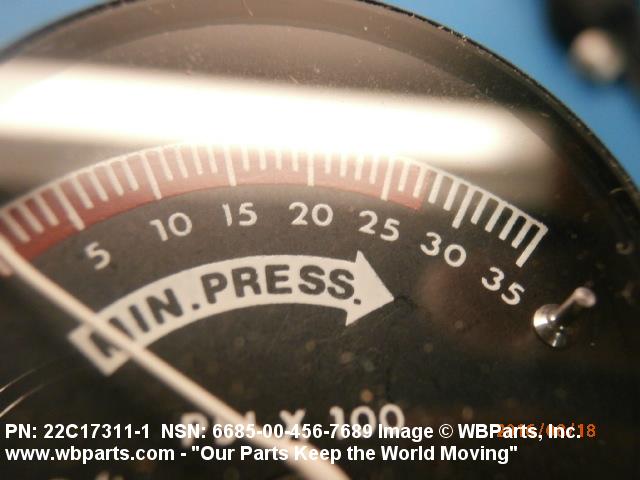

Drawings & Photos | NSN 6685-00-456-7689
Demand History | NSN 6685-00-456-7689
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 1500-019-03 | 2023-02-27 | 44 | DIBBS |
| 22C17311-2 | 2023-02-27 | 44 | DIBBS |
| 1500-019-03 | 2022-03-16 | 123 | DIBBS |
| 22C17311-2 | 2022-03-16 | 123 | DIBBS |
| 1500-019-03 | 2021-10-25 | 41 | DIBBS |
| 22C17311-2 | 2021-10-25 | 41 | DIBBS |
| 1500-019-03 | 2021-09-23 | 41 | DIBBS |
| 22C17311-2 | 2021-09-23 | 41 | DIBBS |
| 1500-019-03 | 2021-09-22 | 14 | DIBBS |
| 22C17311-2 | 2021-09-22 | 14 | DIBBS |
| 1500-019-03 | 2021-09-14 | 14 | DIBBS |
| 22C17311-2 | 2021-09-14 | 14 | DIBBS |
| 1500-019-03 | 2019-08-12 | 41 | DIBBS |
| 22C17311-2 | 2019-08-12 | 41 | DIBBS |
| 1500-019-03 | 2019-02-05 | 45 | DIBBS |
| 22C17311-2 | 2019-02-05 | 45 | DIBBS |
| 6685-00-456-7689 | 2018-12-13 | 21 | DIBBS |
| 6685-00-456-7689 | 2018-10-10 | 30 | DIBBS |
| 6685-00-456-7689 | 2018-09-13 | 30 | DIBBS |
| 6685-00-456-7689 | 2016-07-27 | 1 | Indonesia |
| 6685-00-456-7689 | 2015-09-24 | 1 | US |
| 6685-00-456-7689 | 2014-08-14 | 79 | DIBBS |
| 6685-00-456-7689 | 2014-08-06 | 79 | DIBBS |
| 6685-00-456-7689 | 2010-05-04 | 51 | DIBBS |
| 6685-00-456-7689 | 2009-09-01 | 21 | DIBBS |
| 6685-00-456-7689 | 2009-05-30 | 33 | DIBBS |
| 6685-00-456-7689 | 2009-05-14 | 27 | DIBBS |
| 6685-00-456-7689 | 2009-01-30 | 30 | DIBBS |
| 6685-00-456-7689 | 2008-12-17 | 7 | DIBBS |
Cross Reference | NSN 6685-00-456-7689
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1500-019-03 | 24708 | Q.E.D. INC. |
| 18235901 | 05167 | PACIFIC SCIENTIFIC COMPANY DBA PACIFIC SCIENTIFIC HTL/KIN |
| 18235901 | 45402 | PACIFIC SCIENTIFIC COMPANY DBA PACIFIC SCIENTIFIC HTL/KIN TECHS |
| 22C17311-1 | 70167 | AIR CRUISERS COMPANY, LLC |
| 22C17311-2 | 70167 | AIR CRUISERS COMPANY, LLC |
| 23C17364-1 | 24708 | Q.E.D. INC. |
| 23C17364-1 | 70167 | AIR CRUISERS COMPANY, LLC |
| 62004 | 25154 | DATA-DESIGN LABORATORIES CORP |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6685-00-456-7689
Related Products | NSN 6685-00-456-7689
Technical Data | NSN 6685-00-456-7689
| Characteristic | Specifications |
|---|---|
| ACTUATION TYPE | SINGLE COIL HELICAL BOURDON TUBE |
| ACTUATING ELEMENT MATERIAL | NICKEL-CHROMIUM-IRON ALLOY |
| SCALE TYPE | SINGLE |
| SCALE NAME | PRESSURE |
| SCALE RANGE | 0.000 TO 3500.000 POUNDS PRESSURE PER SQUARE INCH |
| SCALE ACCURACY | NOT RATED |
| GRADUATION UNIT | 500.000 POUNDS |
| SCALE SMALLEST INCREMENT | 100.000 POUNDS |
| SCALE INSCRIPTION/BACKGROUND COLOR | WHITE FIGURES ON BLACK BACKGROUND |
| DIAL SIZE | 1-3/8 IN. DIA |

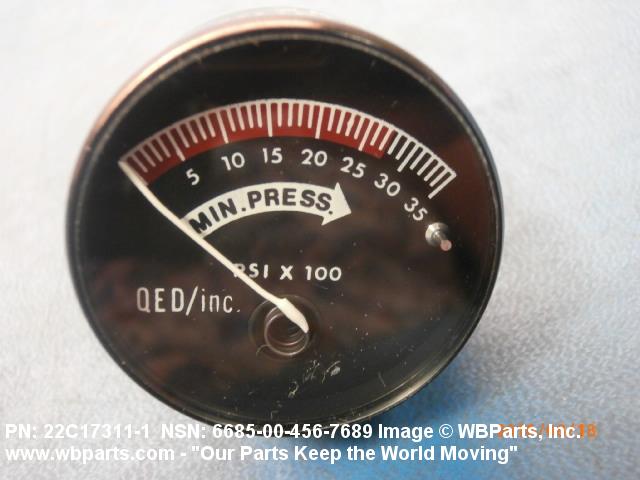

| SCALE MARKING | /PSI X100/ /MIN PRESS/,RED BAND FROM 0 TO 2750 PSI |
| POINTER TYPE | INDICATING |
| ADJUSTABILITY | NONADJUSTABLE |
| POINTER COLOR | WHITE |
| CASE MATERIAL | STEEL, TERNE PLATE |
| CASE SURFACE TREATMENT | PAINT, BLACK |
| OVERALL DIAMETER | 1.530 INCHES NOMINAL |
| OVERALL DEPTH | 0.940 INCHES NOMINAL |
| PROTECTIVE CRYSTAL MATERIAL | PLASTIC |
| CONNECTION QUANTITY | 1 |
| CONNECTION TYPE | EXTERNAL |

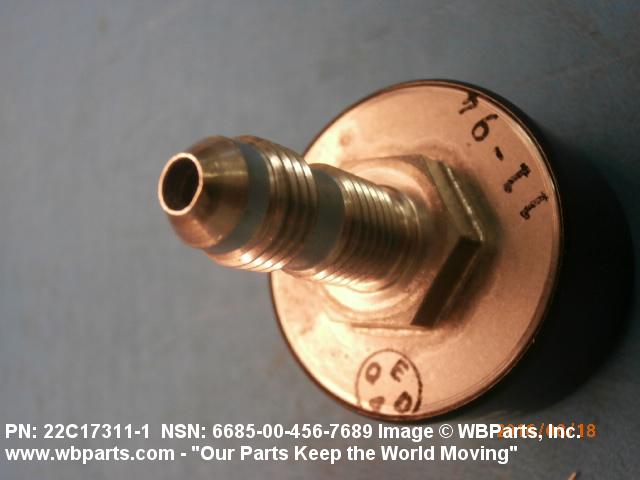

| CONNECTION LOCATION | BACK, CENTER |
| CONNECTION SIZE | 1/4 IN. |
| MOUNTING METHOD | RIGID STEM |
| CONNECTOR TYPE VENT | NOT PROVIDED |
| SPECIAL FEATURES | CONNECTOR DESIGN SHALL CONFORM TO MS33657-4 STYLE E; PRESSURE RELIEF VENT HOLE IN CASE |
| MANUFACTURERS CODE | 70167 |
| DESIGN CONTROL REFERENCE | 22C17311-2 |
Restrictions/Controls & Freight Information | NSN 6685-00-456-7689
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 121570 | GAGES AIR LIQUID LEVEL PRESSURE |
| Less than car load rating | ||
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 651 | unknown |
| Originating Activity Code | SE | San Antonio Air Logistics Center Kelly AFB, TX 78241-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6685-00-456-7689
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
