NSN 6685-00-451-3047 N2000A10T30RCK, ITR4580A030320, ITR-45-80-A-030-32-0
Product Details | CAPILLARY TUBE AND BULB INDICATING THERMOMETER
6685-00-451-3047 A thermometer which employs a confined substance, whose measurable physical properties or one of them varies with a change in temperatrue and this energy transmitted into mechanical movement to indicate the temperature. For indoor/outdoor application, see THERMOMETER, SELF-INDICATING, LIQUID IN GLASS.
Part Alternates: N2000A10T30RCK, ITR4580A030320, ITR-45-80-A-030-32-0, 250446, 6685-00-451-3047, 00-451-3047, 6685004513047, 004513047
Instruments and Laboratory Equipment | Pressure, Temperature, and Humidity Measuring and Controlling Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 17 MAY 1971 | 00-451-3047 | 07419 ( THERMOMETER, INDICATING, CAPILLARY TUBE AND BULB ) |

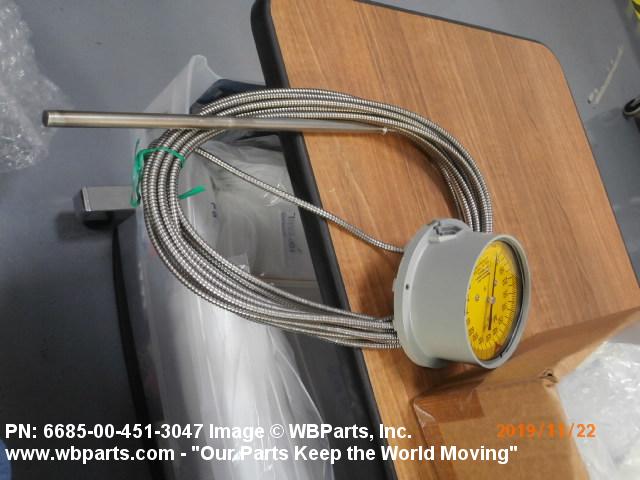

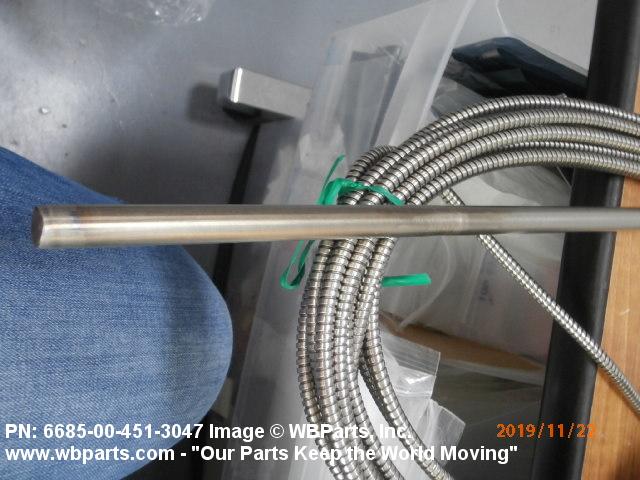

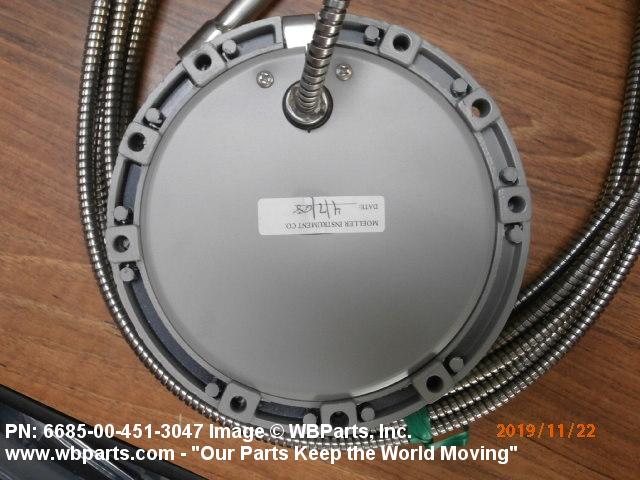

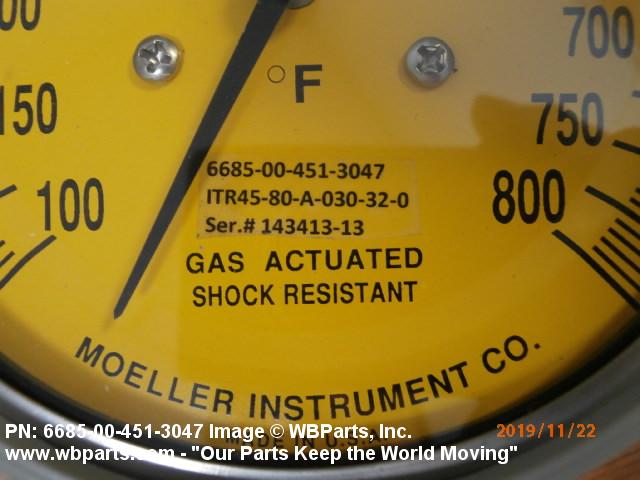

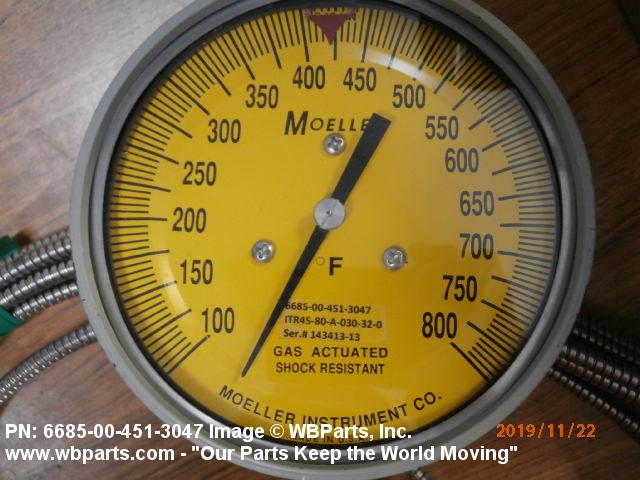

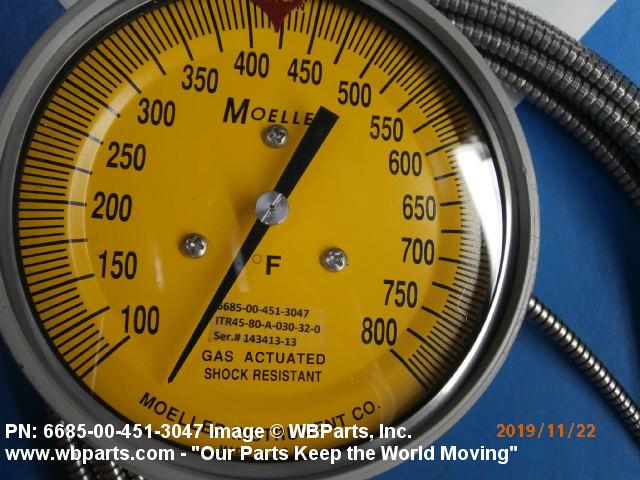

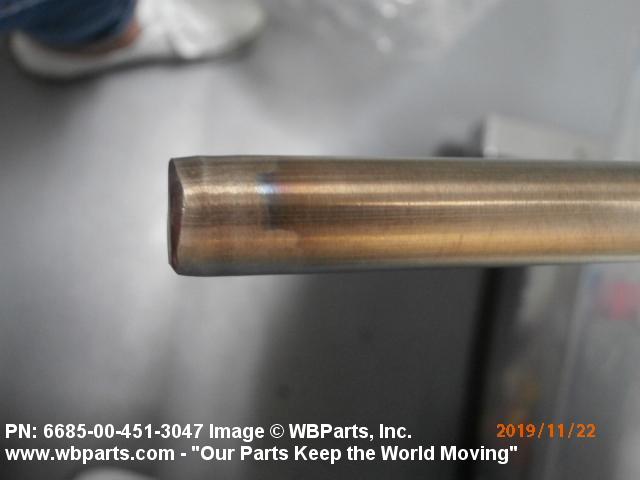

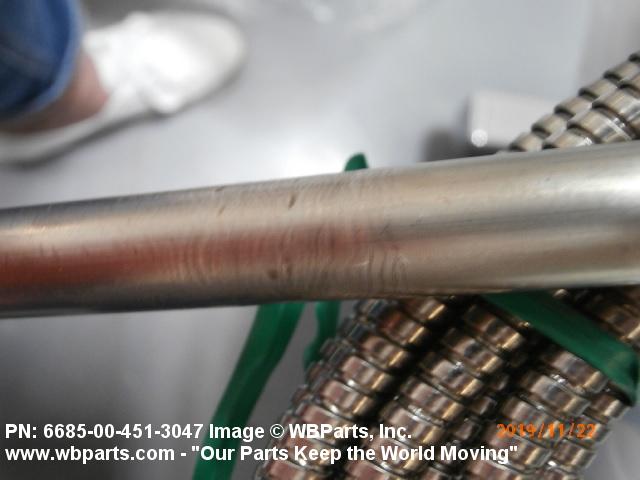

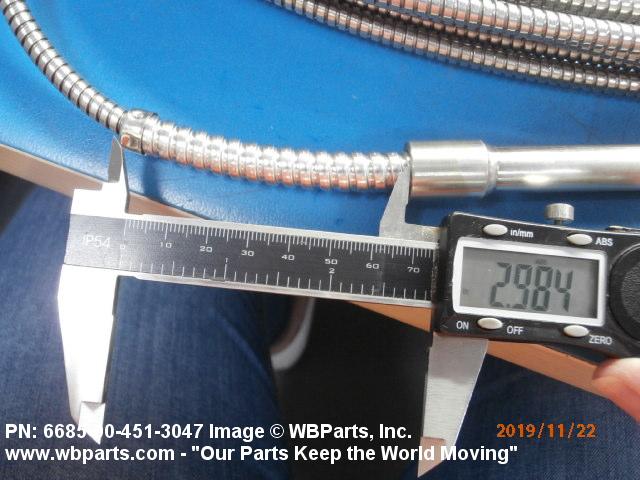

Drawings & Photos | NSN 6685-00-451-3047
Demand History | NSN 6685-00-451-3047
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6685-00-451-3047 | 2019-03-07 | 1 | United Kingdom |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6685-00-451-3047
Technical Data | NSN 6685-00-451-3047
| Characteristic | Specifications |
|---|---|

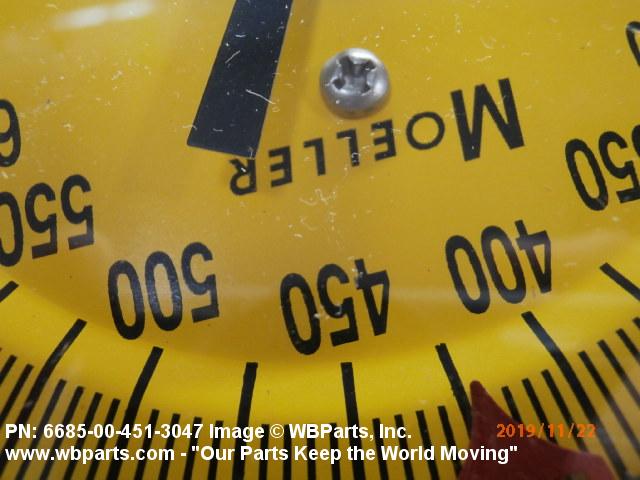

| SCALE TYPE | CONCENTRIC DIAL |
| SCALE MEASUREMENT RANGE | 100.000 TO 800.000 DEG FAHRENHEIT |
| MATERIAL | ALUMINUM METER CASE STEEL CORROSION RESISTING BULB |
| STYLE DESIGNATOR | D3 BULB W/O SOCKET |
| BULB TIP LENGTH | 3.000 INCHES NOMINAL |

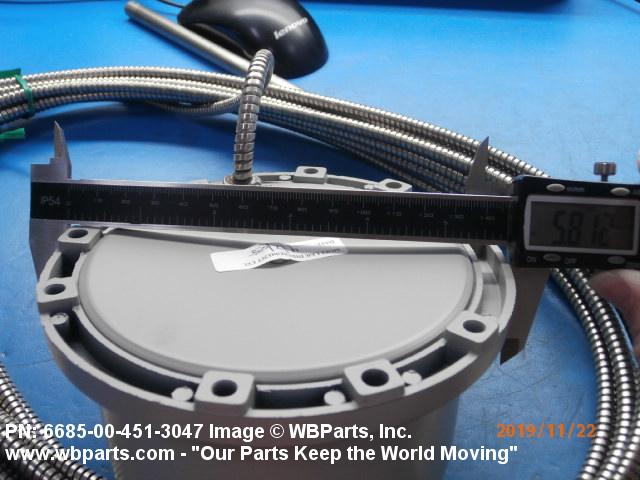

| CASE DIAMETER | 5.875 INCHES NOMINAL |

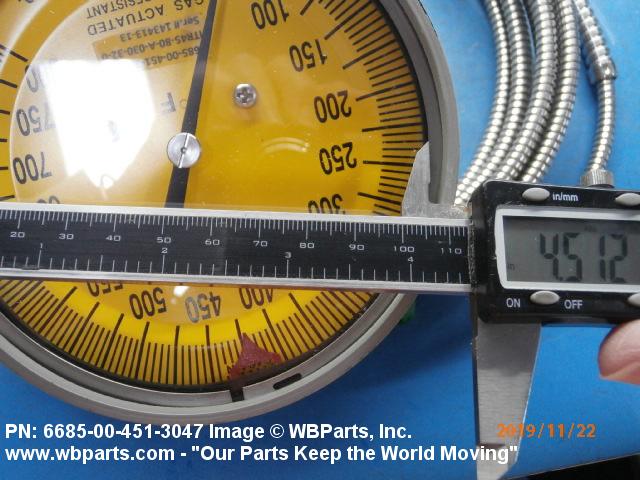

| DIAL DIAMETER | 4.500 INCHES NOMINAL |
| POINTER/PEN TYPE AND QUANTITY | 1 INDICATING SINGLE AND 1 REFERENCE SINGLE |
| INDICATOR CONNECTION METHOD | FLEXIBLE TUBE |
| BULB TYPE | PLAIN RIGID |
| BULB QUANTITY | 1 |
| BULB STYLE | K7 PLAIN BULB W/BENDABLE EXTENSION |
| ACTIVE PORTION LENGTH | 3.000 INCHES NOMINAL |
| ACTIVE PORTION DIAMETER | 0.500 INCHES NOMINAL |
| BULB OVERALL LENGTH | 10.000 INCHES NOMINAL |
| EXTENSION NECK LENGTH | 7.000 INCHES NOMINAL |
| BULB CONNECTION TYPE | CLAMP |
| FLEXIBLE TUBE LENGTH | 360.000 INCHES NOMINAL |
| ACTUATING MEDIUM | GAS |
| SPECIAL FEATURES | W S ITEM-PROPULSION SYSTEMS |
| III SCALE INSCRIPTION/BACKGROUND COLOR | BLACK MARKING ON YELLOW BACKGROUND |
| III SCALE SMALLEST INCREMENT | 5.0 DEG FAHRENHEIT |
Restrictions/Controls & Freight Information | NSN 6685-00-451-3047
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 058360 | THERMOMETERS,O/THAN CLINICAL |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 652 | unknown |
| Originating Activity Code | HD | Naval Inventory Control Point Mechanicsburg, PA 17055-0788 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6685-00-451-3047
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
