NSN 6685-00-130-7564 B1948714, B19487-14 , C244233
Product Details | DIAL INDICATING PRESSURE GAGE
6685-00-130-7564 An instrument designed to measure air, gas, fluid, and vapor pressure by means of an internal pressure sensitive element (bellows, bourdon tube, transducer/transmitter and the like) which transmits energy, by direct linkage, to the indicating pointer of a scale or a digital display, calibrated in units of pressure. It may include a temperature equivalent scale. For items that do not have an internal pressure sensitive element see INDICATOR, PRESSURE.205138600004220000042400027Safety and Rescue Equipment66200018Engine Instruments66850073Pressure, Temperature, and Humidity Measuring and Controlling Instruments
Part Alternates: B1948714, B19487-14 , C244233, C24423-3, G10623003, G10623-003, P733U-1/4CBM0-5 , P733U14CBM05, 0584C283923, 0584C28392-3, 12DFM015PSI, 12DFM0-15PSI, 1948714, 19487-14 , 1BRC63000AFA, 1BRC-63000AFA, 2 1-2 12DFM1-40-5, 2 1-2 12DFM1-4CBM0-5, 21212DFM1405, 21212DFM14CBM05, 67A81B1223, 67A81B122-3, 6685-00-130-7564, 00-130-7564, 6685001307564, 001307564
Instruments and Laboratory Equipment | Pressure, Temperature, and Humidity Measuring and Controlling Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 13 DEC 1968 | 00-130-7564 | 07428 ( GAGE, PRESSURE, DIAL INDICATING ) |

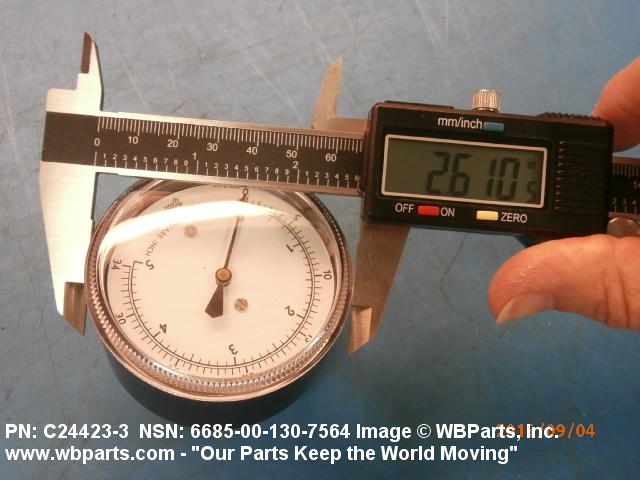

Drawings & Photos | NSN 6685-00-130-7564
Demand History | NSN 6685-00-130-7564
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6685-00-130-7564 | 2023-10-282 | 1 | Saudi Arabia |
| 6685-00-130-7564 | 2022-10-284 | 1 | United States |
| 6685-00-130-7564 | 2022-10-284 | 8 | United States |
| G10623-003 | 2022-09-271 | 44 | DIBBS |
| G10623-003 | 2022-08-228 | 44 | DIBBS |
| G10623-003 | 2022-06-152 | 23 | DIBBS |
| G10623-003 | 2022-05-144 | 23 | DIBBS |
| G10623-003 | 2019-06-169 | 19 | DIBBS |
| 6685-00-130-7564 | 2016-09-264 | 29 | DIBBS |
| 6685-00-130-7564 | 2015-08-226 | 1 | United States |
| 6685-00-130-7564 | 2010-04-117 | 23 | DIBBS |
| 6685-00-130-7564 | 2009-10-293 | 27 | DIBBS |
| 6685-00-130-7564 | 2009-08-236 | 5 | DIBBS |
| 6685-00-130-7564 | 2009-06-181 | 5 | DIBBS |
Cross Reference | NSN 6685-00-130-7564
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 0584C28392-3 | 30003 | NAVAL AIR SYSTEMS COMMAND |
| 0584C28392-3 | 53047 | RHEEM MFG CO AIR CONDITIONING DIV |
| 12DFM0-15PSI | 38508 | DESCO CORP MARSH BELLOFRAM DIV |
| 19487-14 | 08441 | SPX CORPORATION DBA DIELECTRIC COMMUNICATIONS |
| 1BRC-63000AFA | 38508 | DESCO CORP MARSH BELLOFRAM DIV |
| 2 1-2 12DFM1-40-5 | 01170 | BELLOFRAM CORPORATION DBA MARSH-BELLOFRAM |
| 2 1-2 12DFM1-40-5 | 38508 | DESCO CORP MARSH BELLOFRAM DIV |
| 2 1-2 12DFM1-4CBM0-5 | 01170 | BELLOFRAM CORPORATION DBA MARSH-BELLOFRAM |
| 2 1-2 12DFM1-4CBM0-5 | 38508 | DESCO CORP MARSH BELLOFRAM DIV |
| 67A81B122-3 | 30003 | NAVAL AIR SYSTEMS COMMAND |
| B19487-14 | 08441 | SPX CORPORATION DBA DIELECTRIC COMMUNICATIONS |
| C24423-3 | 53047 | RHEEM MFG CO AIR CONDITIONING DIV |
| G10623-003 | 01170 | BELLOFRAM CORPORATION DBA MARSH-BELLOFRAM |
| P733U-1/4CBM0-5 | 61349 | AMETEK, INC. DIV AEROSPACE & DEFENSE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6685-00-130-7564
Related Products | NSN 6685-00-130-7564
Technical Data | NSN 6685-00-130-7564
| Characteristic | Specifications |
|---|---|
| ACTUATION TYPE | DIAPHRAGM |
| ACTUATING ELEMENT MATERIAL | BRONZE |
| SCALE TYPE | SINGLE |
| SCALE NAME | PRESSURE |
| SCALE RANGE | 0.0 TO 5.0 POUNDS PRESSURE PER SQUARE INCH |
| SCALE ACCURACY | 2 PCT ENTIRE RANGE |
| GRADUATION UNIT | 1.0 POUNDS PER SQUARE INCH |
| SCALE SMALLEST INCREMENT | 0.010 POUNDS PER SQUARE INCH |
| SCALE INSCRIPTION/BACKGROUND COLOR | BLACK FIGURES ON WHITE BACKGROUND |
| DIAL SIZE | 2-1/2 IN. DIA |
| SCALE MARKING | AIR PRESSURE |
| POINTER TYPE | INDICATING |
| ADJUSTABILITY | ADJUSTABLE |
| POINTER COLOR | BLACK |
| CASE MATERIAL | STEEL |
| CASE SURFACE TREATMENT | ENAMEL, BLACK |
| OVERALL DIAMETER | 2.781 INCHES NOMINAL |
| OVERALL DEPTH | 1.781 INCHES NOMINAL |
| BEZEL TYPE | SLIPS-ON |
| MATERIAL | STEEL |
| SURFACE TREATMENT | PAINT, BLACK |
| PROTECTIVE CRYSTAL MATERIAL | GLASS |
| CONNECTION QUANTITY | 1 |
| CONNECTION TYPE | EXTERNAL |
| CONNECTION LOCATION | BACK |
| CONNECTION SIZE | 0.250 IN. NPT |
| MOUNTING METHOD | SURFACE |
| CONNECTOR TYPE VENT | NOT PROVIDED |
| ACCESSORY COMPONENTS AND QUANTITY | RESTRICTOR SCREW 1 |
| III END ITEM IDENTIFICATION | RADAR,SEARCH,AN/SPS-48; RADAR,SEARCH,AN/SPS-52 |
| III FSC APPLICATION DATA | GAGE,PRESSURE,DIAL INDICATING,EXCEPT ENGINE |
| MANUFACTURERS CODE | 01170 |
| DESIGN CONTROL REFERENCE | G10623-003 |
Restrictions/Controls & Freight Information | NSN 6685-00-130-7564
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 121570 | GAGES AIR LIQUID LEVEL PRESSURE |
| Less than car load rating | ||
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 653 | unknown |
| Originating Activity Code | KE | Naval ICP Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Q | Extremely fragile items including delicate instruments. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6685-00-130-7564
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | E | General Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
