NSN 6685-00-067-5259 D0248, 8106660, 01404
Product Details | DIAL INDICATING PRESSURE GAGE
6685-00-067-5259 An instrument designed to measure air, gas, fluid, and vapor pressure by means of an internal pressure sensitive element (bellows, bourdon tube, transducer/transmitter and the like) which transmits energy, by direct linkage, to the indicating pointer of a scale or a digital display, calibrated in units of pressure. It may include a temperature equivalent scale. For items that do not have an internal pressure sensitive element see INDICATOR, PRESSURE.205138600004220000042400027Safety and Rescue Equipment66200018Engine Instruments66850073Pressure, Temperature, and Humidity Measuring and Controlling Instruments
Part Alternates: D0248, 8106660, 01404, 1082A, 1082A0100, 1082A100, 133244, 1404, 4 1-2 210C1-4BM100, 412210C14BM100, 44042, 451082A02L100, 45-1082A02L100, 45-1082A5-02L-0/100, 451082A502L0100, 451082AS02L0100, 45-1082AS-02L-0-100, 451082AS02L100PSI , 6685-00-067-5259, 00-067-5259, 6685000675259, 000675259
Instruments and Laboratory Equipment | Pressure, Temperature, and Humidity Measuring and Controlling Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 01 JAN 1963 | 00-067-5259 | 07428 ( GAGE, PRESSURE, DIAL INDICATING ) |

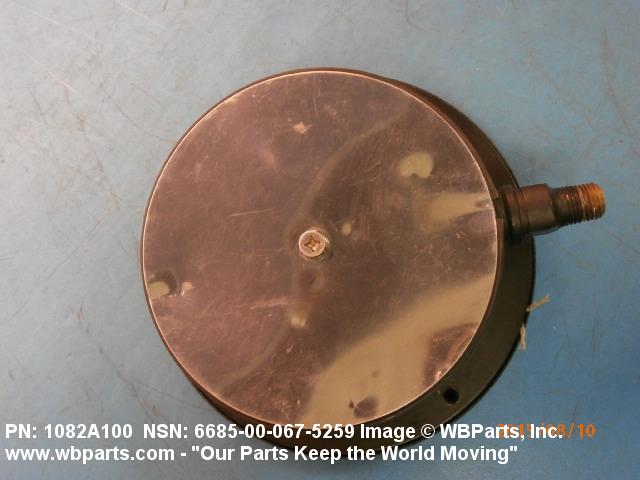

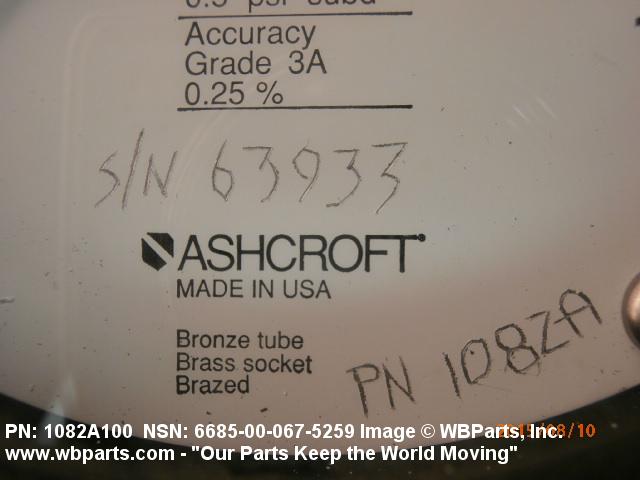

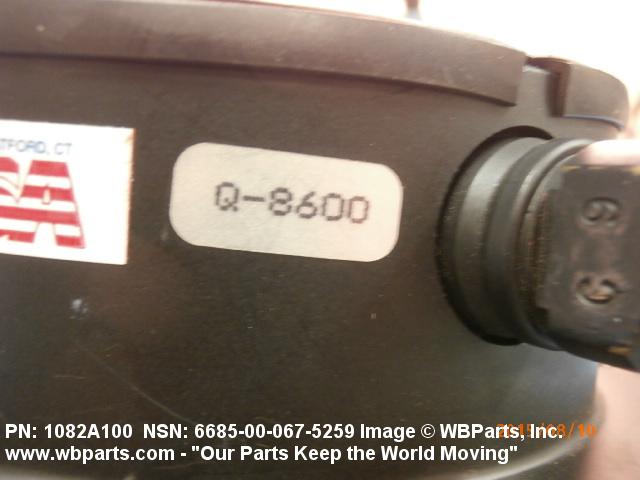

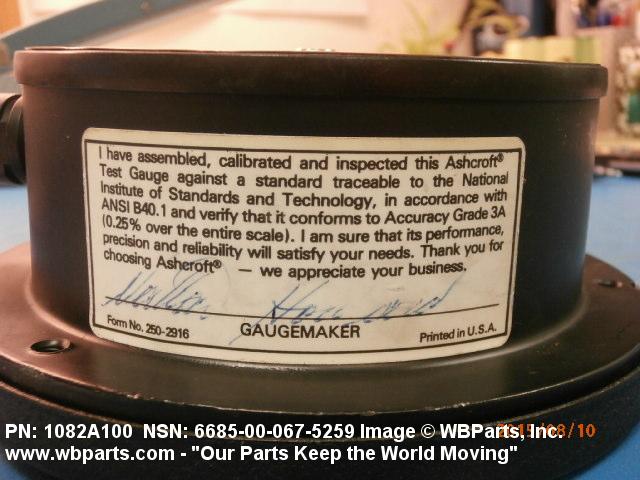

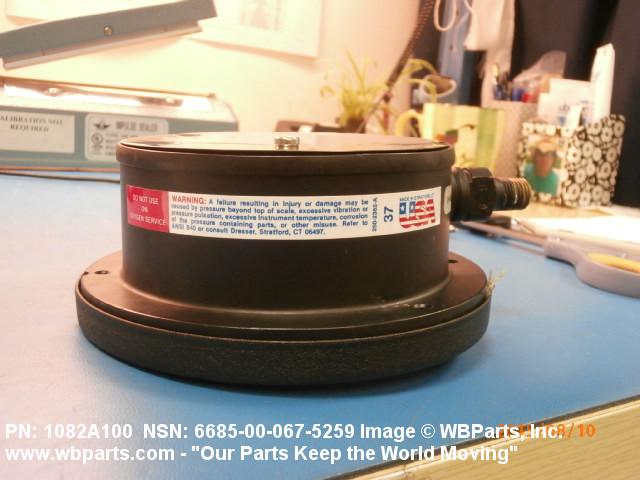

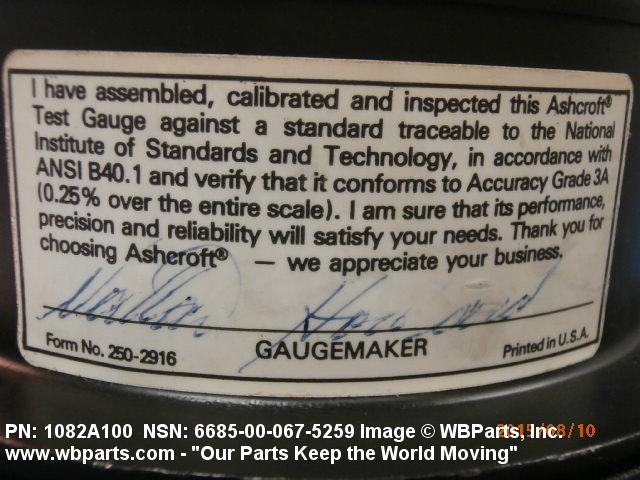

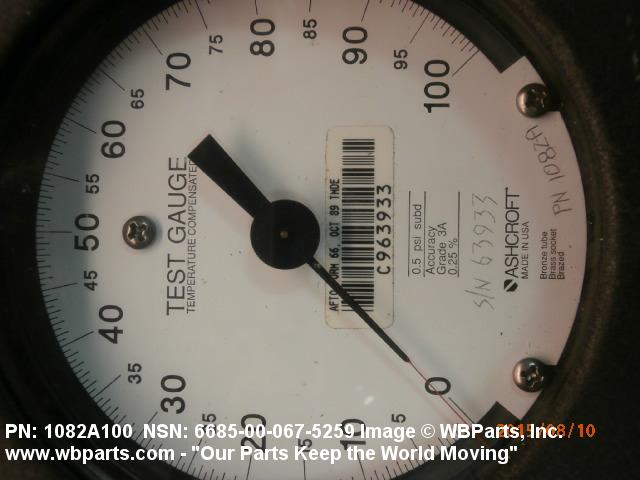

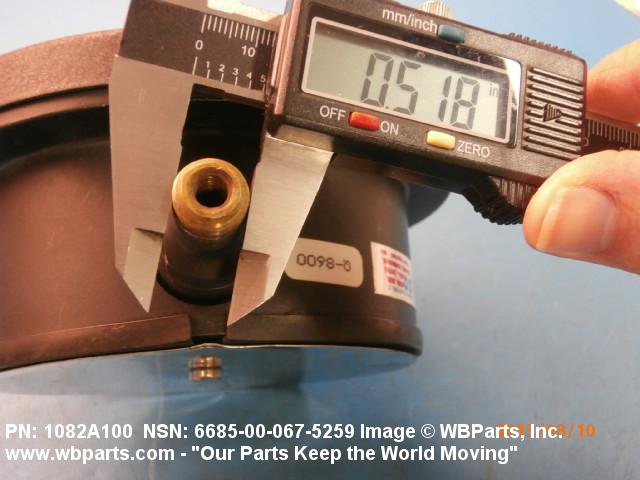

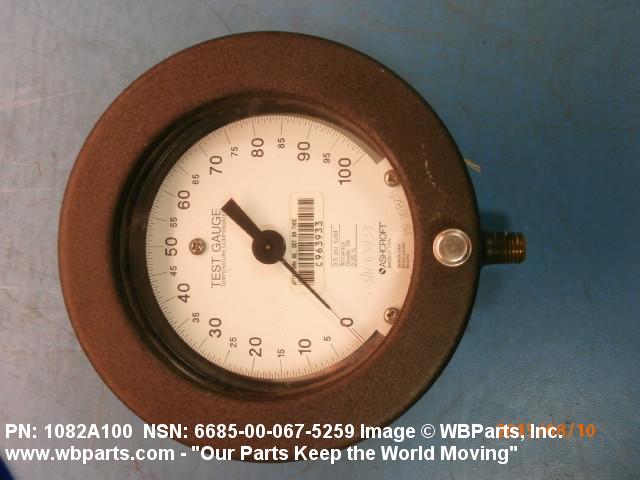

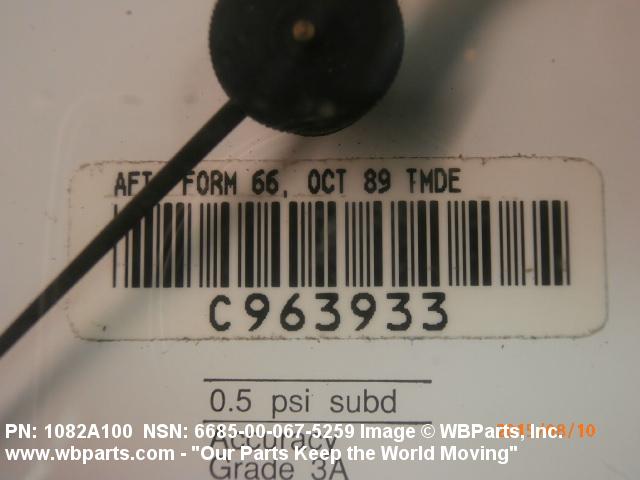

Drawings & Photos | NSN 6685-00-067-5259
Demand History | NSN 6685-00-067-5259
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6685-00-067-5259 | 2016-10-304 | 12 | DIBBS |
| 6685-00-067-5259 | 2016-10-297 | 11 | DIBBS |
| 6685-00-067-5259 | 2016-09-271 | 1 | DIBBS-RFPs |
| 6685-00-067-5259 | 2016-04-108 | 21 | DIBBS |
| 6685-00-067-5259 | 2016-02-46 | 11 | DIBBS |
| 6685-00-067-5259 | 2015-07-212 | 1 | United States |
| 6685-00-067-5259 | 2015-07-211 | 1 | United States |
| 6685-00-067-5259 | 2015-07-196 | 1 | United States |
Cross Reference | NSN 6685-00-067-5259
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 01404 | 61349 | AMETEK, INC. DIV AEROSPACE & DEFENSE |
| 1082A | 38056 | ASHCROFT INC. |
| 1082A0100 | 78022 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE |
| 1082A100 | 38056 | ASHCROFT INC. |
| 133244 | 61349 | AMETEK, INC. DIV AEROSPACE & DEFENSE |
| 1404 | 61349 | AMETEK, INC. DIV AEROSPACE & DEFENSE |
| 4 1-2 210C1-4BM100 | 38508 | DESCO CORP MARSH BELLOFRAM DIV |
| 44042 | 61349 | AMETEK, INC. DIV AEROSPACE & DEFENSE |
| 45-1082A02L100 | 38056 | ASHCROFT INC. |
| 45-1082A5-02L-0/100 | 38056 | ASHCROFT INC. |
| 45-1082AS-02L-0-100 | 38056 | ASHCROFT INC. |
| 451082AS02L100PSI | 38056 | ASHCROFT INC. |
| 8106660 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
| D0248 | 01170 | BELLOFRAM CORPORATION DBA MARSH-BELLOFRAM |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6685-00-067-5259
Related Products | NSN 6685-00-067-5259
Technical Data | NSN 6685-00-067-5259
| Characteristic | Specifications |
|---|---|
| ACTUATION TYPE | SINGLE BOURDON TUBE |
| ACTUATING ELEMENT MATERIAL | BRONZE |
| SCALE TYPE | SINGLE |
| SCALE NAME | PRESSURE |
| SCALE RANGE | 0.0 TO 100.0 POUNDS PRESSURE PER SQUARE INCH |
| SCALE ACCURACY | 1/2 OF 1 PERCENT ENTIRE RANGE |
| GRADUATION UNIT | 5.0 POUNDS PER SQUARE INCH |
| SCALE SMALLEST INCREMENT | 0.5 POUNDS PER SQUARE INCH |
| SCALE INSCRIPTION/BACKGROUND COLOR | BLACK FIGURES ON WHITE BACKGROUND |
| DIAL SIZE | 4-1/2 IN. DIA |
| SCALE MARKING | /TEST GAUGE/ |
| POINTER TYPE | INDICATING |
| ADJUSTABILITY | ADJUSTABLE |
| POINTER COLOR | BLACK |
| CASE MATERIAL | ALUMINUM |
| CASE SURFACE TREATMENT | PAINT, EPOXY |

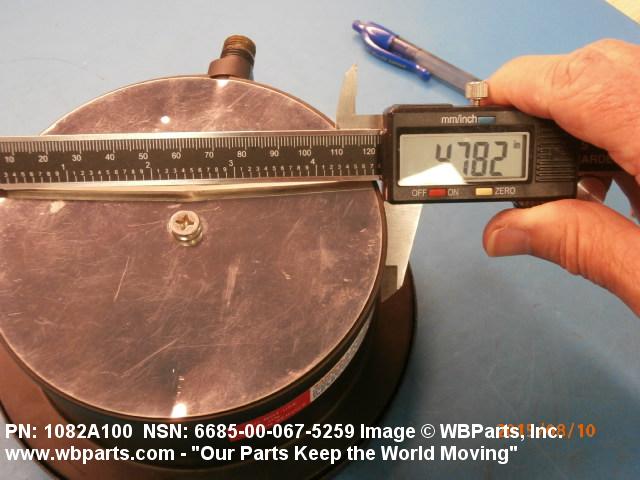

| OVERALL DIAMETER | 4.906 INCHES NOMINAL |

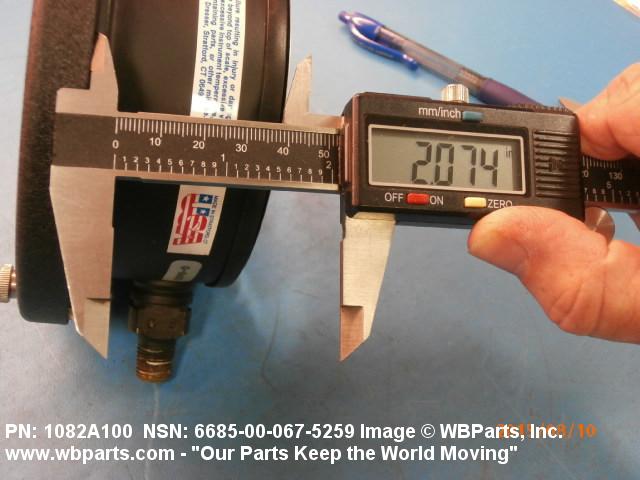

| OVERALL DEPTH | 2.188 INCHES NOMINAL |
| BEZEL TYPE | THREAD |
| MATERIAL | ALUMINUM |
| SURFACE TREATMENT | PAINT, EPOXY |
| PROTECTIVE CRYSTAL MATERIAL | GLASS |
| CONNECTION QUANTITY | 1 |
| CONNECTION TYPE | EXTERNAL |
| CONNECTION LOCATION | BOTTOM |
| CONNECTION SIZE | 0.250 IN. NPT DIA |
| MOUNTING METHOD | RIGID STEM |
| CONNECTOR TYPE VENT | NOT PROVIDED |
| SPECIAL FEATURES | EQUIPPED WITH MIRRORED POLISHED STAINLESS STEEL BAND UNDER THE TIP OF THE POINTER |
| III FSC APPLICATION DATA | GAGE,PRESSURE,DIAL INDICATING,EXCEPT ENGINE |
Restrictions/Controls & Freight Information | NSN 6685-00-067-5259
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 121570 | GAGES AIR LIQUID LEVEL PRESSURE |
| Less than car load rating | ||
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 652 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
