NSN 6680-01-157-5535 A047150001, A04750001, 15/193451/00
Product Details | LIQUID QUANTITY INDICATOR
6680-01-157-5535 An indicator which indicates the amount of liquid contained in a tank, vessel, chamber, and like items.
Part Alternates: A047150001, A04750001, 15/193451/00, 1519345100, 8222470-10, 6680-01-157-5535, 01-157-5535, 6680011575535, 011575535, 822247010
Instruments and Laboratory Equipment | Liquid and Gas Flow, Liquid Level, and Mechanical Motion Measuring Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 08 JUL 1983 | 01-157-5535 | 03377 ( INDICATOR, LIQUID QUANTITY ) |

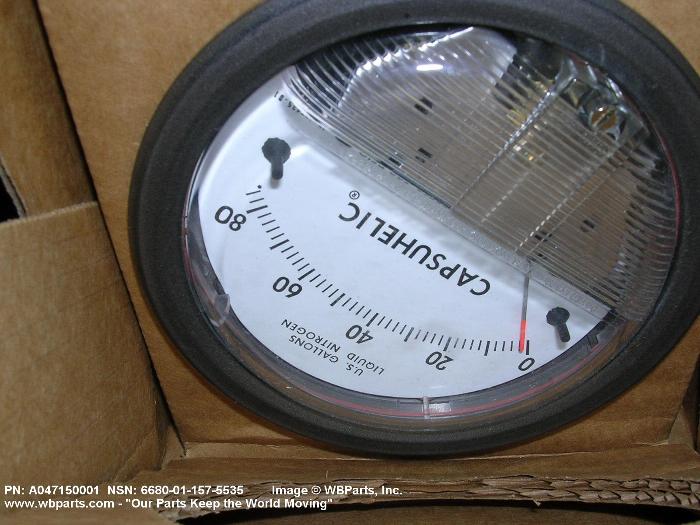

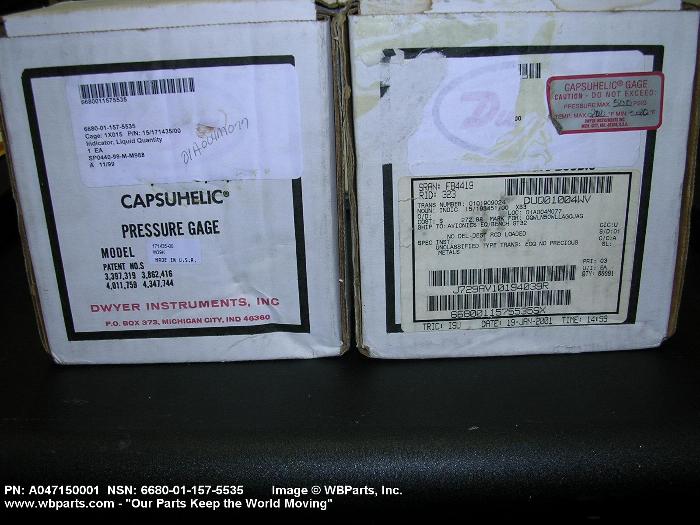

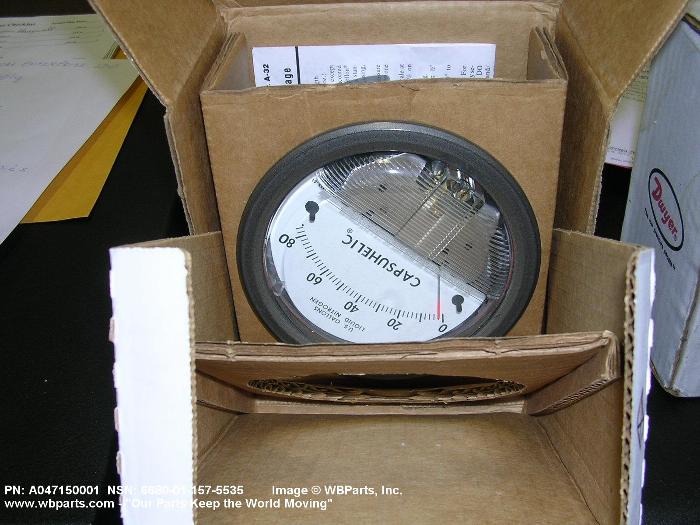

Drawings & Photos | NSN 6680-01-157-5535
Demand History | NSN 6680-01-157-5535
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 193451-00 | 2022-09-270 | 11 | DIBBS |
| A047150001 | 2007-07-200 | 2 | Portugal |
Cross Reference | NSN 6680-01-157-5535
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 15/193451/00 | 85274 | DWYER INSTRUMENTS INC DIV DWYER INSTRUMENTS, INC |
| 15/193451/00 | 98750 | SAN ANTONIO AIR LOGISTICS CENTER |
| 8222470-10 | 98750 | SAN ANTONIO AIR LOGISTICS CENTER |
| A047150001 | 58328 | ZWICK ENERGY RESEARACH ORGANIZATION INC |
| A04750001 | 85274 | DWYER INSTRUMENTS INC DIV DWYER INSTRUMENTS, INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6680-01-157-5535
Related Products | NSN 6680-01-157-5535
Technical Data | NSN 6680-01-157-5535
| Characteristic | Specifications |
|---|---|
| CASE MATERIAL | ALUMINUM |
| PRESENTATION TYPE | DIAL |
| ACCURACY RATING | 3.0 PERCENT SINGLE INDICATOR SINGLE SCALE |
| SCALE MARKING AND SURFACE FINISH | MAJOR GRADUATION NONLUMINOUS AND MINOR GRADUATION NONLUMINOUS AND LETTERS NONLUMINOUS |
| SCALE RANGE | 0.0 TO 80.0 GALLONS SINGLE INDICATOR SINGLE SCALE |
| POINTER TYPE | INDICATING SINGLE POINTER |
| POINTER PURPOSE | LBS OF US GALLONS IN LIQUID NITROGEN TANK |
| INDIVIDUAL MARKING | US GALLONS LIQUID NITROGEN |
| POINTER FINISH | NONLUMINOUS SINGLE POINTER |
| MOUNTING HOLE DIAMETER | 4.813 INCHES NOMINAL |
| MOUNTING FLANGE DIAMETER | 5.000 INCHES NOMINAL |
| LENGTH | 3.094 INCHES MAXIMUM |
| DIAL OUTSIDE DIAMETER | 5.000 INCHES NOMINAL |
| SPECIAL FEATURES | TECH ORDER 35D29-8-3-4 FIG 2-9/4-138; LIQUID OXYGEN CLEANED; MADE FROM DWYER 0 TO 15 INCHES WATER, MODEL NUMBER 4015 GAGE; CONNECTION SIZE 1/4 INCH NPT |
| III END ITEM IDENTIFICATION | LIQUID NITROGEN SERVICING CART, A040111000 |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | GAUGE,LIQUID LEVEL |
Restrictions/Controls & Freight Information | NSN 6680-01-157-5535
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 121570 | GAGES AIR LIQUID LEVEL PRESSURE |
| Less than car load rating | J | 100.2 |
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 653 | unknown |
| Originating Activity Code | SE | San Antonio Air Logistics Center Kelly AFB, TX 78241-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6680-01-157-5535
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
