NSN 6680-01-132-1725 G6078A, G607-8-A, G607-8-A-4-1/4
Product Details | LIQUID SIGHT INDICATOR
6680-01-132-1725 An item so designed to have a portion or all of its body transparent to permit the visual examination of the amount of liquid in a pressure vessel, boiler, evaporator, still, processing tank, reservoir, pipe tubing line, and the like, and/or to determine the flow to a lubricated part. It may also be provided with an element that changes colors to indicate changes in moisture content. The item may have a means for refilling. Excludes INDICATOR, LIQUID QUANTITY and INDICATOR, RATE OF FLOW.
Part Alternates: G6078A, G607-8-A, G607-8-A-4-1/4, G6078A414, 11455935, 6680-01-132-1725, 01-132-1725, 6680011321725, 011321725
Instruments and Laboratory Equipment | Liquid and Gas Flow, Liquid Level, and Mechanical Motion Measuring Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 24 MAY 1982 | 01-132-1725 | 03175 ( INDICATOR, SIGHT, LIQUID ) |
Drawings & Photos | NSN 6680-01-132-1725
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6680-01-132-1725
Technical Data | NSN 6680-01-132-1725
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-200/9 FED SPEC ALL MATERIAL RESPONSES |
| SURFACE TREATMENT | ANODIZE |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8625 MIL SPEC ALL TREATMENT RESPONSES |

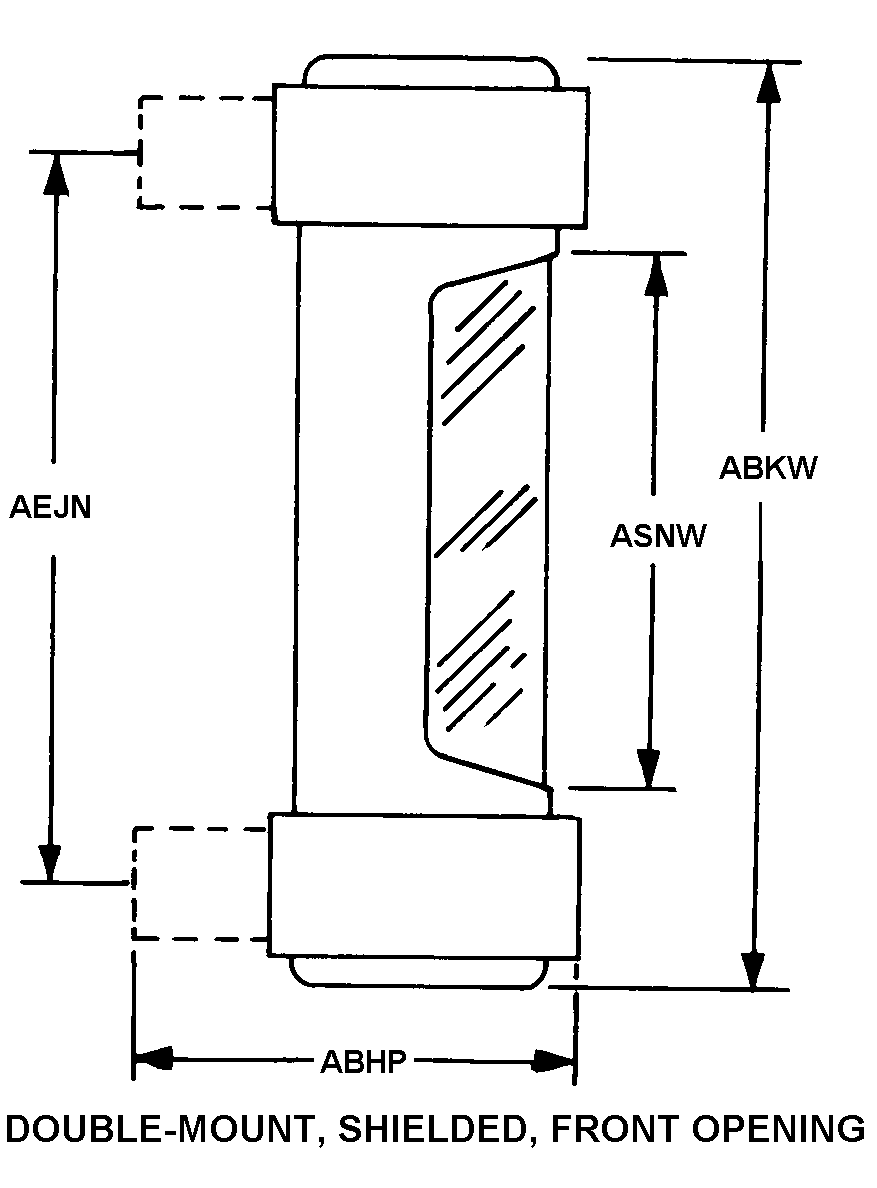

| STYLE DESIGNATOR | D34 DOUBLE-MOUNT, SHIELDED, FRONT OPENING |
| OVERALL LENGTH | 2.055 INCHES NOMINAL |
| OVERALL HEIGHT | 9.620 INCHES NOMINAL |
| DISTANCE BETWEEN MOUNTING FACILITY CENTERS | 8.000 INCHES NOMINAL |
| SIGHT HEIGHT | 6.620 INCHES NOMINAL |
| MEDIA FOR WHICH DESIGNED | ETHYLENE-GLYCOL AND WATER SOLUTION |
| FURNISHED DATA | LIQUID LEVEL |
| DATA FURNISHING METHOD | CLEAR WINDOW |
| MAXIMUM WORKING PRESSURE | 390.0 POUNDS PER SQUARE INCH |
| MAXIMUM TEMP RATING | 71.0 DEG CELSIUS |
| END CONNECTION TYPE | THREADED EXTERNAL, PLAIN BOTH ENDS |
| THREAD SERIES DESIGNATOR | NPTF BOTH ENDS |
| NOMINAL THREAD SIZE | 0.250 INCHES BOTH ENDS |
| THREAD QUANTITY PER INCH | 18 BOTH ENDS |
| THREAD DIRECTION | RIGHT-HAND BOTH ENDS |
| FEATURES PROVIDED | NIPPLE TYPE COUPLING ADAPTER |
| COUPLING ADAPTER LENGTH | 0.440 INCHES NOMINAL |
| MANUFACTURERS CODE | 24346 |
| DESIGN CONTROL REFERENCE | G607-8-A-4-1/4 |
Restrictions/Controls & Freight Information | NSN 6680-01-132-1725
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 121570 | GAGES AIR LIQUID LEVEL PRESSURE |
| Less than car load rating | ||
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 652 | unknown |
| Originating Activity Code | CX | Defense Supply Center Richmond Richmond, VA 23297-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
