NSN 6680-01-131-9679 589, 589 MODIFIED, 589MODIFIED
Product Details | LIQUID SIGHT INDICATOR
6680-01-131-9679 An item so designed to have a portion or all of its body transparent to permit the visual examination of the amount of liquid in a pressure vessel, boiler, evaporator, still, processing tank, reservoir, pipe tubing line, and the like, and/or to determine the flow to a lubricated part. It may also be provided with an element that changes colors to indicate changes in moisture content. The item may have a means for refilling. Excludes INDICATOR, LIQUID QUANTITY and INDICATOR, RATE OF FLOW.
Part Alternates: 589, 589 MODIFIED, 589MODIFIED, 6680-01-131-9679, 01-131-9679, 6680011319679, 011319679
Instruments and Laboratory Equipment | Liquid and Gas Flow, Liquid Level, and Mechanical Motion Measuring Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 20 MAY 1982 | 01-131-9679 | 03175 ( INDICATOR, SIGHT, LIQUID ) |

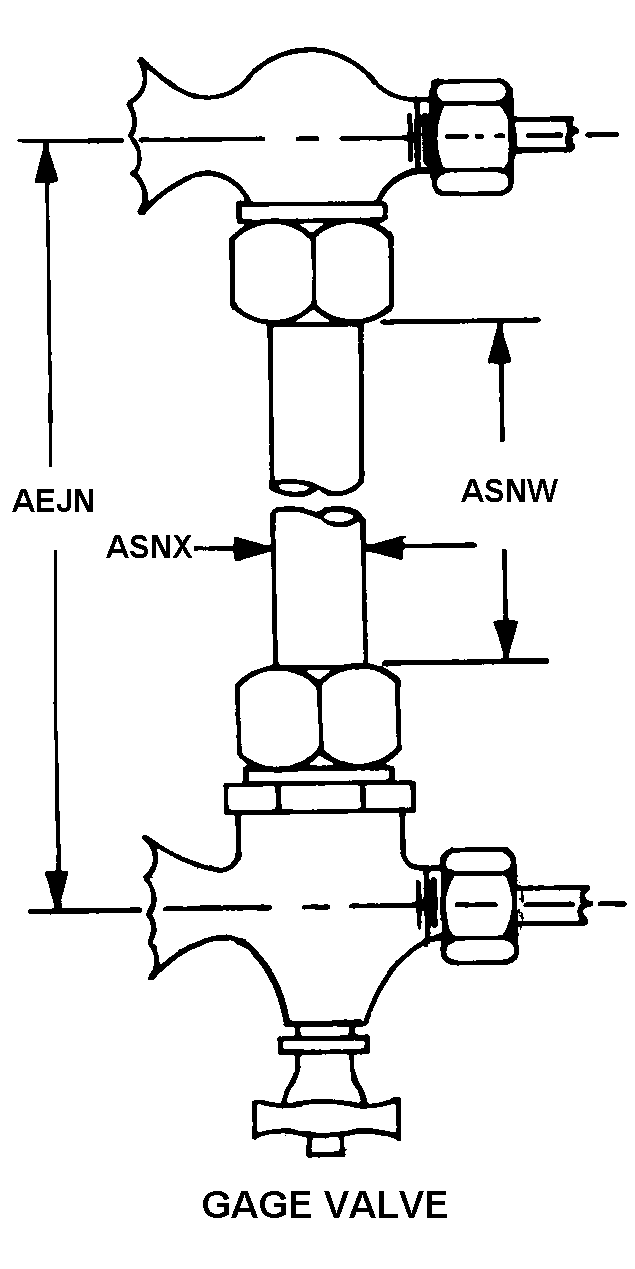

Drawings & Photos | NSN 6680-01-131-9679
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6680-01-131-9679
Technical Data | NSN 6680-01-131-9679
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY |
| STYLE DESIGNATOR | D26 GAGE VALVE |
| DISTANCE BETWEEN MOUNTING FACILITY CENTERS | 8.000 INCHES NOMINAL |
| SIGHT HEIGHT | 7.000 INCHES NOMINAL |
| SIGHT DIAMETER | 0.750 INCHES NOMINAL |
| GUARD ROD QUANTITY | 3 |
| MEDIA FOR WHICH DESIGNED | GASOLINE AND OIL |
| FURNISHED DATA | LIQUID LEVEL |
| DATA FURNISHING METHOD | CLEAR WINDOW |
| MAXIMUM WORKING PRESSURE | 200.0 POUNDS PER SQUARE INCH |
| MAXIMUM TEMP RATING | NOT RATED |
| END CONNECTION TYPE | THREADED INTERNAL, PLAIN BOTH ENDS |
| NOMINAL PIPE SIZE FOR WHICH DESIGNED | 0.750 INCHES BOTH ENDS |
| THREAD SERIES DESIGNATOR | NPT BOTH ENDS |
| NOMINAL THREAD SIZE | 0.750 INCHES BOTH ENDS |
| THREAD QUANTITY PER INCH | 14 BOTH ENDS |
| THREAD DIRECTION | RIGHT-HAND BOTH ENDS |
| REFERENCE NUMBER DIFFERENTIATING CHARACTERISTICS | ASDIFFERENTIATED BY DISTANCE BETWEEN MOUNTING CENTERS AND SIGHT HEIGHT |
| MANUFACTURERS CODE | 37239 |
| DESIGN CONTROL REFERENCE | 589 MODIFIED |
Restrictions/Controls & Freight Information | NSN 6680-01-131-9679
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 121570 | GAGES AIR LIQUID LEVEL PRESSURE |
| Less than car load rating | ||
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 653 | unknown |
| Originating Activity Code | CX | Defense Supply Center Richmond Richmond, VA 23297-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Q | Extremely fragile items including delicate instruments. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6680-01-131-9679
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | X | SEMIACTIVE ITEM-NO REPLACEMENT (NON-STOCKED ITEMS) A potentially inactive NSN which must be retained in the supply system as an item of supply because (1) stocks of the item are on hand or in use below the wholesale level and (2) the NSN is cited in equipment authorization documents TO & E, TA, TM, etc., or in-use assets are being reported. 1. Items are authorized for central procurement but not authorized for stockage at wholesale level. 2. Requisitions for in-use replacement will be authorized in accordance with individual Military Service directives. 3. Requisitions may be submitted as requirements generate. Repetitive demands may dictate an AAC change to permit wholesale stockage. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
