Product Details | LIQUID QUANTITY INDICATOR
6680-01-059-4638 An indicator which indicates the amount of liquid contained in a tank, vessel, chamber, and like items.
Part Alternates: 472392-002, 6680-01-059-4638, 01-059-4638, 6680010594638, 472392002, 010594638
Instruments and Laboratory Equipment | Liquid and Gas Flow, Liquid Level, and Mechanical Motion Measuring Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 12 APR 1978 | 01-059-4638 | 03377 ( INDICATOR, LIQUID QUANTITY ) |
Drawings & Photos | NSN 6680-01-059-4638
Cross Reference | NSN 6680-01-059-4638
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 472392-002 | 89305 | SIMMONDS PRECISION PRODUCTS, INC. DBA GOODRICH SENSORS AND INTERGRATED |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6680-01-059-4638
Related Products | NSN 6680-01-059-4638
Technical Data | NSN 6680-01-059-4638
| Characteristic | Specifications |
|---|---|
| PRESENTATION TYPE | COUNTER AND DIAL |
| SCALE DIVISION QUANTITY | 1000 SINGLE INDICATOR SINGLE SCALE |
| SCALE MARKING AND SURFACE FINISH | LETTERS NONLUMINOUS AND NUMERALS NONLUMINOUS |
| SCALE RANGE | 0.0 TO 14000.0 POUNDS SINGLE INDICATOR SINGLE SCALE |
| POINTER TYPE | INDICATING SINGLE POINTER |
| POINTER PURPOSE | INDICATES TOTAL AMOUNT OF FUEL REMAINING IN AIRCRAFT |
| COLOR | BLACK, FED STD 595, 37038 BACKGROUND OVERALL |
| POINTER FINISH | NONLUMINOUS SINGLE POINTER |
| LIGHT LOCATION | BACK |
| CURRENT TYPE | AC |
| AC VOLTAGE RATING | 115.0 VOLTS NOMINAL AND 5.0 VOLTS NOMINAL |
| PHASE | SINGLE |
| FREQUENCY RATING | 400.0 HERTZ NOMINAL |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 BEZEL |
| MOUNTING HOLE DIAMETER | 0.170 INCHES NOMINAL |
| FLANGE MOUNTING LENGTH | 2.390 INCHES NOMINAL |
| MOUNTING FLANGE WIDTH | 2.390 INCHES NOMINAL |

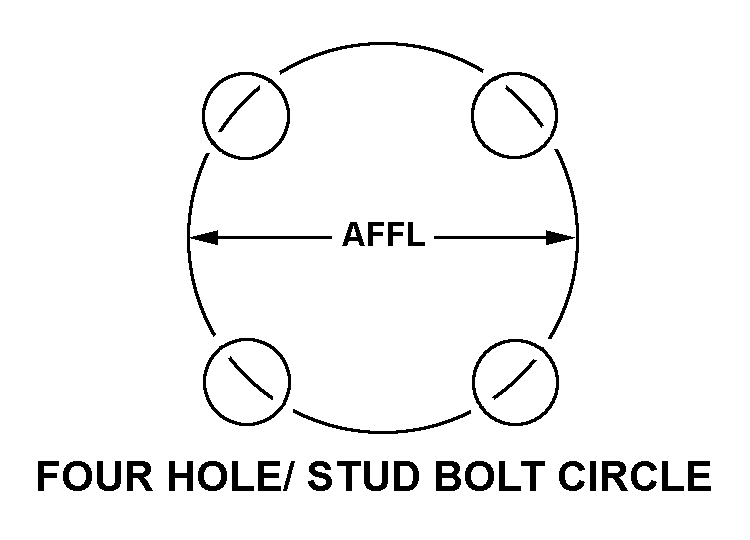

| MOUNTING ARRANGEMENT STYLE | 6 FOUR HOLE/STUD BOLT CIRCLE |
| MOUNTING BOLT CIRCLE DIAMETER | 2.630 INCHES NOMINAL |
| LENGTH | 10.000 INCHES NOMINAL |
| DIAMETER | 2.255 INCHES NOMINAL |
| DEPTH | 8.500 INCHES NOMINAL |
| SPECIAL FEATURES | INSTRUMENT READS IN POUNDS TIMES 1000;POINTER INDICATES TOTAL INTERNAL FUEL A COUNTER INDICATES INTERNAL AND EXTERNAL FUEL QUANTITY;HERMATICLY SEALED UNIT, INERT GAS NITROGEN |
| III END ITEM IDENTIFICATION | F-15 ACFT |
