NSN 6680-01-037-5010 MI-30-1 1/8S, MI30118S, 55526
Product Details | LIQUID SIGHT INDICATOR
6680-01-037-5010 An item so designed to have a portion or all of its body transparent to permit the visual examination of the amount of liquid in a pressure vessel, boiler, evaporator, still, processing tank, reservoir, pipe tubing line, and the like, and/or to determine the flow to a lubricated part. It may also be provided with an element that changes colors to indicate changes in moisture content. The item may have a means for refilling. Excludes INDICATOR, LIQUID QUANTITY and INDICATOR, RATE OF FLOW.
Part Alternates: MI-30-1 1/8S, MI30118S, 55526, 6680-01-037-5010, 01-037-5010, 6680010375010, 010375010
Instruments and Laboratory Equipment | Liquid and Gas Flow, Liquid Level, and Mechanical Motion Measuring Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 18 MAR 1977 | 01-037-5010 | 03175 ( INDICATOR, SIGHT, LIQUID ) |
Drawings & Photos | NSN 6680-01-037-5010
Demand History | NSN 6680-01-037-5010
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6680-01-037-5010 | 2013-10-303 | 4 | DIBBS |
| 6680-01-037-5010 | 2013-03-78 | 18 | DIBBS |
| 6680-01-037-5010 | 2009-07-195 | 4 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6680-01-037-5010
Technical Data | NSN 6680-01-037-5010
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY |

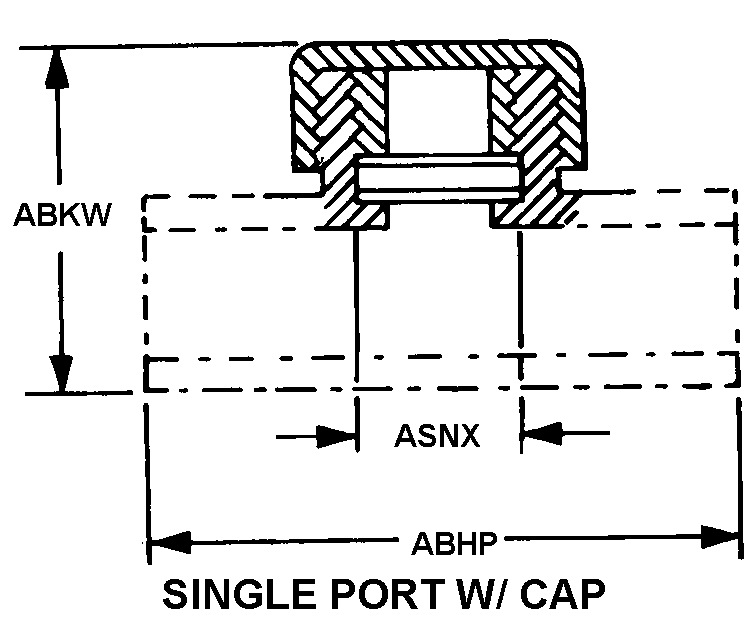

| STYLE DESIGNATOR | D24 SINGLE PORT W/CAP |
| OVERALL LENGTH | 3.312 INCHES NOMINAL |
| OVERALL HEIGHT | 2.312 INCHES NOMINAL |
| SIGHT DIAMETER | ANY ACCEPTABLE |
| MEDIA FOR WHICH DESIGNED | REFRIGERANT, FLUOROCARBON |
| FURNISHED DATA | ACTIVE INGREDIENT PRESENCE AND EXCESS MOISTURE CONTENT |
| DATA FURNISHING METHOD | CLEAR WINDOW AND COLOR CHANGE |
| MAXIMUM WORKING PRESSURE | 500.0 POUNDS PER SQUARE INCH |
| MAXIMUM TEMP RATING | 200.0 DEG FAHRENHEIT |
| END CONNECTION TYPE | SOCKET BOTH ENDS |
| TUBE OUTSIDE DIAMETER FOR WHICH DESIGNED | 1.125 INCHES BOTH ENDS |
Restrictions/Controls & Freight Information | NSN 6680-01-037-5010
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 121570 | GAGES AIR LIQUID LEVEL PRESSURE |
| Less than car load rating | ||
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 653 | unknown |
| Originating Activity Code | CX | Defense Supply Center Richmond Richmond, VA 23297-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Q | Extremely fragile items including delicate instruments. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6680-01-037-5010
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
