NSN 6680-00-954-3808 MODEL 0000 MODIFIED, MODEL0000MODIFIED, A1088592G18
Product Details | LIQUID SIGHT INDICATOR
6680-00-954-3808 An item so designed to have a portion or all of its body transparent to permit the visual examination of the amount of liquid in a pressure vessel, boiler, evaporator, still, processing tank, reservoir, pipe tubing line, and the like, and/or to determine the flow to a lubricated part. It may also be provided with an element that changes colors to indicate changes in moisture content. The item may have a means for refilling. Excludes INDICATOR, LIQUID QUANTITY and INDICATOR, RATE OF FLOW.
Part Alternates: MODEL 0000 MODIFIED, MODEL0000MODIFIED, A1088592G18, 8950A000017, 8950A00-0017, 6680-00-954-3808, 00-954-3808, 6680009543808, 009543808
Instruments and Laboratory Equipment | Liquid and Gas Flow, Liquid Level, and Mechanical Motion Measuring Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 04 MAY 1966 | 00-954-3808 | 03175 ( INDICATOR, SIGHT, LIQUID ) |
Drawings & Photos | NSN 6680-00-954-3808
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6680-00-954-3808
Technical Data | NSN 6680-00-954-3808
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY AND GLASS |

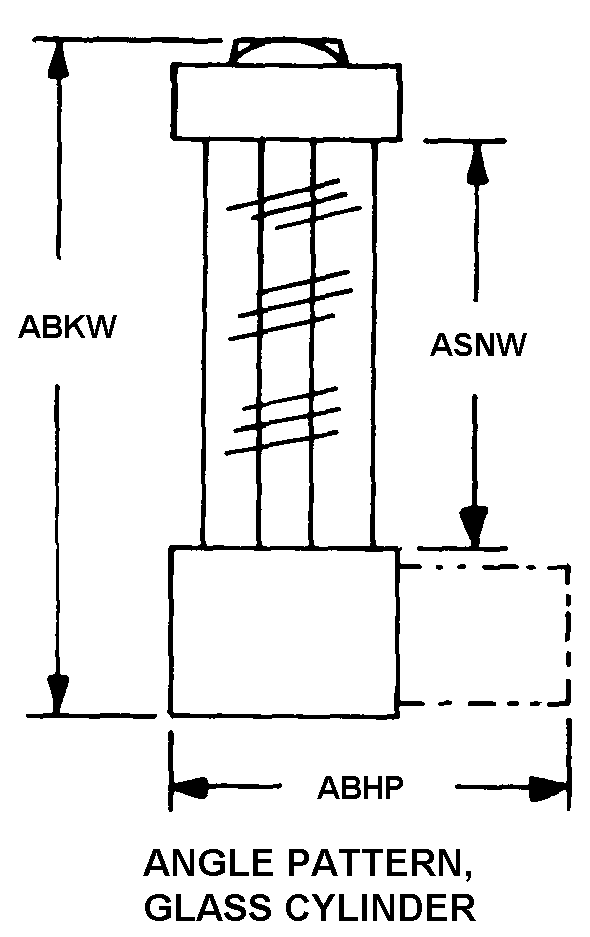

| STYLE DESIGNATOR | D7 ANGLE PATTERN, GLASS CYLINDER |
| OVERALL LENGTH | 2.250 INCHES NOMINAL |
| OVERALL HEIGHT | 14.000 INCHES NOMINAL |
| SIGHT HEIGHT | 12.000 INCHES NOMINAL |
| MEDIA FOR WHICH DESIGNED | WATER |
| FURNISHED DATA | LIQUID LEVEL |
| DATA FURNISHING METHOD | CLEAR WINDOW |
| MAXIMUM WORKING PRESSURE | NOT RATED |
| MAXIMUM TEMP RATING | NOT RATED |
| END CONNECTION TYPE | THREADED EXTERNAL, GASKET SEAL BOTH ENDS |
| TUBE OUTSIDE DIAMETER FOR WHICH DESIGNED | 0.500 INCHES BOTH ENDS |
| THREAD SERIES DESIGNATOR | NPT BOTH ENDS |
| NOMINAL THREAD SIZE | 0.750 INCHES BOTH ENDS |
| THREAD QUANTITY PER INCH | 12 BOTH ENDS |
| THREAD DIRECTION | RIGHT-HAND BOTH ENDS |
| MANUFACTURERS CODE | 16630 |
| DESIGN CONTROL REFERENCE | 8950A00-0017 |
Restrictions/Controls & Freight Information | NSN 6680-00-954-3808
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 6680-00-954-3808
Coast Guard| Category | Code | Description |
|---|---|---|
| Inventory Account Codes | S | Stock Fund item managed for the Coast Guard by the respective Inventory Control Point. A funded requisition is required |
| Inventory Account Codes | 0 | Item not controlled by serial number. |
| Special Material Content Codes | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | ZNC | Commanding Officer USCG Surface Force Logistics Center Code 028, Mil Stop 25 2401 Hawkins Point Road Baltimore, MD 21226-5000 |
| Agency | GP | U.S. Coast Guard |
| Service Organization | C | U.S. Coast Guard |
| Reparability | C | |
| Acquisition Advice Codes | C | SERVICE/AGENCY-MANAGED (Service/Agency use only.) # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by individual Services supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
