NSN 6680-00-935-4242 3060350800, 306-0350-800, 00-935-4242
Product Details | MEDICAL GAS ADMINISTRATION APPA PRESSURE REGULATOR
6680-00-935-4242 A precision device designed to accept compressed medical gas from a cylinder and to deliver it to the administration apparatus at a safe pressure which is automatically maintained. It is usually furnished with a gage to indicate pressure in the cylinder and it may have a flowmeter to measure the volume of gas delivered.
Part Alternates: 3060350800, 306-0350-800, 6680-00-935-4242, 00-935-4242, 6680009354242, 009354242
Instruments and Laboratory Equipment | Liquid and Gas Flow, Liquid Level, and Mechanical Motion Measuring Instruments
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
66 | 00-935-4242 | 19229 ( REGULATOR, PRESSURE, MEDICAL GAS ADMINISTRATION APPARATUS ) |
Request a Quote
What Our Customers Say
Compare
NSNs for Compare ( up to 4 ): Add 6680-00-935-4242
Related Products | NSN 6680-00-935-4242
Technical Data | NSN 6680-00-935-4242
Characteristic | Specifications |
---|---|
SPECIFIC GAS FOR WHICH DESIGNED | OXYGEN |
STAGE TYPE | SINGLE |
BODY MATERIAL | ALUMINUM ALLOY |
REGULATION TYPE | AUTOMATIC |
CYLINDER PRESSURE GAGE | INCLUDED |
CYLINDER PRESSURE GAGE RANGE | 0.0 TO 3000.0 POUNDS PER SQUARE INCH |

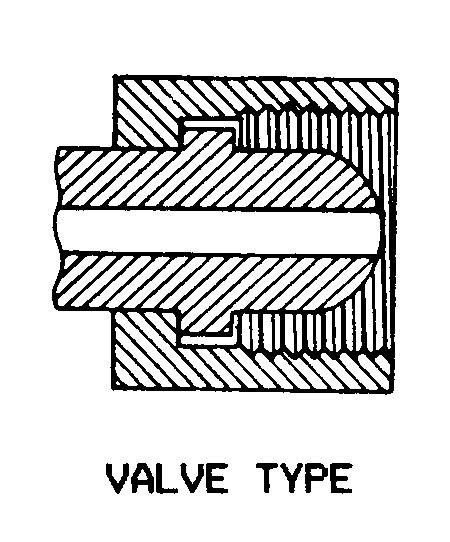

INLET CONNECTION END STYLE | 1 VALVE TYPE |
INLET CONNECTION NOMINAL PIPE SIZE | 0.903 INCHES |
INLET ADAPTER | NOT INCLUDED |

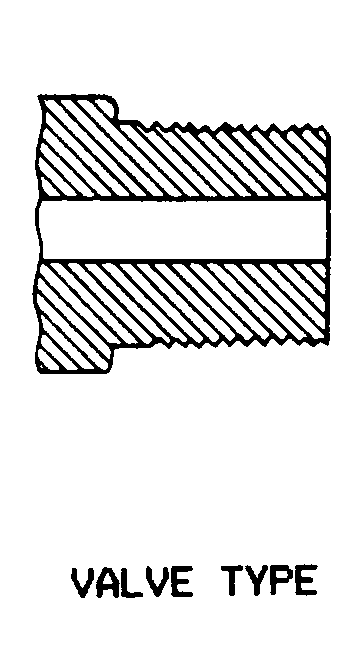

OUTLET CONNECTION END STYLE | 4 VALVE TYPE |
OUTLET CONNECTION NOMINAL PIPE SIZE | 0.625 INCHES |
AUTOMATIC RELIEF VALVE | INCLUDED |
FLOWMETER | INCLUDED |
SPECIAL FEATURES | PRESSURE GAGE ALSO INDICATES CONTENT IN REMAINING SIZE H OXYGEN CYLINDER; FLOWMETER INDICATING FLOW OF 0-15 LITERS PER MIN; REPLACEMENT REGULATOR FOR INHALATOR,6515-00-342-5200; AND ALL SIZES OF OXYGEN CYLINDERS; FOR YOKE ADAPTER,ORDER 8120-00-550-8484; USED W/OXYGEN AND HUMIDITY THERAPY TENT,6515-00-381-9105; USED IN HORIZONTAL OR VERTICAL POSITION; FLOW CONTROL VALVE; AND TUBING APPARATUS |
III INTERMEDIATE PACKAGE QUANTITY | 1 |
III EXTERIOR CONTAINER QUANTITY | 6 |
III UNIT OF ISSUE WEIGHT | 1.75 POUNDS |
III EXTERIOR CONTAINER WEIGHT | 11.00 POUNDS |
III UNIT OF ISSUE CUBE | 0.667 CUBIC FEET |
III EXTERIOR CONTAINER CUBIC MEASURE | 4.00 CUBIC FEET |
III PART NAME ASSIGNED BY CONTROLLING AGENCY | REGULATOR PRESS MED GAS ADMINISTRATION APPARATUS 4VALVE OXYGEN |
Restrictions/Controls & Freight Information | NSN 6680-00-935-4242
Category | Code | Description |
---|---|---|
Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
Category | Code | Description |
---|---|---|
No Freight Information |
