NSN 6680-00-933-3599 MS390212, MS39021-2, M102151A

Product Details | SPEEDOMETER

6680-00-933-3599 An instrument for measuring and indicating in miles or kilometers per hour the speed at which a vehicle is being driven. It measures and records distance traveled by means of an odometer. It does not include SHAFT ASSEMBLY, FLEXIBLE.

Part Alternates: MS390212, MS39021-2, M102151A, M10215-1A, MILDTL10215, MIL-DTL-10215, MILDTL10215K, MIL-DTL-10215K, MILI10215, E012205, 6680PL0896081, 808913, 8376375, 113006, 1505359, 1580268, 1581256, 1582373, 503C, 573N, 573N1, 6680-00-933-3599, 00-933-3599, 6680009333599 , 009333599

Instruments and Laboratory Equipment | Liquid and Gas Flow, Liquid Level, and Mechanical Motion Measuring Instruments

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
66	05 AUG 1966	00-933-3599	09786 ( SPEEDOMETER )

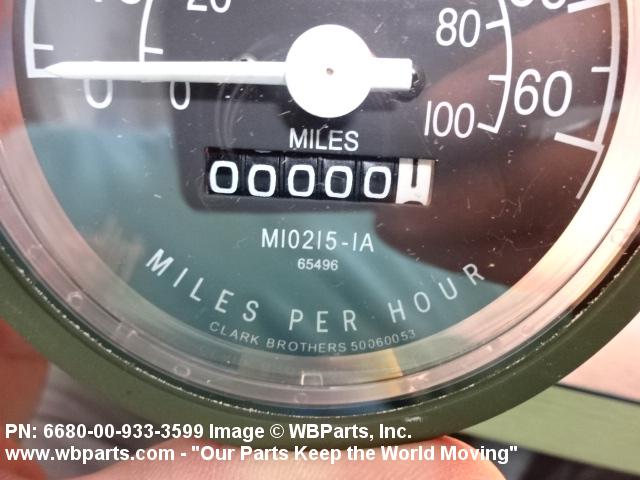

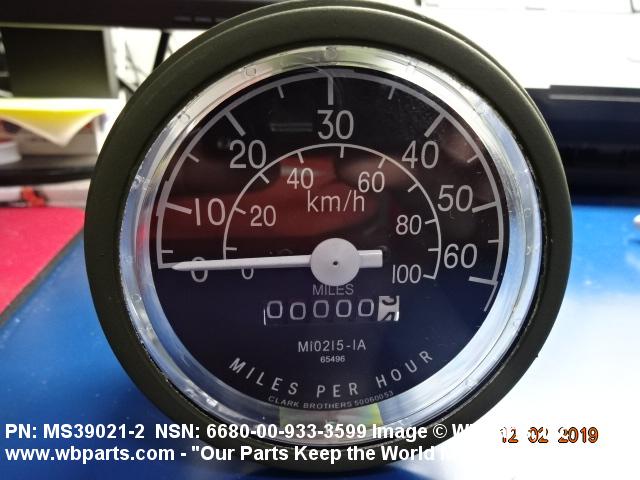

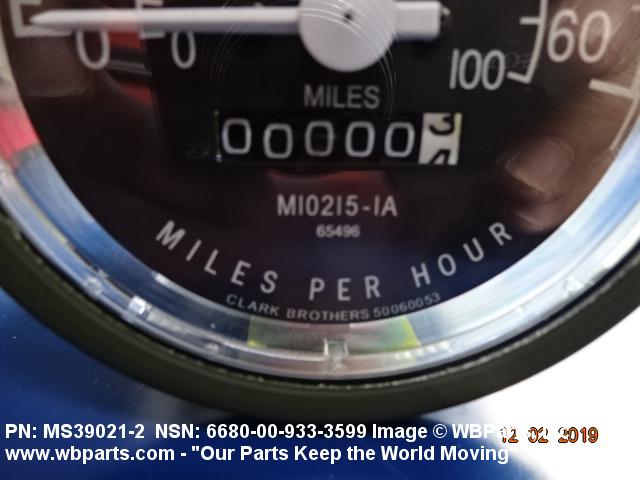

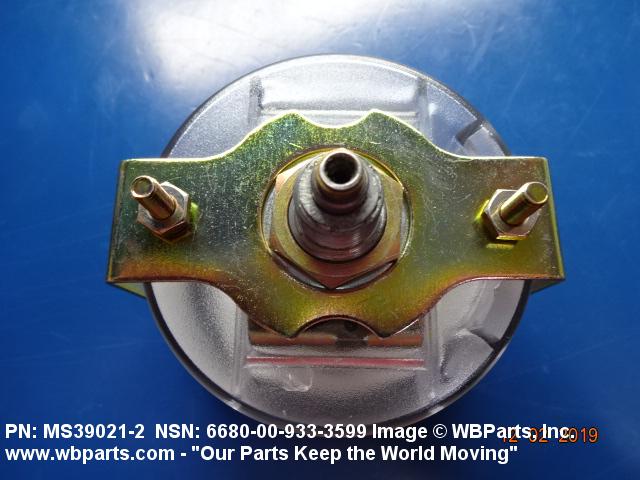

Drawings & Photos | NSN 6680-00-933-3599

Part Number	Request Date	QTY	Origin
6680-00-933-3599	2024-09-252	29	US
6680-00-933-3599	2024-05-148	1	BR
6680-00-933-3599	2024-05-136	7	United Kingdom
6680-00-933-3599	2023-12-349	1	Australia
6680-00-933-3599	2023-07-205	520	DIBBS
6680-00-933-3599	2023-07-197	520	DIBBS
MS390212	2023-04-118	3	United States
6680-00-933-3599	2021-08-214	25	AF
6680-00-933-3599	2020-11-325	1	DIBBS-RFPs
6680-00-933-3599	2020-11-314	1	Brazil
6680-00-933-3599	2019-12-340	45	US
6680-00-933-3599	2019-10-301	10	Thailand
MILDTL10215K	2019-10-287	160	United States
6680-00-933-3599	2019-01-10	8	MANUAL
MS39021-2	2019-01-10	8	Thailand
6680-00-933-3599	2018-11-332	94	AE
6680-00-933-3599	2018-05-144	1	PK
M102151A	2018-02-40	15	United States
6680-00-933-3599	2017-07-192	181	MANUAL
MS39021-2	2017-07-192	181	PK
6680-00-933-3599	2017-02-32	9	MANUAL
MS39021-2	2017-02-32	9	United States
6680-00-933-3599	2016-03-77	1	DIBBS-RFPs
6680-00-933-3599	2015-11-308	227	Pakistan
6680-00-933-3599	2015-10-285	47	PK
6680-00-933-3599	2015-09-259	50	United States
6680-00-933-3599	2015-08-223	100	US
6680-00-933-3599	2015-07-205	5	Pakistan
6680-00-933-3599	2015-02-48	11	United States
6680-00-933-3599	2015-02-41	14	MANUAL
6680-00-933-3599	2014-04-112	10	Chile
6680-00-933-3599	2012-09-272	1	US
6680-00-933-3599	2012-04-104	5	MANUAL
6680-00-933-3599	2011-08-227	675	DIBBS
6680-00-933-3599	2011-07-188	503	DIBBS
6680-00-933-3599	2011-06-155	5	MANUAL
6680-00-933-3599	2011-06-155	5	MANUAL
MS39021-2	2011-06-155	5	PK
MS39021-2	2011-06-155	5	PK
6680-00-933-3599	2011-03-62	100	TR
6680-00-933-3599	2010-05-141	805	DIBBS
6680-00-933-3599	2010-04-120	503	DIBBS
6680-00-933-3599	2010-01-20	6	Chile
6680-00-933-3599	2009-09-244	503	DIBBS
6680-00-933-3599	2009-06-170	669	DIBBS
MS390212	2009-06-153	1	us

Cross Reference | NSN 6680-00-933-3599

Part Number	Cage Code	Manufacturer
113006	10237	CADILLAC GAGE TEXTRON INC.
1505359	12204	DAIMLER CHRYSLER
1580268	70040	GENERAL MOTORS CORP AC ROCHESTER DIV
1581256	24617	GENERAL MOTORS CORP
1581256	70040	GENERAL MOTORS CORP AC ROCHESTER DIV
1582373	24617	GENERAL MOTORS CORP
1582373	70040	GENERAL MOTORS CORP AC ROCHESTER DIV
503C	57733	STEWART-WARNER CORPORATION
573N	56442	DIAMOND REO TRUCK CO
573N1	56442	DIAMOND REO TRUCK CO
6680009333599	A00AM	E.C.A ETABLISSEMENT CENTRAL DESAPPROVISIONNEMENTS DES FORCES
6680PL0896081	9009H	INSPEKTORAT WSPARCIA SIL ZBROJNYCH
808913	34623	AM GENERAL, LLC
8376375	19207	U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM
E012205	24975	PRESTOLITE ELECTRIC INCORPORATED
E012205	68505	PRESTOLITE ELECTRIC INC
M10215-1A	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-DTL-10215	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-DTL-10215K	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MILI10215	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MS39021-2	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 6680-00-933-3599

Compare

Related Products | NSN 6680-00-933-3599

6680-00-933-3600, 6680-00-933-3606, 6680-00-933-3687, 6680-00-933-6062, 6680-00-933-7634

Technical Data | NSN 6680-00-933-3599

Characteristic	Specifications
HEAD TYPE	MECHANICAL
SPEED INDICATOR RANGE	0.0 TO 60.0 MILES PER HOUR
MAJOR GRADUATION UNIT	0,10,20,30,40,50,60
INDICATOR TYPE	NEEDLE
ODOMETER TOTAL RANGE	0.0 TO 99999.9 MILES
TRIP ODOMETER	NOT PROVIDED
THREAD SIZE	5/8-18
SCREW THREAD SERIES DESIGNATOR	UNF
THREAD DIRECTION	RIGHT-HAND
SHAFT OPENING DESIGN	SQUARE
SIZE	0.105 INCHES MINIMUM AND 0.108 INCHES MAXIMUM

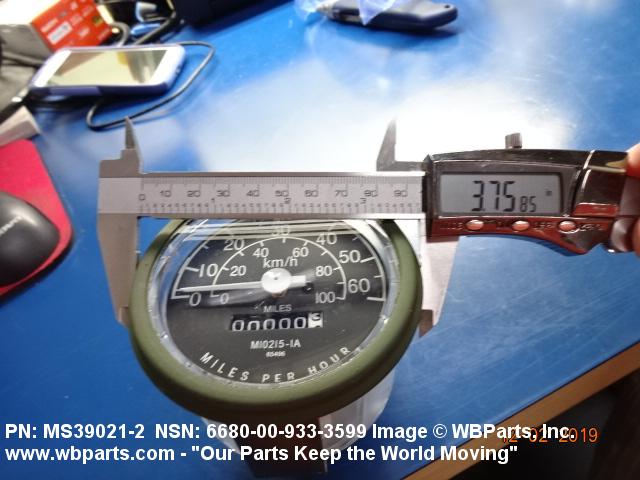

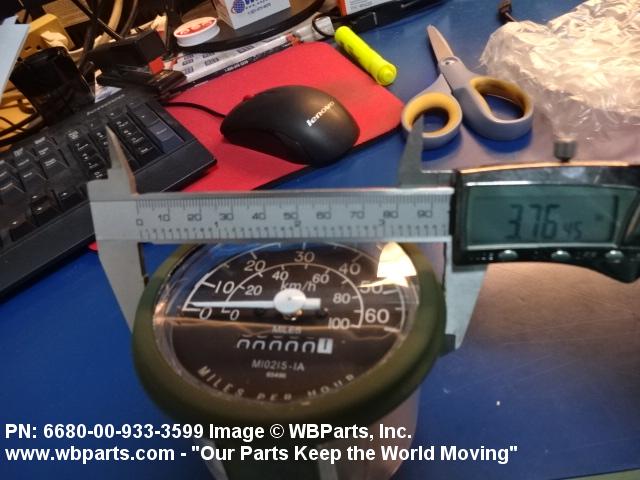

BEZEL OVERALL DIAMETER	3.735 INCHES MINIMUM AND 3.797 INCHES MAXIMUM

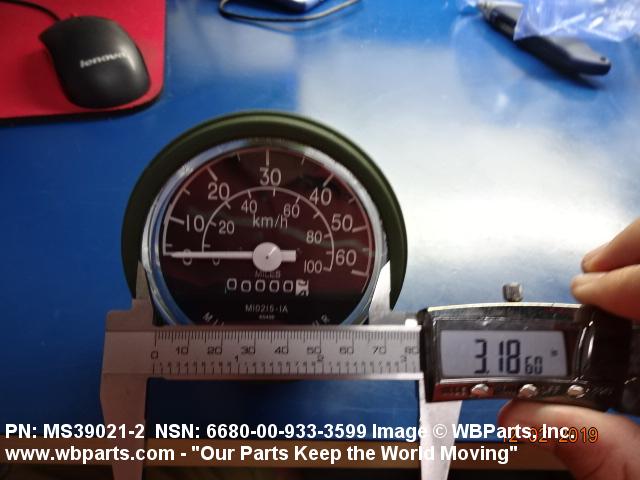

CASE OVERALL DIAMETER	3.375 INCHES NOMINAL

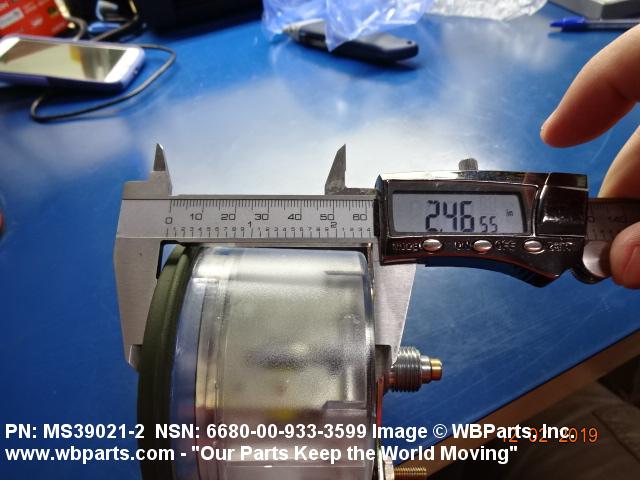

CASE OVERALL DEPTH	2.312 INCHES MAXIMUM

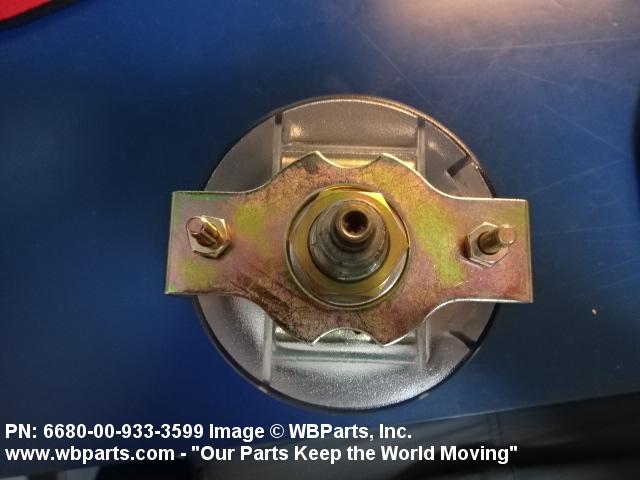

MOUNTING METHOD	CLAMP
HIGH HEADLIGHT BEAM INDICATOR	NOT PROVIDED
ILLUMINATIVE METHOD	EXTERNAL
WINDOW MATERIAL	GLASS
LUMINOUS MAJOR GRADUATIONS/INDICATOR	NOT PROVIDED
ENVIRONMENTAL PROTECTION	WATERPROOF
NONDEFINITIVE SPEC/STD DATA	A GROUP AND I TYPE
MANUFACTURERS CODE	81349
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MIL-DTL-10215K
MANUFACTURERS CODE	81349
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	M10215-1A

Restrictions/Controls & Freight Information | NSN 6680-00-933-3599

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	Y	Information is in the Hazardous Materials Information System (HMIS)
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	136800	FLOW, NOI
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	653	unknown
Originating Activity Code	BE
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	V	Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 6680-00-933-3599

Category	Code	Description
Materiel Category and Inventory Manager	J	Ground Forces Support Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	2	Non-Critical Repair Part. Repair parts or major components whose failure in an end item will not render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency, and which do not fit the definition of Code 3 or 4 items.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Echelon Identification Code	B	Consumable Repair Parts
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
