NSN 6680-00-807-0863 MS5000405, MS500040-5, LS4019
Product Details | LIQUID QUANTITY TRANSMITTER
6680-00-807-0863 An instrument designed to measure and transmit information relative to the quantity of liquid contained in a tank, vessel, chamber, or the like. Excludes SWITCH, LIQUID LEVEL.
Part Alternates: MS5000405, MS500040-5, LS4019, LS4076, MILI10986, MIL-I-10986, 7034597, 0RD7034597, 205992, 205-992, 20J51, 507, 507AG, 5641014, 6680-00-807-0863, 00-807-0863, 6680008070863 , 008070863
Instruments and Laboratory Equipment | Liquid and Gas Flow, Liquid Level, and Mechanical Motion Measuring Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 01 JAN 1962 | 00-807-0863 | 03372 ( TRANSMITTER, LIQUID QUANTITY ) |

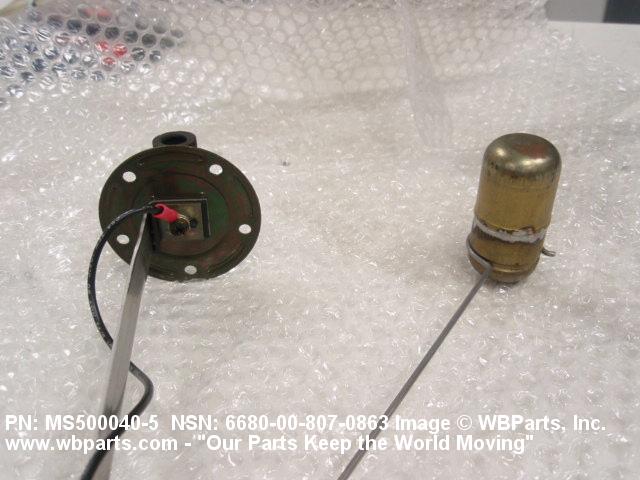

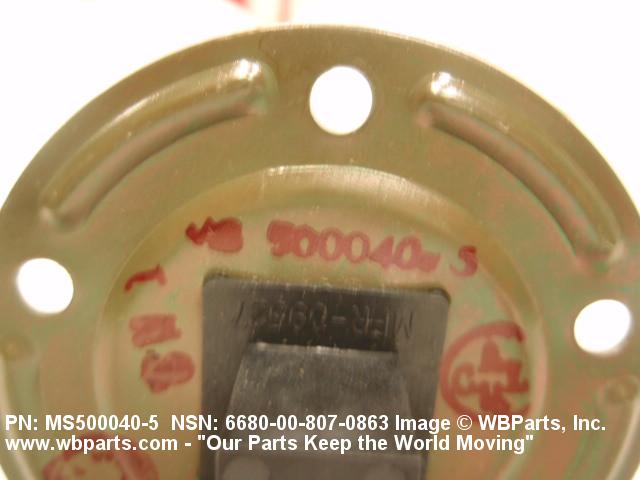

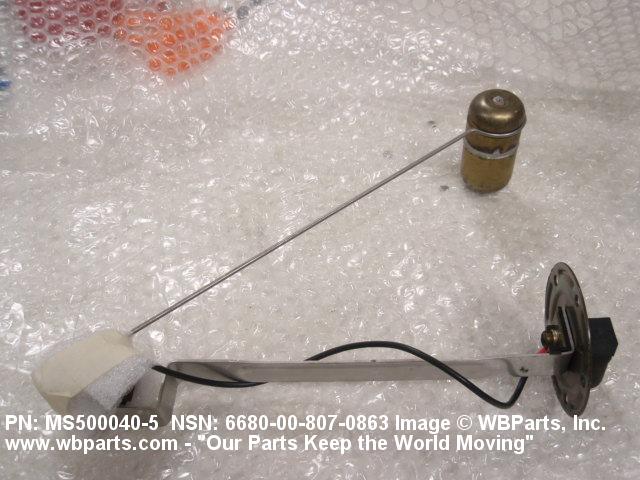

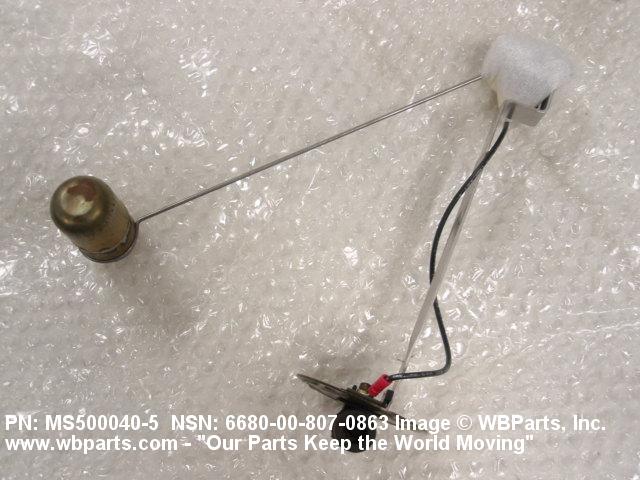

Drawings & Photos | NSN 6680-00-807-0863
Demand History | NSN 6680-00-807-0863
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6680-00-807-0863 | 2024-01-02 | 1 | Taiwan |
| 6680-00-807-0863 | 2019-02-36 | 303 | DIBBS |
| 6680-00-807-0863 | 2018-11-310 | 166 | DIBBS |
| MS5000405 | 2010-03-76 | 9 | United States |
Cross Reference | NSN 6680-00-807-0863
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 0RD7034597 | 70040 | GENERAL MOTORS CORP AC ROCHESTER DIV |
| 205-992 | 25980 | GRACO INC. |
| 20J51 | 05643 | BARBER-GREENE CO |
| 20J51 | 0MKW7 | MINNPAR, LLC DBA MINNPAR |
| 507 | 98738 | HERLEY CHICAGO DBA STEWART WARNER ELECTRONICS |
| 507AG | 57733 | STEWART-WARNER CORPORATION |
| 507AG | 98738 | HERLEY CHICAGO DBA STEWART WARNER ELECTRONICS |
| 5641014 | 24617 | GENERAL MOTORS CORP |
| 5641014 | 70040 | GENERAL MOTORS CORP AC ROCHESTER DIV |
| 5641014 | 78943 | TRIUMPH THERMAL SYSTEMS, INC. |
| 6680008070863 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| 7034597 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
| LS4019 | 09527 | THOMAS G. FARIA CORPORATION DBA FARIA MARINE INSTRUMENTS |
| LS4076 | 09527 | THOMAS G. FARIA CORPORATION DBA FARIA MARINE INSTRUMENTS |
| MIL-I-10986 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MS500040-5 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6680-00-807-0863
Related Products | NSN 6680-00-807-0863
Technical Data | NSN 6680-00-807-0863
| Characteristic | Specifications |
|---|---|
| CURRENT TYPE | DC |
| VOLTAGE RATING | 24.0 VOLTS NOMINAL |
| ELECTRICAL CONNECTION QUANTITY | 1 |
| TERMINAL QUANTITY | 1 |
| TERMINAL TYPE | SOCKET |
| ELECTRICAL CONNECTION CONTROLLING AGENCY | MIL-STD |
| ELECTRICAL CONNECTION IDENTIFYING NUMBER | MS33800 |
| ACTUATION METHOD | FLOAT AND GEAR |
| OVERALL DIAMETER | 2.580 INCHES NOMINAL |
| OVERALL HEIGHT | 16.300 INCHES NOMINAL |
| FLOAT MATERIAL | BRASS |
| FLOAT ARM LENGTH | 7.370 INCHES NOMINAL |
| FLOAT EFFECTIVE TRAVEL | 9.320 INCHES NOMINAL |
| ATTACHMENT FEATURE QUANTITY | 5 |
| MEDIA FOR WHICH DESIGNED | INTERFACE |
| MOUNTING METHOD | FLANGE |
| NONDEFINITIVE SPEC/STD DATA | 1 CLASS AND 1 TYPE AND 2 UNIT |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-I-10986 |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS500040-5 |
Restrictions/Controls & Freight Information | NSN 6680-00-807-0863
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 121570 | GAGES AIR LIQUID LEVEL PRESSURE |
| Less than car load rating | ||
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 653 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6680-00-807-0863
Army
Air Force
Navy
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 2 | Non-Critical Repair Part. Repair parts or major components whose failure in an end item will not render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency, and which do not fit the definition of Code 3 or 4 items. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Echelon Identification Code | B | Consumable Repair Parts |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
