NSN 6680-00-663-5895 EA584BC827, 00-663-5895, 006635895
Product Details | LIQUID QUANTITY TRANSMITTER
6680-00-663-5895 An instrument designed to measure and transmit information relative to the quantity of liquid contained in a tank, vessel, chamber, or the like. Excludes SWITCH, LIQUID LEVEL.
Part Alternates: EA584BC827, 6680-00-663-5895, 00-663-5895, 6680006635895, 006635895
Instruments and Laboratory Equipment | Liquid and Gas Flow, Liquid Level, and Mechanical Motion Measuring Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 01 JAN 1963 | 00-663-5895 | 03372 ( TRANSMITTER, LIQUID QUANTITY ) |

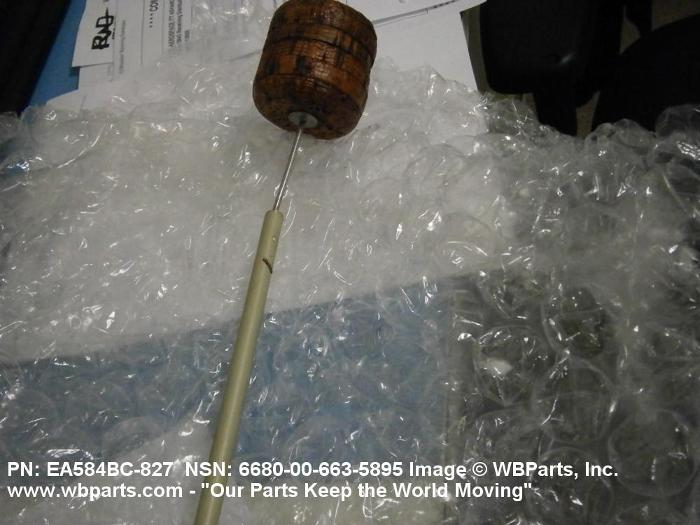

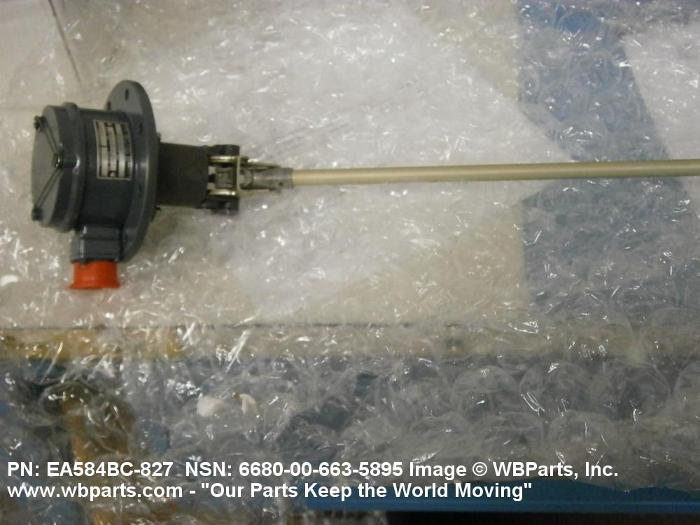

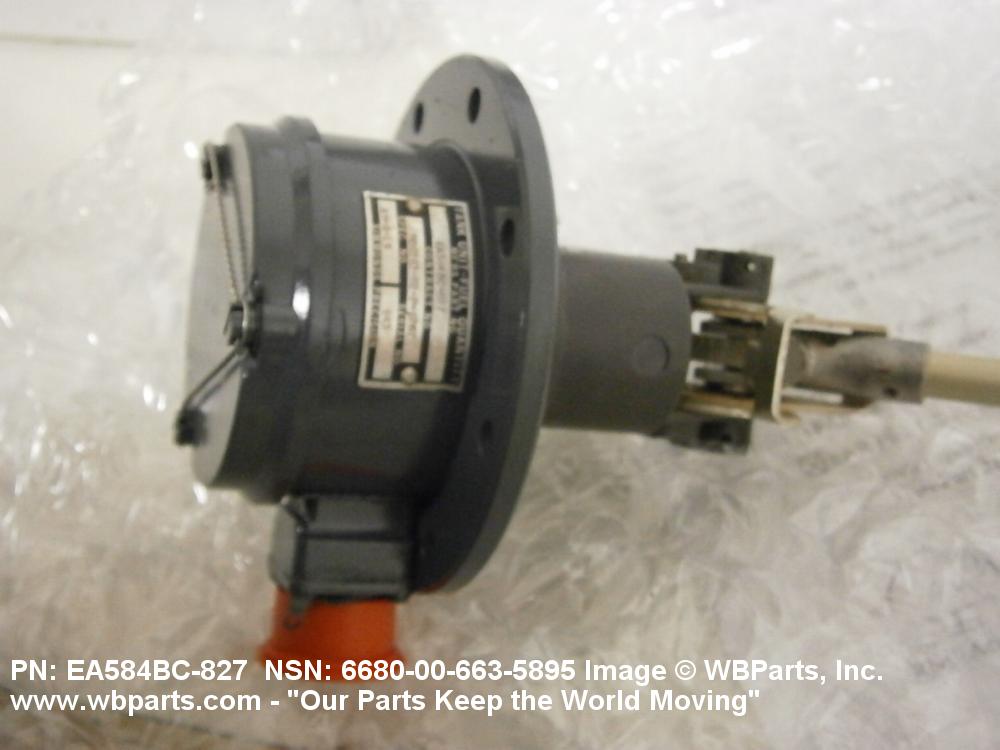

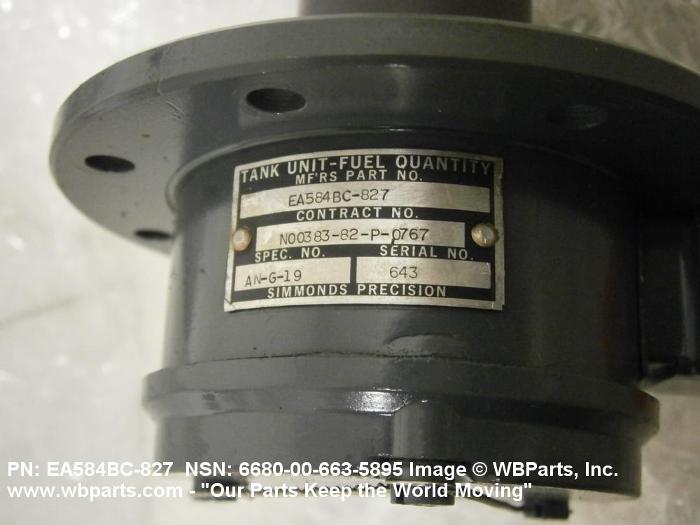

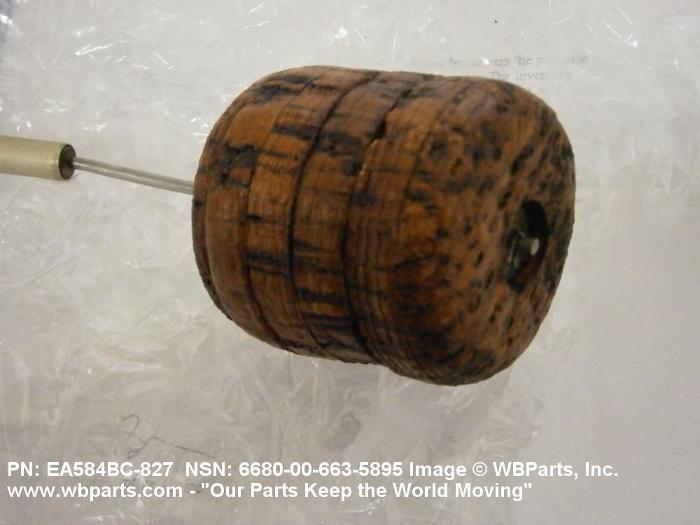

Drawings & Photos | NSN 6680-00-663-5895
Demand History | NSN 6680-00-663-5895
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6680-00-663-5895 | 2011-09-249 | 1 | South Africa |
Cross Reference | NSN 6680-00-663-5895
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| EA584BC827 | 89305 | SIMMONDS PRECISION PRODUCTS, INC. DBA GOODRICH SENSORS AND INTERGRATED |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6680-00-663-5895
Related Products | NSN 6680-00-663-5895
Technical Data | NSN 6680-00-663-5895
| Characteristic | Specifications |
|---|---|
| CURRENT TYPE | DC |
| VOLTAGE RATING | 24.0 VOLTS NOMINAL |
| ELECTRICAL CONNECTION QUANTITY | 1 |
| TERMINAL QUANTITY | 5 |
| TERMINAL TYPE | PIN |
| ELECTRICAL CONNECTION CONTROLLING AGENCY | ANA |
| ELECTRICAL CONNECTION IDENTIFYING NUMBER | TYPE NO. AND10066-14S-5P |
| ACTUATION METHOD | FLOAT AND MECHANICAL LINKAGE |
| OVERALL LENGTH | 7.188 INCHES NOMINAL |
| OVERALL DIAMETER | 4.500 INCHES NOMINAL |
| FLOAT ARM LENGTH | 11.375 INCHES NOMINAL |
| ATTACHMENT FEATURE QUANTITY | 8 |
| MOUNTING METHOD | HOLE |
| MANUFACTURERS CODE | 89305 |
| DESIGN CONTROL REFERENCE | EA584BC827 |
Restrictions/Controls & Freight Information | NSN 6680-00-663-5895
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061700 | ELEC APPLIANCES/INSTRUMENTS NOI |
| Less than car load rating | W | Rating Variable |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6680-00-663-5895
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 3B | Navy-owned stocks of field level repairable DLA material Naval Inventory Control Point, Mechanicsburg |
| Special Material ID | MC | CARGO/TRANSPORTAIRCRAFT(C131) |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Reparability | D | Field Level Reparables |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
