NSN 6680-00-641-3205 GGC00620, GG-C-00620, 00-641-3205
Product Details | RECIPROCATING COUNTER
6680-00-641-3205 An instrument designed to register and total numerically the movements of a ratchet, actuated by means of a reciprocating lever or plunger. It may have a fixed type mounting or designed to be hand held. Excludes NUMBERING MACHINE (as modified).
Part Alternates: GGC00620, GG-C-00620, 6680-00-641-3205, 00-641-3205, 6680006413205, 006413205
Instruments and Laboratory Equipment | Liquid and Gas Flow, Liquid Level, and Mechanical Motion Measuring Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 01 JAN 1963 | 00-641-3205 | 30761 ( COUNTER, RECIPROCATING ) |
Drawings & Photos | NSN 6680-00-641-3205
Cross Reference | NSN 6680-00-641-3205
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| GG-C-00620 | 81348 | FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6680-00-641-3205
Related Products | NSN 6680-00-641-3205
Technical Data | NSN 6680-00-641-3205
| Characteristic | Specifications |
|---|---|

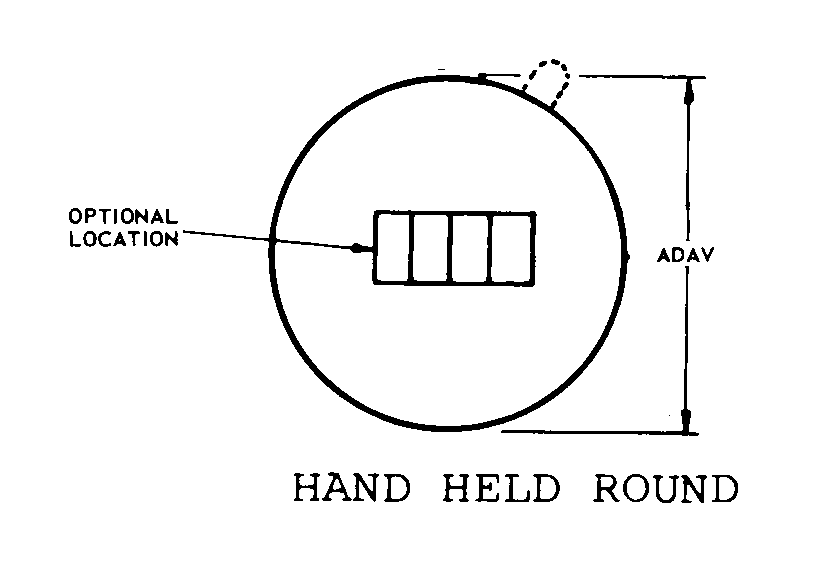

| STYLE DESIGNATOR | B6 HAND HELD ROUND |
| OVERALL DIAMETER | 1.812 INCHES NOMINAL |
| REGISTER QUANTITY | 1 |
| REGISTER FUNCTION | ADD SINGLE REGISTER SINGLE TIER |
| REGISTER RESET METHOD | TOTAL COUNTER MANUAL SINGLE REGISTER SINGLE TIER |
| FIGURE QUANTITY PER REGISTER | 4 SINGLE REGISTER SINGLE TIER |
| FIGURE HEIGHT | 0.125 INCHES NOMINAL SINGLE REGISTER SINGLE TIER |
| COLOR | WHITE SINGLE REGISTER SINGLE TIER FIGURE BLACK SINGLE REGISTER SINGLE TIER FIGURE BACKGROUND |
| ACTUATING DEVICE LOCATION | TOP CENTER SINGLE REGISTER SINGLE TIER |
| NUMERAL DISPLAY METHOD | DRUM |
| NUMERAL READOUT | 0000 MINIMUM AND 9999 MAXIMUM SINGLE REGISTER SINGLE TIER |
| MAXIMUM COUNT RATE | ANY ACCEPTABLE SINGLE REGISTER SINGLE TIER |
| MINIMUM ANGLE THROW IN DEG PER COUNT | ANY ACCEPTABLE SINGLE REGISTER SINGLE TIER |
| MOUNTING TYPE FOR WHICH DESIGNED | HAND HELD SINGLE REGISTER SINGLE TIER |
| NONDEFINITIVE SPEC/STD DATA | II TYPE |
| III END ITEM IDENTIFICATION | POSEIDON |
| MANUFACTURERS CODE | 81348 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | GG-C-00620 |
Restrictions/Controls & Freight Information | NSN 6680-00-641-3205
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 121570 | GAGES AIR LIQUID LEVEL PRESSURE |
| Less than car load rating | ||
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6680-00-641-3205
Army
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
