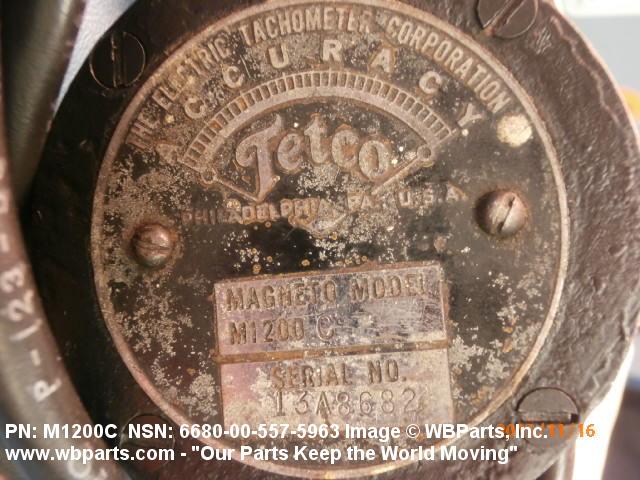

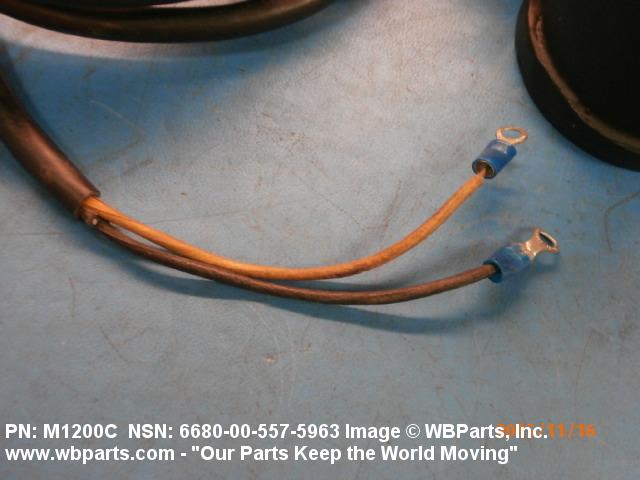

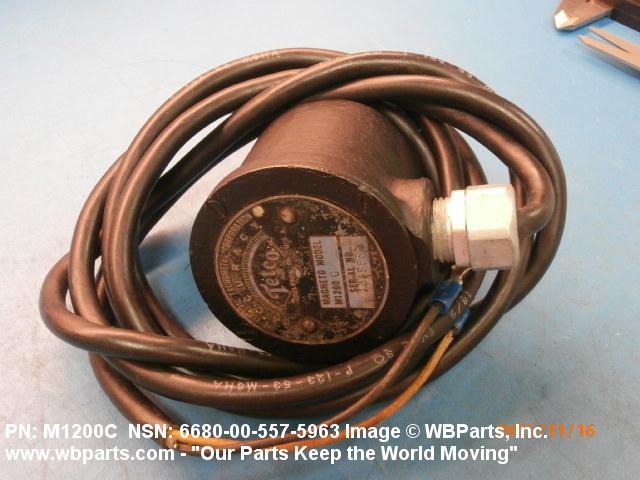

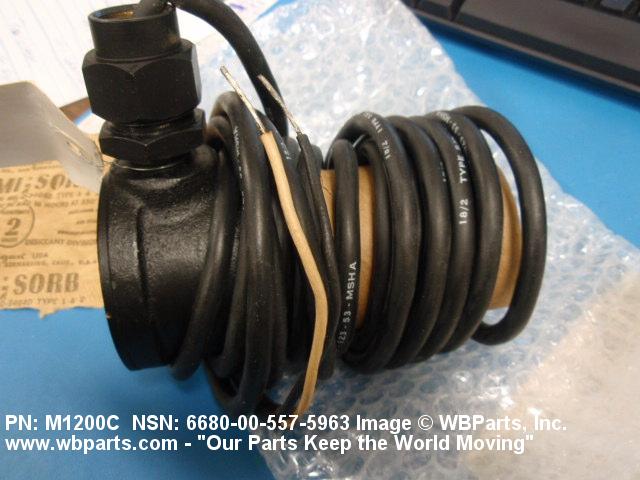

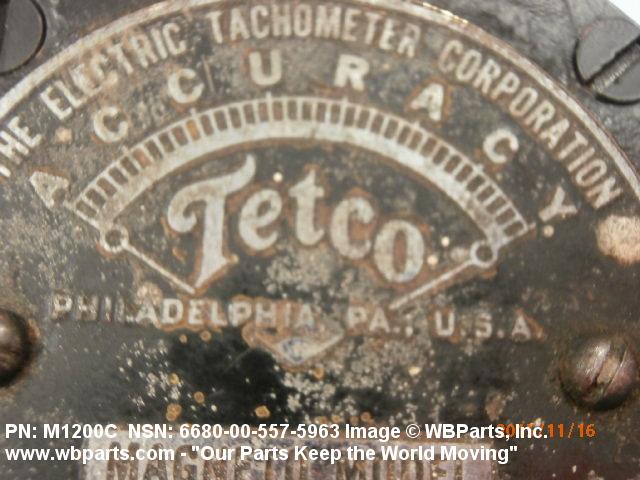

NSN 6680-00-557-5963 M1200C, M1200-C, M1200C3

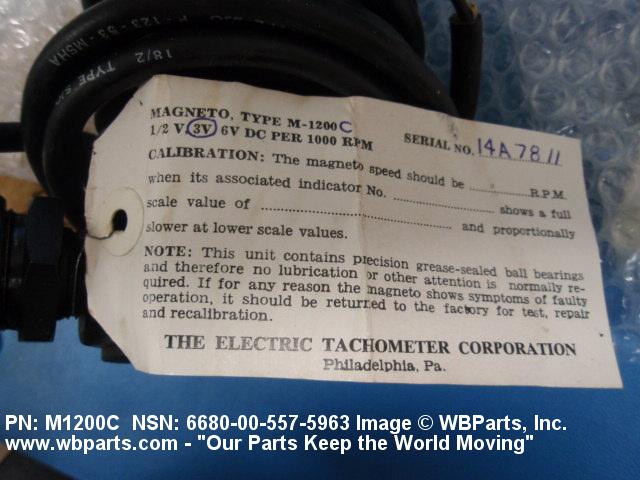

Product Details | TACHOMETER GENERATOR

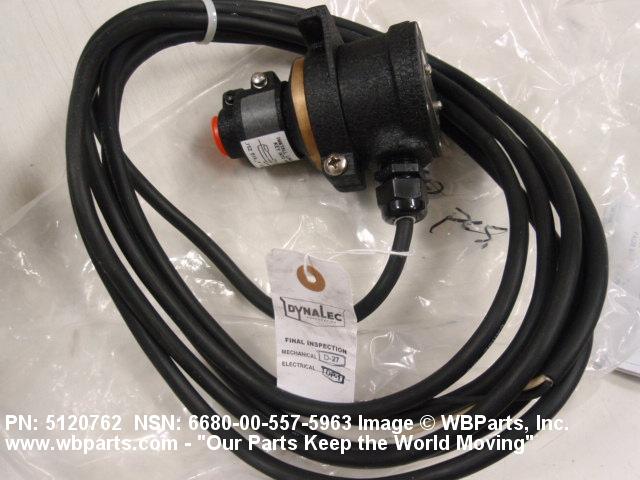

6680-00-557-5963 A generator consisting of a series of mounted coils surrounding a rotating permanent magnet or a permanent magnet and a rotating armature. The voltage output is directly proportional to the speed of rotation of the shaft. When used with an associated indicator, transmits such data as revolutions per minute, speed of travel, and the like. May also be used in servomechanism loops as a system stabilizer. Excludes rotary inverters, rotary converters, motor generators, dynamotors, generator sets, synchros, frequency or phase changers, and engine accessory generators.
Part Alternates: M1200C, M1200-C, M1200C3, M1200C-3, ND2106A, 16102787, 16103787, 173614, 173-614, 5120762, 6680-00-557-5963, 00-557-5963, 6680005575963, 005575963
Instruments and Laboratory Equipment | Liquid and Gas Flow, Liquid Level, and Mechanical Motion Measuring Instruments
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
66 | 01 JAN 1963 | 00-557-5963 | 20241 ( GENERATOR, TACHOMETER ) |
Demand History | NSN 6680-00-557-5963
Part Number | Request Date | QTY | Origin |
---|---|---|---|
5120762 | 2024-12-347 | 2 | DIBBS |
M1200C-3 | 2024-12-347 | 2 | DIBBS |
5120762 | 2024-10-289 | 3 | DIBBS |
M1200C-3 | 2024-10-289 | 3 | DIBBS |
5120762 | 2024-09-260 | 3 | DIBBS |
M1200C-3 | 2024-09-260 | 3 | DIBBS |
5120762 | 2024-07-200 | 2 | DIBBS |
M1200C-3 | 2024-07-200 | 2 | DIBBS |
5120762 | 2024-06-168 | 2 | DIBBS |
M1200C-3 | 2024-06-168 | 2 | DIBBS |
5120762 | 2023-12-361 | 3 | DIBBS |
M1200C-3 | 2023-12-361 | 3 | DIBBS |
5120762 | 2023-12-351 | 3 | DIBBS |
M1200C-3 | 2023-12-351 | 3 | DIBBS |
5120762 | 2023-09-250 | 2 | DIBBS |
M1200C-3 | 2023-09-250 | 2 | DIBBS |
6680-00-557-5963 | 2023-02-59 | 2 | United States |
6680-00-557-5963 | 2022-09-262 | 2 | United States |
173-614 | 2022-03-80 | 11 | DIBBS |
5120762 | 2022-03-80 | 11 | DIBBS |
M1200C-3 | 2022-03-80 | 11 | DIBBS |
6680-00-557-5963 | 2018-08-234 | 1 | Taiwan |
6680-00-557-5963 | 2016-07-189 | 7 | DIBBS |
6680-00-557-5963 | 2016-06-159 | 12 | DIBBS |
6680-00-557-5963 | 2015-07-209 | 2 | United States |
6680-00-557-5963 | 2015-04-103 | 2 | United States |
6680-00-557-5963 | 2014-10-289 | 28 | DIBBS |
6680-00-557-5963 | 2014-10-281 | 28 | DIBBS |
6680-00-557-5963 | 2014-09-246 | 7 | DIBBS |
6680-00-557-5963 | 2014-07-209 | 5 | DIBBS |
6680-00-557-5963 | 2014-07-201 | 5 | DIBBS |
6680-00-557-5963 | 2012-01-25 | 8 | DIBBS |
6680-00-557-5963 | 2011-12-346 | 18 | DIBBS |
6680-00-557-5963 | 2011-10-291 | 5 | DIBBS |
6680-00-557-5963 | 2011-09-262 | 4 | DIBBS |
6680-00-557-5963 | 2011-07-210 | 4 | DIBBS |
6680-00-557-5963 | 2011-06-157 | 15 | DIBBS |
6680-00-557-5963 | 2011-04-91 | 1 | DIBBS |
6680-00-557-5963 | 2011-03-87 | 1 | DIBBS |
6680-00-557-5963 | 2011-03-87 | 2 | DIBBS |
6680-00-557-5963 | 2011-03-77 | 1 | DIBBS |
6680-00-557-5963 | 2011-02-48 | 2 | DIBBS |
6680-00-557-5963 | 2011-02-45 | 1 | DIBBS |
6680-00-557-5963 | 2011-02-45 | 2 | DIBBS |
6680-00-557-5963 | 2011-01-30 | 1 | DIBBS |
6680-00-557-5963 | 2011-01-15 | 1 | DIBBS |
6680-00-557-5963 | 2010-08-233 | 1 | DIBBS |
6680-00-557-5963 | 2010-07-211 | 1 | DIBBS |
6680-00-557-5963 | 2010-04-95 | 1 | DIBBS |
6680-00-557-5963 | 2009-10-278 | 1 | DIBBS |
6680-00-557-5963 | 2009-09-271 | 1 | DIBBS |
6680-00-557-5963 | 2009-08-230 | 2 | DIBBS |
6680-00-557-5963 | 2009-08-222 | 1 | DIBBS |
6680-00-557-5963 | 2009-07-197 | 1 | DIBBS |
6680-00-557-5963 | 2009-06-171 | 1 | DIBBS |
6680-00-557-5963 | 2009-05-141 | 1 | United States |
6680-00-557-5963 | 2009-05-141 | 3 | United States |
6680-00-557-5963 | 2009-01-20 | 1 | DIBBS |
6680-00-557-5963 | 2009-01-08 | 1 | DIBBS |
6680-00-557-5963 | 2008-12-362 | 4 | DIBBS |
6680-00-557-5963 | 2008-10-301 | 3 | DIBBS |
Cross Reference | NSN 6680-00-557-5963
Part Number | Cage Code | Manufacturer |
---|---|---|
16102787 | 82796 | COLTEC INDUSTRIES INC DBA FAIRBANKS MORSE ENGINE |
16103787 | 82796 | COLTEC INDUSTRIES INC DBA FAIRBANKS MORSE ENGINE |
173-614 | 27235 | HARDIE-TYNES CO., INC. |

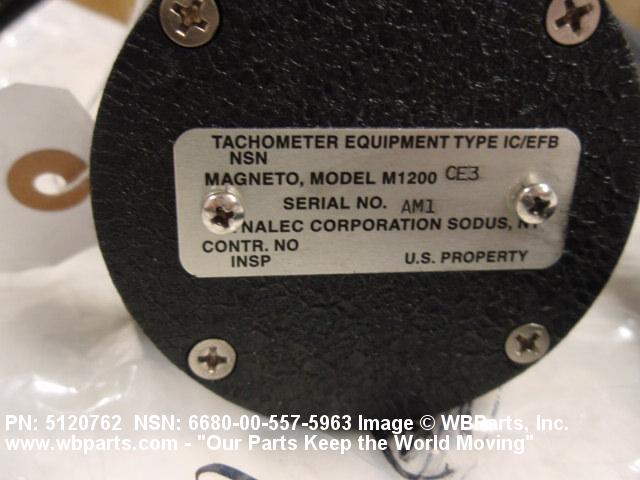

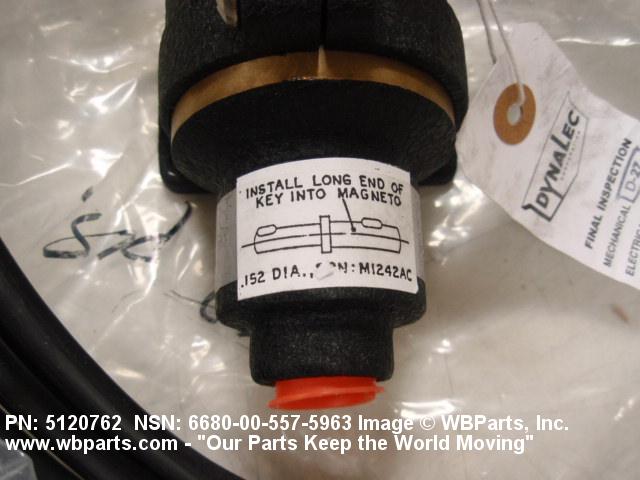

5120762 | 72582 | MTU AMERICA INC. |

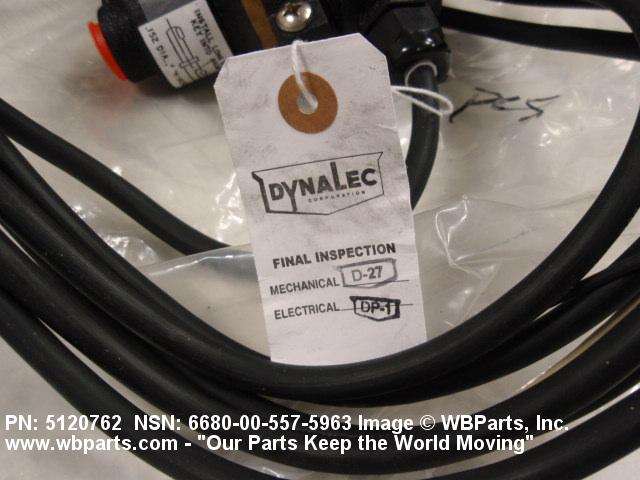

M1200-C | 12763 | DYNALEC CORPORATION |
M1200C-3 | 12763 | DYNALEC CORPORATION |
ND2106A | 82796 | COLTEC INDUSTRIES INC DBA FAIRBANKS MORSE ENGINE |
Request a Quote
What Our Customers Say
Compare
Related Products | NSN 6680-00-557-5963
Technical Data | NSN 6680-00-557-5963
Characteristic | Specifications |
---|---|

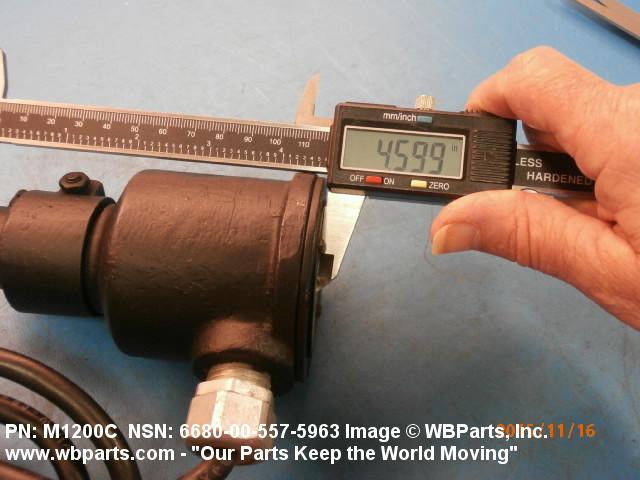

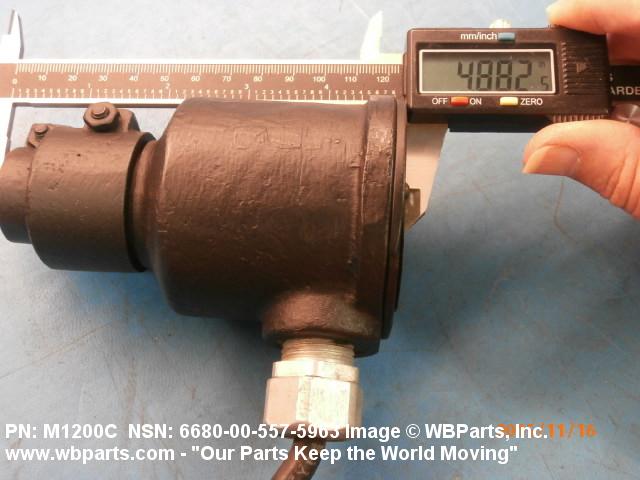

OVERALL LENGTH | 4.750 INCHES |

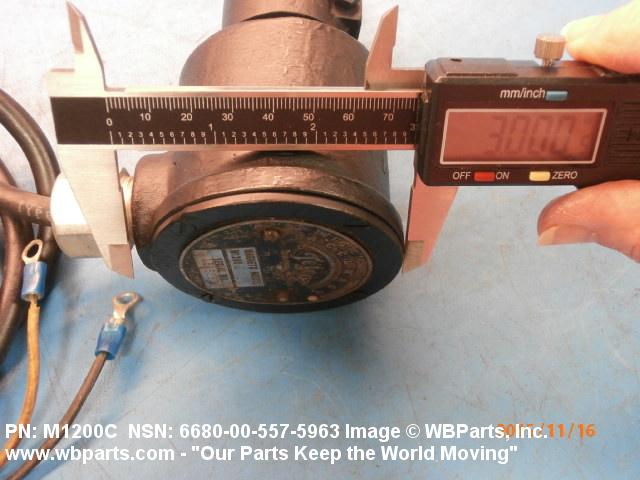

OVERALL WIDTH | 3.250 INCHES |
OVERALL HEIGHT | 5.000 INCHES |
LENGTH OF SHAFT FROM HOUSING | 0.203 INCHES SINGLE END |

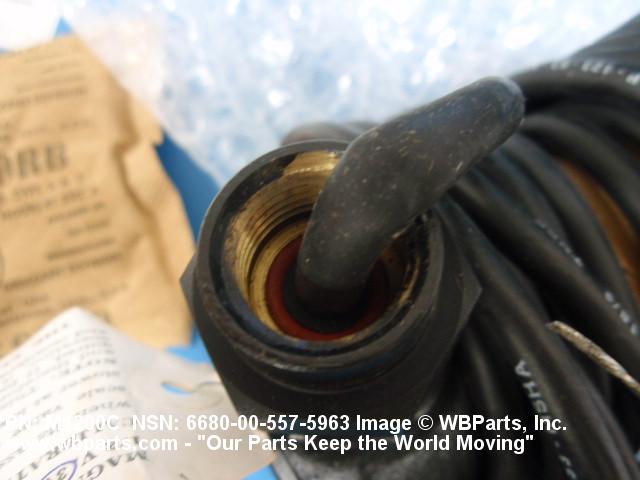

MOUNTING METHOD | SWIVEL NUT COUPLING |
MOUNTING FACILITY TYPE AND QUANTITY | 1 THREADED COUPLING |
CURRENT TYPE | DC INPUT |
CURRENT RATING IN AMPS | 0.060 SINGLE INPUT |
EXCITOR TYPE | SEPARATELY EXCITED |
TERMINAL TYPE AND QUANTITY | 1 CONNECTOR, PLUG |
CALIBRATION VOLTAGE OUTPUT TYPE IN VOLTS | 3.0 DC |
CALIBRATION SPEED IN RPM | 1000.0 |
ELECTRICAL RESISTANCE | 10.0 OHMS |
ACCURACY RANGE IN PERCENT | -0.5 TO 0.5 |
SHAFT ROTATION DIRECTION | CLOCKWISE OR COUNTERCLOCKWISE SINGLE END |
ROTOR SPEED RATING IN RPM | 300.0 LOW FULL LOAD AND 3000.0 HIGH FULL LOAD |
SHAFT END CHARACTERISTIC | A30 SINGLE STYLE SINGLE END |

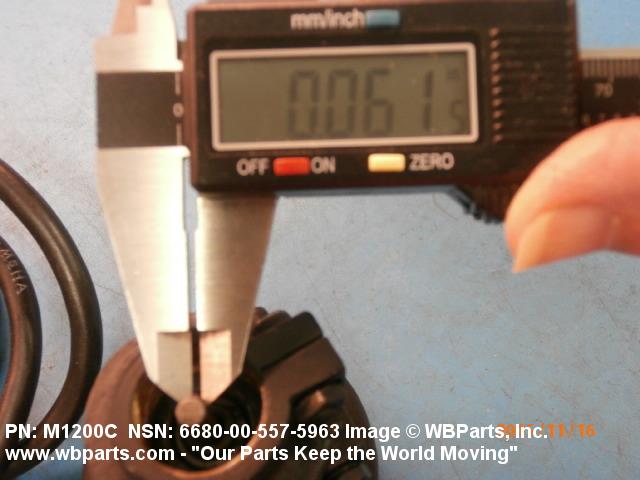

KEYWAY WIDTH | 0.060 INCHES NOMINAL SINGLE END |

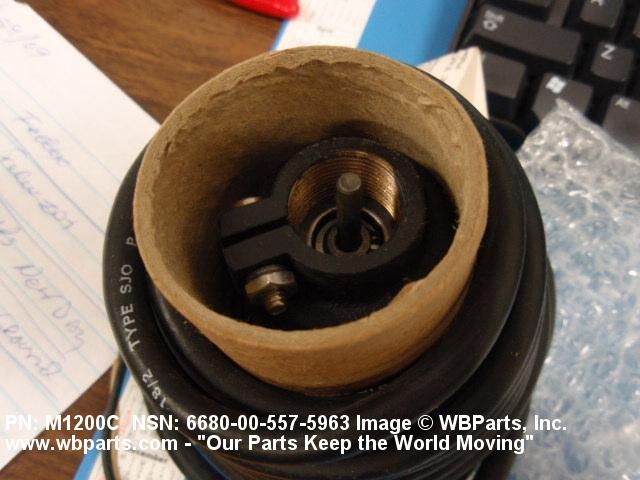

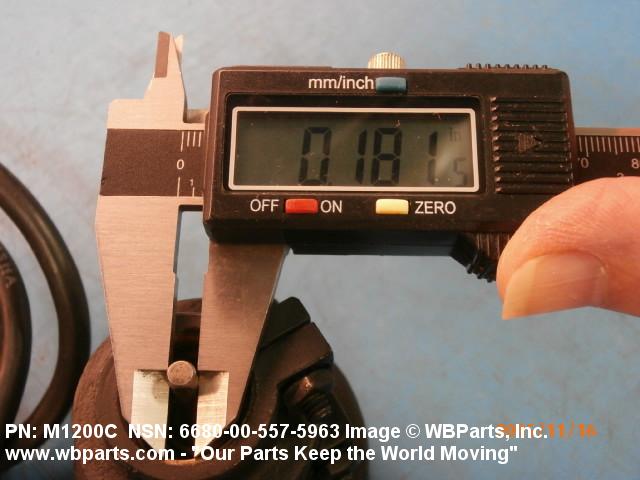

SHAFT DIAMETER | 0.1880 INCHES NOMINAL SINGLE END |
KEY HEIGHT ABOVE SHAFT | 0.037 INCHES NOMINAL SINGLE END |
FEATURES PROVIDED | HORIZONTAL MOUNTING POSITION AND VERTICAL MOUNTING POSITION |

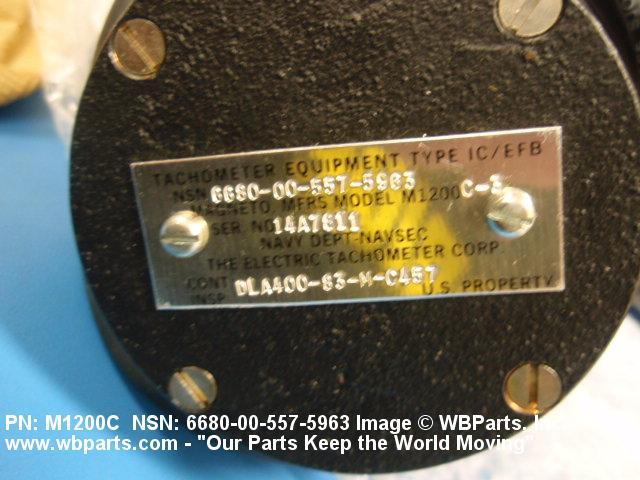

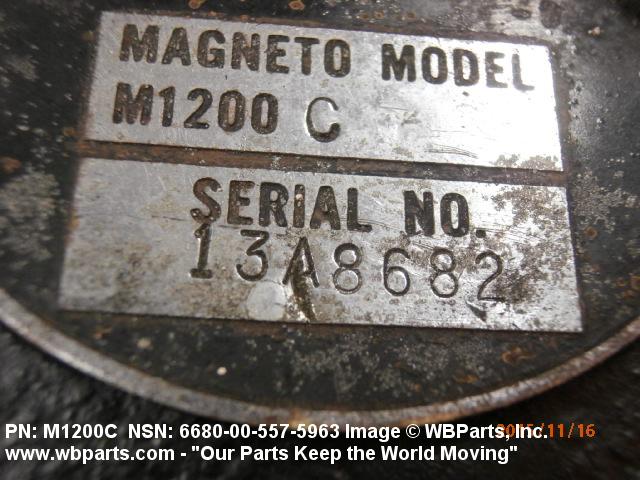

III TYPE/MODEL DESIGNATION | M-1200-C |
MANUFACTURERS CODE | 72582 |
DESIGN CONTROL REFERENCE | 5120762 |
Restrictions/Controls & Freight Information | NSN 6680-00-557-5963
Category | Code | Description |
---|---|---|
Shelf-Life Code: | 0 | Nondeteriorative |
Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
Controlled Inventory Item Code: | U | UNCLASSIFIED |
Precious Metals Indicator Code: | A | Item does not contain precious metal |
Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
Category | Code | Description |
---|---|---|
NMF Description | 062120 | GENERATORS/MOTORS/PARTS NOI SUB1 |
Less than car load rating | ||
Less than truck load rating | P | 77.5 |
Water commodity Code | 590 | unknown |
Originating Activity Code | XX | |
Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
Air Special Handling | Z | No special handling required. |
Special Handling Code | 9 | unknonwn |
HAZMAT | ||
Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6680-00-557-5963
Category | Code | Description |
---|---|---|
Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
Agency | DN | Department of the Navy |
Service Organization | N | U.S. Navy |
Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
Controlled Item Code | U | UNCLASSIFIED |
Shelf Life Code | 0 | Nondeteriorative |
Purchasing | QTY UOM |
1 EA : Each |
