NSN 6680-00-526-9029 C116018PC164, C11601-8PC164, 150410ZPC337
Product Details | LIQUID SIGHT INDICATOR
6680-00-526-9029 An item so designed to have a portion or all of its body transparent to permit the visual examination of the amount of liquid in a pressure vessel, boiler, evaporator, still, processing tank, reservoir, pipe tubing line, and the like, and/or to determine the flow to a lubricated part. It may also be provided with an element that changes colors to indicate changes in moisture content. The item may have a means for refilling. Excludes INDICATOR, LIQUID QUANTITY and INDICATOR, RATE OF FLOW.
Part Alternates: C116018PC164, C11601-8PC164, 150410ZPC337, 150-410ZPC337, 20337B, 20-337B, 3040164, 3040-164, 802 3-8, 80238, 6680-00-526-9029, 00-526-9029, 6680005269029, 005269029
Instruments and Laboratory Equipment | Liquid and Gas Flow, Liquid Level, and Mechanical Motion Measuring Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 01 JAN 1963 | 00-526-9029 | 03175 ( INDICATOR, SIGHT, LIQUID ) |
Drawings & Photos | NSN 6680-00-526-9029
Cross Reference | NSN 6680-00-526-9029
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 150-410ZPC337 | 27235 | HARDIE-TYNES CO., INC. |
| 20-337B | 27235 | HARDIE-TYNES CO., INC. |
| 3040-164 | 37999 | EX-CELL-O CORP MACHINE TOOL PRODUCTS DIV |
| 802 3-8 | 48422 | WILLIAM POWELL COMPANY THE DBA POWELL VALVE DIV THE STARFLO |
| C11601-8PC164 | 37999 | EX-CELL-O CORP MACHINE TOOL PRODUCTS DIV |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6680-00-526-9029
Technical Data | NSN 6680-00-526-9029
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY |

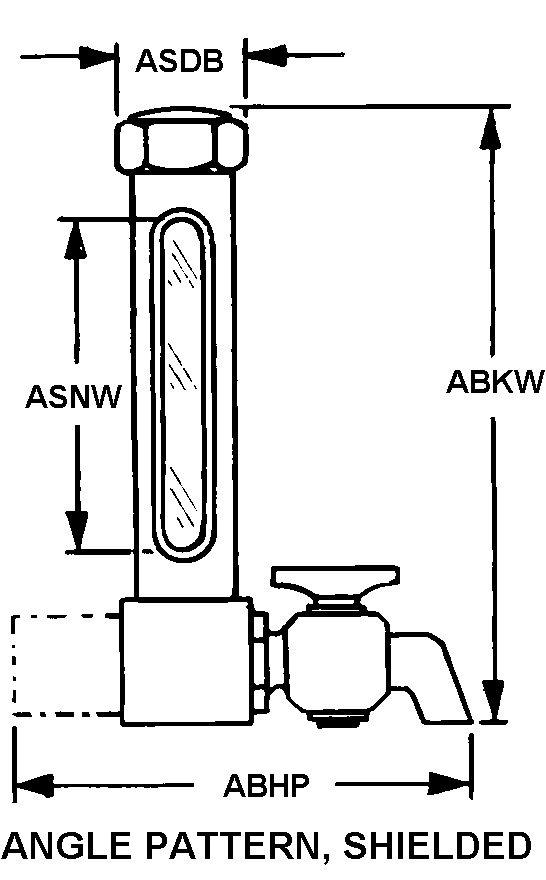

| STYLE DESIGNATOR | D17 ANGLE PATTERN, SHIELDED |
| OVERALL LENGTH | 3.624 INCHES NOMINAL |
| OVERALL HEIGHT | 4.187 INCHES NOMINAL |
| WIDTH ACROSS FLATS | ANY ACCEPTABLE |
| SIGHT HEIGHT | 1.875 INCHES NOMINAL |
| MEDIA FOR WHICH DESIGNED | OIL |
| FURNISHED DATA | LIQUID LEVEL |
| DATA FURNISHING METHOD | CLEAR WINDOW |
| MAXIMUM WORKING PRESSURE | NOT RATED |
| MAXIMUM TEMP RATING | NOT RATED |
| END CONNECTION TYPE | THREADED EXTERNAL, PLAIN SINGLE END |
| NOMINAL PIPE SIZE FOR WHICH DESIGNED | 0.375 INCHES SINGLE END |
| THREAD SERIES DESIGNATOR | NPT SINGLE END |
| NOMINAL THREAD SIZE | 0.375 INCHES SINGLE END |
| THREAD QUANTITY PER INCH | 18 SINGLE END |
| THREAD DIRECTION | RIGHT-HAND SINGLE END |
| FEATURES PROVIDED | BREATHER VENT |
Restrictions/Controls & Freight Information | NSN 6680-00-526-9029
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 121570 | GAGES AIR LIQUID LEVEL PRESSURE |
| Less than car load rating | ||
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 653 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6680-00-526-9029
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
