Product Details | LIQUID IMPELLER TYPE METER

6680-00-332-3669 An instrument designed to measure liquid volume by means of a propeller or turbine type impeller which rotates in the fluid in direct ratio to the amount of fluid flowing through the meter.

Part Alternates: H01460HB7, H01-460-HB-7, H0157, H01-57, 123SEAV160847, 123SEAV16084-7, 6680-00-332-3669, 00-332-3669, 6680003323669, 003323669

Instruments and Laboratory Equipment | Liquid and Gas Flow, Liquid Level, and Mechanical Motion Measuring Instruments

Supply Group (FSG) NSN Assign. NIIN
66 06 JAN 1974 00-332-3669

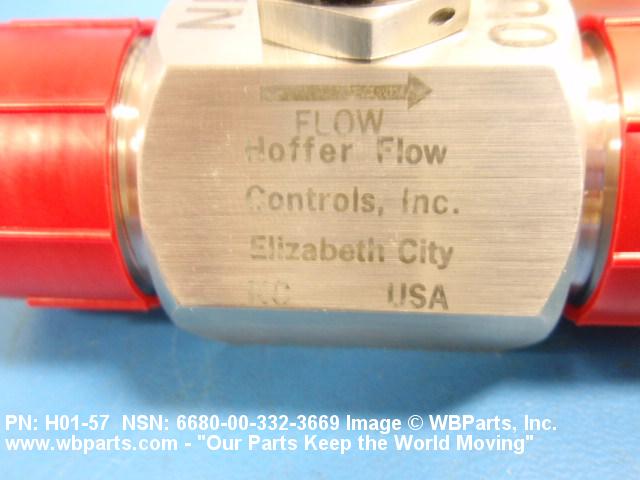

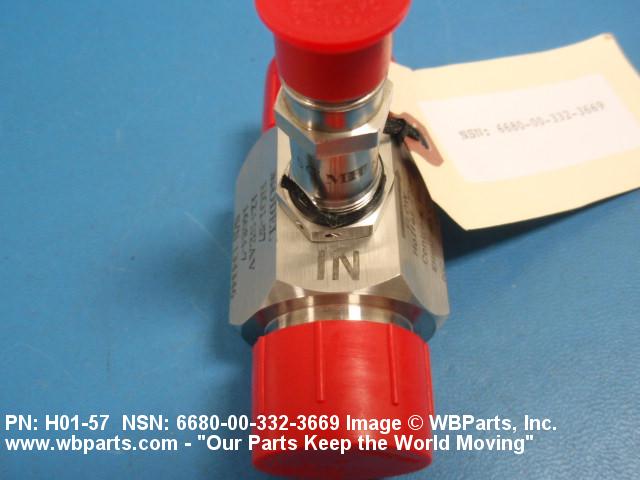

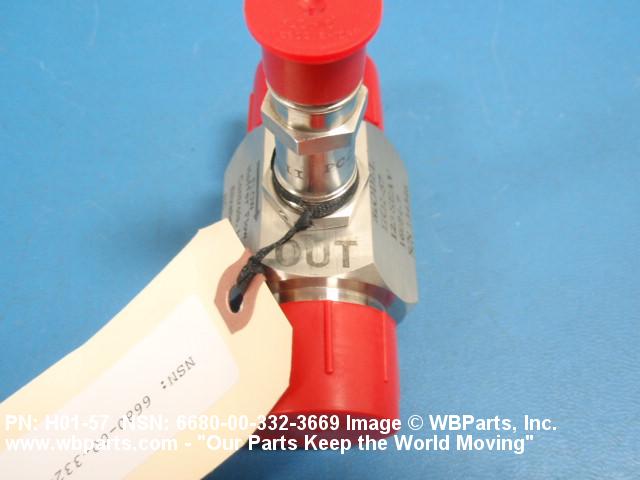

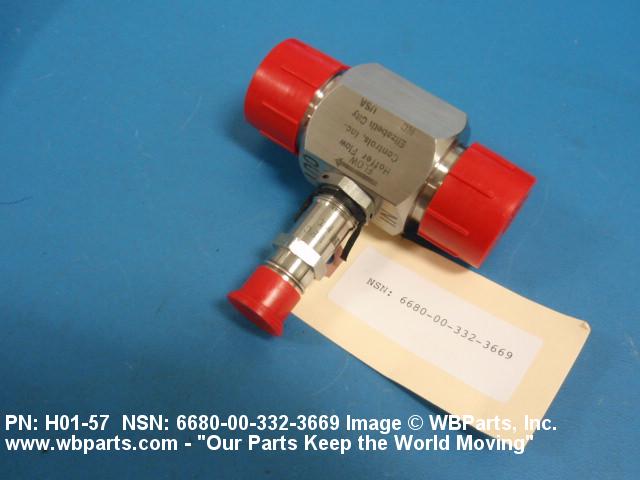

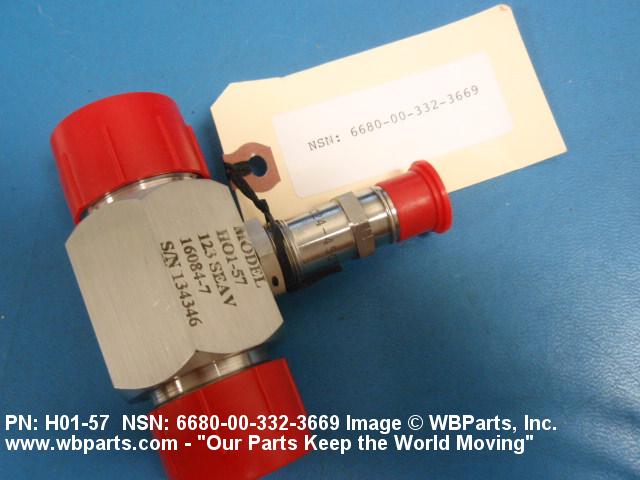

Drawings & Photos | NSN 6680-00-332-3669


Demand History | NSN 6680-00-332-3669

Part Number Request Date QTY Origin
6680-00-332-3669 2013-09-253 2 DIBBS
6680-00-332-3669 2010-05-145 1 United States

Cross Reference | NSN 6680-00-332-3669

Part Number Cage Code Manufacturer
123SEAV16084-7 26512 NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE
123SEAV16084-7 61174 NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE
H01-460-HB-7 33321 HOFFER FLOW CONTROLS, INC.
H01-57 33321 HOFFER FLOW CONTROLS, INC.

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 6680-00-332-3669

Technical Data | NSN 6680-00-332-3669

Characteristic Specifications
LIQUID FLOW RATE 4.0 GALLONS PER MINUTE MINIMUM AND 15.0 GALLONS PER MINUTE MAXIMUM
MEDIA FOR WHICH DESIGNED JET FUELS
STRAIGHTENING VANE PROVIDED
MAXIMUM OPERATING PRESSURE 500.0 POUNDS PER SQUARE INCH
ACTUATION METHOD TURBINE
INLET CONNECTION SIZE 1.312 IN. UN
INLET CONNECTION TYPE THREADED
INLET THREAD SERIES DESIGNATOR UN
INLET THREAD DIRECTION RIGHT-HAND
OUTLET CONNECTION SIZE 1.312 IN. UN
OUTLET CONNECTION TYPE THREADED
OUTLET THREAD SERIES DESIGNATOR UN
OUTLET THREAD DIRECTION RIGHT-HAND
BODY MATERIAL ANY ACCEPTABLE
INSTALLATION LOCATION RIGHT HAND SIDE

Restrictions/Controls & Freight Information | NSN 6680-00-332-3669

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
NMF Description 128400 RODS CONTROL W/W/O HOUSINGS SUB1
Less than car load rating
Less than truck load rating M 85.0
Water commodity Code 652 unknown
Originating Activity Code KE Naval ICP
Philadelphia, PA 19111
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity H Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 6680-00-332-3669

Category Code Description
Cognizance Codes9BNavy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDNDepartment of the Navy
Service OrganizationNU.S. Navy
Acquisition Advice CodesJNOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
