NSN 6680-00-262-9139 A13757, L1-57, L157
Product Details | LIQUID SIGHT INDICATOR
6680-00-262-9139 An item so designed to have a portion or all of its body transparent to permit the visual examination of the amount of liquid in a pressure vessel, boiler, evaporator, still, processing tank, reservoir, pipe tubing line, and the like, and/or to determine the flow to a lubricated part. It may also be provided with an element that changes colors to indicate changes in moisture content. The item may have a means for refilling. Excludes INDICATOR, LIQUID QUANTITY and INDICATOR, RATE OF FLOW.
Part Alternates: A13757, L1-57, L157, 265350P, 26-5350P, 499797PC167, 500233PC40, 6680-00-262-9139, 00-262-9139, 6680002629139, 002629139
Instruments and Laboratory Equipment | Liquid and Gas Flow, Liquid Level, and Mechanical Motion Measuring Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 01 JAN 1963 | 00-262-9139 | 03175 ( INDICATOR, SIGHT, LIQUID ) |
Drawings & Photos | NSN 6680-00-262-9139
Cross Reference | NSN 6680-00-262-9139
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 26-5350P | 66935 | YORK INTERNATIONAL CORPORATION DBA JOHNSON CONTROLS |
| 499797PC167 | 66935 | YORK INTERNATIONAL CORPORATION DBA JOHNSON CONTROLS |
| 500233PC40 | 66935 | YORK INTERNATIONAL CORPORATION DBA JOHNSON CONTROLS |
| A13757 | 41947 | MUELLER BRASS |
| L1-57 | 28193 | HENRY TECHNOLOGIES INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6680-00-262-9139
Technical Data | NSN 6680-00-262-9139
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY |

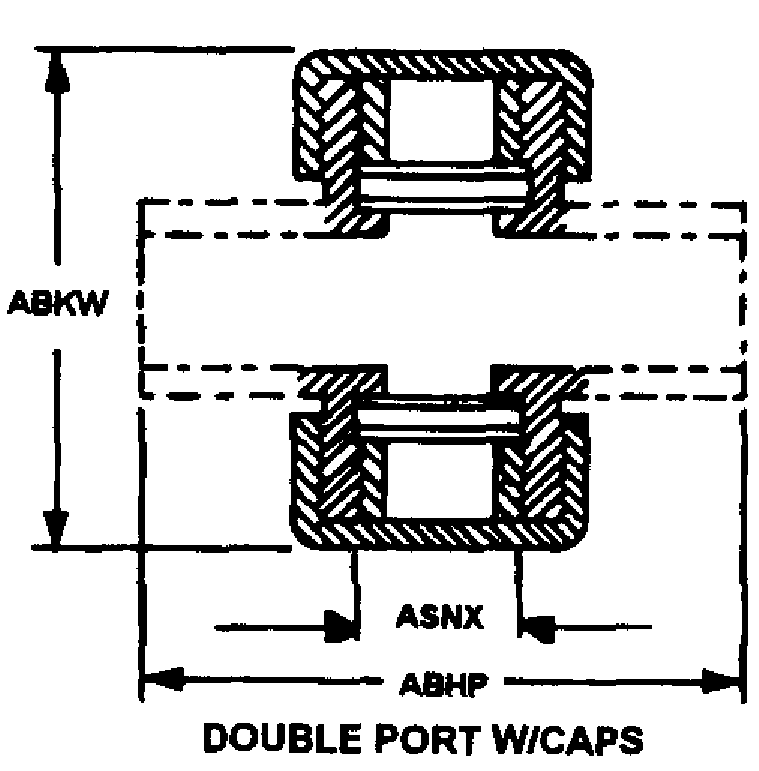

| STYLE DESIGNATOR | D23 DOUBLE PORT W/CAPS |
| OVERALL LENGTH | 3.812 INCHES NOMINAL |
| OVERALL HEIGHT | 4.438 INCHES NOMINAL |
| SIGHT DIAMETER | 1.000 INCHES NOMINAL |
| MEDIA FOR WHICH DESIGNED | ANY ACCEPTABLE |
| FURNISHED DATA | ANY ACCEPTABLE |
| DATA FURNISHING METHOD | CLEAR WINDOW |
| MAXIMUM WORKING PRESSURE | NOT RATED |
| MAXIMUM TEMP RATING | NOT RATED |
| END CONNECTION TYPE | PLAIN BOTH ENDS |
| TUBE OUTSIDE DIAMETER FOR WHICH DESIGNED | 1.625 INCHES BOTH ENDS |
| III END ITEM IDENTIFICATION | CHILLED WATER AIR CONDITION SYSTEMS |
Restrictions/Controls & Freight Information | NSN 6680-00-262-9139
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 121570 | GAGES AIR LIQUID LEVEL PRESSURE |
| Less than car load rating | ||
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 653 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Q | Extremely fragile items including delicate instruments. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6680-00-262-9139
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
