Product Details | SURVEYING LEVEL

6675-00-189-8842 An instrument consisting of a leveling and sighting device, used for general topographic measurements, such as determining and delineating the form, extent or the like, of a tract of land. It is manually adjusted. Excludes CLINOMETER, ELEVATION AND DEPRESSION, SURVEYING and LEVEL, OPTICAL, AUTOMATIC.

Part Alternates: MILL3765, 5003, 6675-00-189-8842, 00-189-8842, 6675001898842, 001898842

Instruments and Laboratory Equipment | Drafting, Surveying, and Mapping Instruments

Supply Group (FSG) NSN Assign. NIIN
66 01 JAN 1963 00-189-8842

Drawings & Photos | NSN 6675-00-189-8842


Cross Reference | NSN 6675-00-189-8842

Part Number Cage Code Manufacturer
5003 66796 BRUNSON INSTRUMENT COMPANY
MILL3765 81349 MILITARY SPECIFICATIONS PROMULGATED BY MILITARY

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 6675-00-189-8842

Technical Data | NSN 6675-00-189-8842

Characteristic Specifications
UNIT TYPE MOUNTED
LEVELING SCREW QUANTITY 4
SIGHTING DEVICE TYPE TELESCOPE
TELESCOPE TYPE ERECTING
TELESCOPE LENGTH 18.000 INCHES NOMINAL
FOCUSING TYPE EXTERNAL
DIAMETER MAGNIFYING POWER 32.0 NOMINAL
STADIA HAIR INCLUDED
EFFECTIVE APERTURE SIZE 1.600 INCHES NOMINAL
LEVEL TYPE DUMPY
ILLUMINATED FEATURE NOT INCLUDED
SPIRIT LEVEL SENSITIVITY 20 SEC
HORIZONTAL CIRCLE NOT INCLUDED
HORIZONTAL CIRCLE UNIT OF MEASURE INSCRIPTION NOT APPLICABLE
HORIZONTAL CIRCLE VERNIER NOT INCLUDED
HORIZONTAL CIRCLE VERNIER GRADUATION UNIT NOT APPLICABLE

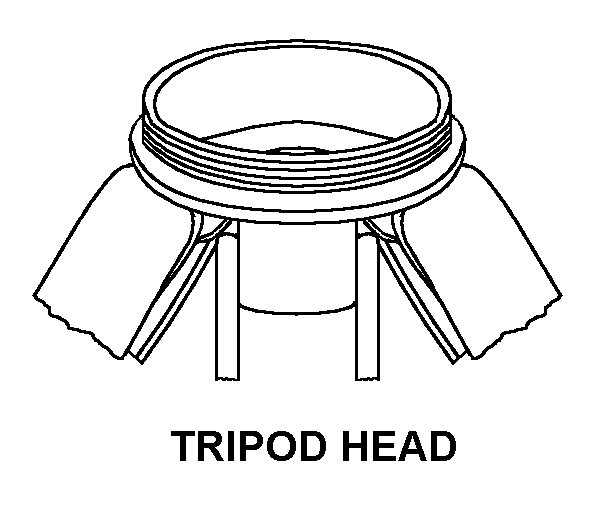

TRIPOD HEAD STYLE 4 TRIPOD HEAD
THREAD SIZE 3-1/2-8
TRIPOD INCLUDED
LEG TYPE FIXED
ACCESSORY COMPONENTS AND QUANTITY BRUSH LENS 1,CAP DUST OBJECTIVE LENS 1,COVER WATERPROOF 1,GREASE LUBRICATING 1/4 OUNCE TUBE 1,PINS ADJUSTING 2,SCREWDRIVER 1,SUNSHADE OBJECTIVE LENS METAL 1,VIAL LEVEL 1,WRENCH FOR SEPARATING SOCKETS 1
CASE PROVIDED
DEPARTURE FROM CITED DOCUMENT PAC BCTD
REFERENCE NUMBER DIFFERENTIATING CHARACTERISTICS W/FIXED LENGTH TRIPOD
MANUFACTURERS CODE 66796
DESIGN CONTROL REFERENCE 5003
