NSN 6675-00-061-0638 GGC871, 57100829, 57-1008-29
Product Details | IRREGULAR DRAFTING CURVE
6675-00-061-0638 A thin flat piece of metallic, plastic, or similar material having one or more edges used as a guide for drawing curves, all portions of which are not subject to the same mathematical formula.
Part Alternates: GGC871, 57100829, 57-1008-29, 6675-00-061-0638, 00-061-0638, 6675000610638, 000610638
Instruments and Laboratory Equipment | Drafting, Surveying, and Mapping Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 01 JAN 1963 | 00-061-0638 | 07489 ( CURVE, DRAFTING, IRREGULAR ) |
Drawings & Photos | NSN 6675-00-061-0638
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6675-00-061-0638
Technical Data | NSN 6675-00-061-0638
| Characteristic | Specifications |
|---|---|

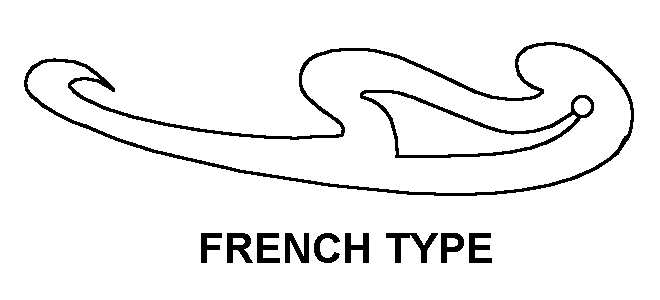

| CURVE TYPE | FRENCH |
| STYLE DESIGNATOR | 85 FRENCH TYPE |
| MATERIAL | ANY ACCEPTABLE |
| NONDEFINITIVE SPEC/STD DATA | 1 TYPE AND 29 PATTERN |
| MANUFACTURERS CODE | 81348 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | GGC871 |
Restrictions/Controls & Freight Information | NSN 6675-00-061-0638
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
