NSN 6665-00-376-5065 MR36M201SPECRM0, 354R0TP823, 00-376-5065
Product Details | ROENTGEN RATE METER
6665-00-376-5065 An electrically operated instrument which measures radioactivity and is calibrated in roentgens per unit time or any multiple threof. For instruments that measure radioactivity directly, see RADIACMETER.
Part Alternates: MR36M201SPECRM0, 354R0TP823, 6665-00-376-5065, 00-376-5065, 6665003765065, 003765065
Instruments and Laboratory Equipment | Hazard-Detecting Instruments and Apparatus
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 16 MAR 1974 | 00-376-5065 | 17257 ( METER, ROENTGEN RATE ) |
Drawings & Photos | NSN 6665-00-376-5065
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6665-00-376-5065
Related Products | NSN 6665-00-376-5065
Technical Data | NSN 6665-00-376-5065
| Characteristic | Specifications |
|---|---|
| METER TYPE | MOUNTED |
| SCALE QUANTITY | 1 |
| SCALE RANGE | 0.0 TO 1000.0 MILLIROENTGENS |
| GRADUATION UNIT | 100.0 MILLIROENTGENS |
| CASE MATERIAL | METAL |
| METER STYLE | PANEL |

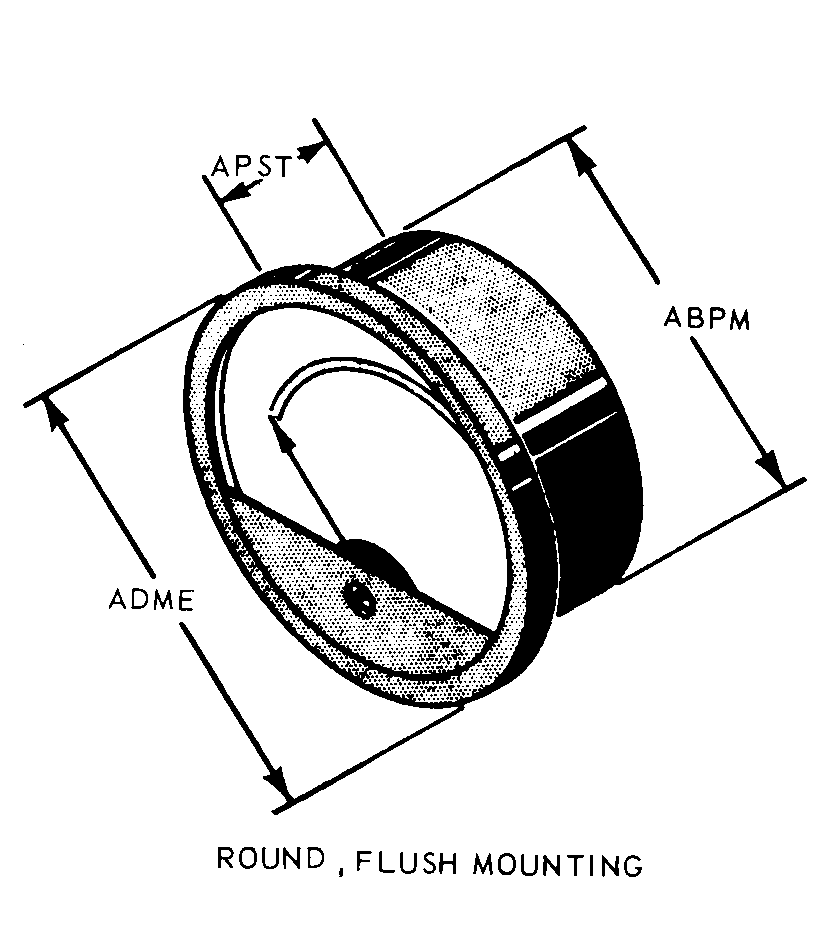

| BODY STYLE | 14 ROUND, FLUSH MOUNTING |
| BODY DIAMETER | 3.188 INCHES NOMINAL |
| MOUNTING FLANGE OUTSIDE DIAMETER | 3.500 INCHES NOMINAL |
| METER DEPTH BEHIND MOUNTING FLANGE | 1.750 INCHES NOMINAL |
| MAGNETIC SHIELDING | NOT INCLUDED |
| PANEL FOR WHICH DESIGNED | NONMAGNETIC |
| DIAL SCALE MARKING COLOR | BLACK |
| DIAL SCALE MARKING LUMINOSITY | NONLUMINOUS |
| INSCRIPTION BACKGROUND COLOR | WHITE |
| MOUNTING CONFIGURATION | CIRCULAR CONFIGERATION WITH FOUR 0.125 IN. DIA UNTHREADED HOLES AARAA2 |
| TERMINAL TYPE | SOLDER LUG |
Restrictions/Controls & Freight Information | NSN 6665-00-376-5065
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | D | Munitions List Item or Commerce Control List Item. Demilitarization required. Total destruction of the item and components so as to preclude restoration or repair to a usable condition by melting, cutting, tearing, scratching, crushing, breaking, punching, neutralizing, etc. (As an alternate, burial or deep water dumping may be used when coordinated with the DoD Demilitarization Program Office.) |
| Controlled Inventory Item Code: | 7 | NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7). |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061700 | ELEC APPLIANCES/INSTRUMENTS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | HD | Naval Inventory Control Point Mechanicsburg, PA 17055-0788 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6665-00-376-5065
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | 7 | NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7). |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
