NSN 6650-01-300-8223 013008223
Product Details | OPTICAL ELEMENT SPACER
6650-01-300-8223 A tubular shaped item designed to maintain a predetermined distance between optical elements, such as lenses, reticles, and the like. The bore may be straight, tapered or counterbored, and may have annular serrations to converge or diverge light rays. The surfaces, which mate with the optics, are usually chamfered, concave, and/or have a specified finish designation in the range of 1 to 125 microinches arithmetical average (AA). See also SPACER, SLEEVE and CELL, OPTICAL ELEMENT.
Part Alternates: 013008223
Communication, Detection, and Coherent Radiation Equipment | Night Vision Equipment, Emitted and Reflected Radiation
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 58 | 01-300-8223 | 22261 ( SPACER, OPTICAL ELEMENT ) |

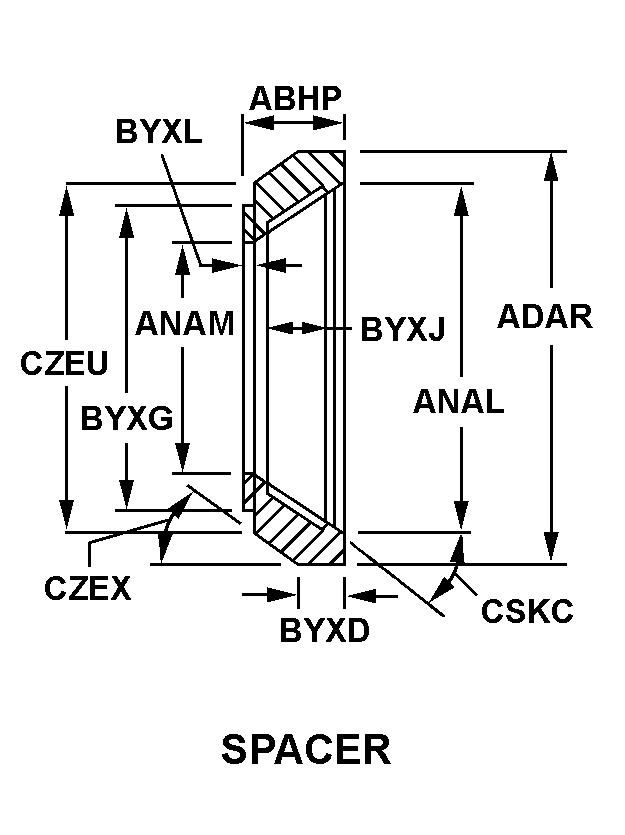

Drawings & Photos | NSN 5855-01-300-8223
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6650-01-300-8223
Technical Data | NSN 6650-01-300-8223
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 303 |
| MATERIAL DOCUMENT AND CLASSIFICATION | ASTM A582,TYPE 303 ASSN STD SINGLE MATERIAL RESPONSE |
| STYLE DESIGNATOR | B5 SPACER |
| OVERALL LENGTH | 0.091 INCHES NOMINAL |
| EXTERNAL SHOULDER DEPTH | 0.014 INCHES MINIMUM AND 0.116 INCHES MAXIMUM |
| BODY OUTSIDE DIAMETER | 0.335 INCHES MAXIMUM |
| SPECIAL FEATURES | MARK DASH NUMBERS .06 HIGH PER MIL-M-13231 TABLE II,GROUP III |
| MANUFACTURERS CODE | 18876 |
| DESIGN CONTROL REFERENCE | 13294154-2 |
Restrictions/Controls & Freight Information | NSN 6650-01-300-8223
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
