Product Details | OPTICAL ELEMENT SPACER
6650-01-081-5693 A tubular shaped item designed to maintain a predetermined distance between optical elements, such as lenses, reticles, and the like. The bore may be straight, tapered or counterbored, and may have annular serrations to converge or diverge light rays. The surfaces, which mate with the optics, are usually chamfered, concave, and/or have a specified finish designation in the range of 1 to 125 microinches arithmetical average (AA). See also SPACER, SLEEVE and CELL, OPTICAL ELEMENT.
Part Alternates: 11780081, 424611, 42461-1, 6650-01-081-5693, 01-081-5693, 6650010815693, 010815693
Instruments and Laboratory Equipment | Optical Instruments, Test Equipment, Components and Accessories
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 16 AUG 1979 | 01-081-5693 | 22261 ( SPACER, OPTICAL ELEMENT ) |
Drawings & Photos | NSN 6650-01-081-5693
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6650-01-081-5693
Technical Data | NSN 6650-01-081-5693
| Characteristic | Specifications |
|---|---|

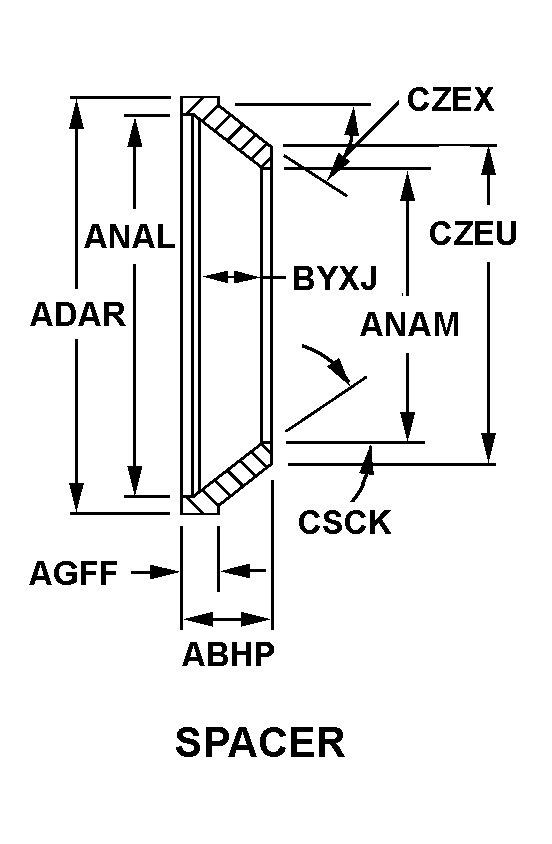

| MATERIAL | ALUMINUM ALLOY |
| STYLE DESIGNATOR | B2 SPACER |
| OVERALL LENGTH | 0.413 INCHES MINIMUM AND 0.423 INCHES MAXIMUM |
| FLANGE WIDTH | 0.105 INCHES MINIMUM AND 0.115 INCHES MAXIMUM |
| BODY OUTSIDE DIAMETER | 4.245 INCHES MAXIMUM |
| TAPER BORE MAJOR DIAMETER | 4.045 INCHES MAXIMUM |
| TAPER BORE MINOR DIAMETER | 3.965 INCHES MAXIMUM |
| SPECIAL FEATURES | HAS 12 SLOTS EQUALLY SPACED AT 0.156 IN. DEEP |
| MANUFACTURERS CODE | 19200 |
| DESIGN CONTROL REFERENCE | 11780081 |
