NSN 6650-01-078-5587 015057, 01-078-5587, 010785587
Product Details | OPTICAL INSTRUMENT LENS
6650-01-078-5587 An unmounted, transparent, color free lens which may be treated with a low reflection coating to increase light transmission. Includes single and compound elements. For items having two plane parallel surfaces, see WINDOW, OPTICAL INSTRUMENT. Excludes RETICLE, OPTICAL INSTRUMENT.20258550055Night Vision Equipment, Emitted and Reflected Radiation66500063Optical Instruments, Test Equipment, Components and Accessories
Part Alternates: 015057, 6650-01-078-5587, 01-078-5587, 6650010785587, 010785587
Instruments and Laboratory Equipment | Optical Instruments, Test Equipment, Components and Accessories
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 15 JUN 1979 | 01-078-5587 | 21884 ( LENS, OPTICAL INSTRUMENT ) |
Drawings & Photos | NSN 6650-01-078-5587
Cross Reference | NSN 6650-01-078-5587
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 015057 | K6111 | QIOPTIQ LTD |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6650-01-078-5587
Related Products | NSN 6650-01-078-5587
Technical Data | NSN 6650-01-078-5587
| Characteristic | Specifications |
|---|---|
| MATERIAL | GLASS, OPTICAL, MIL-G-174, CLASS 1, GRADE B |

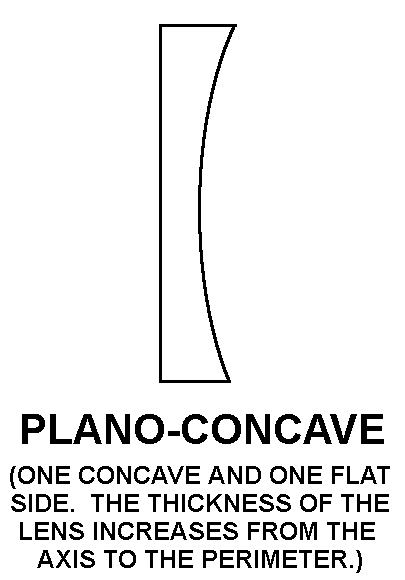

| SINGLE LENS STYLE | D5 PLANO-CONCAVE |
| DIAMETER | 67.96 MILLIMETERS MINIMUM AND 67.99 MILLIMETERS MAXIMUM |
| AXIAL THICKNESS | 2.46 MILLIMETERS MINIMUM AND 2.65 MILLIMETERS MAXIMUM |
| ELEMENT LEFT SURFACE RADIUS | 437.4897 MILLIMETERS |
| EQUIVALENT FOCAL LENGTH | -0.062 CENTIMETERS |
| SPECIAL FEATURES | ANTIREFLECTION COATING OF MAGNESIUM FLUORIDE,MIL-C-675 |
| III FSC APPLICATION DATA | CELL ASSY,OPT INSTR,P/N 019704,1270010794202 |
| III END ITEM IDENTIFICATION | SHUD,P/N 79-049-12,1270010948505 |
| MANUFACTURERS CODE | K6111 |
| DESIGN CONTROL REFERENCE | 015057 |
Restrictions/Controls & Freight Information | NSN 6650-01-078-5587
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | Q | Strategic List Item (SLI). Demilitarization not required. SLI are non-MLI(Munitions List Items) controlled by the U.S. Dept. of Commerce through the Export Administration Regulations (EAR) and indicated on the Commerce Control List (CCL). Each CCL entry is preceded by a four-digit Export Control Commerce Control List Item (CCLI) – MUT to the point of scrap required outside the United States. Inside the United States, MUT is required when the DEMIL integrity code (IC) is “3” and MUT is not required when the DEMIL IC is “6.” |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 057940 | LENSES OPTICAL NOI SUB1 |
| Less than car load rating | D | 200 |
| Less than truck load rating | D | 200.0 |
| Water commodity Code | 704 | unknown |
| Originating Activity Code | SU | Ogden Air Logistics Center Hill AFB, UT 84056-5609 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6650-01-078-5587
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | WF | SU:F-16 AIR COMBAT FIGHTER |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
