Product Details | OPTICAL ELEMENT SPACER
6650-01-052-1751 A tubular shaped item designed to maintain a predetermined distance between optical elements, such as lenses, reticles, and the like. The bore may be straight, tapered or counterbored, and may have annular serrations to converge or diverge light rays. The surfaces, which mate with the optics, are usually chamfered, concave, and/or have a specified finish designation in the range of 1 to 125 microinches arithmetical average (AA). See also SPACER, SLEEVE and CELL, OPTICAL ELEMENT.
Part Alternates: 10549288, 6650-01-052-1751, 01-052-1751, 6650010521751, 010521751
Instruments and Laboratory Equipment | Optical Instruments, Test Equipment, Components and Accessories
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 11 DEC 1977 | 01-052-1751 | 22261 ( SPACER, OPTICAL ELEMENT ) |

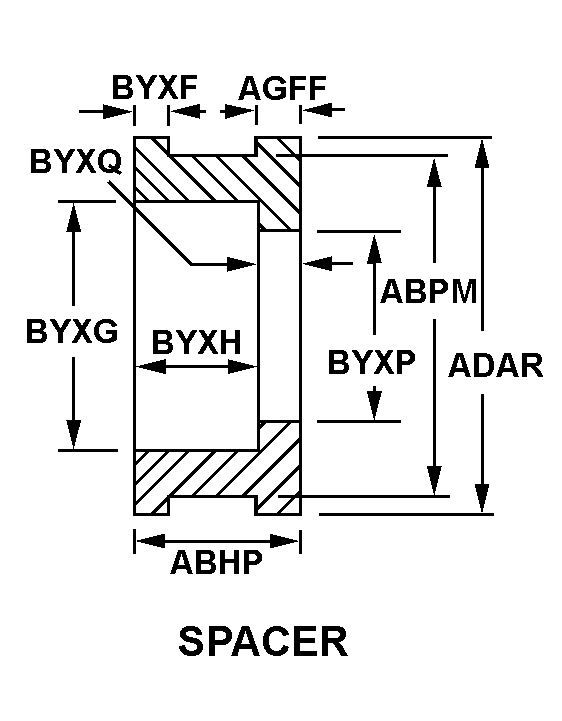

Drawings & Photos | NSN 6650-01-052-1751
Cross Reference | NSN 6650-01-052-1751
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10549288 | 19204 | ARMY UNITED STATES DEPARTMENT OF THE |
