Product Details | OPTICAL ELEMENT RETAINER
6650-00-829-4121 A cylindrical, externally threaded item having a centrally located hole specifically designed to retain by means of either a raised box (shoulder), or counterbore, countersink, or a similar shaped recess, an optical element such as a lens, reticle, cell, and the like, in optical assemblies. It must have drilled holes or slots to facilitate assembly and disassembly. For items which house the optical element(s), and form the internal or central portions of an optical system, see CELL, OPTICAL ELEMENT. Excludes RING, EXTERNALLY THREADED.20312400038Optical Sighting and Ranging Equipment58550055Night Vision Equipment, Emitted and Reflected Radiation66500063Optical Instruments, Test Equipment, Components and Accessories
Part Alternates: 16011, 6650-00-829-4121, 00-829-4121, 6650008294121, 008294121
Instruments and Laboratory Equipment | Optical Instruments, Test Equipment, Components and Accessories
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 01 JAN 1962 | 00-829-4121 | 22451 ( RETAINER, OPTICAL ELEMENT ) |
Drawings & Photos | NSN 6650-00-829-4121
Cross Reference | NSN 6650-00-829-4121
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 16011 | 02033 | GYRUS ACMI L.P. DBA CIRCON-ACMI DIV |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6650-00-829-4121
Technical Data | NSN 6650-00-829-4121
| Characteristic | Specifications |
|---|---|

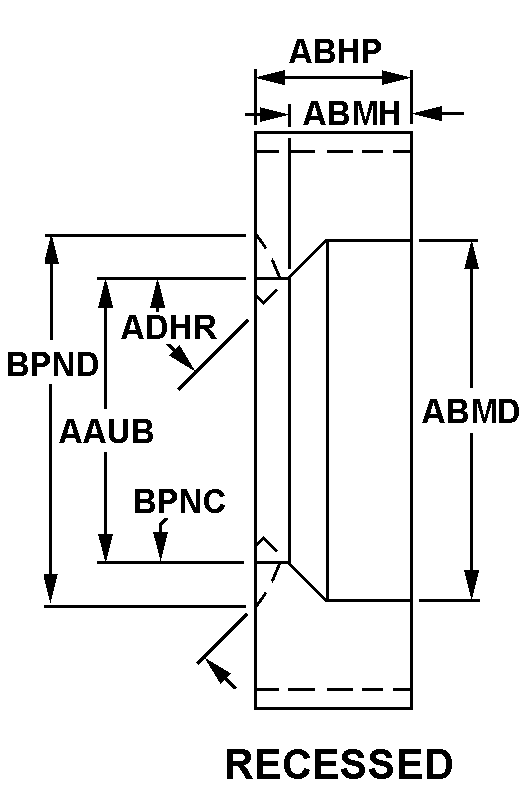

| STYLE DESIGNATOR | F2 RECESSED |
| HOLE DIAMETER | 4.000 INCHES NOMINAL |
| OVERALL LENGTH | 0.187 INCHES NOMINAL |
| RECESS ANGLE IN DEG | 30.0 |
| RECESS DEPTH | 0.117 INCHES NOMINAL |
| THREAD SIZE | 4.250 IN.-32 |
| MATERIAL | ALUMINUM ALLOY |
| SURFACE TREATMENT | ANODIZED, MIL-A-8625 |
| DRIVE TYPE | SLOTTED |
| HOLE OR SLOT QUANTITY | 2 |
| WIDTH | 0.062 INCHES NOMINAL |
| DEPTH | 0.047 INCHES NOMINAL |
| DRIVE FACILITY ANGULAR SPACING IN DEG | 180.0 |
| INTERNAL ANNULAR SERRATION | NOT PROVIDED |
| SETSCREW NOTCH | NOT PROVIDED |
| MANUFACTURERS CODE | 02033 |
| DESIGN CONTROL REFERENCE | 16011 |
Restrictions/Controls & Freight Information | NSN 6650-00-829-4121
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | Q | Strategic List Item (SLI). Demilitarization not required. SLI are non-MLI(Munitions List Items) controlled by the U.S. Dept. of Commerce through the Export Administration Regulations (EAR) and indicated on the Commerce Control List (CCL). Each CCL entry is preceded by a four-digit Export Control Commerce Control List Item (CCLI) – MUT to the point of scrap required outside the United States. Inside the United States, MUT is required when the DEMIL integrity code (IC) is “3” and MUT is not required when the DEMIL IC is “6.” |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 058110 | OPTICAL GOODS OR INSTRUMENTS NOI |
| Less than car load rating | ||
| Less than truck load rating | D | 200.0 |
| Water commodity Code | 744 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | M | Medical supplies, equipment, samples records, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
