Product Details | OPTICAL INSTRUMENT RETICLE
6650-00-767-3921 An item, usually made of glass, having fine wires or hairs, or etched or printed fine lines on a surface, and placed in the focal plane of an optical instrument to establish a reference point to the axis for the purpose of aiming, measuring, ranging, and the like. Excludes LENS, OPTICAL INSTRUMENT.
Part Alternates: 007673921
Fire Control Equipment | Optical Sighting and Ranging Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 12 | 00-767-3921 | 21883 ( RETICLE, OPTICAL INSTRUMENT ) |
Drawings & Photos | NSN 1240-00-767-3921
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6650-00-767-3921
Technical Data | NSN 6650-00-767-3921
| Characteristic | Specifications |
|---|---|
| MATERIAL | GLASS OPTICAL |

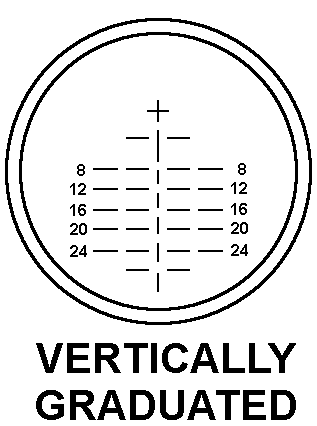

| STYLE DESIGNATOR | A15 VERTICALLY GRADUATED |
| GRADUATIONS/MARKINGS | RANGE SCALE |
| SCALE CALIBRATION | 0 TO 2000 YDS,0 TO 2600 YDS |
| AMMUNITION IDENTIFICATION INSCRIPTION | 105 MM HOW. HEAT VII |
| REFRACTION INDEX | 1.5230 NOMINAL AND 1.5838 NOMINAL |
| DISPERSION | 58.6 ANGSTROMS NOMINAL AND 46.0 ANGSTROMS NOMINAL |
| AXIAL THICKNESS | 0.100 INCHES MINIMUM AND 0.120 INCHES MAXIMUM |
| DIAMETER | 1.0730 INCHES MINIMUM AND 1.0760 INCHES MAXIMUM |
| BEVEL DEPTH AND LOCATION | 0.0200 INCHES MINIMUM BOTH SURFACES AND 0.0300 INCHES MAXIMUM BOTH SURFACES |
| ANGLE IN DEG | 45.0 |
| RIM FINISH | GROUND |
| SUPPLEMENTARY FEATURES | MATERIAL OPTICAL GLASS PER MIL-G-174, GRADE C, TYPE 523-586 AND TYPE 584-460 |
| FSC APPLICATION DATA | TELESCOPE,ELBOW,M16A1C |
| (NON-CORE DATA) EDGE THICKNESS | 0.1000 INCHES MINIMUM AND 0.1200 INCHES MAXIMUM |
| MANUFACTURERS CODE | 19200 |
| DESIGN CONTROL REFERENCE | 7673921 |
