Product Details | OPTICAL INSTRUMENT RETICLE
6650-00-617-3980 An item, usually made of glass, having fine wires or hairs, or etched or printed fine lines on a surface, and placed in the focal plane of an optical instrument to establish a reference point to the axis for the purpose of aiming, measuring, ranging, and the like. Excludes LENS, OPTICAL INSTRUMENT.
Part Alternates: 6173980, 6650-00-617-3980, 00-617-3980, 6650006173980, 006173980
Instruments and Laboratory Equipment | Optical Instruments, Test Equipment, Components and Accessories
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 01 JAN 1963 | 00-617-3980 | 21883 ( RETICLE, OPTICAL INSTRUMENT ) |
Drawings & Photos | NSN 6650-00-617-3980
Demand History | NSN 6650-00-617-3980
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6650-00-617-3980 | 2014-01-20 | 275 | Pakistan |
Cross Reference | NSN 6650-00-617-3980
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 6173980 | 19200 | US ARMY ARDEC RDECOM |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6650-00-617-3980
Technical Data | NSN 6650-00-617-3980
| Characteristic | Specifications |
|---|---|
| MATERIAL | GLASS OPTICAL |

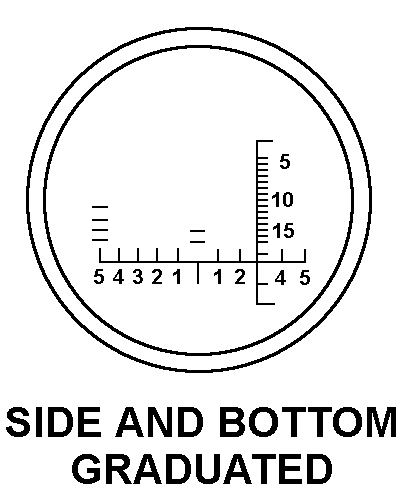

| STYLE DESIGNATOR | A7 SIDE AND BOTTOM GRADUATED |
| GRADUATIONS/MARKINGS | RANGE SCALE |
| SCALE CALIBRATION | 500 TO 2000 YDS,5 TO 0 TO 5 MILS |
| REFRACTION INDEX | 1.5838 NOMINAL AND 1.5230 NOMINAL |
| DISPERSION | 46.0 ANGSTROMS NOMINAL AND 58.6 ANGSTROMS NOMINAL |
| AXIAL THICKNESS | 0.060 INCHES MINIMUM AND 0.080 INCHES MAXIMUM |
| DIAMETER | 0.8220 INCHES MINIMUM AND 0.8260 INCHES MAXIMUM |
| BEVEL DEPTH AND LOCATION | 0.0220 INCHES NOMINAL ETCHED SURFACE AND 0.0100 INCHES MINIMUM OPPOSITE ETCHED SURFACE AND 0.0200 INCHES MAXIMUM OPPOSITE ETCHED SURFACE |
| ANGLE IN DEG | 45.0 |
| RIM FINISH | GROUND |
| SUPPLEMENTARY FEATURES | MATERIAL OPTICAL GLASS PER MIL-G-174, GRADE C, TYPE 584-460 AND TYPE 525-586 |
| FSC APPLICATION DATA | BINOCULAR,FIRE CONTROL |
| (NON-CORE DATA) EDGE THICKNESS | 0.0280 INCHES MINIMUM AND 0.0380 INCHES MAXIMUM |
| MANUFACTURERS CODE | 19200 |
| DESIGN CONTROL REFERENCE | 6173980 |
