NSN 6650-00-566-6116 715080, 71-5080, 00-566-6116
Product Details | TELESCOPE MOUNT
6650-00-566-6116 A mechanical device designed to support and/or position a telescope. It may include one or more of the following; cross leveling device, means of boresighting a gun, azimuth and/or elevation, adjusting mechanism, and accommodations for attaching a LIGHT, INSTRUMENT.20212400038Optical Sighting and Ranging Equipment66500063Optical Instruments, Test Equipment, Components and Accessories
Part Alternates: 715080, 71-5080, 6650-00-566-6116, 00-566-6116, 6650005666116, 005666116
Instruments and Laboratory Equipment | Optical Instruments, Test Equipment, Components and Accessories
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 21 NOV 1974 | 00-566-6116 | 22035 ( MOUNT, TELESCOPE ) |
Drawings & Photos | NSN 6650-00-566-6116
Cross Reference | NSN 6650-00-566-6116
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 71-5080 | 66796 | BRUNSON INSTRUMENT COMPANY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6650-00-566-6116
Technical Data | NSN 6650-00-566-6116
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY |
| AZIMUTH ADJUSTMENT MECHANISM | NOT PROVIDED |
| ELEVATION ADJUSTMENT MECHANISM | NOT PROVIDED |

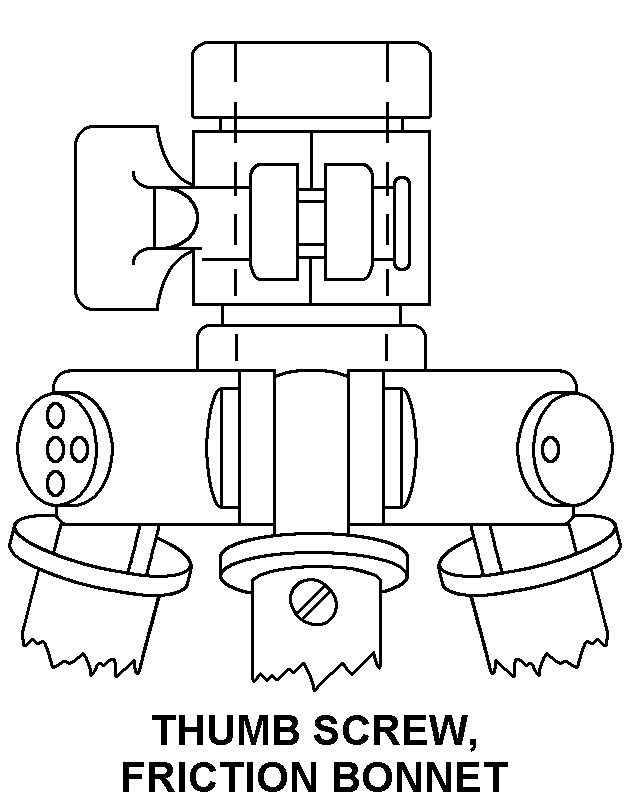

| TRIPOD HEAD STYLE | H6 THUMB SCREW, FRICTION BONNET |
| INSTRUMENT LIGHT ACCOMMODATION | NOT PROVIDED |
Restrictions/Controls & Freight Information | NSN 6650-00-566-6116
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 058110 | OPTICAL GOODS OR INSTRUMENTS NOI |
| Less than car load rating | J | 100.2 |
| Less than truck load rating | D | 200.0 |
| Water commodity Code | 72E | unknown |
| Originating Activity Code | ZA | Australia ZB ZC |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | R | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6650-00-566-6116
Air Force| Category | Code | Description |
|---|---|---|
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Materiel Management Aggregation Code | RN | TG:GROUND SUPPORT EQUIPMENT (FSC RESIDUAL MMAC) |
| Budget Code | Y | variousO & M:AF centrally procured equipment items. They are separate, primary end items (other than the weapon system itself) needed by a user to perform an assigned mission. They are nonexpendable items (ERRCD NF or ND) which are not consumed in use, and they do not lose their original identity during periods of use by incorporation into, or attachment to another assembly. |
| Source of Supply | FLZ | Warner Robins Air Logistics Center Robins AFB, GA 31098-5609 |
| Agency | DF | Department of the Air Force |
| Service Organization | L | Lead Service - 22 (Repairable) |
| Reparability | S | AF Equipment Management System (AFEMS) |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
