Product Details | OPTICAL INSTRUMENT RETICLE
6650-00-558-1108 An item, usually made of glass, having fine wires or hairs, or etched or printed fine lines on a surface, and placed in the focal plane of an optical instrument to establish a reference point to the axis for the purpose of aiming, measuring, ranging, and the like. Excludes LENS, OPTICAL INSTRUMENT.
Part Alternates: 5581108, 6650-00-558-1108, 00-558-1108, 6650005581108, 005581108
Instruments and Laboratory Equipment | Optical Instruments, Test Equipment, Components and Accessories
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 01 JAN 1963 | 00-558-1108 | 21883 ( RETICLE, OPTICAL INSTRUMENT ) |

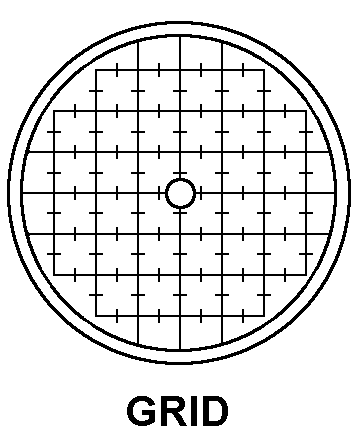

Drawings & Photos | NSN 6650-00-558-1108
Cross Reference | NSN 6650-00-558-1108
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 5581108 | 19200 | US ARMY ARDEC RDECOM |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6650-00-558-1108
Technical Data | NSN 6650-00-558-1108
| Characteristic | Specifications |
|---|---|
| MATERIAL | GLASS OPTICAL |
| STYLE DESIGNATOR | A9 GRID |
| GRADUATIONS/MARKINGS | BALLISTIC DESIGNATION |
| SCALE CALIBRATION | 50-0-50 MILS |
| REFRACTION INDEX | 1.5840 NOMINAL |
| DISPERSION | 46.0 ANGSTROMS NOMINAL |
| AXIAL THICKNESS | 0.120 INCHES NOMINAL |
| DIAMETER | 1.2490 INCHES NOMINAL |
| ANGLE IN DEG | 45.0 |
| RIM FINISH | GROUND |
| SPECIAL FEATURES | 0.0150 IN. BEVEL DEPTH |
| SUPPLEMENTARY FEATURES | MATERIAL OPTICAL GLASS PER JAN-G-174, GRADE C |
| FSC APPLICATION DATA | TELESCOPE,M70C |
| (NON-CORE DATA) EDGE THICKNESS | 0.1200 INCHES NOMINAL |
| MANUFACTURERS CODE | 19200 |
| DESIGN CONTROL REFERENCE | 5581108 |
