NSN 6650-00-546-5411 13400, 00-546-5411, 005465411
Product Details | SPECTROPHOTOMETER
6650-00-546-5411 An item which combines a spectrometer and a photometer as a unit. It is used to measure light intensity.
Part Alternates: 13400, 6650-00-546-5411, 00-546-5411, 6650005465411, 005465411
Instruments and Laboratory Equipment | Optical Instruments, Test Equipment, Components and Accessories
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 01 JAN 1963 | 00-546-5411 | 17266 ( SPECTROPHOTOMETER ) |
Drawings & Photos | NSN 6650-00-546-5411
Cross Reference | NSN 6650-00-546-5411
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 13400 | 05721 | NEWINGTON ELECTRIC CO INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6650-00-546-5411
Related Products | NSN 6650-00-546-5411
Technical Data | NSN 6650-00-546-5411
| Characteristic | Specifications |
|---|---|
| DESIGN DESIGNATION | BECKMAN |
| WAVELENGTH RANGE | 210.0 TO 1000.0 MILLIMICRONS |
| QUARTZ PRISM | INCLUDED |
| SLIT ADJUSTABILITY | ADJUSTABLE |
| SCALE TYPE | FIXED |
| BATTERY | NOT INCLUDED |
| TRICKLE CHARGER | NOT INCLUDED |
| LAMP QUANTITY | 1 AND 1 |
| LAMP VOLTAGE RATING IN VOLTS | 6.0 AND 90.0 |
| LAMP WATTAGE RATING IN WATTS | 30.0 AND 30.0 |
| DESIGN CURRENT RATING IN AMPS | 5.00 NOMINAL AND 0.30 NOMINAL |
| LIGHT OUTPUT RATING | 32.0 CANDLEPOWER NOMINAL AND ANY ACCEPTABLE |

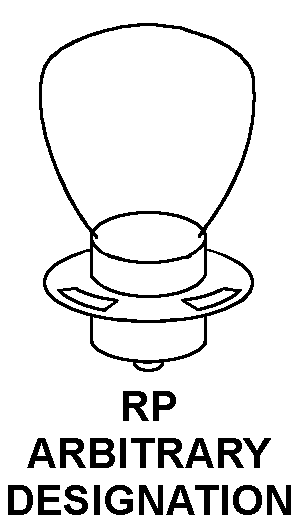

| LAMP BULB SHAPE STYLE | B14 RP ARBITRARY DESIGNATION AND B20 T TUBULAR |
| LAMP BULB SIZE DESIGNATOR | RP-11 AND T-9 |
| LAMP BASE STYLE | C9 DOUBLE CONTACT BAYONET CANDELABRA AND C35 FLEXIBLE LEAD |
| LAMP INDUSTRY NUMBER | 2331 AND ANY ACCEPTABLE |
| LAMP TRANSPARENCY | CLEAR AND CLEAR |
| ACCESSORY COMPONENTS AND QUANTITY | FLAME PHOTOMETRY ATTACHMENT 1; ATOMIZER-BURNER,OXYGEN-ACETYLENE, SMALL BORE 1 |
| MANUFACTURERS CODE | 05721 |
| DESIGN CONTROL REFERENCE | 13400 |
Restrictions/Controls & Freight Information | NSN 6650-00-546-5411
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | Q | Strategic List Item (SLI). Demilitarization not required. SLI are non-MLI(Munitions List Items) controlled by the U.S. Dept. of Commerce through the Export Administration Regulations (EAR) and indicated on the Commerce Control List (CCL). Each CCL entry is preceded by a four-digit Export Control Commerce Control List Item (CCLI) – MUT to the point of scrap required outside the United States. Inside the United States, MUT is required when the DEMIL integrity code (IC) is “3” and MUT is not required when the DEMIL IC is “6.” |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 058110 | OPTICAL GOODS OR INSTRUMENTS NOI |
| Less than car load rating | ||
| Less than truck load rating | D | 200.0 |
| Water commodity Code | 744 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Q | Extremely fragile items including delicate instruments. |
| Special Handling Code | Q | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
