Product Details | OPTICAL ELEMENT SPACER
6650-00-531-7068 A tubular shaped item designed to maintain a predetermined distance between optical elements, such as lenses, reticles, and the like. The bore may be straight, tapered or counterbored, and may have annular serrations to converge or diverge light rays. The surfaces, which mate with the optics, are usually chamfered, concave, and/or have a specified finish designation in the range of 1 to 125 microinches arithmetical average (AA). See also SPACER, SLEEVE and CELL, OPTICAL ELEMENT.
Part Alternates: 5317068, 6650-00-531-7068, 00-531-7068, 6650005317068, 005317068
Instruments and Laboratory Equipment | Optical Instruments, Test Equipment, Components and Accessories
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 01 JAN 1963 | 00-531-7068 | 22261 ( SPACER, OPTICAL ELEMENT ) |
Drawings & Photos | NSN 6650-00-531-7068
Demand History | NSN 6650-00-531-7068
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6650-00-531-7068 | 2015-09-264 | 73 | DIBBS |
| 6650-00-531-7068 | 2010-11-330 | 10 | DIBBS |
Cross Reference | NSN 6650-00-531-7068
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 5317068 | 19200 | US ARMY ARDEC RDECOM |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6650-00-531-7068
Related Products | NSN 6650-00-531-7068
Technical Data | NSN 6650-00-531-7068
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 2024 |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-225/6,T4 FED SPEC SINGLE MATERIAL RESPONSE |

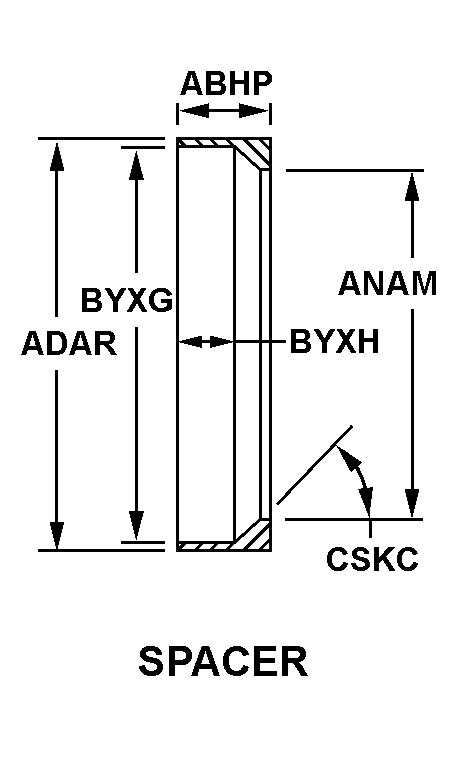

| STYLE DESIGNATOR | B4 SPACER |
| OVERALL LENGTH | 1.432 INCHES NOMINAL |
| STRAIGHT BORE INSIDE DIAMETER | 0.995 INCHES NOMINAL |
| STRAIGHT BORE DEPTH | 1.244 INCHES NOMINAL |
| BODY OUTSIDE DIAMETER | 1.231 INCHES MAXIMUM |
| TAPER BORE MINOR DIAMETER | 0.865 INCHES MAXIMUM |
| TAPER ANGLE | 69.0 DEGREES NOMINAL |
| MANUFACTURERS CODE | 19200 |
| DESIGN CONTROL REFERENCE | 5317068 |
Restrictions/Controls & Freight Information | NSN 6650-00-531-7068
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | Q | Strategic List Item (SLI). Demilitarization not required. SLI are non-MLI(Munitions List Items) controlled by the U.S. Dept. of Commerce through the Export Administration Regulations (EAR) and indicated on the Commerce Control List (CCL). Each CCL entry is preceded by a four-digit Export Control Commerce Control List Item (CCLI) – MUT to the point of scrap required outside the United States. Inside the United States, MUT is required when the DEMIL integrity code (IC) is “3” and MUT is not required when the DEMIL IC is “6.” |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 106940 | SPACERS/SEPARATORS I/S NOI TUBULAR |
| Less than car load rating | ||
| Less than truck load rating | T | 55.0 |
| Water commodity Code | 744 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | M | Medical supplies, equipment, samples records, etc. |
| Air Special Handling | Z | No special handling required. |
