Product Details | ELBOW TELESCOPE

6650-00-527-7378 A telescope whose line of vision is bent 90 degrees.20212400038Optical Sighting and Ranging Equipment66500063Optical Instruments, Test Equipment, Components and Accessories

Part Alternates: 4440, 579R418H01, 85011195204, 85-0111-9520-4, 6650-00-527-7378, 00-527-7378, 6650005277378, 005277378

Instruments and Laboratory Equipment | Optical Instruments, Test Equipment, Components and Accessories

Supply Group (FSG) NSN Assign. NIIN
66 01 JAN 1963 00-527-7378

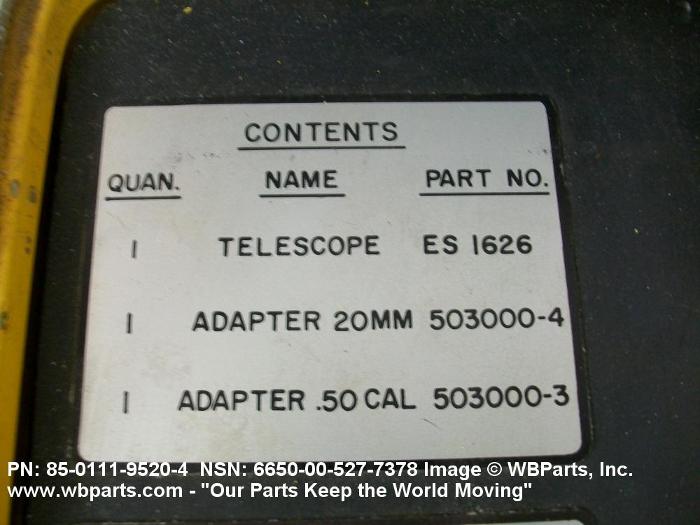

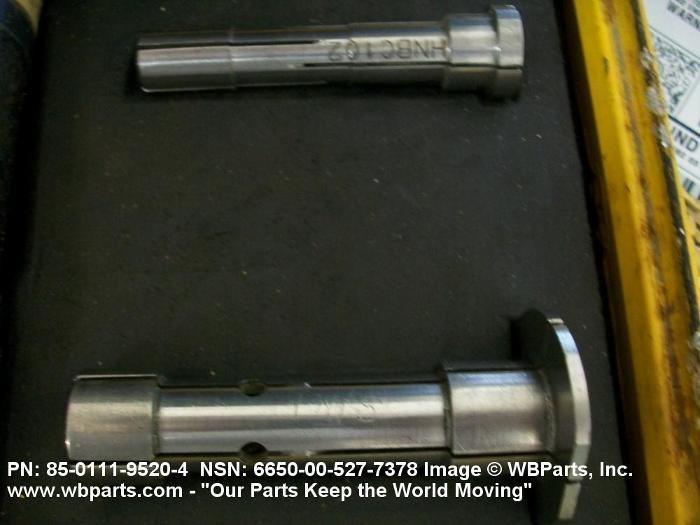

Drawings & Photos | NSN 6650-00-527-7378


Demand History | NSN 6650-00-527-7378

Part Number Request Date QTY Origin
6650-00-527-7378 2021-06-181 1 United States
6650-00-527-7378 2017-12-335 1 United States
6650-00-527-7378 2017-04-117 1 United States
85011195204 2013-01-14 1 Italy
4440 2012-07-190 10
6650-00-527-7378 2012-07-189 10 NECO
6650-00-527-7378 2011-08-237 1 United States

Cross Reference | NSN 6650-00-527-7378

Part Number Cage Code Manufacturer
4440 26612 GURLEY PRECISION INSTRUMENTS, INC.
579R418H01 97942 NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN SYSTEMS
85-0111-9520-4 10001 NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT
85-0111-9520-4 66346 MINNESOTA MINING AND MFG CO BROADCASTING AND RELATED PRODUCTS

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 6650-00-527-7378

Technical Data | NSN 6650-00-527-7378

Characteristic Specifications
OPTICAL DEVICE TYPE LENS AND PRISM
FOCUSING TYPE ADJUSTABLE
DIOPTER SCALE INCLUDED
OBJECTIVE APERTURE DIAMETER 20.6 MILLIMETERS NOMINAL
FIELD VIEW COVERAGE 4 DEG 30 MIN TRUE FIELD OF VIEW
MAGNIFICATION TYPE FIXED
MAGNIFICATION 5X NOMINAL
OPEN DRAWTUBE OVERALL LENGTH 7.625 INCHES NOMINAL
SCALE MARKINGS PROVIDED
SCALE CALIBRATION 0 TO 2000 FT
BRACKET NOT PROVIDED
CARRYING CASE NOT PROVIDED
MANUFACTURERS CODE 10001
DESIGN CONTROL REFERENCE 85-0111-9520-4

Restrictions/Controls & Freight Information | NSN 6650-00-527-7378

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:BMunitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.)
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:NThe item does not have a critical feature such as tolerance, fit restrictions or application. Nuclear hardness properties have not been determined (not valid for input).
Automatic Data Processing Equipment:0Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)
Category Code Description
NMF Description 058350 TELESCOPES NOI
Less than car load rating W Rating Variable
Less than truck load rating W Rating Variable
Water commodity Code 744 unknown
Originating Activity Code XX
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity S Office, School, and Household Supplies/Equipment including Office Machines, Furniture/Stationary, Films, Synthetic/Special Training Films, Non-Hazardous Household Cleaning Products, Non-Hazardous Personal Hygiene Products, etc.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 6650-00-527-7378

Category Code Description
Cognizance Codes1RAeronautical, photographic, and meteorological material (consumable or expense type material)
Naval Inventory Control Point, Philadelphia
Special Material IDTXAvionics support equipment and parts
Special Material Content9 Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions
Source of SupplyNRPNAVICP-ERP
700 Robbins Avenue
Philadelphia, PA 19111-5098
AgencyDNDepartment of the Navy
Service OrganizationNU.S. Navy
ReparabilityWGround Support Equipment-End Items
Acquisition Advice CodesVTERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
