NSN 6650-00-144-4555 6036, 6-036, 00-144-4555
Product Details | SPECTROPHOTOMETER
6650-00-144-4555 An item which combines a spectrometer and a photometer as a unit. It is used to measure light intensity.
Part Alternates: 6036, 6-036, 6650-00-144-4555, 00-144-4555, 6650001444555, 001444555
Instruments and Laboratory Equipment | Optical Instruments, Test Equipment, Components and Accessories
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 14 FEB 1969 | 00-144-4555 | 17266 ( SPECTROPHOTOMETER ) |
Drawings & Photos | NSN 6650-00-144-4555
Cross Reference | NSN 6650-00-144-4555
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 6-036 | 46555 | APPLIED BIOSYSTEMS, LLC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6650-00-144-4555
Related Products | NSN 6650-00-144-4555
Technical Data | NSN 6650-00-144-4555
| Characteristic | Specifications |
|---|---|
| DESIGN DESIGNATION | COLEMAN |
| WAVELENGTH RANGE | 325.0 TO 825.0 MILLIMICRONS |
| QUARTZ PRISM | NOT INCLUDED |
| SLIT ADJUSTABILITY | NONADJUSTABLE |
| SCALE TYPE | FIXED |
| BATTERY | NOT INCLUDED |
| TRICKLE CHARGER | NOT INCLUDED |
| LAMP QUANTITY | 1 |
| LAMP VOLTAGE RATING IN VOLTS | 8.5 |
| LAMP WATTAGE RATING IN WATTS | 32.0 |
| DESIGN CURRENT RATING IN AMPS | 4.00 NOMINAL |

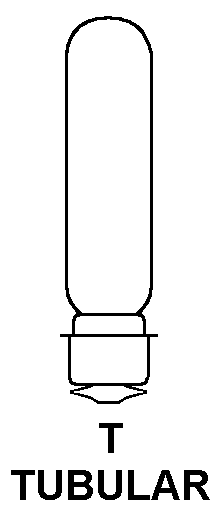

| LAMP BULB SHAPE STYLE | B20 T TUBULAR |
| LAMP BULB SIZE DESIGNATOR | T-8 |

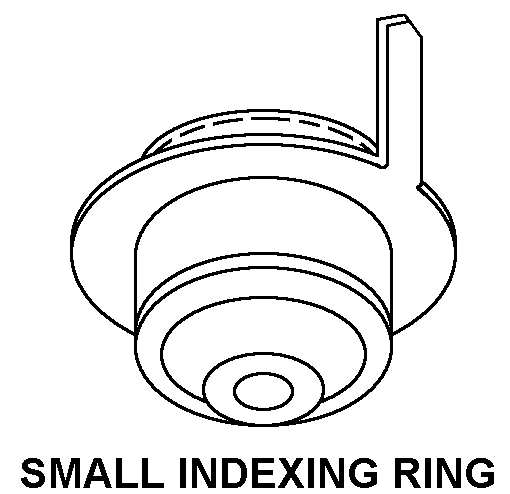

| LAMP BASE STYLE | C43 SMALL INDEXING RING |
| LAMP INDUSTRY NUMBER | 6-501 |
| LAMP TRANSPARENCY | CLEAR |
| ACCESSORY COMPONENTS AND QUANTITY | INSTRUMENT COVER 1,PLASTIC LIGHT SHIELD 1 |
| SPECIAL FEATURES | LAMP BASE CONTACT OF TWO LEAD LUG CONNECTORS ON SCREW TERMINAL STRIP,DOUBLE SCALE 0 TO 100 PCT TRANSMITTANCE AND 0 TO 2 ABSORBANCE UNIT |
| III SUPPLEMENTARY FEATURES | PHOTOELECTRIC; 115/230 VOLT; 50/60 HZ; AC; FOR WATER-JACKETED CUVETTE ADAPTER,ORDER 6650-00-227-8743; FOR ADAPTER W/O WATER JACKET,ORDER 6650-00-976-2507; FOR CUVETTE,ORDER 6640-00-145-1301,6640-00-145-1300 ,AND 6640-00-144-4549 |
| III EXTERIOR CONTAINER QUANTITY | 1 |
Restrictions/Controls & Freight Information | NSN 6650-00-144-4555
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | Q | Strategic List Item (SLI). Demilitarization not required. SLI are non-MLI(Munitions List Items) controlled by the U.S. Dept. of Commerce through the Export Administration Regulations (EAR) and indicated on the Commerce Control List (CCL). Each CCL entry is preceded by a four-digit Export Control Commerce Control List Item (CCLI) – MUT to the point of scrap required outside the United States. Inside the United States, MUT is required when the DEMIL integrity code (IC) is “3” and MUT is not required when the DEMIL IC is “6.” |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 058110 | OPTICAL GOODS OR INSTRUMENTS NOI |
| Less than car load rating | ||
| Less than truck load rating | D | 200.0 |
| Water commodity Code | 744 | unknown |
| Originating Activity Code | KX | Defense Supply Center Philadelphia Philiadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | M | Medical supplies, equipment, samples records, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6650-00-144-4555
Army
Navy
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | C | Medical/Dental Materiel |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 03 | Not-Potency-Dated |
| Accounting Requirements Code | N | Nonexpendable item. An item of Army property coded with an ARC of?N?in the AMDF. Nonexpendable items require property book accountability after issue from the stock record account. Commercial and fabricated items similar to items coded ?N? in the AMDF are considered nonexpendable items. |
| Source of Supply | S9M | Defense Supply Center Philadelphia Director of Medical Materiel Philadelphia, PA 19145 |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Materiel Management Code | M | Medical MaterielDefense Supply Center Philadelphia (DSCP) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Physical Category Code | 1 | Bin |
| Source of Supply | S9M | Defense Supply Center Philadelphia Director of Medical Materiel Philadelphia, PA 19145 |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9L | Navy-owned stocks of defense medical material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9M | Defense Supply Center Philadelphia Director of Medical Materiel Philadelphia, PA 19145 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
