Product Details | OPTICAL INSTRUMENT PRISM

6650-00-142-6147 A transparent item with at least two polished plane surfaces inclined toward each other, designed for use in optical instruments to reflect and/or refract a beam of light. It may have one or more mirrored surfaces for greater reflection. Includes optical wedges used to divert paths of light by refraction, but to a lesser degree. See also BEAM SPLITTER, OPTICAL INSTRUMENT.

Part Alternates: 189658PC13, 6650-00-142-6147, 00-142-6147, 6650001426147, 001426147

Instruments and Laboratory Equipment | Optical Instruments, Test Equipment, Components and Accessories

Supply Group (FSG) NSN Assign. NIIN
66 01 JAN 1963 00-142-6147

Drawings & Photos | NSN 6650-00-142-6147


Cross Reference | NSN 6650-00-142-6147

Part Number Cage Code Manufacturer
189658PC13 10001 NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 6650-00-142-6147

Technical Data | NSN 6650-00-142-6147

Characteristic Specifications
MATERIAL GLASS, OPTICAL, JAN-G-174, GRADE A

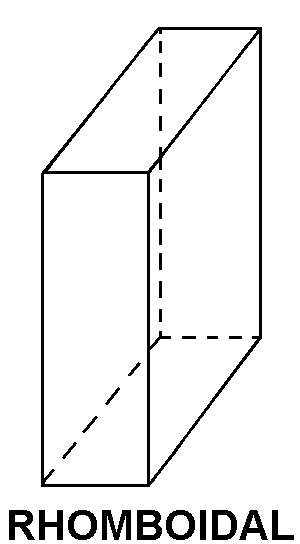

STYLE DESIGNATOR G5 RHOMBOIDAL
LIGHT DEVIATION 0 DEG
III FSC APPLICATION DATA FIRE CONTROL RANGEFINDER MK 41
MANUFACTURERS CODE 10001
DESIGN CONTROL REFERENCE 189658PC13

Restrictions/Controls & Freight Information | NSN 6650-00-142-6147

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:QStrategic List Item (SLI). Demilitarization not required. SLI are non-MLI(Munitions List Items) controlled by the U.S. Dept. of Commerce through the Export Administration Regulations (EAR) and indicated on the Commerce Control List (CCL). Each CCL entry is preceded by a four-digit Export Control Commerce Control List Item (CCLI) – MUT to the point of scrap required outside the United States. Inside the United States, MUT is required when the DEMIL integrity code (IC) is “3” and MUT is not required when the DEMIL IC is “6.”
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:0Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)
Category Code Description
NMF Description 058110 OPTICAL GOODS OR INSTRUMENTS NOI
Less than car load rating
Less than truck load rating D 200.0
Water commodity Code 744 unknown
Originating Activity Code XX
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity H Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 6650-00-142-6147

Category Code Description
Cognizance Codes9BNavy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDNDepartment of the Navy
Service OrganizationNU.S. Navy
Acquisition Advice CodesJNOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
