NSN 6650-00-130-6822 164130PC2, 00-130-6822, 001306822
Product Details | TELESCOPE MOUNT
6650-00-130-6822 A mechanical device designed to support and/or position a telescope. It may include one or more of the following; cross leveling device, means of boresighting a gun, azimuth and/or elevation, adjusting mechanism, and accommodations for attaching a LIGHT, INSTRUMENT.20212400038Optical Sighting and Ranging Equipment66500063Optical Instruments, Test Equipment, Components and Accessories
Part Alternates: 164130PC2, 6650-00-130-6822, 00-130-6822, 6650001306822, 001306822
Instruments and Laboratory Equipment | Optical Instruments, Test Equipment, Components and Accessories
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 01 JAN 1963 | 00-130-6822 | 22035 ( MOUNT, TELESCOPE ) |
Drawings & Photos | NSN 6650-00-130-6822
Cross Reference | NSN 6650-00-130-6822
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 164130PC2 | 10001 | NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6650-00-130-6822
Technical Data | NSN 6650-00-130-6822
| Characteristic | Specifications |
|---|---|
| MATERIAL | BRONZE |
| AZIMUTH ADJUSTMENT MECHANISM | NOT PROVIDED |
| ELEVATION ADJUSTMENT MECHANISM | NOT PROVIDED |

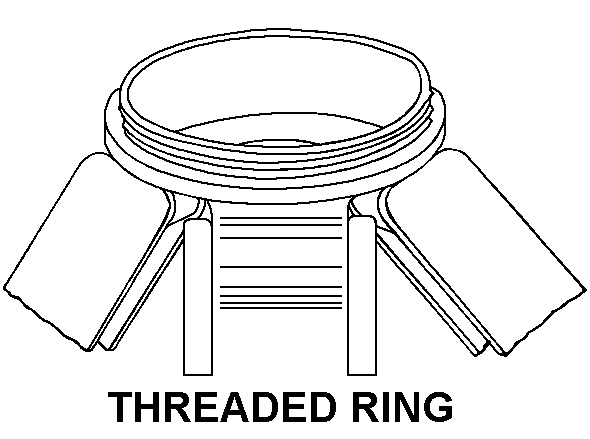

| TRIPOD HEAD STYLE | H4 THREADED RING |
| MOUNTING CONFIGURATION | FOUR 7/32 IN. BY 23/64 IN. MOUNTING HOLES |
| INSTRUMENT LIGHT ACCOMMODATION | NOT PROVIDED |
| III END ITEM IDENTIFICATION | TELESCOPE MK46 |
Restrictions/Controls & Freight Information | NSN 6650-00-130-6822
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | Q | Strategic List Item (SLI). Demilitarization not required. SLI are non-MLI(Munitions List Items) controlled by the U.S. Dept. of Commerce through the Export Administration Regulations (EAR) and indicated on the Commerce Control List (CCL). Each CCL entry is preceded by a four-digit Export Control Commerce Control List Item (CCLI) – MUT to the point of scrap required outside the United States. Inside the United States, MUT is required when the DEMIL integrity code (IC) is “3” and MUT is not required when the DEMIL IC is “6.” |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 657 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | E | Engineer supplies, other than those listed under code B. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6650-00-130-6822
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
