NSN 6645-01-586-5278 AT6251N3, DNM10015003, DNM-100-150-03
Product Details | PANEL CLOCK
6645-01-586-5278 A clock specifically designed for mounting on or in a panel. It may have a strike mechanism. Excluded are mechanisms for controlling and regulating secondary clocks and alarm signalling devices.

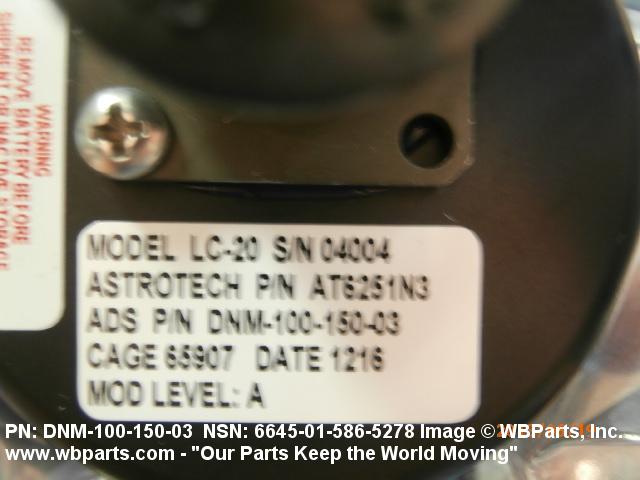

Part Alternates: AT6251N3, DNM10015003, DNM-100-150-03, LC-20, LC20, 6645-01-586-5278, 01-586-5278, 6645015865278, 015865278
Instruments and Laboratory Equipment | Time Measuring Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 01 JUL 2010 | 01-586-5278 | 32601 ( CLOCK, PANEL ) |

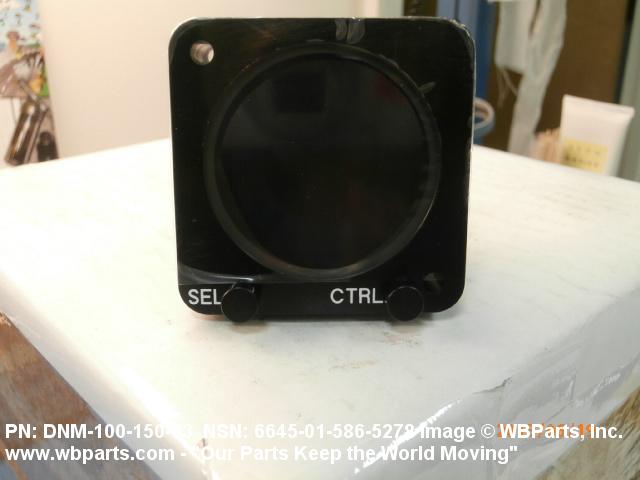

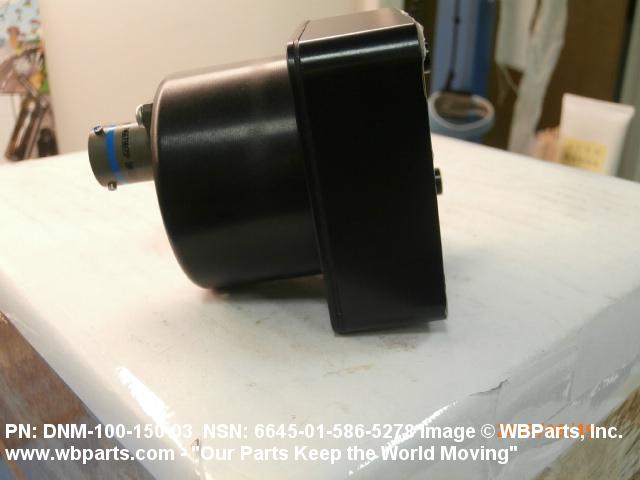

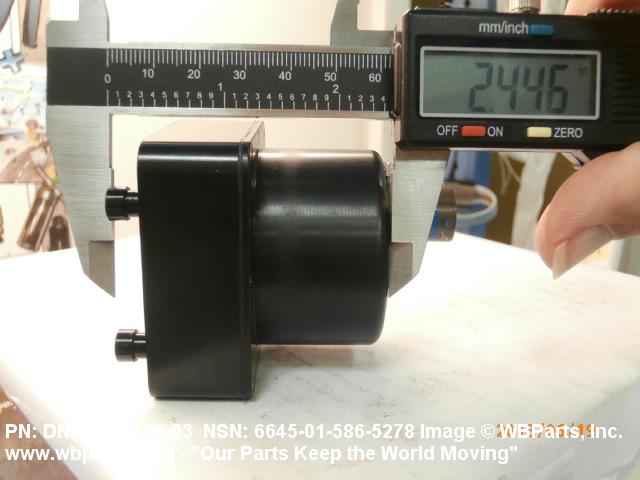

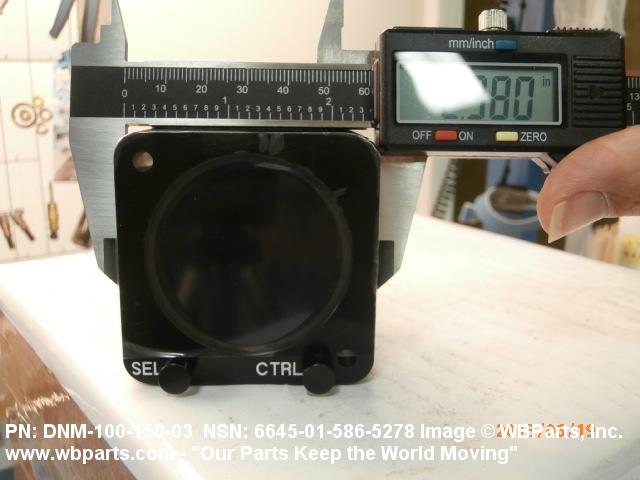

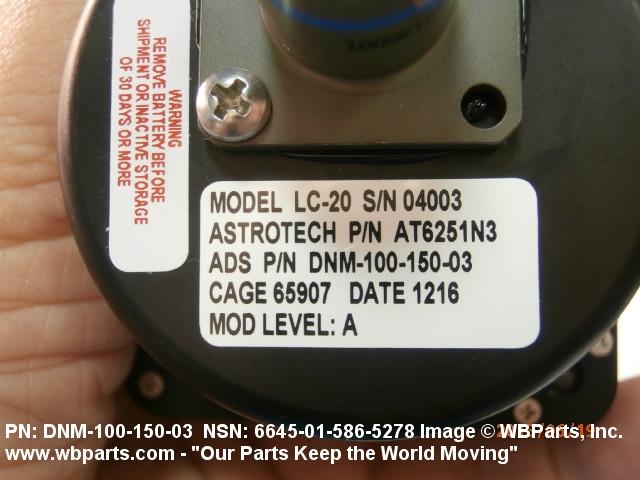

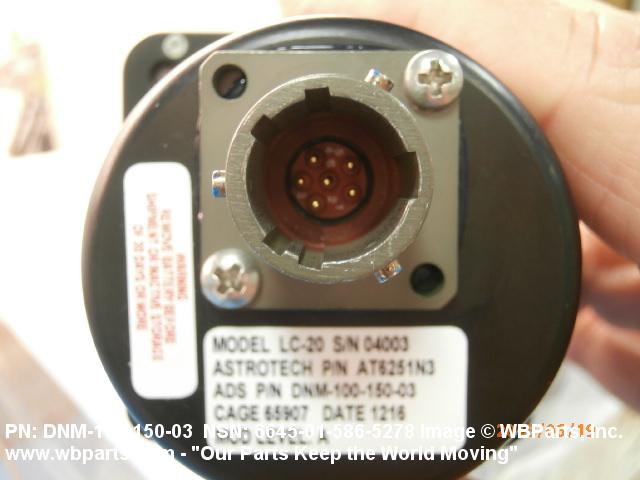

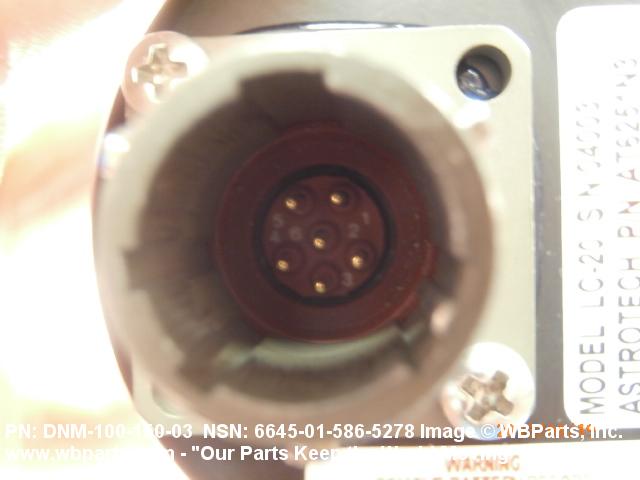

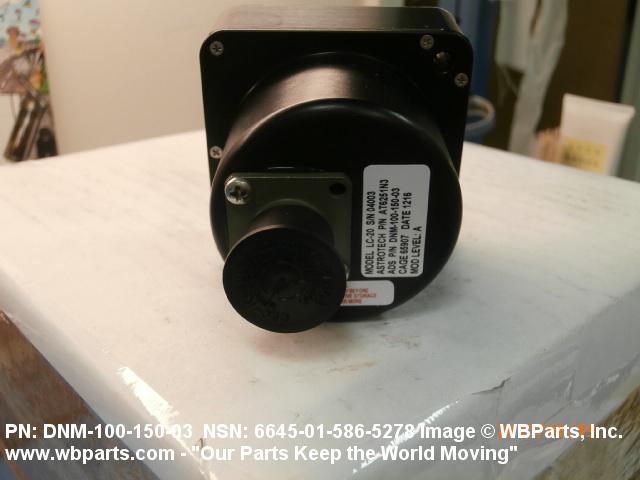

Drawings & Photos | NSN 6645-01-586-5278
Demand History | NSN 6645-01-586-5278
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6645-01-586-5278 | 2024-11-323 | 2 | us |
| 6645-01-586-5278 | 2024-11-319 | 2 | US |
| 6645-01-586-5278 | 2024-09-247 | 1 | CO |
| 6645-01-586-5278 | 2024-06-157 | 1 | US |
| 6645-01-586-5278 | 2023-12-348 | 1 | SK |
| 6645-01-586-5278 | 2023-04-103 | 1 | CZ |
| 6645-01-586-5278 | 2021-03-70 | 1 | US |
| 6645-01-586-5278 | 2021-03-70 | 1 | US |
| 6645-01-586-5278 | 2020-06-171 | 1 | US |
| 6645-01-586-5278 | 2020-06-168 | 1 | BR |
| 6645-01-586-5278 | 2020-06-162 | 1 | US |
| 6645-01-586-5278 | 2020-06-162 | 1 | BR |
| 6645-01-586-5278 | 2020-06-162 | 1 | US |
| AT6251N3 | 2019-05-121 | 2 | AE |
| 6645-01-586-5278 | 2018-10-298 | 5 | SG |
| 6645-01-586-5278 | 2018-10-297 | 5 | SG |
| 6645-01-586-5278 | 2018-10-297 | 5 | SG |
| 6645-01-586-5278 | 2018-08-237 | 24 | BR |
| 6645-01-586-5278 | 2018-07-193 | 24 | BR |
| 6645-01-586-5278 | 2017-10-296 | 3 | Indonesia |
| 6645-01-586-5278 | 2017-09-253 | 2 | DIBBS |
| 6645-01-586-5278 | 2017-08-235 | 1 | DIBBS |
| DNM10015003 | 2016-06-159 | 2 | us |
| AT6251N3 | 2015-05-142 | 1 | US |
| 6645-01-586-5278 | 2014-06-157 | 1 | SG |
| 6645-01-586-5278 | 2014-06-154 | 2 | UK |
| 6645-01-586-5278 | 2014-04-114 | 1 | BR |
| 6645-01-586-5278 | 2014-03-70 | 4 | US |
| AT6251N3 | 2014-02-49 | 4 | United States |
| 6645-01-586-5278 | 2014-01-27 | 5 | BR |
| 6645-01-586-5278 | 2014-01-27 | 5 | BR |
| 6645-01-586-5278 | 2013-11-310 | 1 | US |
| 6645-01-586-5278 | 2013-06-158 | 4 | US |
| DNM10015003 | 2013-05-144 | 4 | United States |
| 6645-01-586-5278 | 2012-10-298 | 1 | US |
| 6645-01-586-5278 | 2011-03-84 | 2 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6645-01-586-5278
Related Products | NSN 6645-01-586-5278
Technical Data | NSN 6645-01-586-5278
| Characteristic | Specifications |
|---|---|

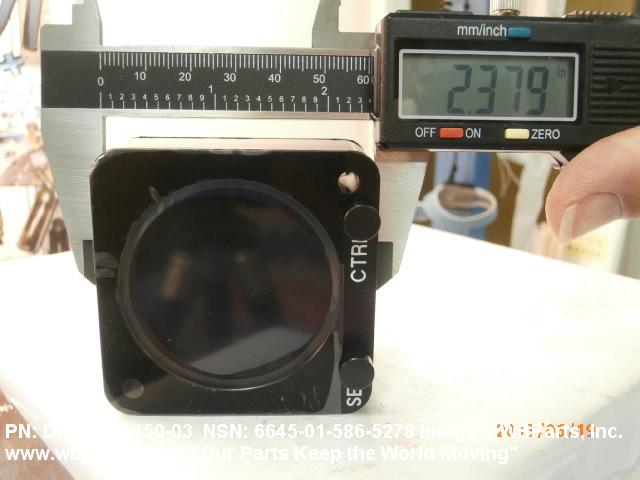

| OVERALL WIDTH | 2.375 INCHES NOMINAL |
| OVERALL DEPTH | 2.500 INCHES MAXIMUM |
| BEZEL TYPE | BOLTED |
| SECOND HAND TYPE | SWEEP |

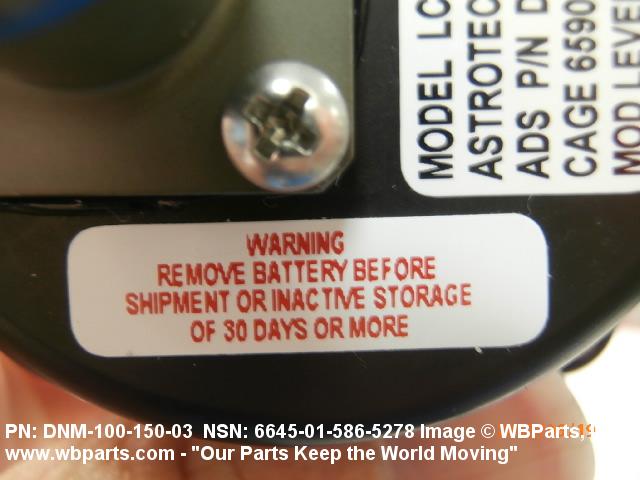

| SPECIAL FEATURES | WHITE DAY LIGHTING AND NVIS LIGHTING; CLOCK AND ELAPSED TIME MODES; REMOVABLE KEEP ALIVE BATTERY |
| DIAL QUANTITY | 1 |
| PART NAME ASSIGNED BY CONTROLLING AGENCY | ELECTRONIC AIRCRAFT CLOCK |
| USAGE DESIGN | AIRCRAFT |
| REGULATING DEVICE LOCATION | INSIDE CASE |
| COLOR | BLACK |
| CASE MATERIAL | ALUMINUM ALLOY |
| INCREMENT IN HOURS | 24.000 |
| MOVEMENT TYPE | ELECTRICAL |
| VOLTAGE IN VOLTS | 28.0 AND 5.0 |
| UNPACKAGED UNIT WEIGHT | 16.000 OUNCES |
| OUTSIDE DIAMETER | 2.000 INCHES NOMINAL |
| RESETTING DEVICE LOCATION | FRONT |
| NONMAGNETIC CHARACTERISTIC | INCLUDED |
| OVERALL HEIGHT | 2.375 INCHES NOMINAL |
| CURRENT FAILURE STAND-BY DEVICE | INCLUDED |
| CASE SURFACE TREATMENT | ANODIZED BLACK |
| ILLUMINATED FEATURE | INCLUDED |
| DISPLAY TYPE | LIQUID CRYSTAL |
| CHIME MECHANISM | NOT INCLUDED |
| MOUNTING METHOD | SURFACE |
| DIAL SCALE MARKING LUMINOSITY | LUMINOUS |
| CURRENT TYPE | DC |
| SHAPE | RECTANGULAR |
Restrictions/Controls & Freight Information | NSN 6645-01-586-5278
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | Q | Strategic List Item (SLI). Demilitarization not required. SLI are non-MLI(Munitions List Items) controlled by the U.S. Dept. of Commerce through the Export Administration Regulations (EAR) and indicated on the Commerce Control List (CCL). Each CCL entry is preceded by a four-digit Export Control Commerce Control List Item (CCLI) – MUT to the point of scrap required outside the United States. Inside the United States, MUT is required when the DEMIL integrity code (IC) is “3” and MUT is not required when the DEMIL IC is “6.” |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 048720 | CLOCK CLOCK MOVEMENT CLOCK PART |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 657 | unknown |
| Originating Activity Code | TG | Warner-Robins Air Logistics Center Robins AFB, GA 31098-5609 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6645-01-586-5278
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | LG | TG:C-130 HERCULES |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
