NSN 6645-01-448-8375 M7793/3-006, M77933006, MILM7793
Product Details | TIME TOTALIZING METER
6645-01-448-8375 An instrument that automatically measured, and cumulatively registers the total operating or idle time of any circuit, machine or system, to which it is connected. See METER, FREQUENCY AND TIME TOTALIZING, ELECTRICAL.
Part Alternates: M7793/3-006, M77933006, MILM7793, MIL-M-7793, 6645-01-448-8375, 01-448-8375, 6645014488375, 014488375
Instruments and Laboratory Equipment | Time Measuring Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 11 SEP 1997 | 01-448-8375 | 08066 ( METER, TIME TOTALIZING ) |

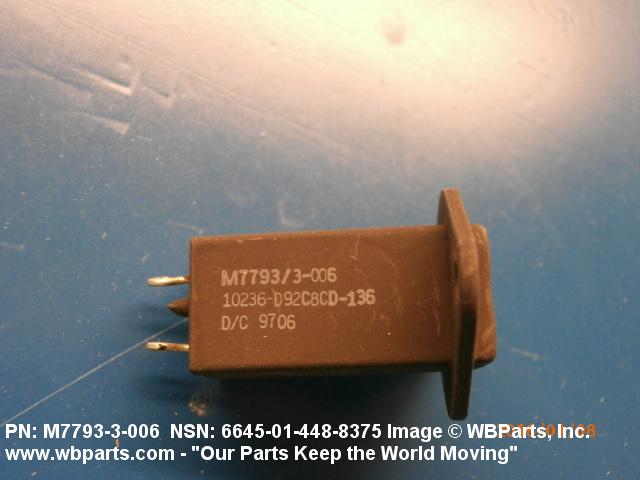

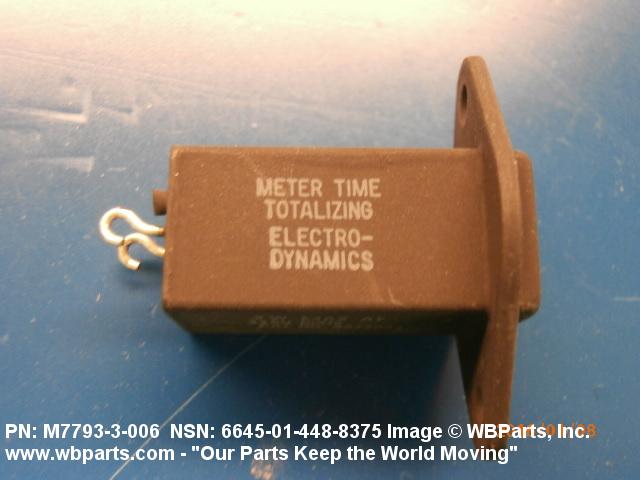

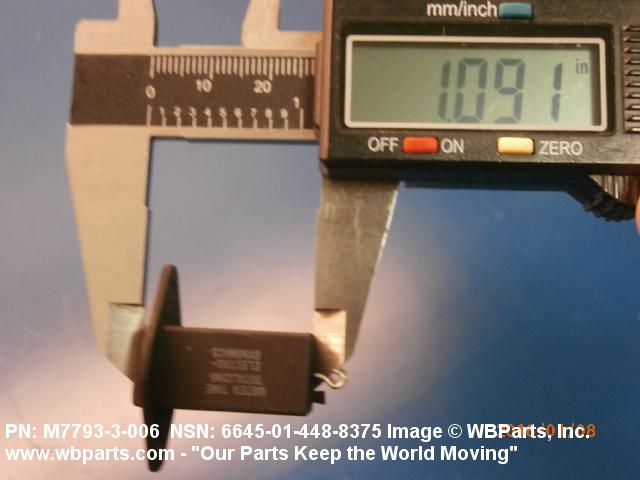

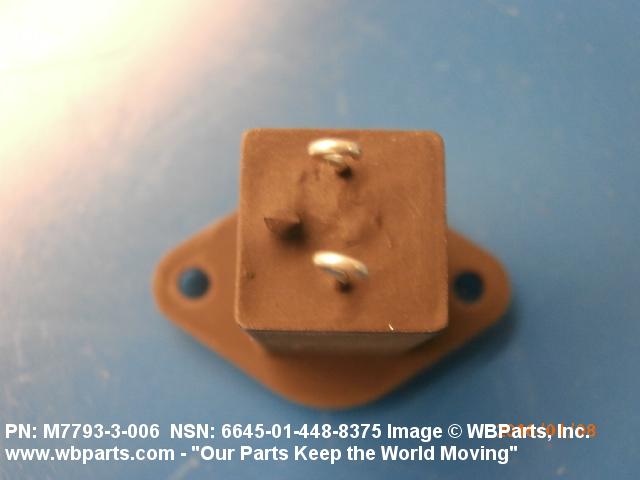

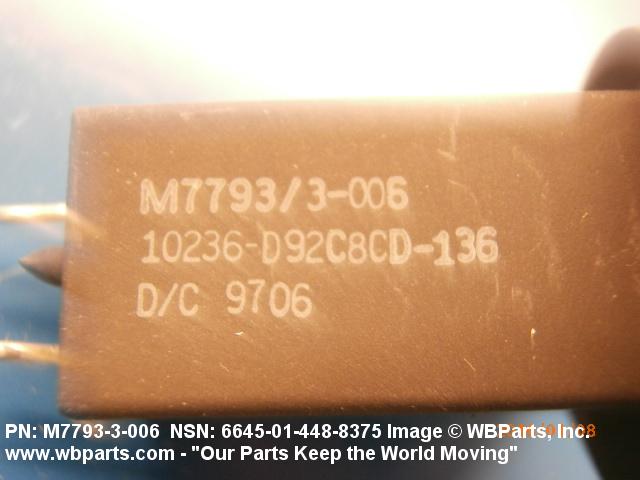

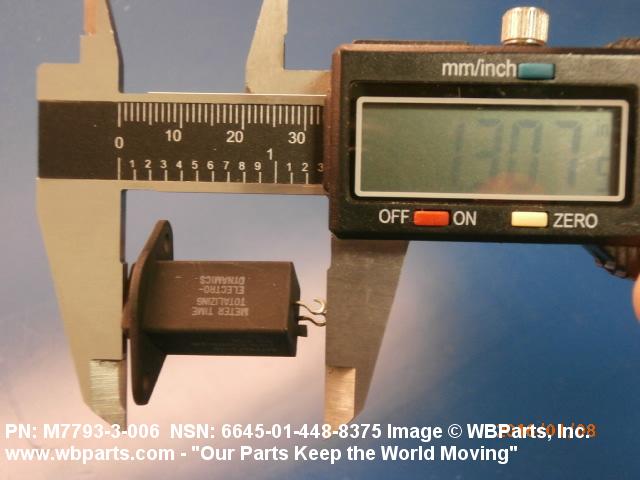

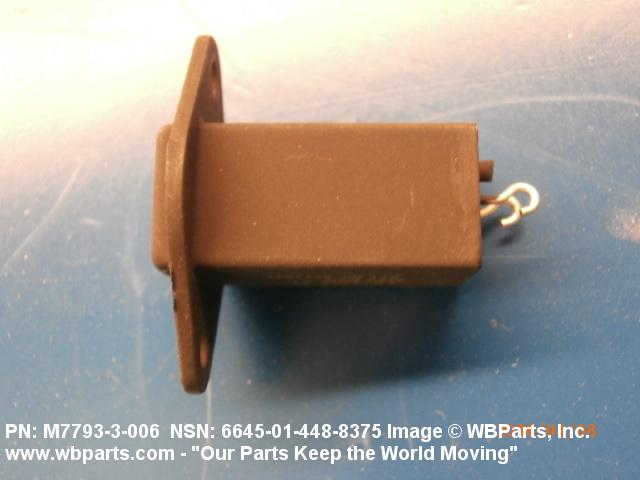

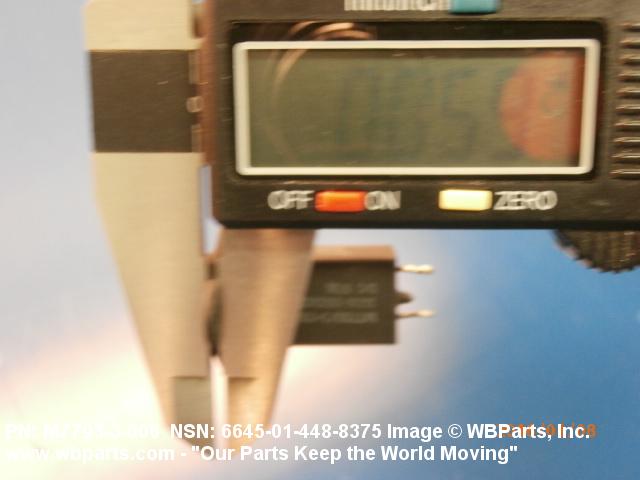

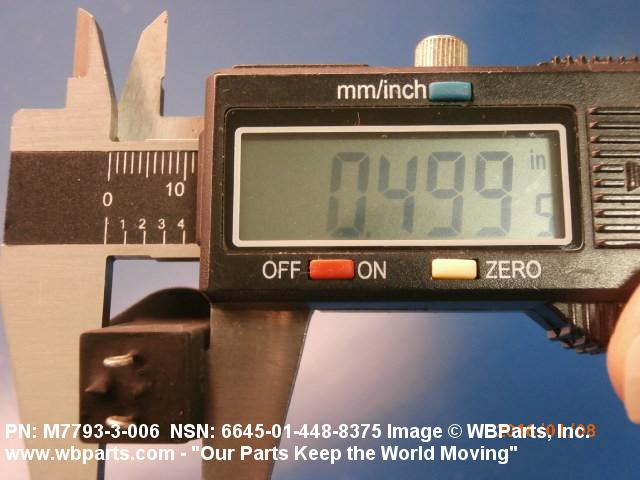

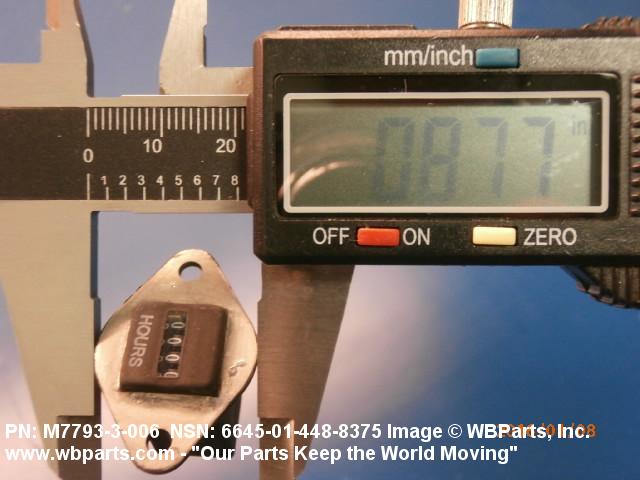

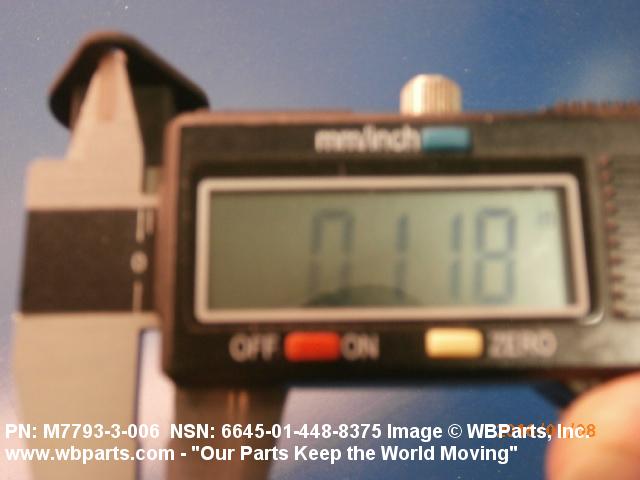

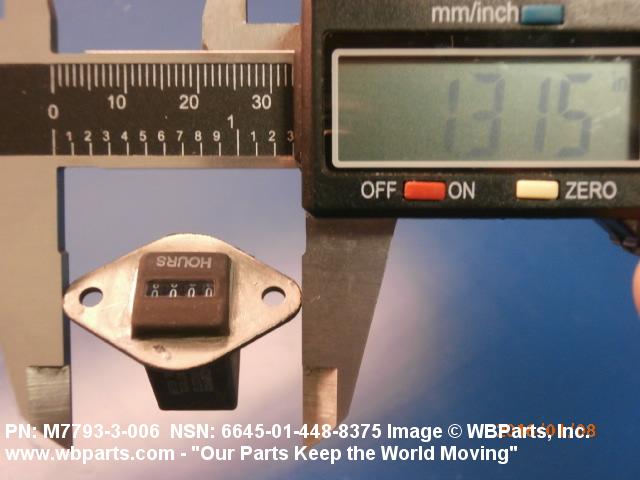

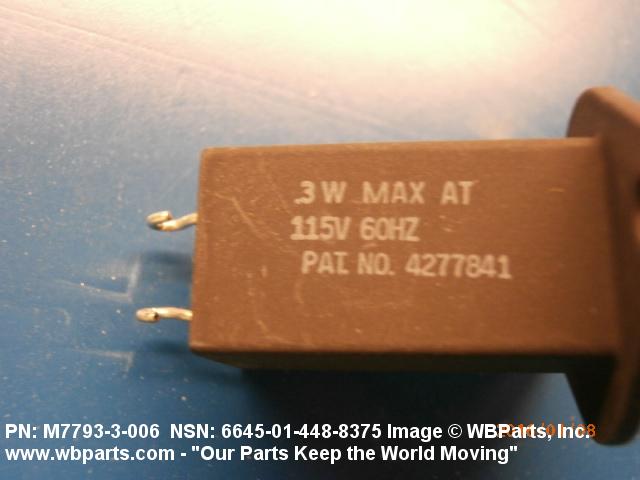

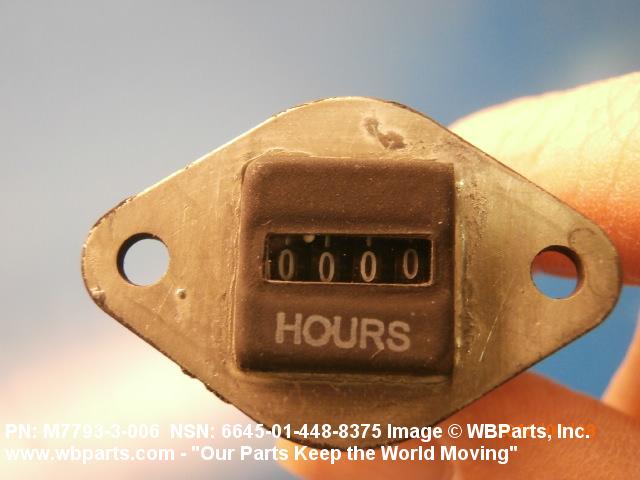

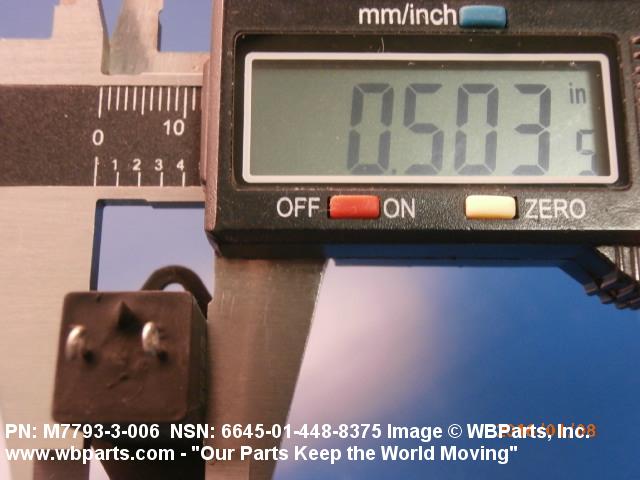

Drawings & Photos | NSN 6645-01-448-8375
Demand History | NSN 6645-01-448-8375
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6645-01-448-8375 | 2015-12-344 | 3 | United States |
| MILM7793 | 2010-01-26 | 132 | Taiwan |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6645-01-448-8375
Technical Data | NSN 6645-01-448-8375
| Characteristic | Specifications |
|---|---|
| INDICATOR TYPE | DRUM REGISTER |
| MEASUREMENT UNIT | HOURS |
| MAXIMUM MEASUREMENT | 9999.00 |
| SMALLEST INCREMENT INDICATED | 1.00 |
| MARKING COLOR | WHITE |
| BACKGROUND COLOR | DULL BLACK |
| RESET FEATURE | NOT PROVIDED |
| MOVEMENT TYPE | ELECTRICAL |
| CURRENT TYPE | AC |
| VOLTAGE RATING | 115.0 VOLTS NOMINAL |
| OPERATING FREQUENCY | 60.0 HERTZ NOMINAL |
| CASE MATERIAL | ANY ACCEPTABLE |
| HERMETIC PROTECTION | PROVIDED |
| UNIT TYPE | MOUNTED |
| MOUNTING METHOD | FLUSH |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-M-7793 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M7793/3-006 |
Restrictions/Controls & Freight Information | NSN 6645-01-448-8375
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 136740 | METERS ELEC/PARTS |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 657 | unknown |
| Originating Activity Code | CX | Defense Supply Center Richmond Richmond, VA 23297-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6645-01-448-8375
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
