NSN 6645-01-442-0899 M3971/1-1-S, M397111S, MILDTL3971
Product Details | TIME TOTALIZING METER
6645-01-442-0899 An instrument that automatically measured, and cumulatively registers the total operating or idle time of any circuit, machine or system, to which it is connected. See METER, FREQUENCY AND TIME TOTALIZING, ELECTRICAL.
Part Alternates: M3971/1-1-S, M397111S, MILDTL3971, MIL-DTL-3971, MIL-DTL-3971/1E, MILDTL39711E, 12329689-1, 85325, 6645-01-442-0899, 01-442-0899, 6645014420899, 123296891, 014420899
Instruments and Laboratory Equipment | Time Measuring Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 04 MAR 1997 | 01-442-0899 | 08066 ( METER, TIME TOTALIZING ) |

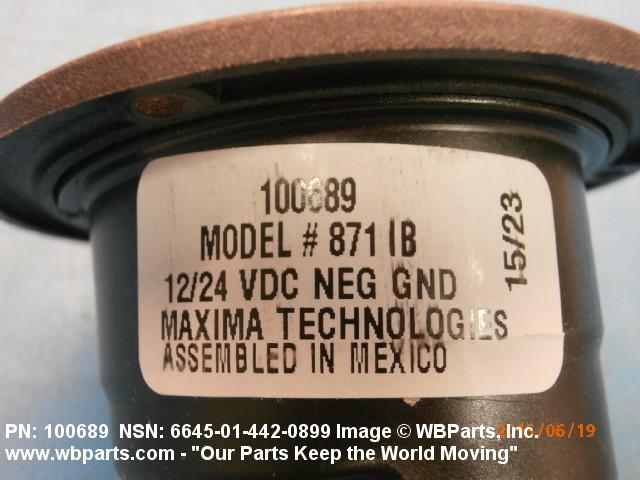

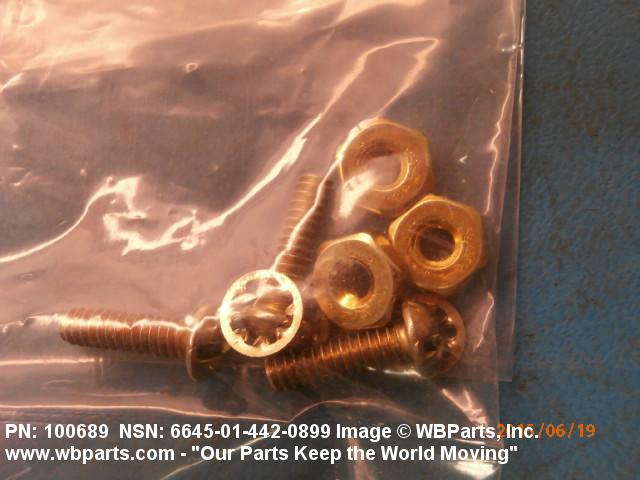

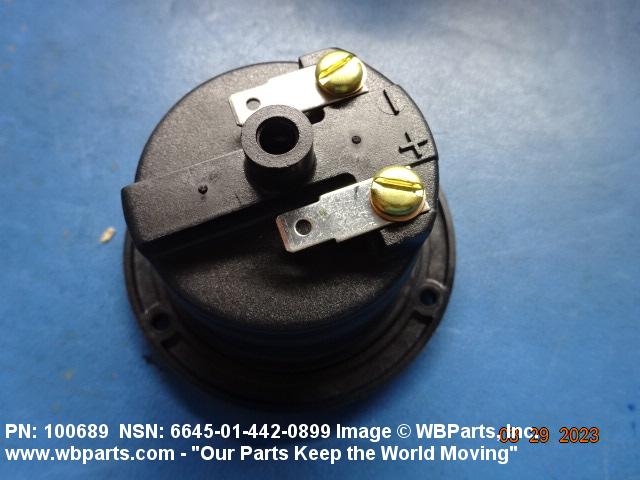

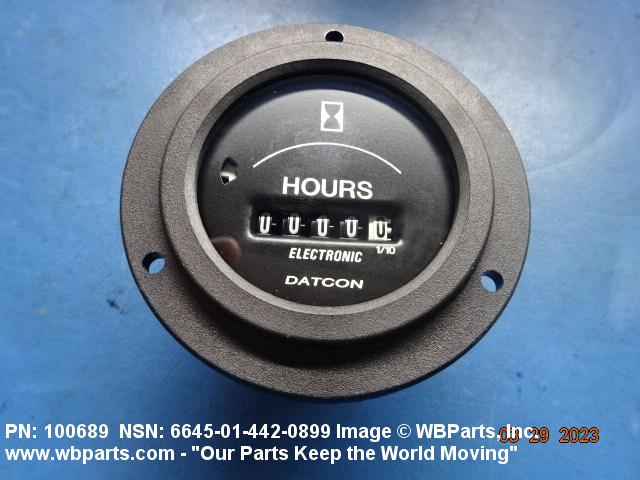

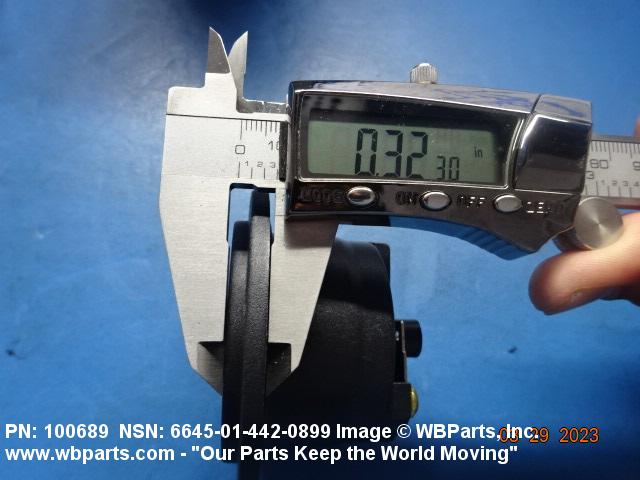

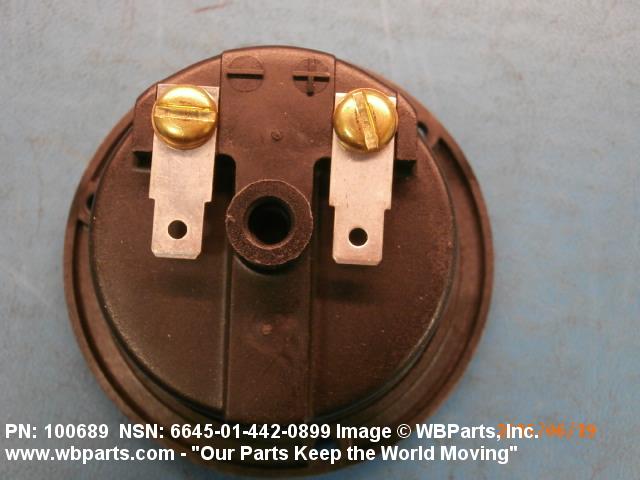

Drawings & Photos | NSN 6645-01-442-0899
Demand History | NSN 6645-01-442-0899
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6645-01-442-0899 | 2024-01-16 | 6 | DIBBS |
| 6645-01-442-0899 | 2023-10-297 | 2 | DIBBS |
| 6645-01-442-0899 | 2023-10-277 | 2 | DIBBS |
| 6645-01-442-0899 | 2023-09-268 | 1 | DIBBS |
| 6645-01-442-0899 | 2023-06-172 | 1 | DIBBS |
| 6645-01-442-0899 | 2023-03-75 | 2 | United States |
| 6645-01-442-0899 | 2021-07-208 | 2 | Taiwan |
| 6645-01-442-0899 | 2020-06-156 | 20 | US |
| 6645-01-442-0899 | 2019-10-301 | 10 | United Kingdom |
| 123296891 | 2016-09-263 | 1 | US |
| 6645-01-442-0899 | 2015-05-126 | 3 | United States |
| 123296891 | 2015-05-125 | 5 | US |
| 123296891 | 2015-05-125 | 24 | US |
| 6645-01-442-0899 | 2015-02-33 | 52 | DIBBS |
| 6645-01-442-0899 | 2012-04-104 | 3 | DIBBS |
| 6645-01-442-0899 | 2012-03-83 | 0 | United States |
| 6645-01-442-0899 | 2012-02-58 | 38 | DIBBS |
| 6645-01-442-0899 | 2011-09-264 | 102 | DIBBS |
| 6645-01-442-0899 | 2011-05-140 | 102 | DIBBS |
Cross Reference | NSN 6645-01-442-0899
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 12329689-1 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
| 85325 | 74400 | HOBBS CORP |
| 85325 | 91929 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
| M3971/1-1-S | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-DTL-3971 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6645-01-442-0899
Related Products | NSN 6645-01-442-0899
Technical Data | NSN 6645-01-442-0899
| Characteristic | Specifications |
|---|---|
| MEASUREMENT UNIT | HOURS |
| MAXIMUM MEASUREMENT | 9999.90 |
| SMALLEST INCREMENT INDICATED | 0.10 |

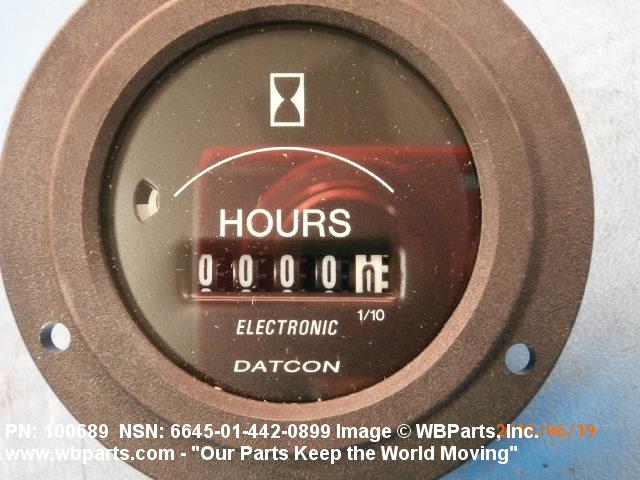

| MARKING COLOR | WHITE NUMERALS FOR HOURS AND BLACK NUMERALS FOR TENTHS |
| BACKGROUND COLOR | BLACK BACKGROUND FOR HOURS AND WHITE BACKGROUND FOR TENTHS |
| RESET FEATURE | NOT PROVIDED |
| MOVEMENT TYPE | ELECTRICAL |
| CURRENT TYPE | DC |
| VOLTAGE RATING | 10.0 VOLTS MINIMUM AND 40.0 VOLTS MAXIMUM |
| TERMINAL TYPE | STUD |
| CASE MATERIAL | PLASTIC |
| HERMETIC PROTECTION | NOT PROVIDED |
| UNIT TYPE | MOUNTED |
| MOUNTING TYPE | FLANGE |

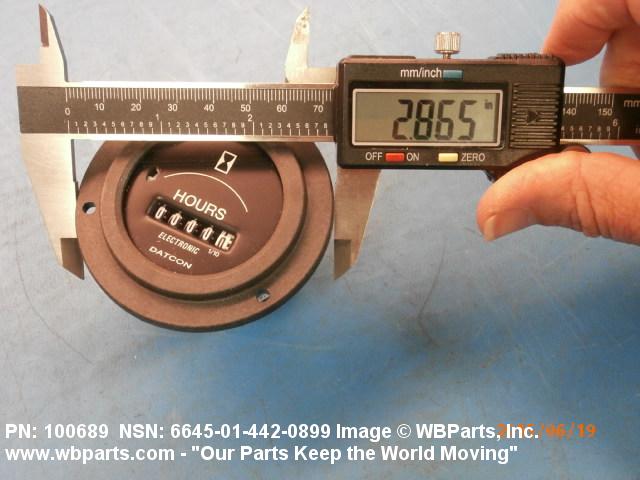

| MOUNTING FLANGE DIAMETER | 2.875 INCHES NOMINAL |

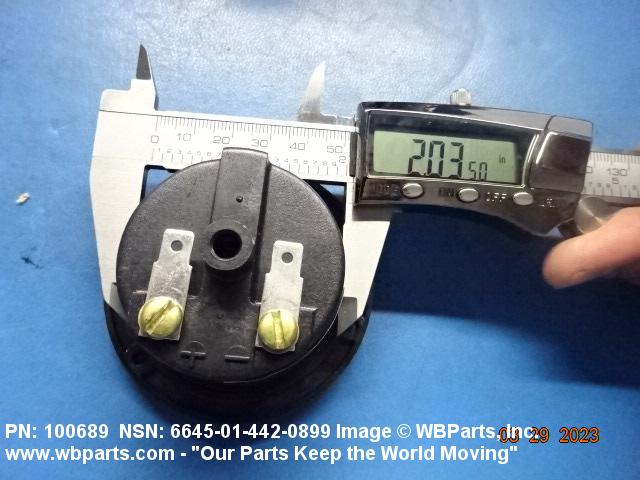

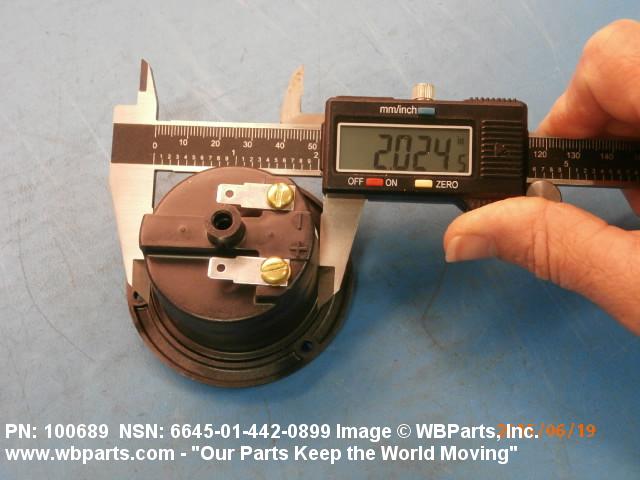

| BODY DIAMETER | 2.210 INCHES NOMINAL |
| BODY DEPTH | 3.000 INCHES NOMINAL |

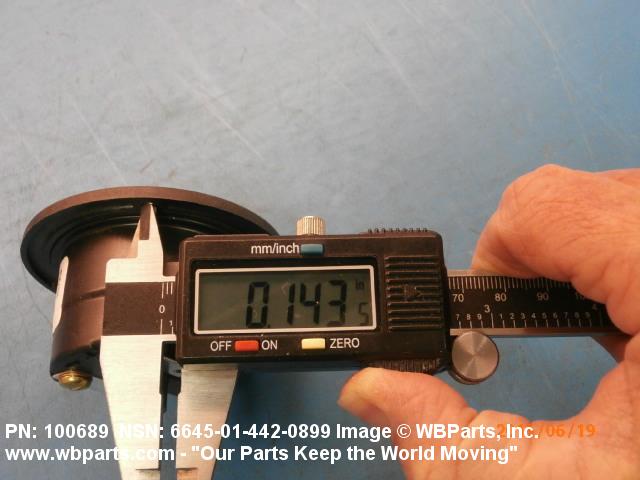

| MOUNTING CONFIGURATION | THREE 0.150 IN. DIA MTG HOLES EQUALLY SPACED ON 1.265 IN RADIUS 120 DEG APART |
| TEST DATA DOCUMENT | 81349-MIL-DTL-3971 SPECIFICATION |
| SPECIFICATION/STANDARD DATA | 81349-MIL-DTL-3971/1 GOVERNMENT SPECIFICATION |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-DTL-3971/1E |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M3971/1-1-S |
Restrictions/Controls & Freight Information | NSN 6645-01-442-0899
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 136740 | METERS ELEC/PARTS |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 657 | unknown |
| Originating Activity Code | ZC | Canada ZD ZE |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6645-01-442-0899
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | E | General Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
