NSN 6645-01-266-8036 81200438A, 8120-0438A, 8120438A
Product Details | TIME CODE GENERATOR
6645-01-266-8036 A device specifically designed for use as a central timing device for the purpose of providing time-correlated signals for magnetic tape recorders, oscillographs, strip chart recorders, cameras, digital printers, remote digital displays or direct computer entry. The device may generate various time code formats, contain special features for time comparisons against broadcast time signals and provide visual display in BCD or decimal format.
Part Alternates: 81200438A, 8120-0438A, 8120438A, 812-0438A, 9126302, 912630-2, 6645-01-266-8036, 01-266-8036, 6645012668036, 012668036
Instruments and Laboratory Equipment | Time Measuring Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 30 OCT 1987 | 01-266-8036 | 62186 ( GENERATOR, TIME CODE ) |

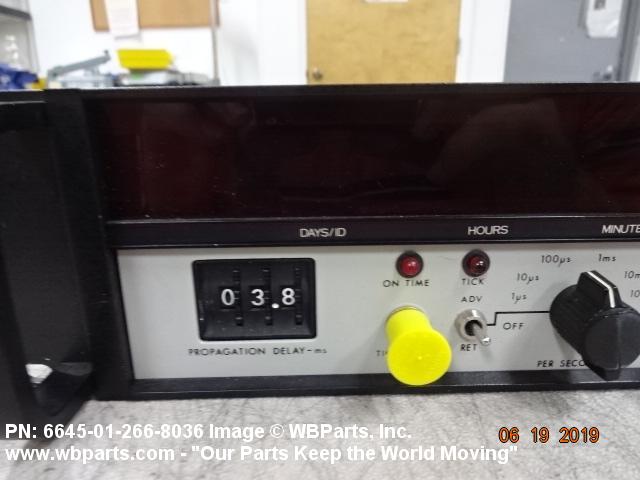

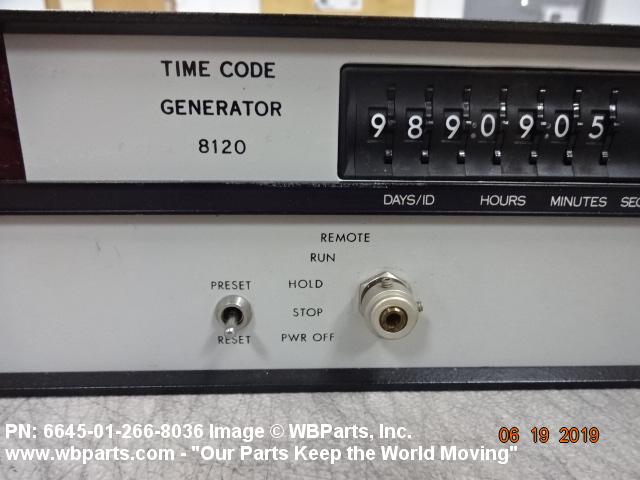

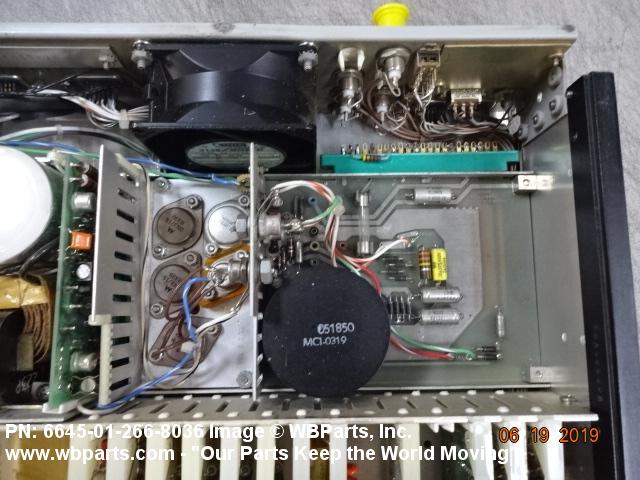

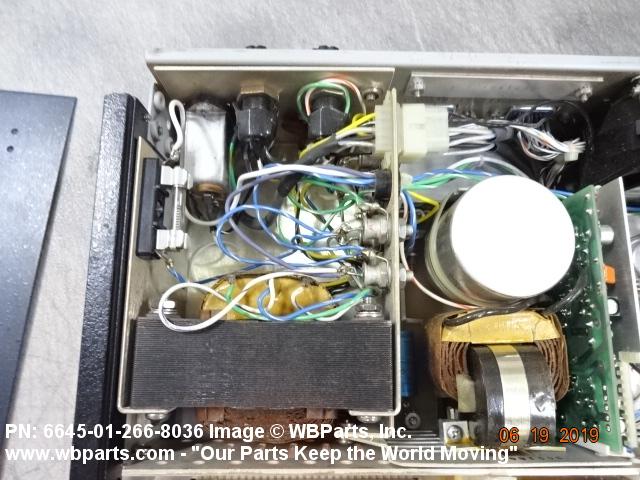

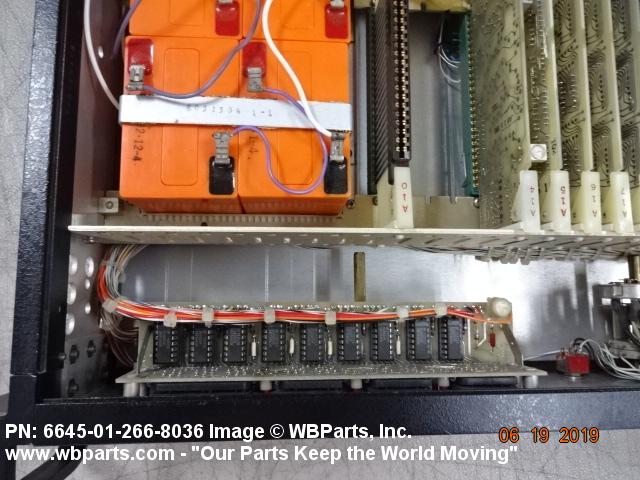

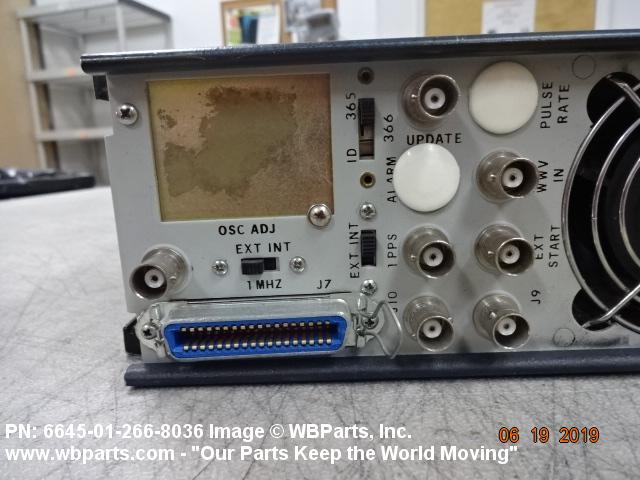

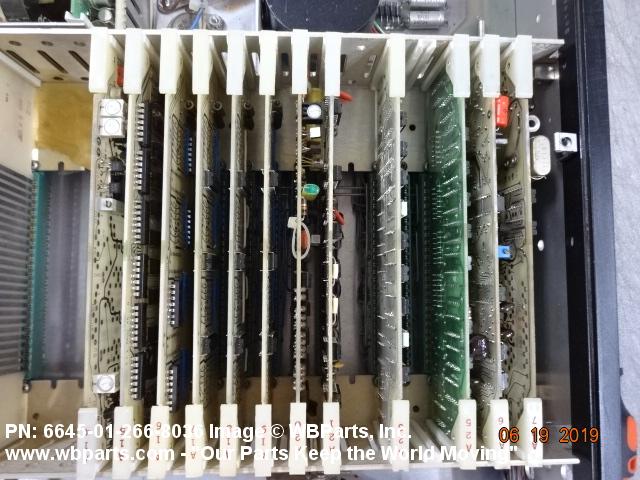

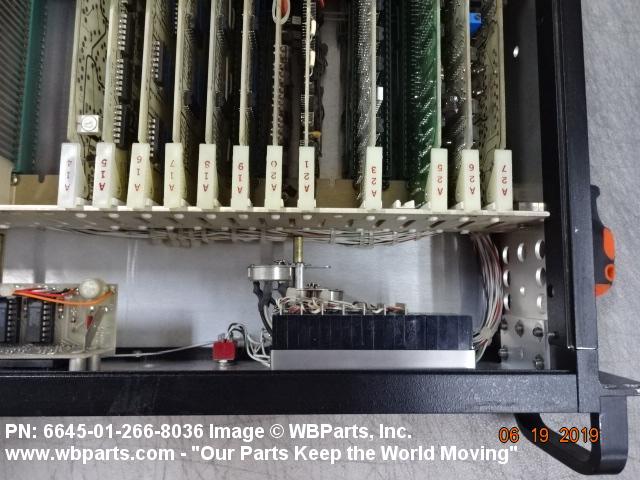

Drawings & Photos | NSN 6645-01-266-8036
Demand History | NSN 6645-01-266-8036
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6645-01-266-8036 | 2019-06-157 | 1 | United States |
| 6645-01-266-8036 | 2019-05-133 | 1 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6645-01-266-8036
Technical Data | NSN 6645-01-266-8036
| Characteristic | Specifications |
|---|---|
| OVERALL LENGTH | 17.000 INCHES NOMINAL |
| OVERALL HEIGHT | 3.500 INCHES NOMINAL |
| OVERALL WIDTH | 19.000 INCHES NOMINAL |
| SPECIAL FEATURES | GENERATES A MODIFIED IRIG B FORMAT IN TERMS OF HRS.,MINUTES AND SECONDS; SIMULTANEOUSLY GENERATES A DC LEVEL SHIFT OUTPUT PLUS PRECISELY CONTROLLED PULSE RATES; STANDARD IRIG B CODE MAY BE REPLACED WITH ANY ONE OF A NUMBER OF FORMAT FROM IRIG, NASA OR XR3 CODE FAMILIES; CRYSTAL CONTROLLED OSCILATORL OUTPUTS GENERATED ON A PRECISE 1KHZ CARRIER WITH ADJ. AMP FROM 0 TO 10 VPP FROM A LOW IMPEDANCE 15 MA PEAK SOURCE AND ADJ MODULATION RATIO FROM 2:1 TO 6:1; CDE FORMAT IS MODIFIED IRIG B FORMAT IN TERMS OF HR., MINUTES AND SECONDS PROVISIONS FOR EXTERNAL 1MHZ TIME BASE; SIX DIGIT PLANAR READOUT; VOLTAGE IN VOLTS AND CURRENT TYPE:115.0 OR 230.0 AC |
| III END ITEM IDENTIFICATION | AN/FPS-115 |
Restrictions/Controls & Freight Information | NSN 6645-01-266-8036
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
