NSN 6645-01-172-4477 1615014763 , 16C8CE, 87M115P004
Product Details | TIME TOTALIZING METER
6645-01-172-4477 An instrument that automatically measured, and cumulatively registers the total operating or idle time of any circuit, machine or system, to which it is connected. See METER, FREQUENCY AND TIME TOTALIZING, ELECTRICAL.
Part Alternates: 1615014763 , 16C8CE, 87M115P004, 6645-01-172-4477, 01-172-4477, 6645011724477, 011724477
Instruments and Laboratory Equipment | Time Measuring Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 21 FEB 1984 | 01-172-4477 | 08066 ( METER, TIME TOTALIZING ) |

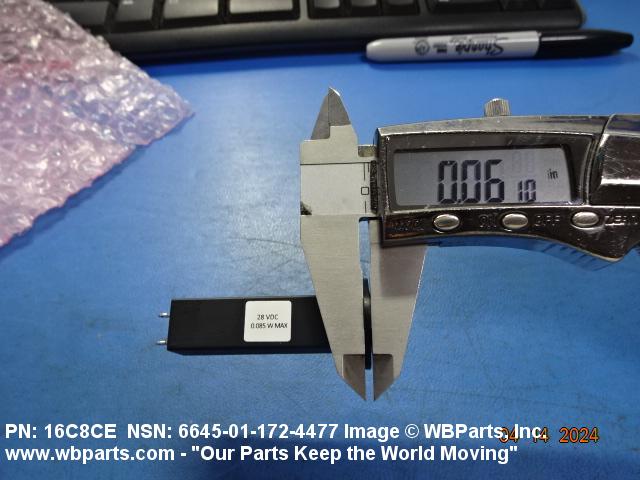

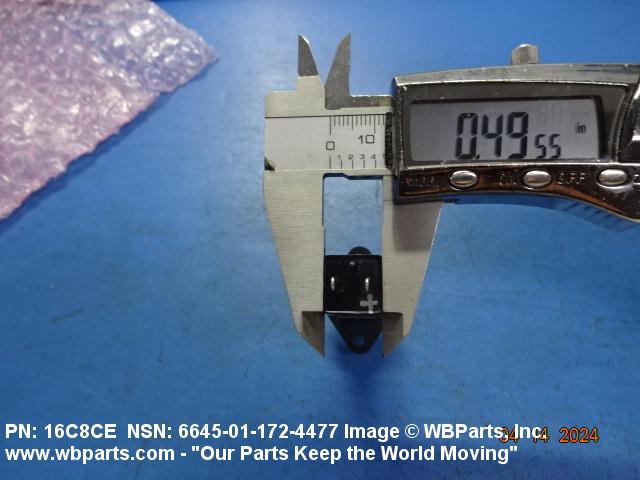

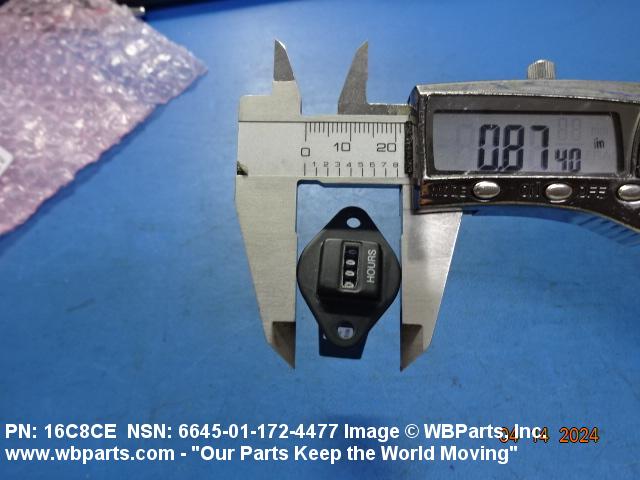

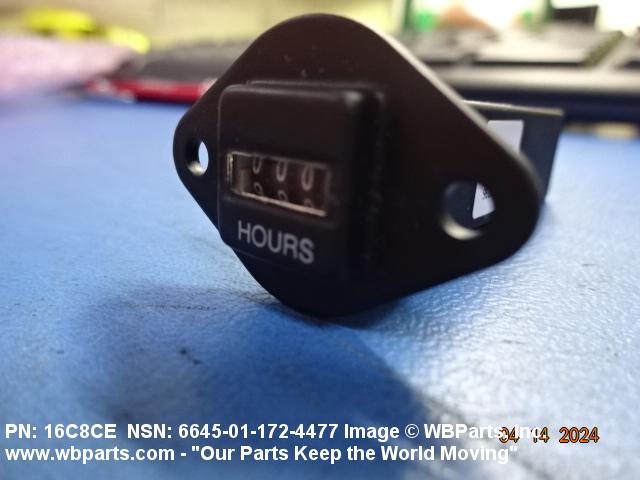

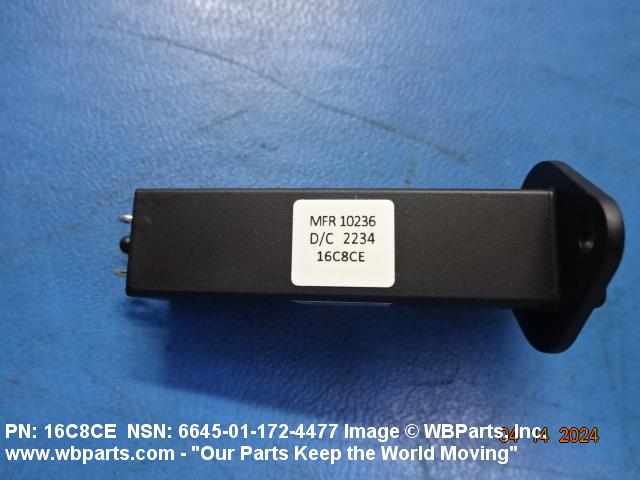

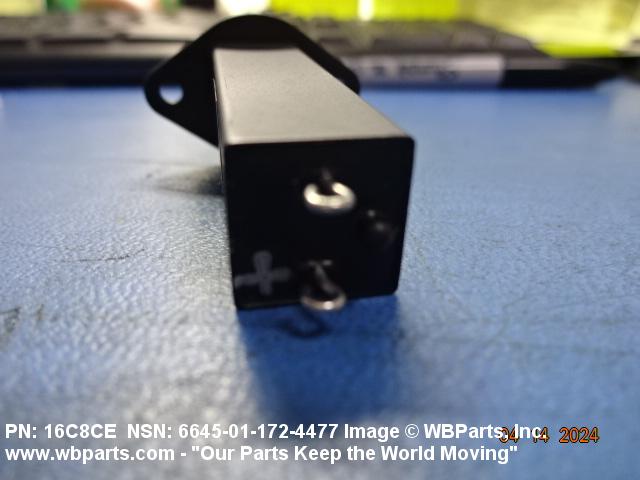

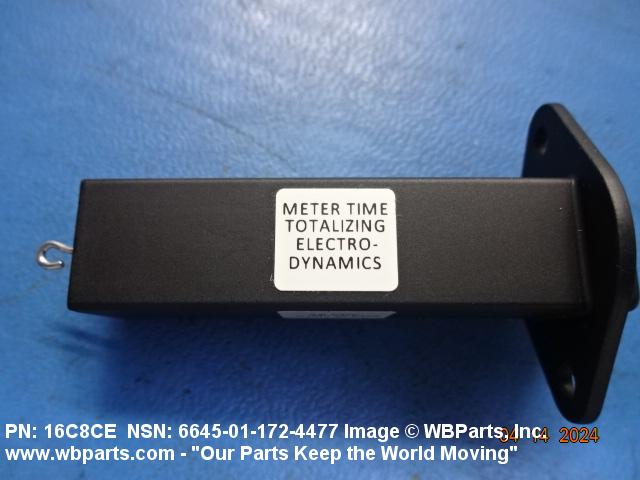

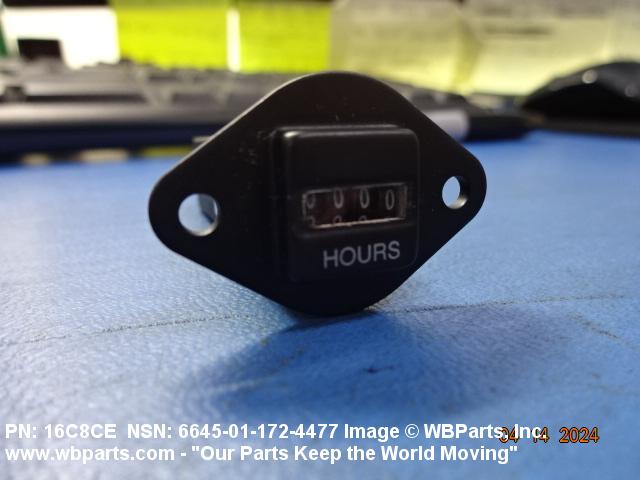

Drawings & Photos | NSN 6645-01-172-4477
Demand History | NSN 6645-01-172-4477
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6645-01-172-4477 | 2024-03-81 | 5 | South Korea |
| 16C8CE | 2014-02-42 | 6 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6645-01-172-4477
Technical Data | NSN 6645-01-172-4477
| Characteristic | Specifications |
|---|---|
| INDICATOR TYPE | DRUM REGISTER |
| MEASUREMENT UNIT | HOURS |
| MAXIMUM MEASUREMENT | 9999.00 |
| SMALLEST INCREMENT INDICATED | 1.00 |
| MARKING COLOR | WHITE |
| BACKGROUND COLOR | BLACK |
| RESET FEATURE | NOT PROVIDED |
| MOVEMENT TYPE | ELECTRICAL |
| ELECTRICAL MOVEMENT TYPE | MOTOR |
| CURRENT TYPE | DC |
| VOLTAGE RATING | 23.0 VOLTS MINIMUM AND 32.0 VOLTS MAXIMUM |
| TERMINAL QUANTITY | 2 |
| TERMINAL TYPE | SOLDER LUG |
| CASE MATERIAL | METAL |
| HERMETIC PROTECTION | PROVIDED |
| UNIT TYPE | MOUNTED |
| MOUNTING TYPE | FLANGE |
| MOUNTING METHOD | SEMIFLUSH |

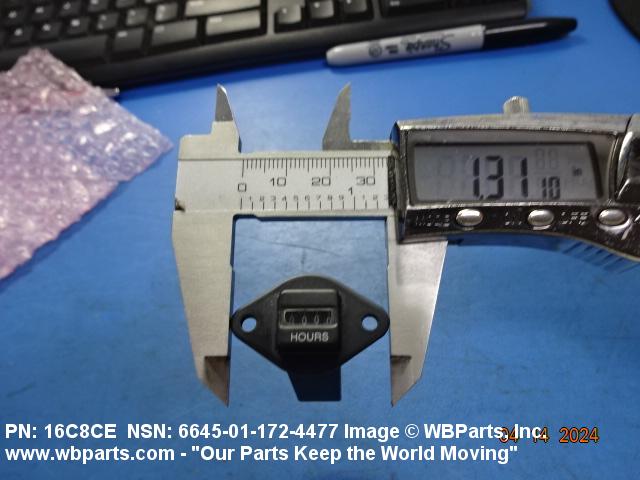

| MOUNTING FLANGE WIDTH | 1.312 INCHES NOMINAL |
| FLANGE HEIGHT | 0.890 INCHES NOMINAL |

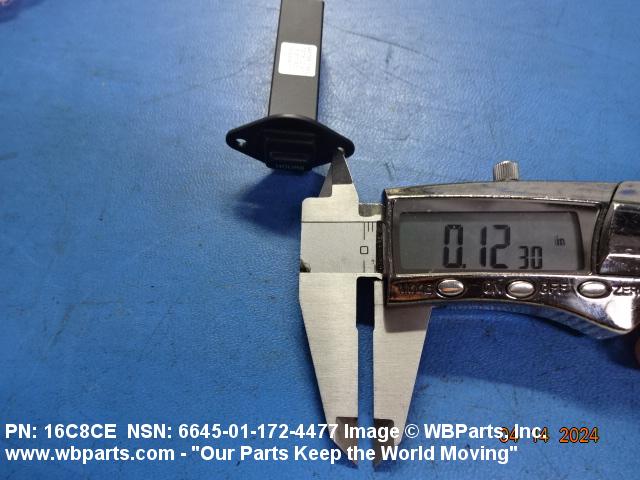

| MOUNTING CONFIGURATION | TWO 0.125 IN. HOLES SPACED 1.000 IN. C TO C ON FLANG WIDTH |
Restrictions/Controls & Freight Information | NSN 6645-01-172-4477
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 136740 | METERS ELEC/PARTS |
| Less than car load rating | J | 100.2 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 657 | unknown |
| Originating Activity Code | ZG | Germany ZH ZJ |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
