NSN 6645-00-988-4427 MS173212, MS17321-2, ES2552
Product Details | TIME TOTALIZING METER
6645-00-988-4427 An instrument that automatically measured, and cumulatively registers the total operating or idle time of any circuit, machine or system, to which it is connected. See METER, FREQUENCY AND TIME TOTALIZING, ELECTRICAL.
Part Alternates: MS173212, MS17321-2, ES2552 , 6645PL0792165 , 928C197P1, 10318784 , 16B8CD, 16B8CE, 16B8CE70, 19434571, 1943457-1, 458-1009-00, 6645-00-988-4427, 00-988-4427, 6645009884427, 009884427, 458100900
Instruments and Laboratory Equipment | Time Measuring Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 01 JAN 1962 | 00-988-4427 | 08066 ( METER, TIME TOTALIZING ) |

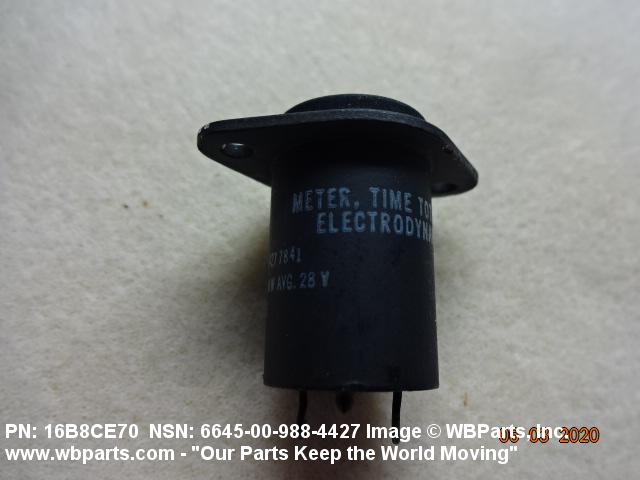

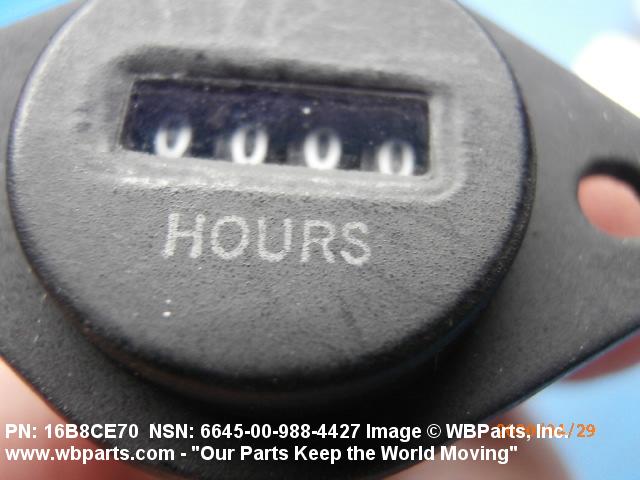

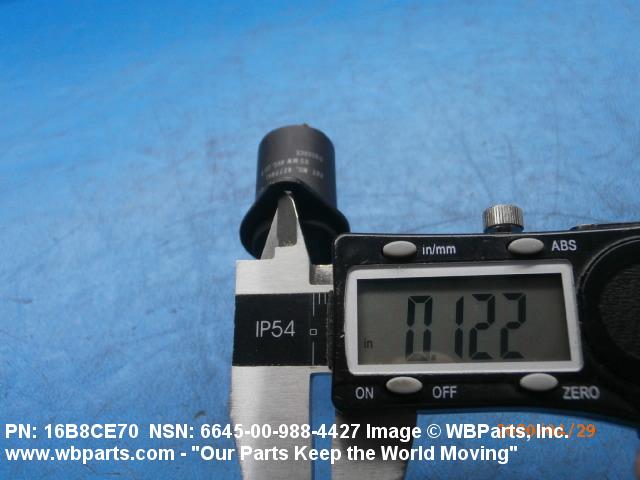

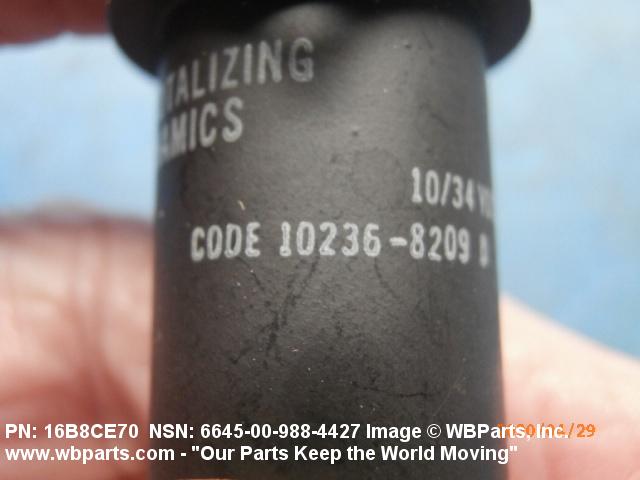

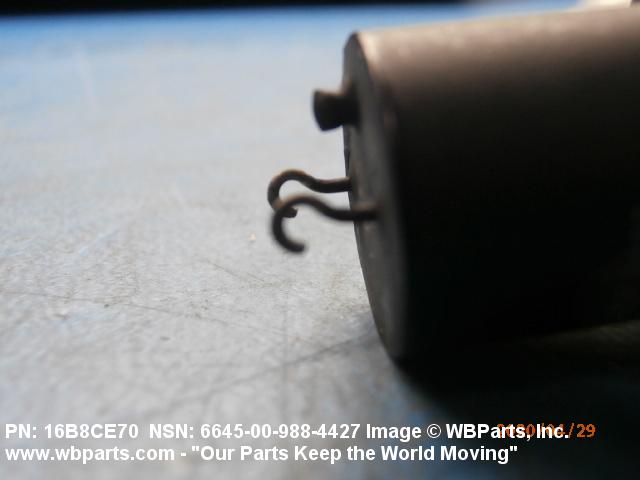

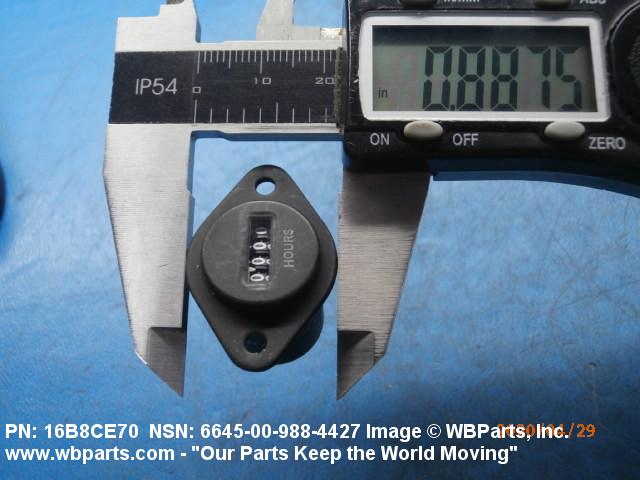

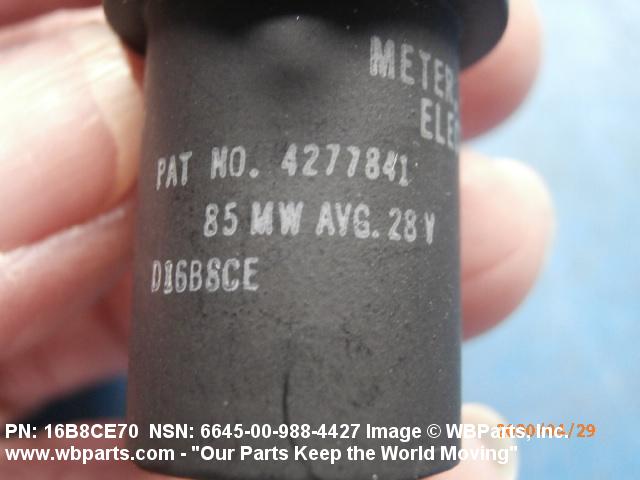

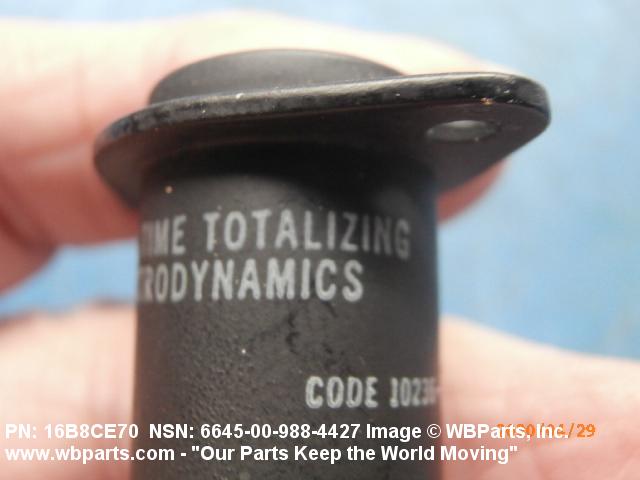

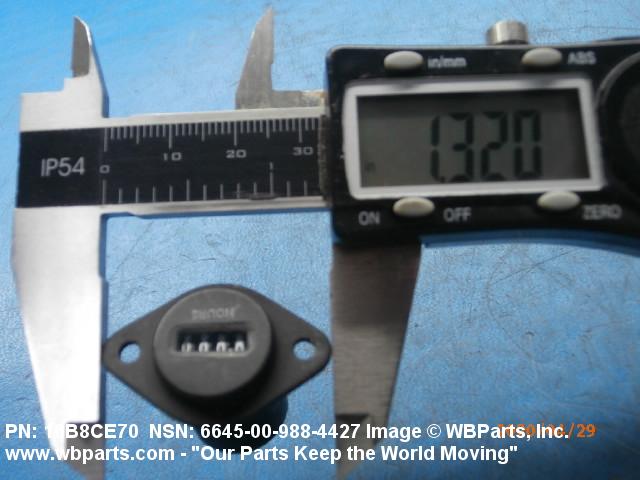

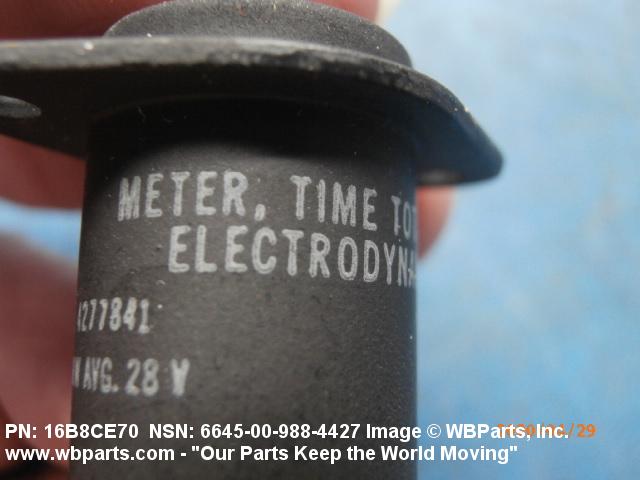

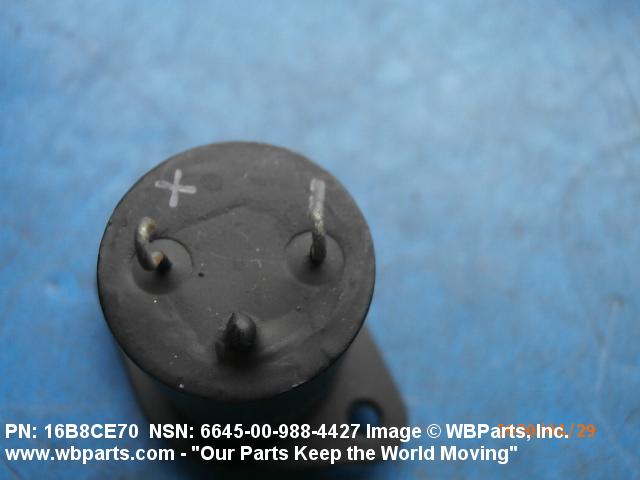

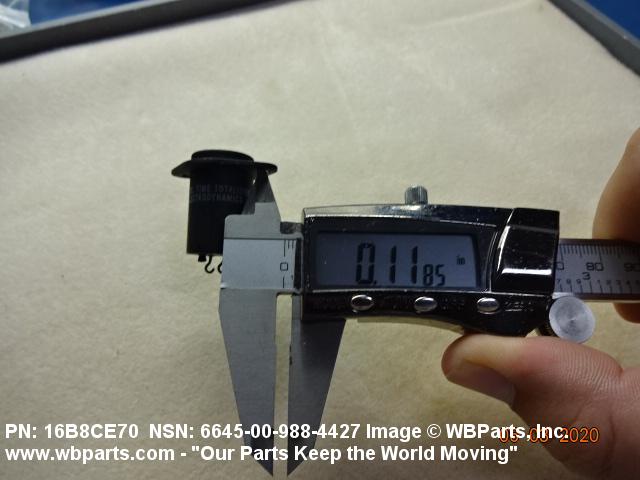

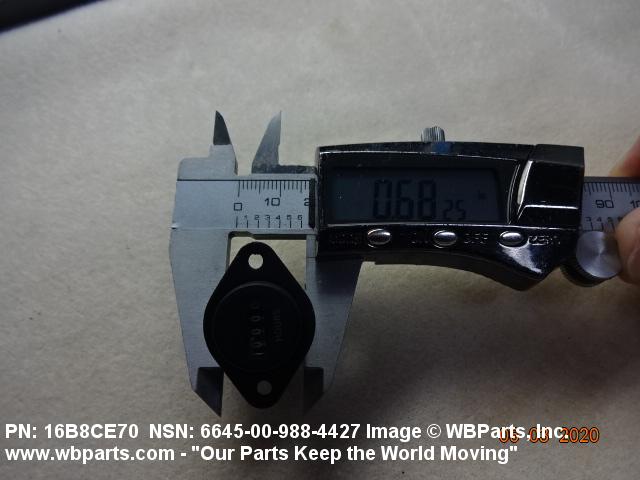

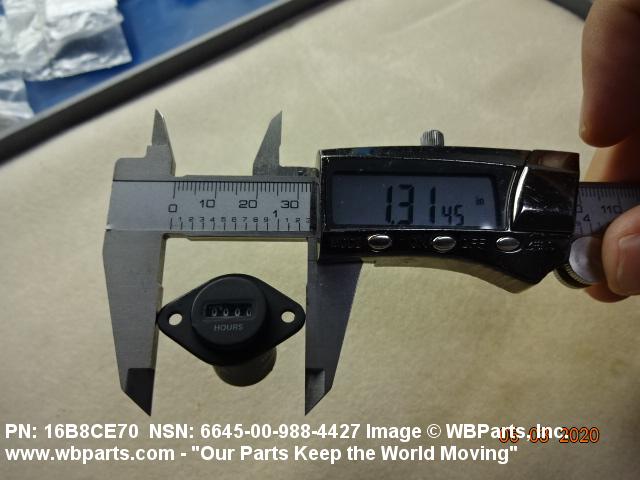

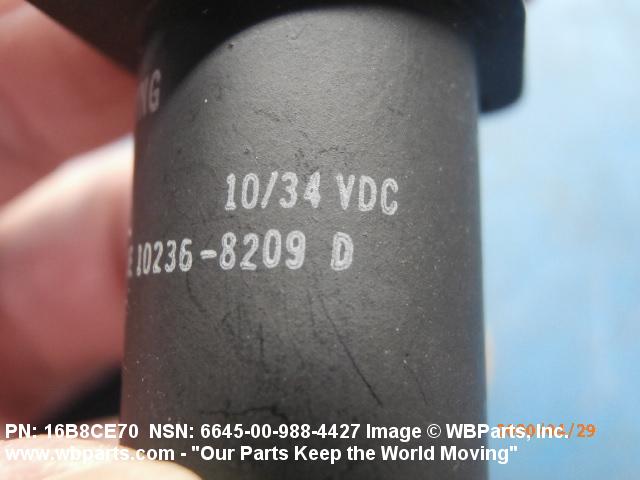

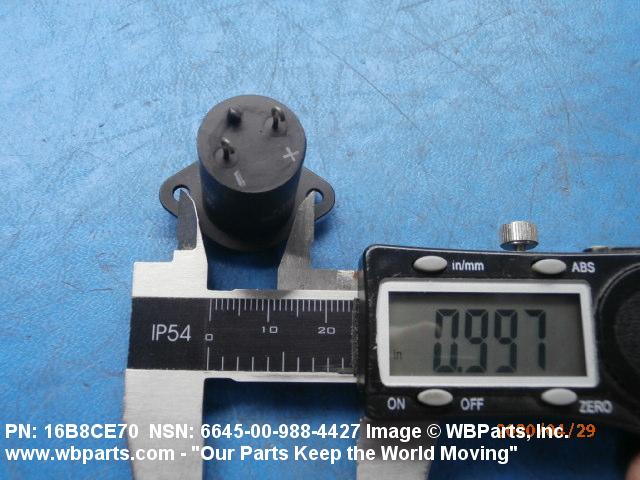

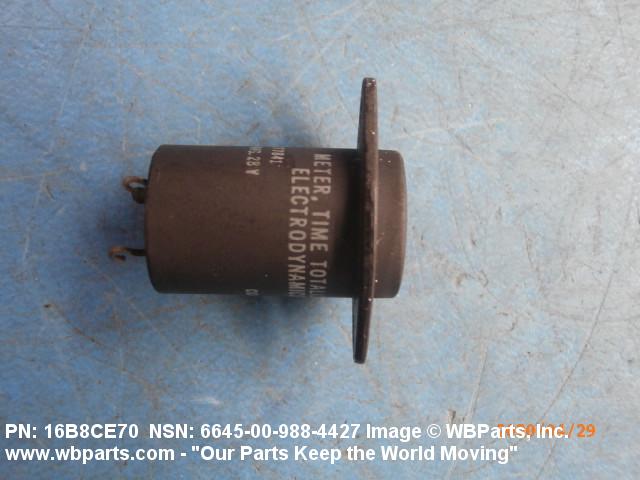

Drawings & Photos | NSN 6645-00-988-4427
Demand History | NSN 6645-00-988-4427
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6645-00-988-4427 | 2021-02-47 | 20 | BG |
| 6645-00-988-4427 | 2020-12-356 | 15 | United States |
| 6645-00-988-4427 | 2020-07-211 | 1 | United States |
| 6645-00-988-4427 | 2020-07-211 | 50 | United States |
| MS173212 | 2020-07-204 | 50 | US |
| 6645-00-988-4427 | 2020-05-147 | 11 | Spain |
| 6645-00-988-4427 | 2020-02-43 | 15 | Germany |
| 6645-00-988-4427 | 2019-12-336 | 50 | Turkey |
| 6645-00-988-4427 | 2016-09-250 | 50 | Germany |
| 19434571 | 2013-07-210 | 2 | US |
| 6645-00-988-4427 | 2011-01-25 | 33 | Turkey |
| MS173212 | 2011-01-20 | 33 | Turkey |
Cross Reference | NSN 6645-00-988-4427
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 16B8CD | 10236 | ELECTRODYNAMICS, INC. DBA L-3 COMMUNICATIONS |
| 16B8CE | 10236 | ELECTRODYNAMICS, INC. DBA L-3 COMMUNICATIONS |
| 16B8CE70 | 10236 | ELECTRODYNAMICS, INC. DBA L-3 COMMUNICATIONS |
| 1943457-1 | 19315 | HONEYWELL INTL INC DEFENSE AVIONICS SYSTEMS FORMER BENDIX NAVIGATION AND |
| 1943457-1 | 55974 | HONEYWELL INTL INC DEFENSE AVIONICS SYSTEMS |
| 458-1009-00 | 13499 | ROCKWELL COLLINS, INC. DBA GOVERNMENT SYSTEMS |
| 6645PL0792165 | 9009H | INSPEKTORAT WSPARCIA SIL ZBROJNYCH |
| 928C197P1 | 89954 | BAE SYSTEMS CONTROLS INC. |
| ES2552 | 20418 | DRS SUSTAINMENT SYSTEMS, INC. Use CAGE Code 98255 for cataloging |
| ES2552 | 98255 | DRS SUSTAINMENT SYSTEMS, INC. |
| MS17321-2 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6645-00-988-4427
Related Products | NSN 6645-00-988-4427
Technical Data | NSN 6645-00-988-4427
| Characteristic | Specifications |
|---|---|

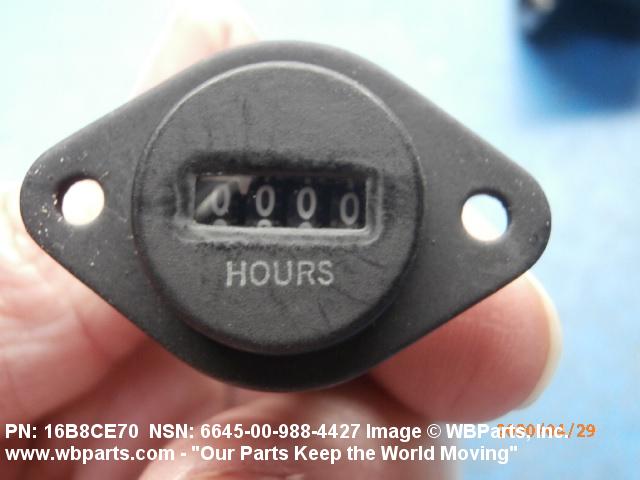

| INDICATOR TYPE | DRUM REGISTER |
| MEASUREMENT UNIT | HOURS |
| MAXIMUM MEASUREMENT | 10000.00 |
| SMALLEST INCREMENT INDICATED | 1.00 |
| MARKING COLOR | WHITE NUMERALS |
| BACKGROUND COLOR | BLACK |
| RESET FEATURE | NOT PROVIDED |
| MOVEMENT TYPE | ELECTRICAL |
| ELECTRICAL MOVEMENT TYPE | SYNCHRONOUS MOTOR |
| CURRENT TYPE | DC |
| VOLTAGE RATING | 28.0 VOLTS NOMINAL |
| TERMINAL QUANTITY | 2 |
| TERMINAL TYPE | SOLDER LUG |
| CASE MATERIAL | METAL |
| HERMETIC PROTECTION | PROVIDED |
| UNIT TYPE | MOUNTED |
| MOUNTING TYPE | PANEL |
| MOUNTING METHOD | SEMIFLUSH |
| MOUNTING FLANGE WIDTH | 1.310 INCHES NOMINAL |

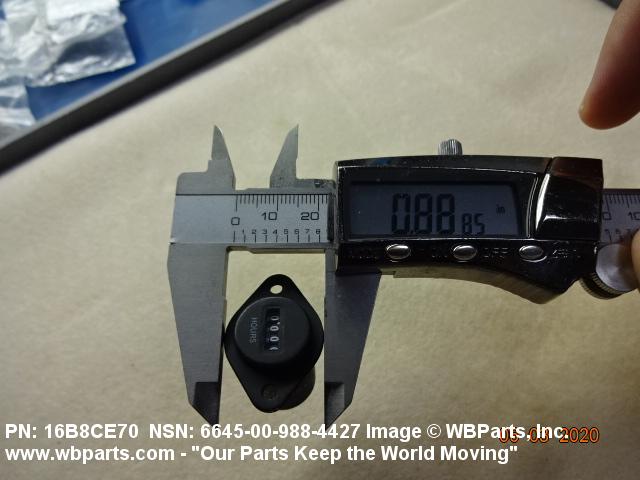

| FLANGE HEIGHT | 0.875 INCHES NOMINAL |

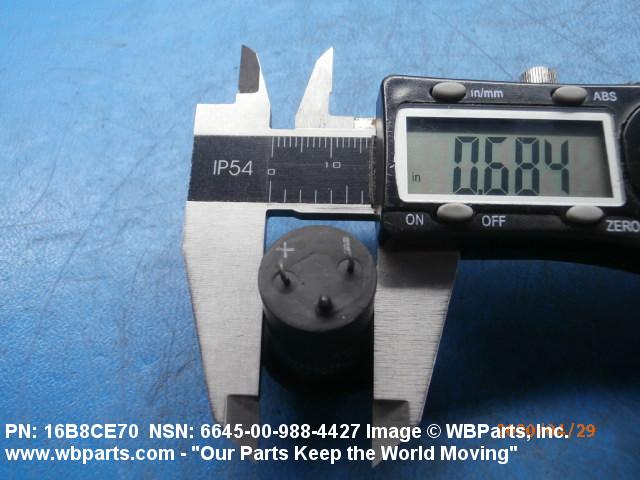

| BODY DIAMETER | 0.680 INCHES NOMINAL |
| BODY DEPTH | 1.895 INCHES NOMINAL |
| MOUNTING CONFIGURATION | TWO 0.125 IN. DIA MTG HOLES SPACED 1.000 IN. C TO C |
| NONDEFINITIVE SPEC/STD DATA | MS17321-2 TYPE |
Restrictions/Controls & Freight Information | NSN 6645-00-988-4427
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 136740 | METERS ELEC/PARTS |
| Less than car load rating | J | 100.2 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 657 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6645-00-988-4427
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9G | Navy-owned stocks of defense general material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9G | Defense Supply Center Richmond Richmond, VA 23297 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
